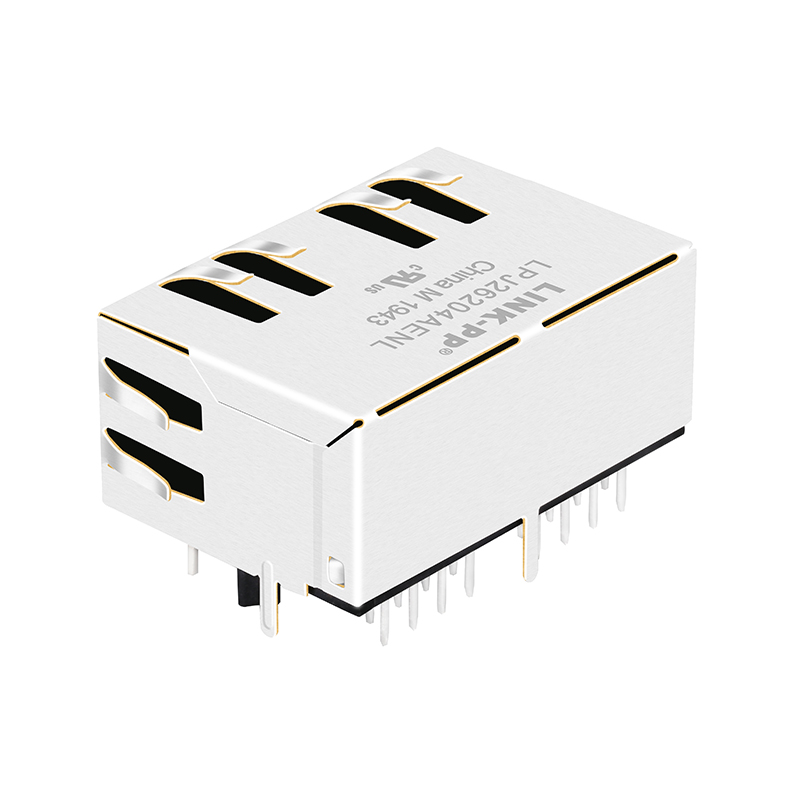

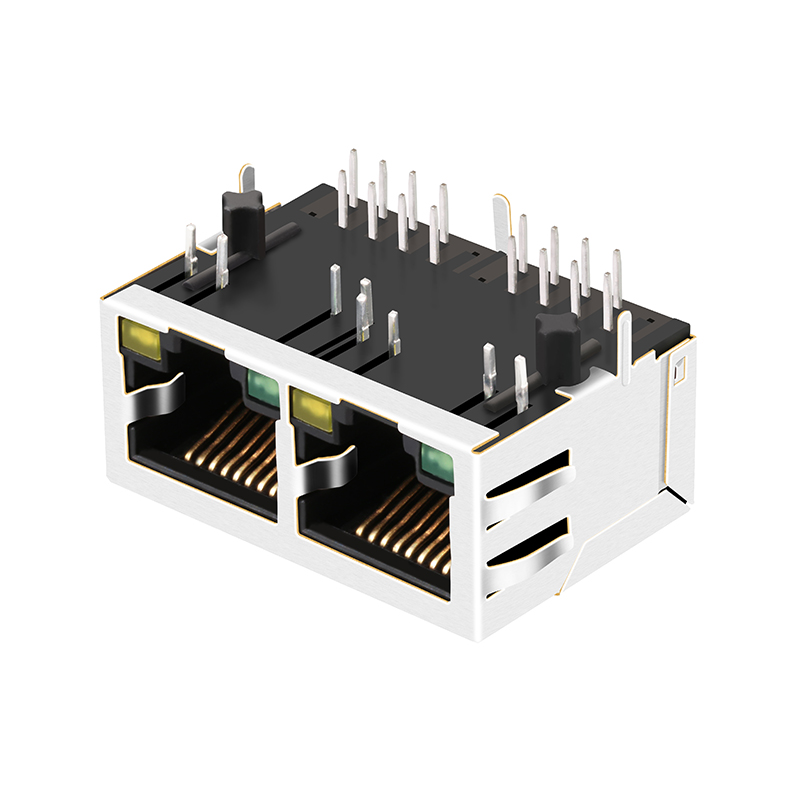

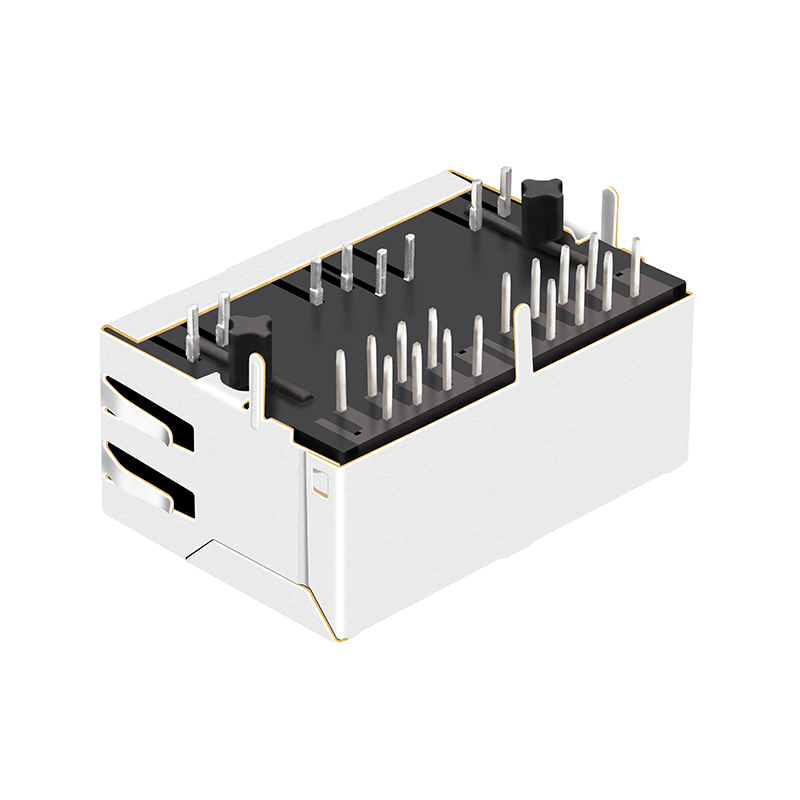

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
1 / 5
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector
LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

LPJ26204AENL Tab Down 100 Base-T 1x2 Port RJ 45 Magnetic Jack Ethernet RJ45 Female Connector

Send Inquiry

Product Description

Product Gallery

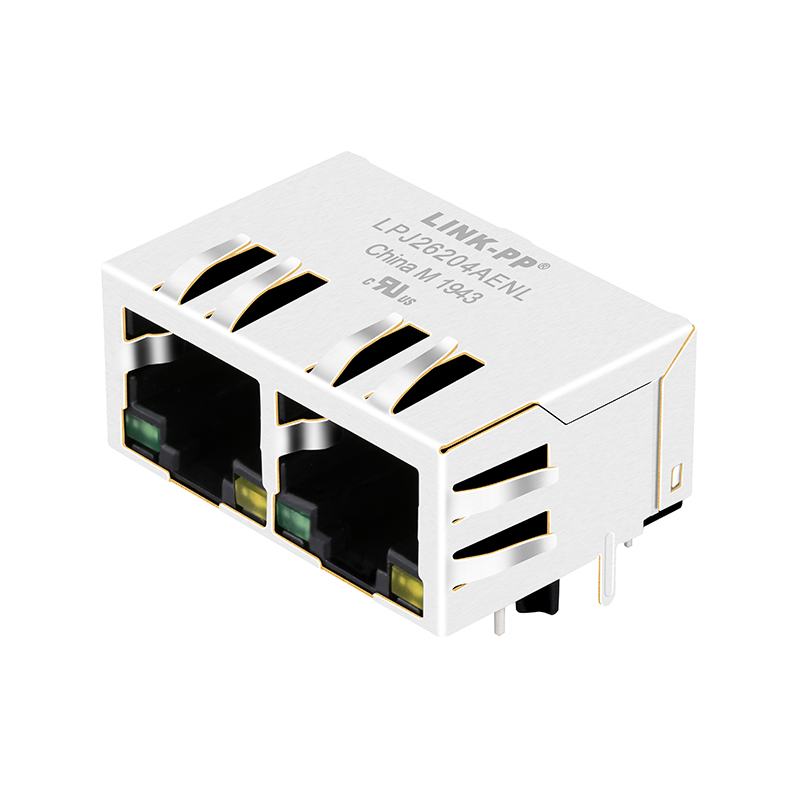

RJ45 Connector View 1

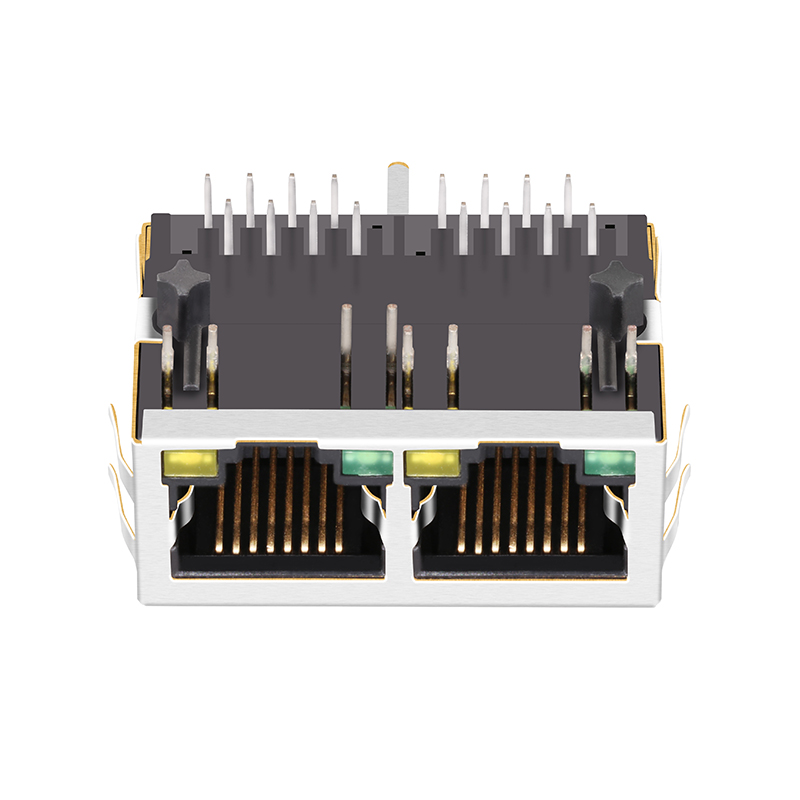

RJ45 Connector View 2
RJ45 Connector View 3
Technical Specifications
Specifications Parameter Value Details
Model Number LPJ26204AENL
Part Status Active
Connector Type RJ45
Applications-Lan 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green / Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Number of Ports 1x2 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery Details
Standard Packaging Details:
• Packaging Format: Tray
• Carton Dimensions: 37 * 30 * 30 cm
• Gross Weight: 9 kg per carton
• Total Quantity: 600 pcs per carton (SPQ: 30 pcs)
• Unit Weight: 0.015 kg per piece
Packaging Illustration
Applications & Key Features
10 / 100 / 1000 / 2.5G / 5G / 10G Base-T 1xN Port RJ45 Connector
  • Optimal performance in harsh environments with operating temperatures from -40 °C to +85 °C.
  • Highly compatible with major Industrial Ethernet networks including EtherCAT and Profinet.
  • Compliant with mainstream Ethernet ICs utilized by manufacturers like Microchip, Broadcom, and Marvell.
  • Ideally suited for Hubs, Routers, Network Switches, IP Cameras, and diverse IoT applications.
Connector Application Standard
Manufacturing Facility & Quality Control
Factory Machine View 1
Factory Production Line
Quality Inspection Station
Warehouse Overview
Assembly Process
Testing Equipment
Certificates and Standard Verification
Frequently Asked Questions
1. What is our core manufacturing expertise?
We specialize in the research, design, and manufacturing of magnetic telecom and networking components. Certified by ISO9001:2000, RoHS, REACH, CE, and UL, we maintain advanced production lines and imported testing facilities to deliver professional magnetic components and technical solutions.
2. How do you guarantee the quality of your networking components?
Quality is secured through a robust quality control protocol: we always deliver a verified pre-production sample before launching mass manufacturing and run 100% testing and final inspections before packaging and shipping.
3. Which products can I procure from your inventory?
We design and manufacture a wide range of components including RJ45 Magnetic Connectors, LAN Transformers, Modular Jacks, and RJ11 Connectors.
4. Why should we purchase from you rather than other suppliers?
With over 19 years of dedicated manufacturing experience in RJ45 connectors and LAN transformers, we hold certifications from SGS, ISO9001:2008, UL, REACH, and CE. Our massive production capacity guarantees quick lead times and flexible manufacturing schedules.
5. What delivery terms and payment currencies do you support?
We accept versatile delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery. Supported transaction currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF via T/T, L/C, Credit Card, PayPal, or Western Union.
6. Which applications are your products compatible with?
Our components are widely deployed in global networking and telecommunication setups, including HUBs, PC mainboards, network switches, routers, SDH/PDH platforms, IP phones, and xDSL modems.
