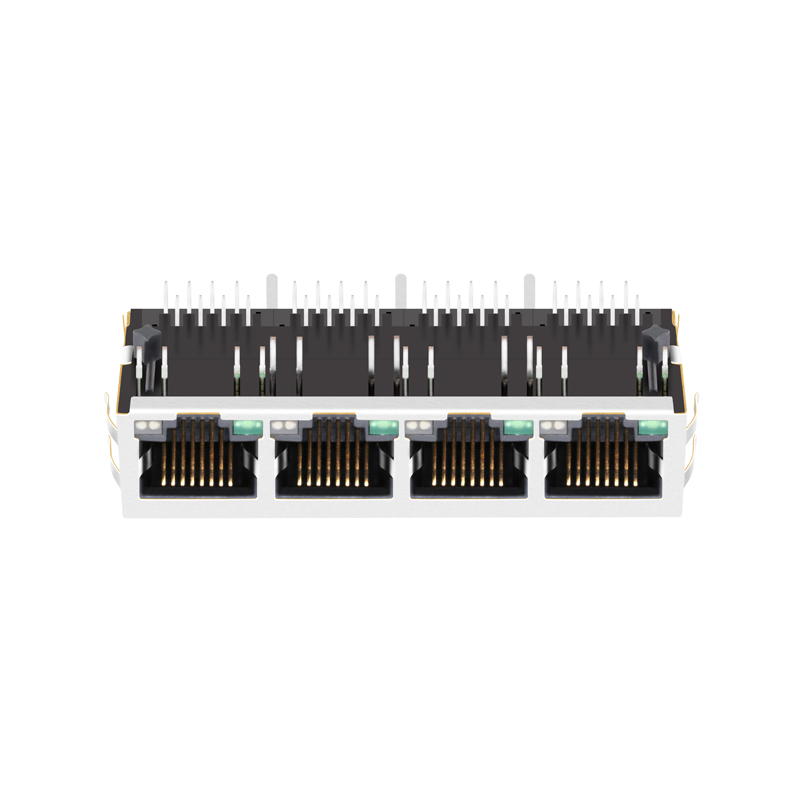

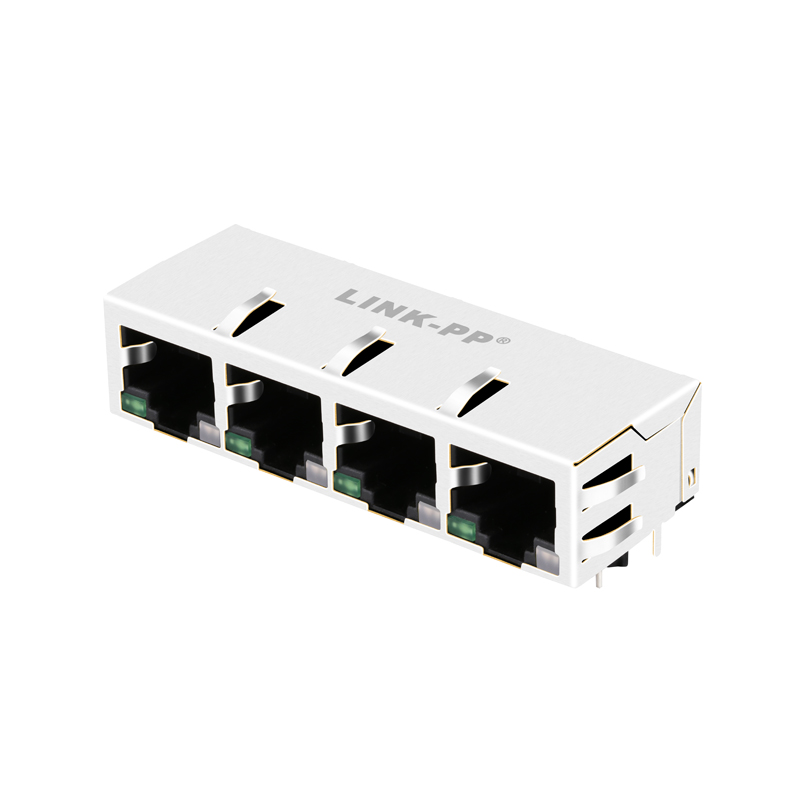

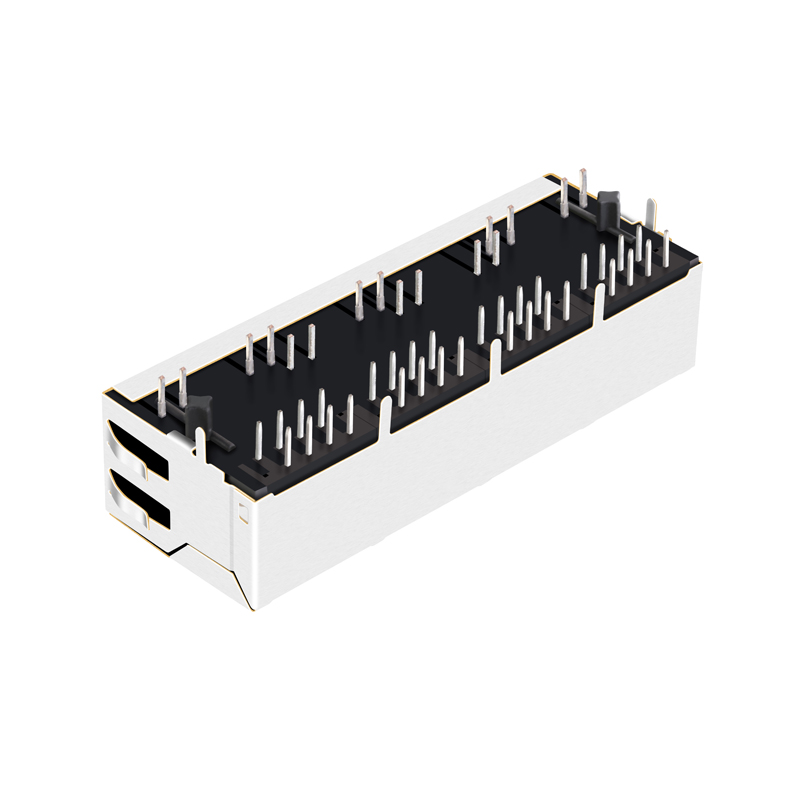

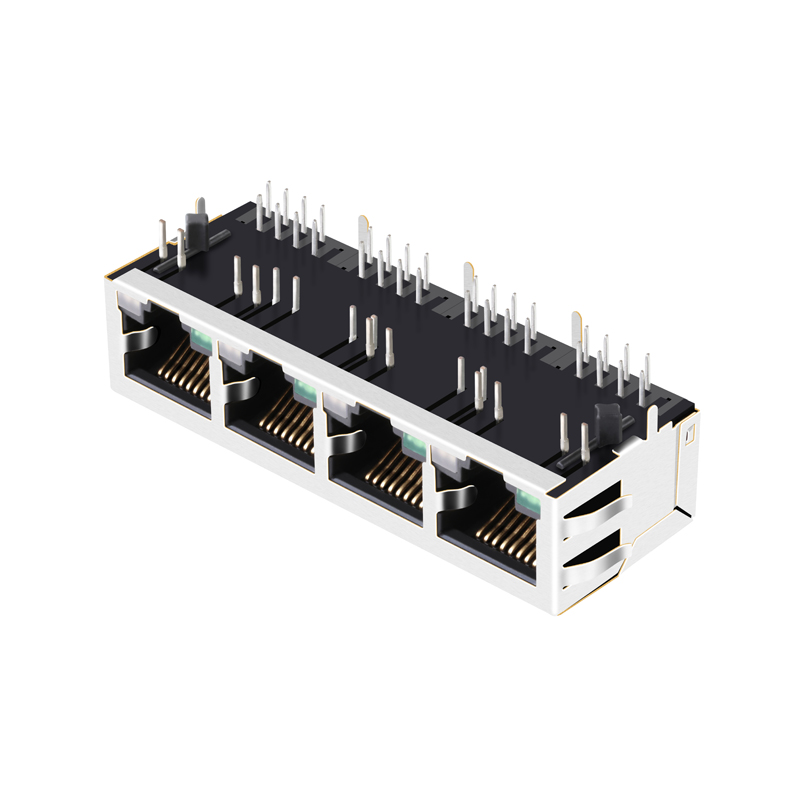

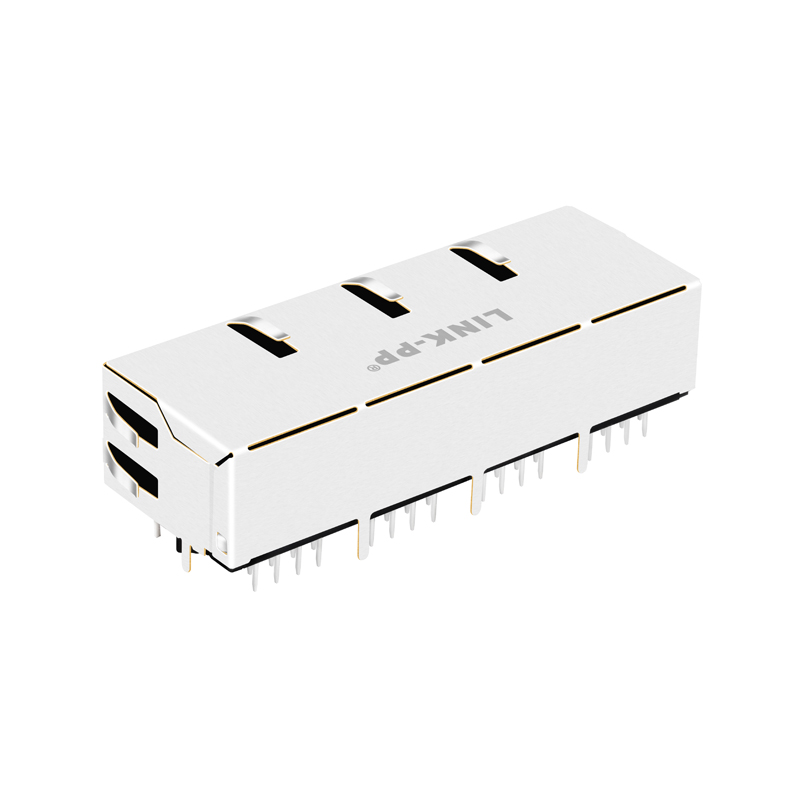

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Part Number	5-6610068-7
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	GREEN/GREEN&ORANGE
Latch	UP
Number of Ports	1X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH OR WITHOUT
Speed	1000 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

What is the speed specification of this modular jack?

This modular jack supports Gigabit Ethernet transmission speeds up to 1000 BASE-T.

What is the port configuration of part 5-6610068-7?

It is a 1X4 multi-port configuration (1 row of 4 ports) featuring a Tab-Up latch structure.

What are the available operating temperature ranges?

The connector supports standard operating temperatures of 0 to 70°C and extended industrial ranges of -40 to 85°C.

What LED indicators options are available with this model?

It comes configured with Green/Green & Orange LED indicators to signal active link statuses.

Is this RJ45 connector RoHS compliant?

Yes, the connector is RoHS-5 compliant with a lead-in-solder exemption policy.

What are the contact mating area plating options?

The contact mating area is plated with high-quality gold, available in choices of 6u", 15u", 30u", or 50u".
