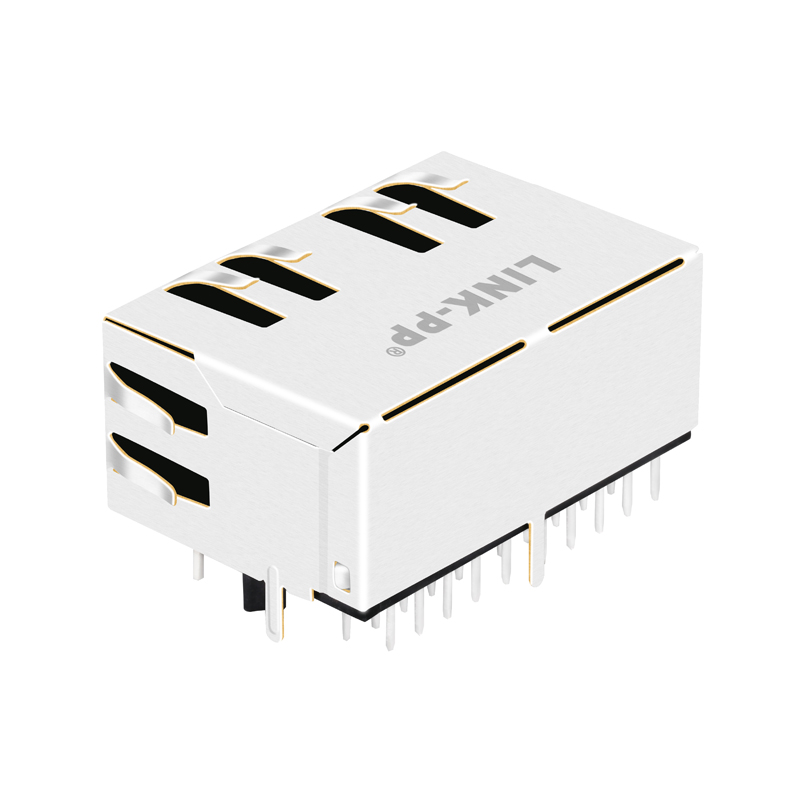

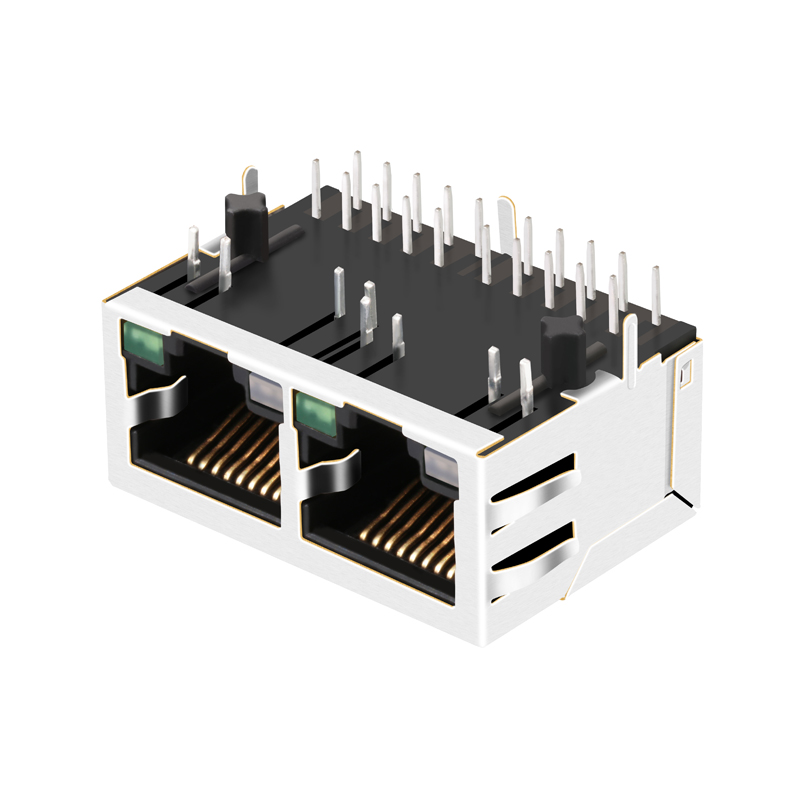

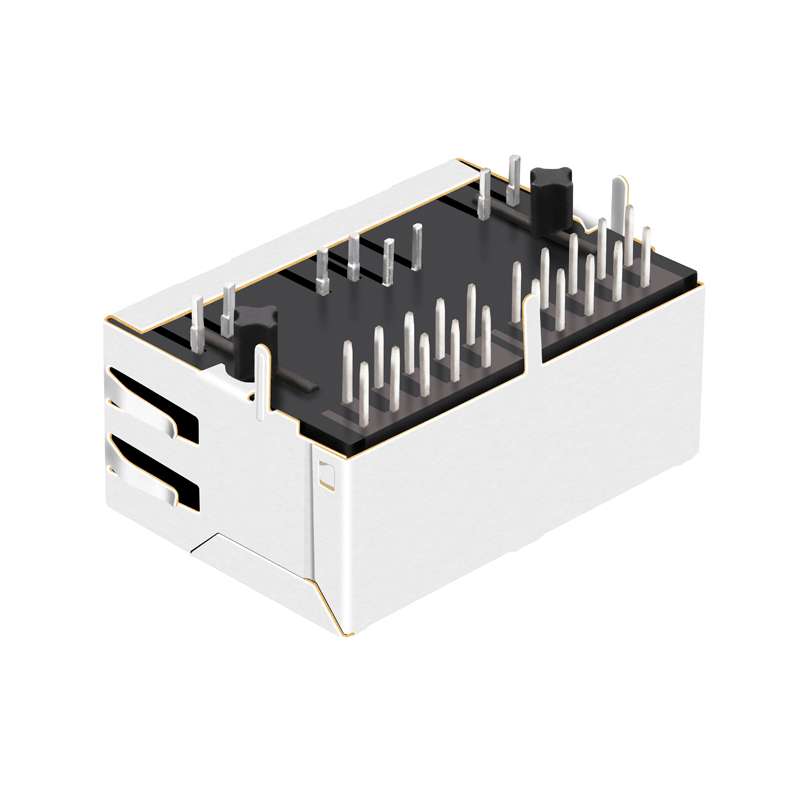

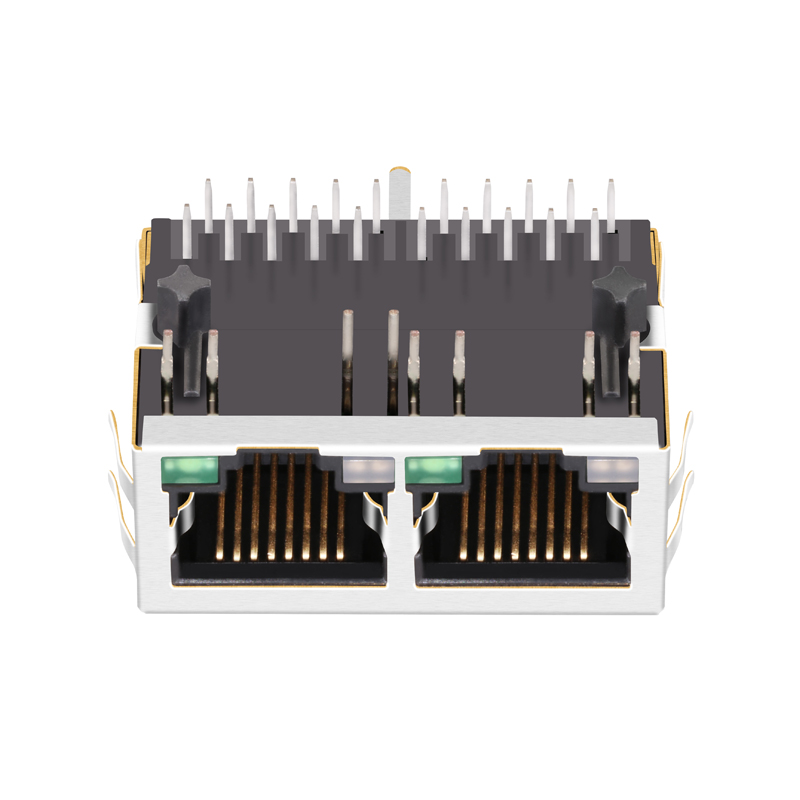

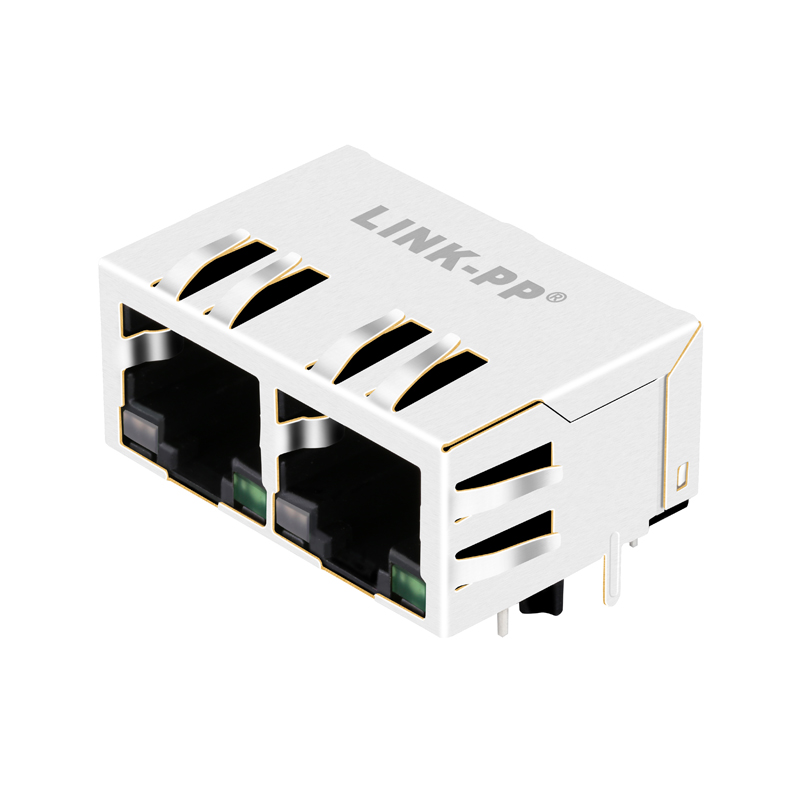

| Item | RJ45 Female Connector |
| Compatible With | 1840619-1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
1Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production orders.
4What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
5Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your custom requirements.
6What is your advantage?
We have 19 years of professional production experience and have been a trusted partner of Intel and Jabil for many years.
