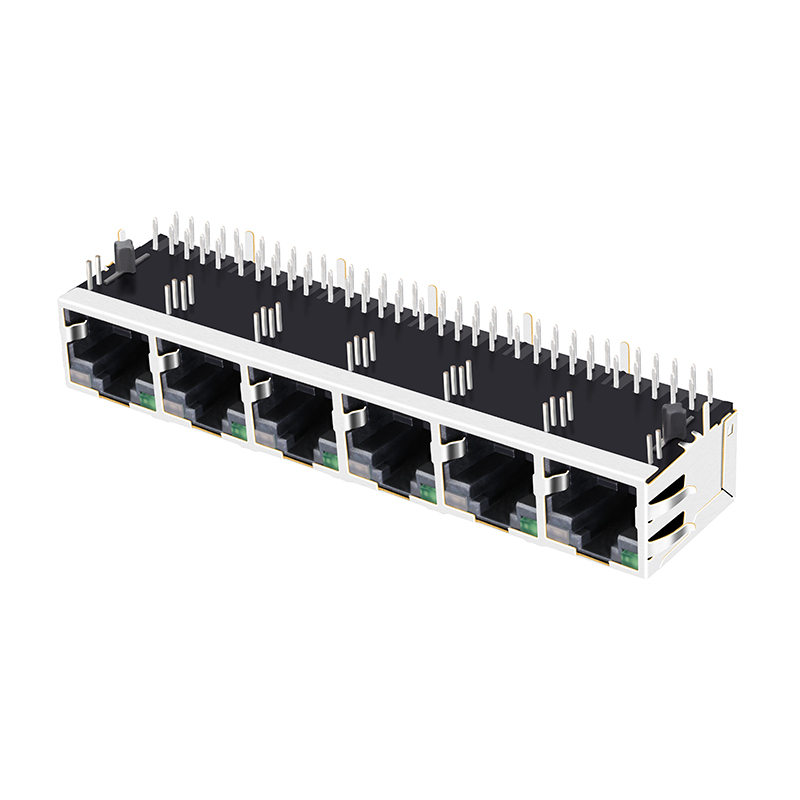

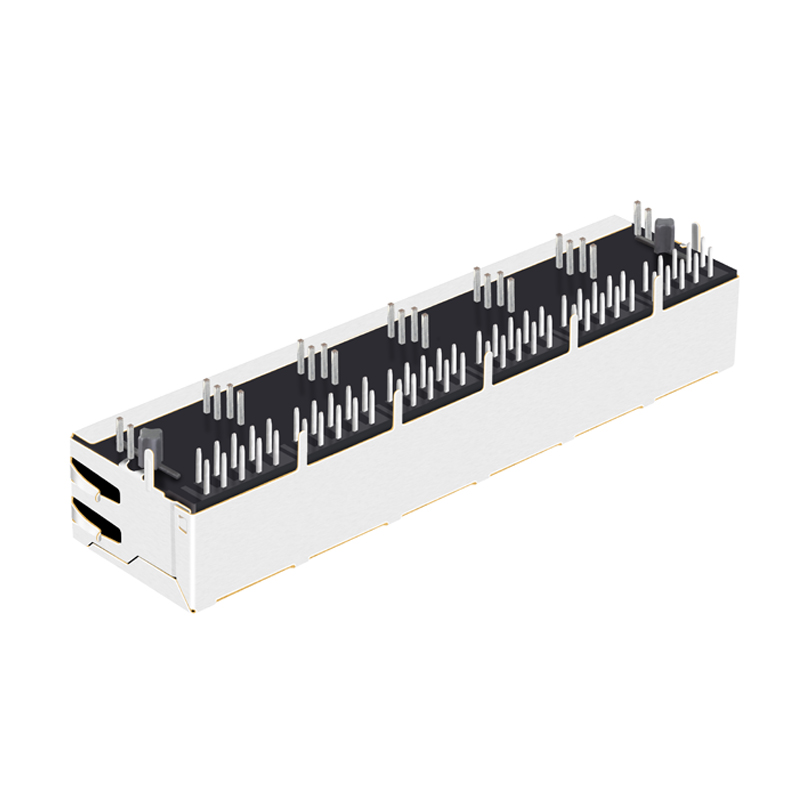

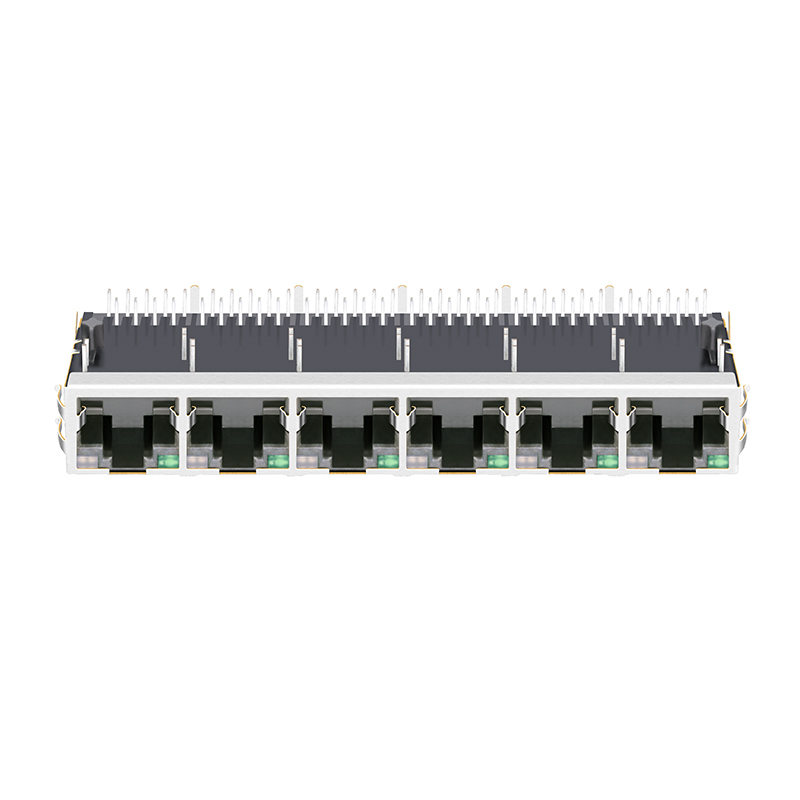

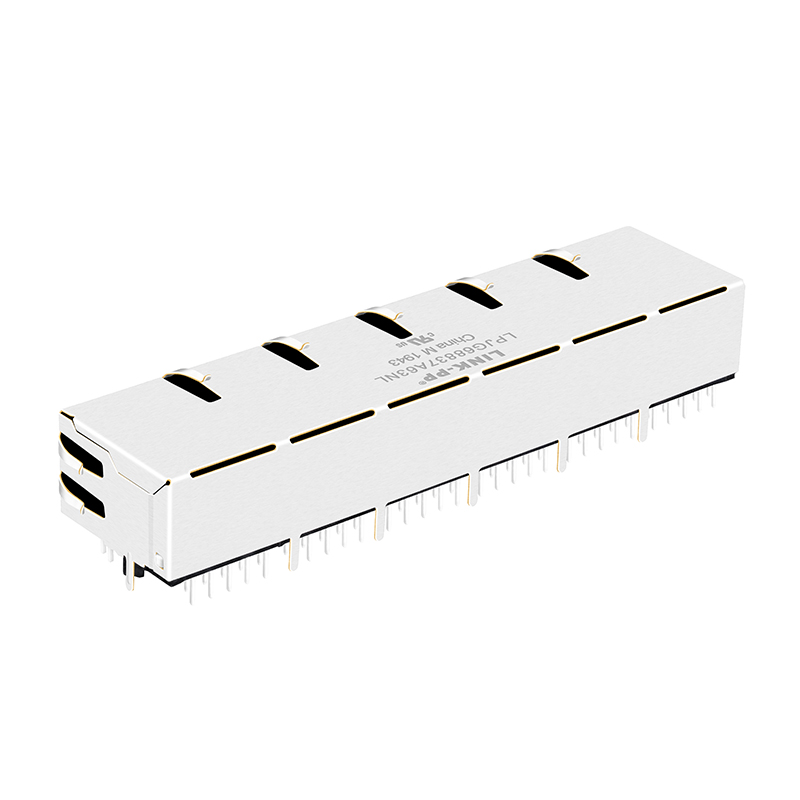

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
1 / 5
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Send Inquiry

Product Description

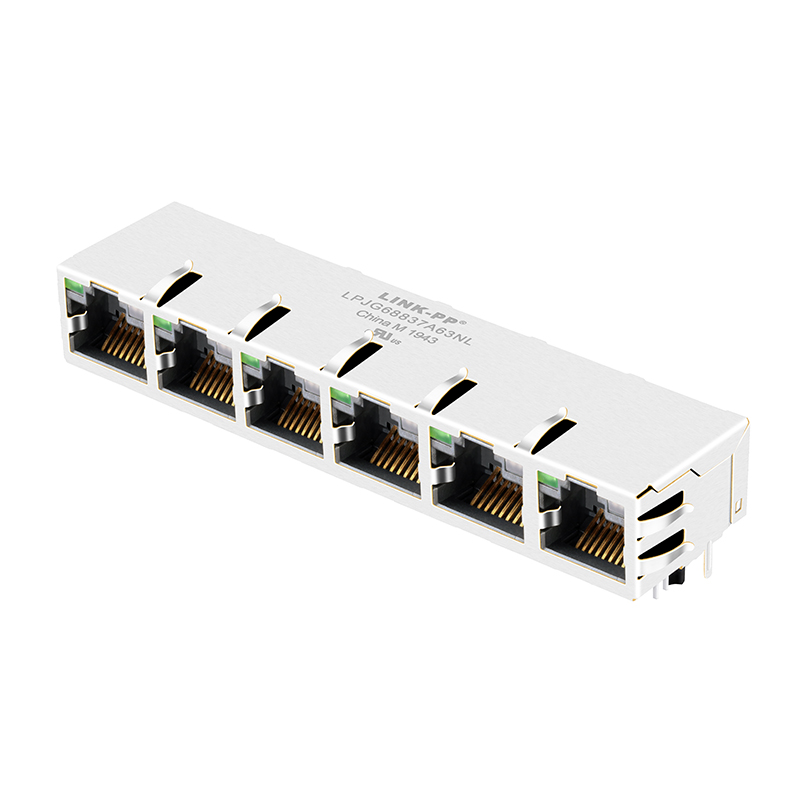

Product Image 1
Product Image 2
Specification
Item Value
Part Number LPJG68837A63NL
Alternative Part Number JG0-0070NL
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(Non_PoE)
Speed 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green/Green&Orange Led
Number of Cores per Jack 8
Shielding Shielded, Emi Finger
Number of Ports 1x6 Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Product Details & Dimensions
Drawing 1
Drawing 2
Drawing 3
Drawing 4
Drawing 5
Drawing 6
Drawing 7
Drawing 8
Drawing 9
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components as well as strong technical support. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
FAQ
Q1: Are you a manufacturer or trade company?
A: We are a manufacturer that specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples?
A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM service available?
A: Yes. We have rich experience and good capability to translate your design and requirements into final products. We can custom laser print on the components.
Q4: How about the lead time?
A: We maintain highly optimized production processes. Standard production shipments are usually completed within 30 days.
Q5: What quality standards do your products follow?
A: All components comply with global standards and carry ISO9001:2000, RoHS, REACH, CE, and UL certifications.
Q6: What is the operating temperature range for these RJ45 connectors?
A: The standard operating temperature ranges from 0°C to 70°C, making them highly reliable for commercial-grade network equipment.
