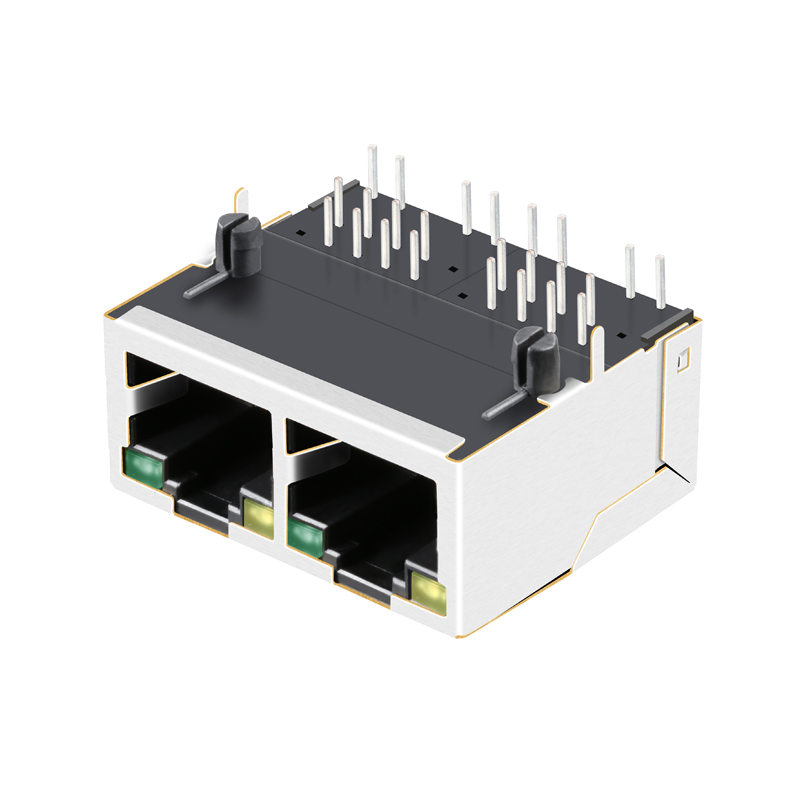

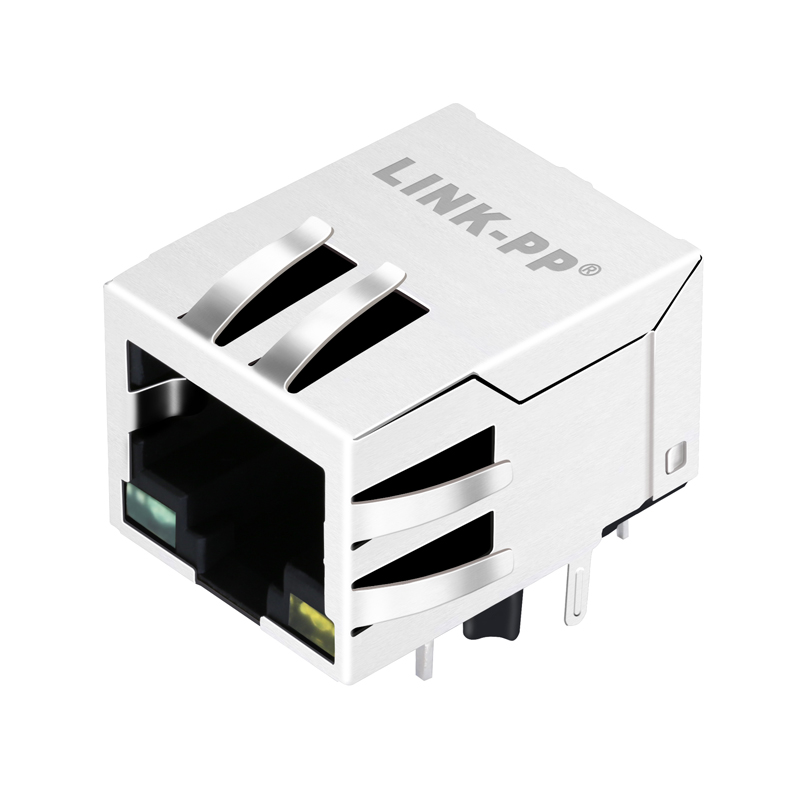

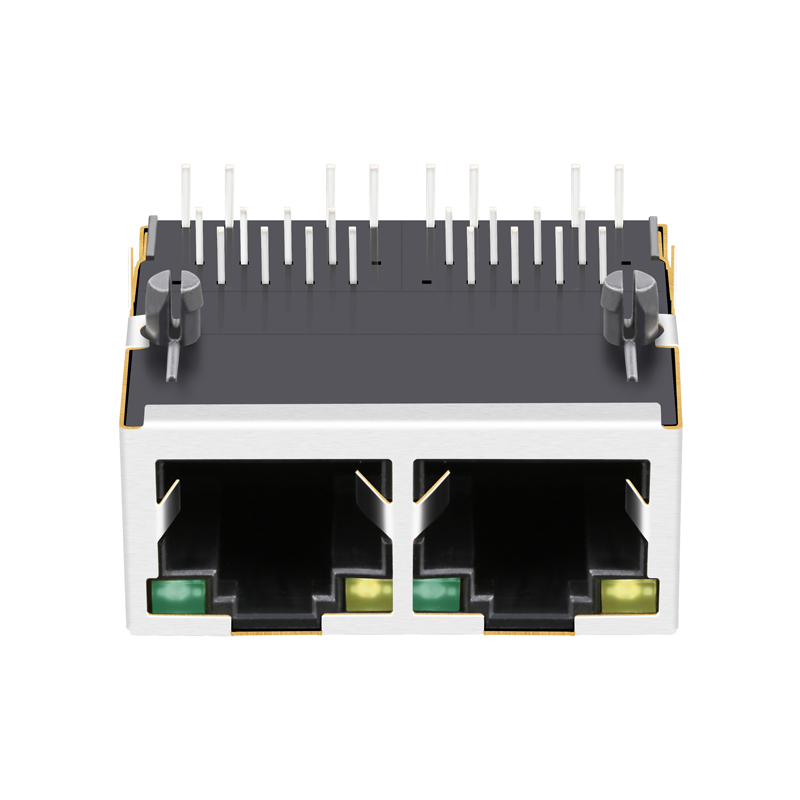

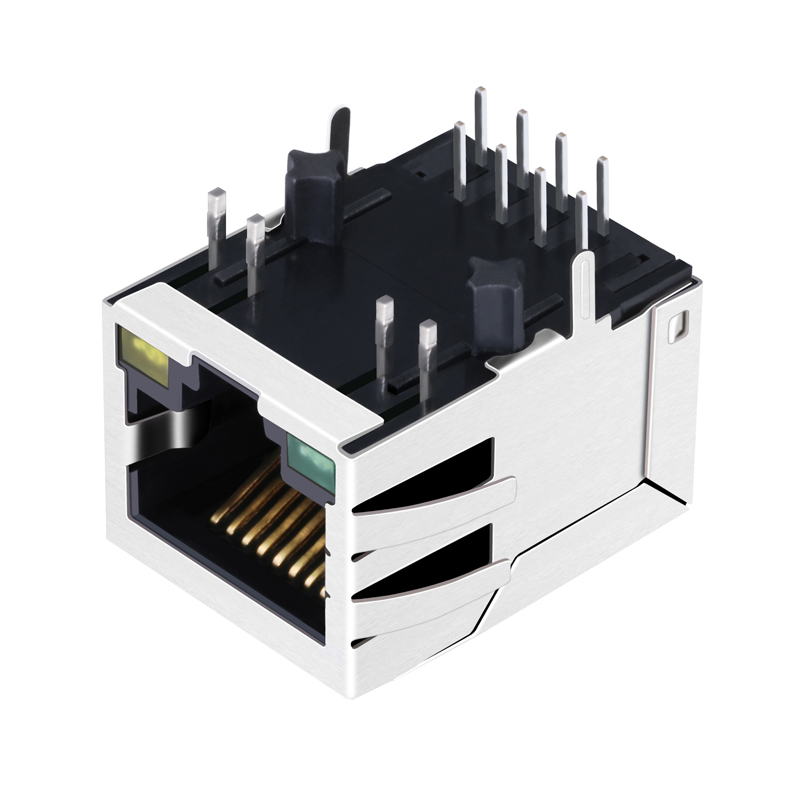

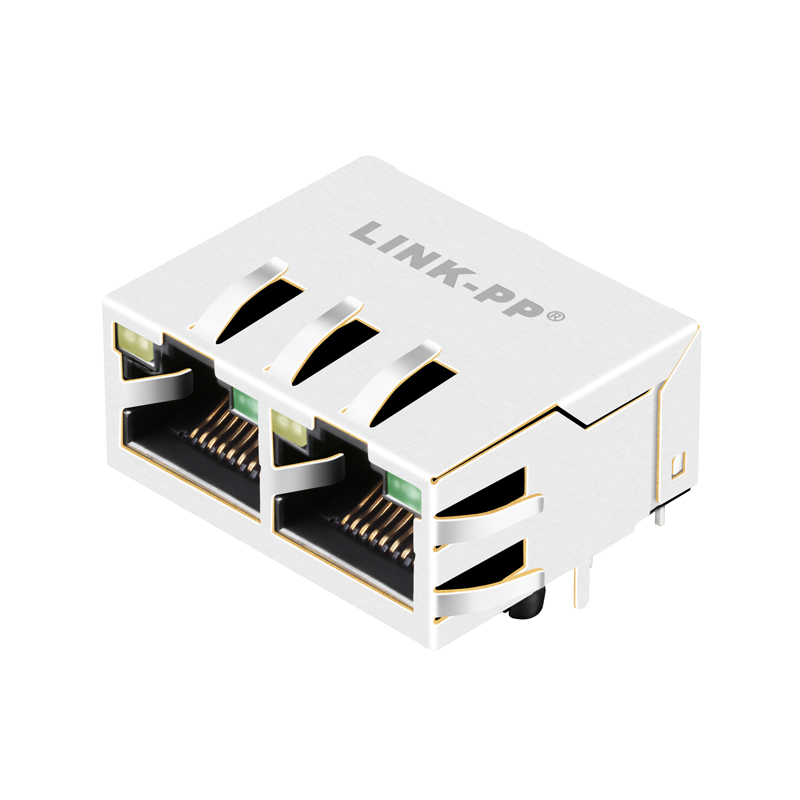

PCB Board for RJ45 Connector 8p8c Socket 0899-1X1R-Y6

Product Description

RJ45 Connector Application
RJ45 Socket Overview

PCB Board For RJ45 Connector 8p8c Socket 0899-1X1R-Y6

Products Description

Item RJ45 Female Connector
Bothhand Part Number 0899-1X1R-Y6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up/Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Single Port RJ45 Connector Types
Lan Transformer Specifications

Send Inquiry To Get Latest Price List

Connector Detailed View 1

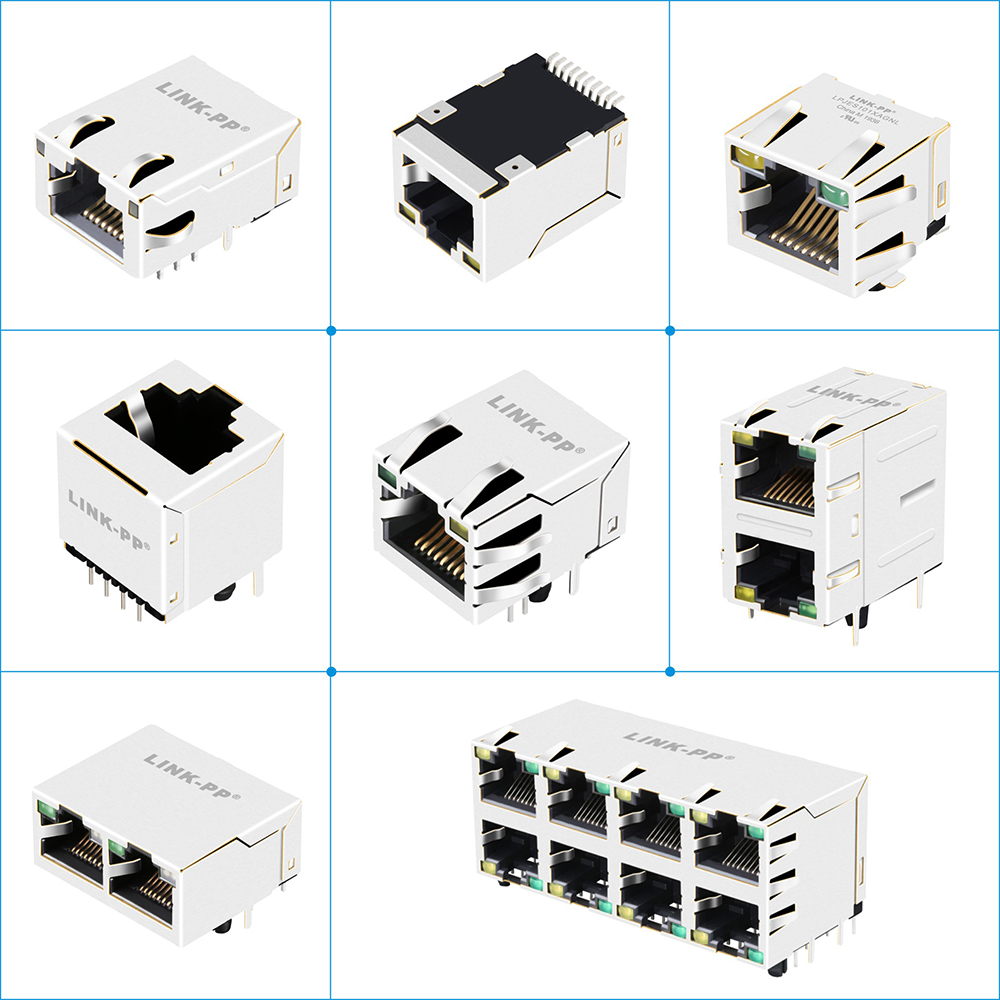

Connector Detailed View 2
Connector Detailed View 3
Technical Drawing Dimensions

Why Choose Us

Advanced Production Line
Quality Inspection Facility
Reliable Testing Labs
Certificates and Compliance

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support. Main Products include: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, covering major global markets. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for unique customer requirements. We trust that our strength in the field and our commitment to high quality will make us your long-term partner.
Manufacturing Warehouse
Corporate Headquarters Office
Precision Assembly Process
Quality Management System

FAQ

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

2. Can I get a sample before mass production?

Yes, we can offer free samples to test quality, with the shipping cost covered by the buyer.

3. What is your delivery time?

We have items ready to ship for stock, and it takes 15-30 days for mass production orders.

4. What after-sales service do you provide?

We offer a one-year warranty period and 24-hour online technical support.

5. Do you accept OEM/ODM orders?

Yes, please send us your requirements, and we will be happy to discuss details with you.

6. What are your key advantages?

We have over 19 years of manufacturing experience and maintain long-term partnerships with leading global technology brands.
