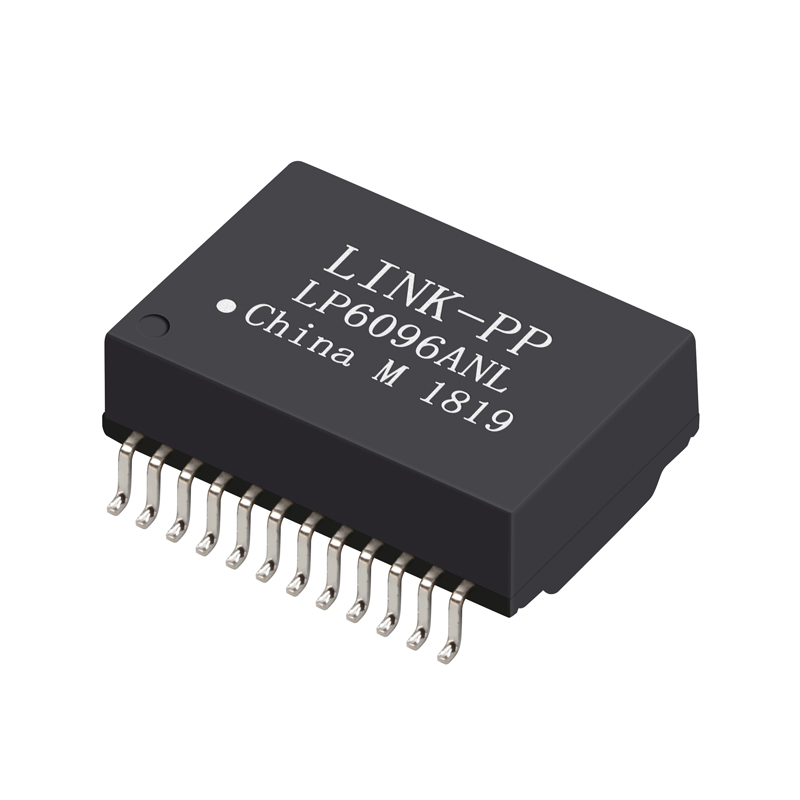

PoE+ 1000 BASE-T Single Port Network Transformer Modules LP6096ANL

Product Description

Network Components Showcase
PoE+ 1000 BASE-T Single Port Network Transformer Modules LP6096ANL
Products Description
Item Lan Transformer
Replaceable Brand Model LP6096ANL
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-T
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0°C To 70°C / -40°C To 85°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel

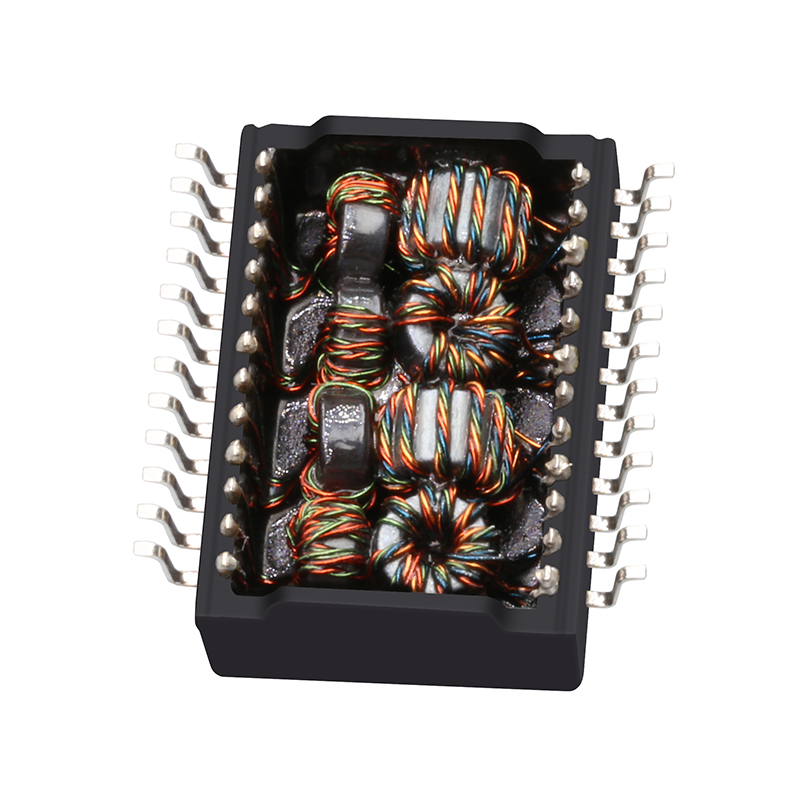

Lan Transformer Closeup 1 Lan Transformer Closeup 2 Lan Transformer Closeup 3 Lan Transformer Closeup 4 Lan Transformer Closeup 5
Dimensional Drawing
Schematic Diagram
Why Choose Us
Quality Standard Assurance Advanced Testing Equipment Automated Production Lines Global Supply Chain Service
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our facilities feature advanced manufacturing components and test equipment imported from abroad. Established in 1997, we have approximately 2,000 staff members. With an abundant production capacity of 3,000K units per month, we deliver goods within short lead times. Moreover, we provide professional, complete solutions for magnetic components alongside strong technical support.

Our main product lines include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with integrated 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. These products are widely used in networking and communication equipment such as HUBS, PC cards, switches, routers, PC mainboards, SDH, PDH, IP phones, and xDSL modems. We export to more than 30 countries and regions worldwide, serving clients in Germany, France, England, USA, Singapore, Korea, Canada, Japan, and other markets.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing excellence will make us your long-term partner.

Production Workshop Testing Department Quality Management Storage and Logistics
FAQ

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, though the shipping fee must be paid by the customer.

What is your delivery time?

Stock items are ready to ship immediately, while mass production orders generally require 15 to 30 days.

What after-sales service do you offer?

We offer a one-year warranty period and provide 24-hour online technical support.

Can you accept OEM/ODM orders?

Yes, we accept custom orders. Please send your specifications to us so we can discuss the details.

What is your core advantage?

We bring over 19 years of dedicated manufacturing experience, acting as a trusted supplier for major global electronics corporations and EMS partners.
