Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

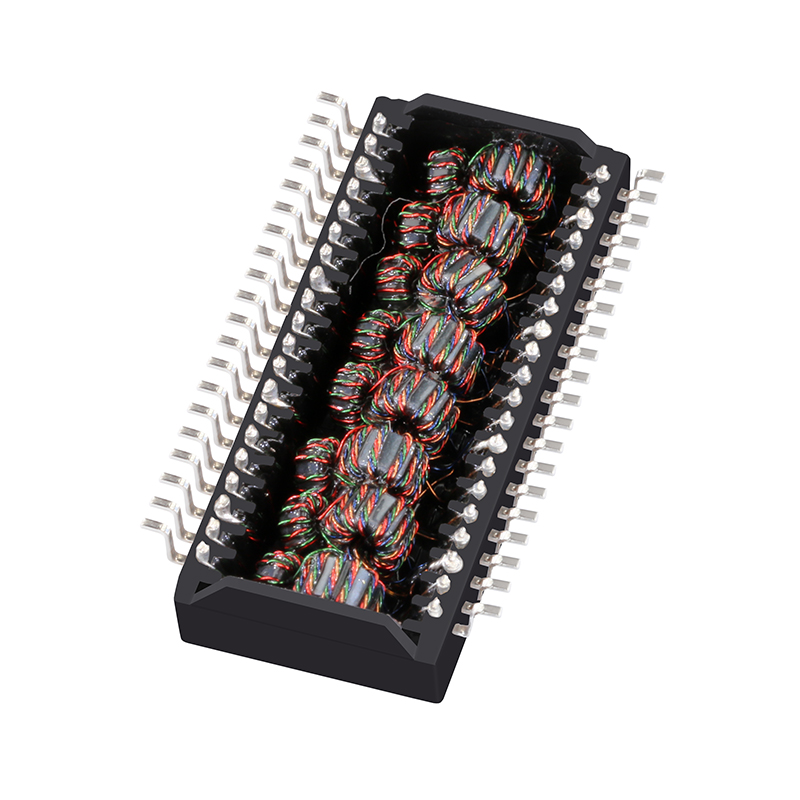

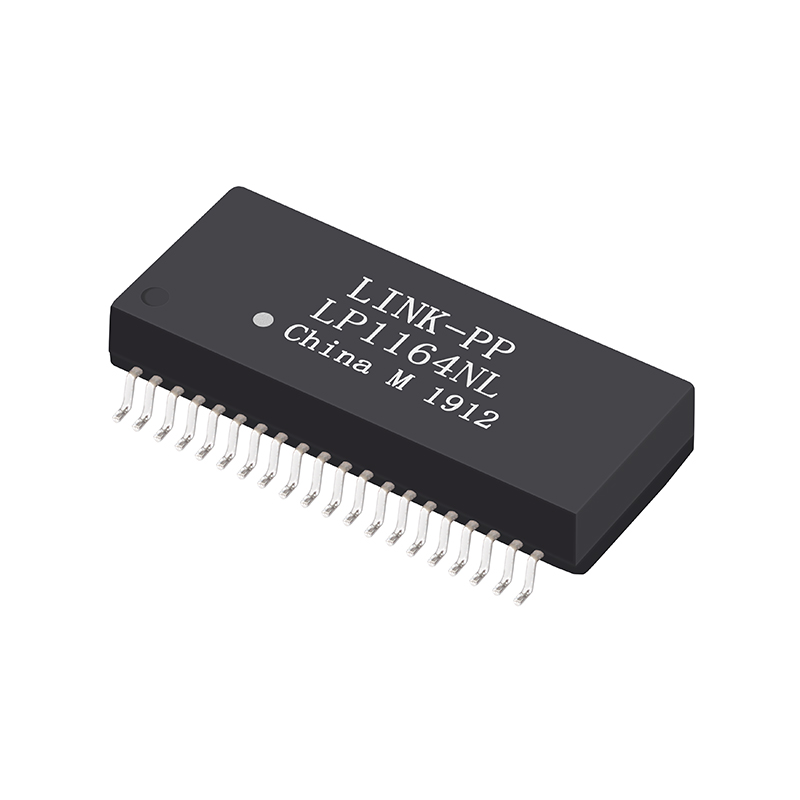

Product Image 1
Product Image 2

Specification

Item Value
Place of Origin China
Part Number LP1164NL
Cross Part Number H1164NLT
Transformer Type Lan Transformer
Application-Lan Ethernet (Non-PoE)
Number of Ports Quad Port
Speed 10/100 Base-T
Package Tape & Reel
Cores per Port 16
PIN number 40
Mounting Type Surface Mount
Temperature 0℃ TO +70℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S

Packing & Delivery

Packing Details
Package Specification
  • N.W/pcs: 0.005kg
  • Package: Reel
  • SPQ: 400pcs
  • Qty/carton: 1600pcs
  • Carton size: 36*35.5*23cm
  • G.W/carton: 7.5kg

Facility & Production

Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
Production Facility 7

Frequently Asked Questions

What is the application range of this LAN transformer?
This component is specifically designed for Ethernet (Non-PoE) network communication devices operating at 10/100 Base-T speeds.
Is this part compatible with Pulse H1164NLT?
Yes, this component is designed as a direct cross-reference and equivalent replacement for the Pulse H1164NLT model.
What is the recommended mounting method?
This is a Surface Mount Device (SMD) with 40 pins, suitable for standard automated SMT reflow soldering processes.
What are the operating temperature parameters?
The module is rated for safe and reliable operation under temperature conditions ranging from 0°C to +70°C.
How are these transformers packaged for shipping?
They are packed in Tape & Reel format. Standard packaging contains 400 pieces per reel and 1,600 pieces per master carton.
