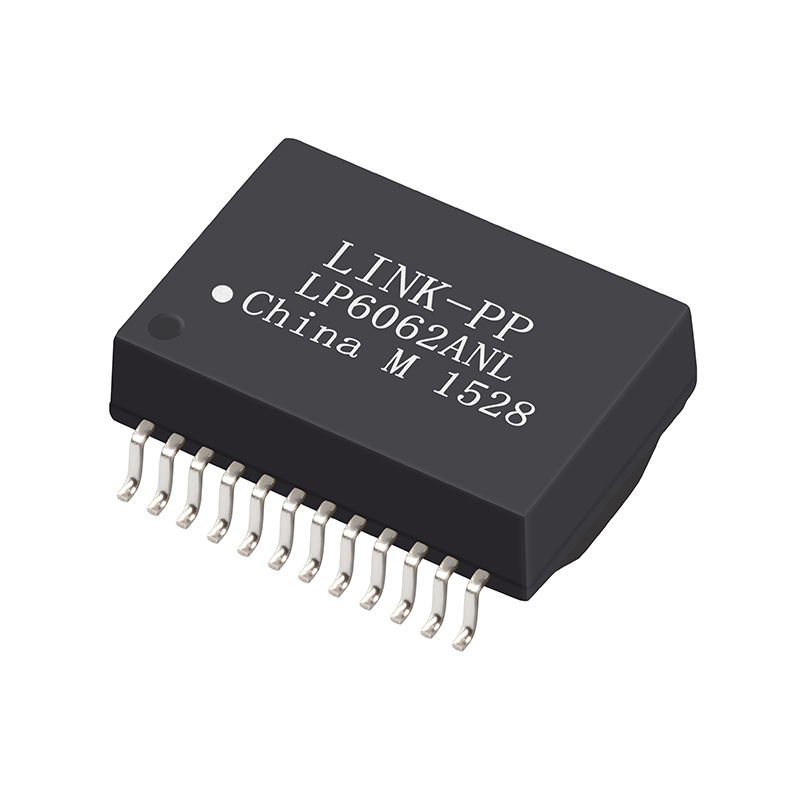

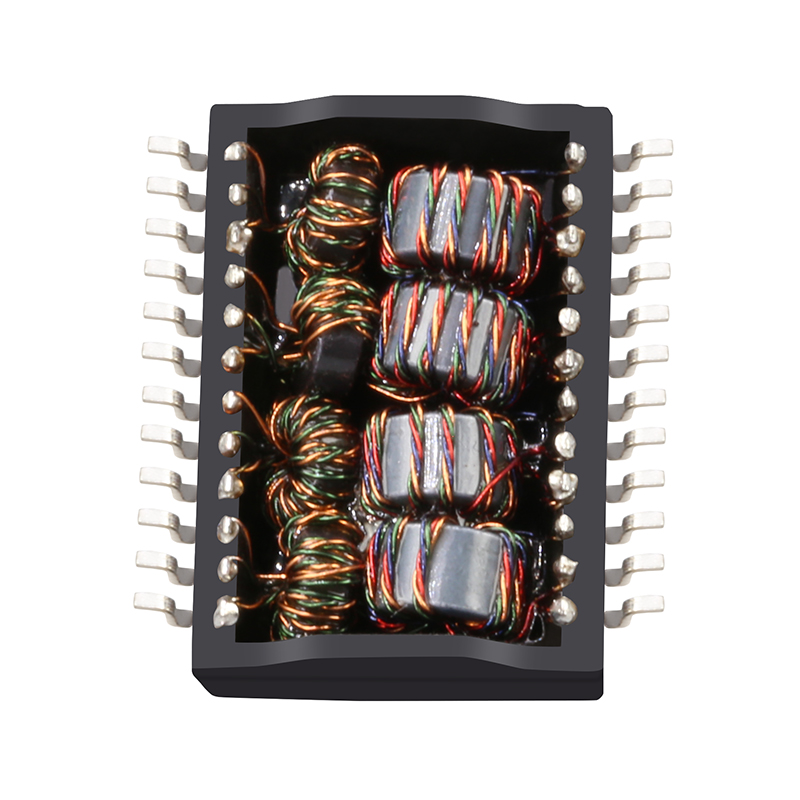

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

LAN Transformer Overview

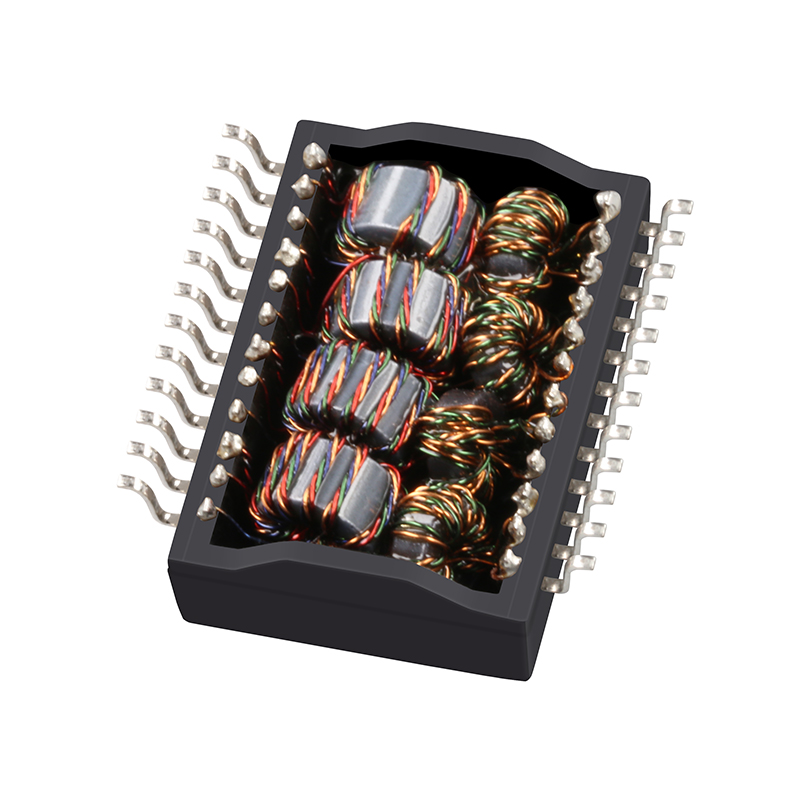

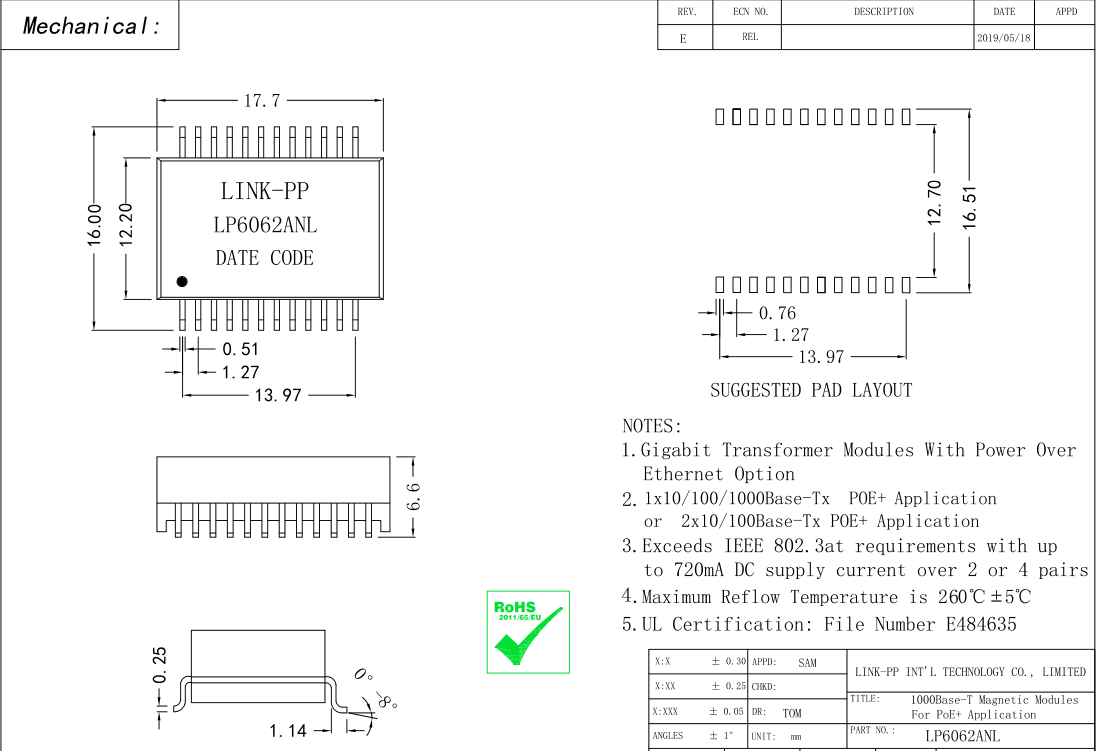

Product Image 1 Product Image 2 Product Design Diagram
Product Detail View
Item Value
Place of Origin China
LINK-PP Part Number: LP6062ANL
Halo Part Number TG1G-S012NZRL
Transformer Type Lan Transformer
Application-Lan Ethernet(PoE+)
Number of Ports Single Port
Speed 10/100/1000 Base-T
Package Tape & Reel
Cores per Port 8
PIN number 24 Pin
Mounting Type Surface Mount
Temperature -40℃ TO +85℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Product Dimensions
Package Specifications
N.W/pcs: 0.004kg
Package: Reel
SPQ: 400pcs
Qty/carton: 1600pcs
Carton size: 37*37*25cm
G.W/carton: 5.8kg
Gallery Image 1 Gallery Image 2 Gallery Image 3 Gallery Image 4 Gallery Image 5 Gallery Image 6 Gallery Image 7
Frequently Asked Questions
What is the difference between LP6062ANL and TG1G-S012NZRL?
LP6062ANL is the LINK-PP part number, while TG1G-S012NZRL is the equivalent Halo part number. Both refer to the same high-performance, single-port LAN transformer designed to meet PoE+ standards.
What Ethernet speed is supported by this LAN transformer?
This model supports transmission speeds of 10/100/1000 Base-T, making it compatible with Gigabit Ethernet configurations.
What are the physical dimensions and packaging parameters?
The transformer features a surface mount (SMD) design with 24 pins. It is packaged in Tape & Reel format with 400 pieces per reel and 1,600 pieces per carton, measuring 37*37*25cm and weighing 5.8kg gross.
Can this LAN transformer handle PoE+ applications?
Yes, the LP6062ANL is specifically configured for Ethernet (PoE+) applications, allowing both data signals and electrical power to pass through the LAN interface efficiently.
What is the operating temperature range for this component?
The component operates reliably in demanding industrial temperatures ranging from -40°C to +85°C.
What is the turn ratio configuration of the transformer?
The turn ratio for both receiver and transmitter (RX/TX) is configured at 1CT:1CT, featuring a configuration of T, C, S (Transmitter, Center Tap, Shunt).
