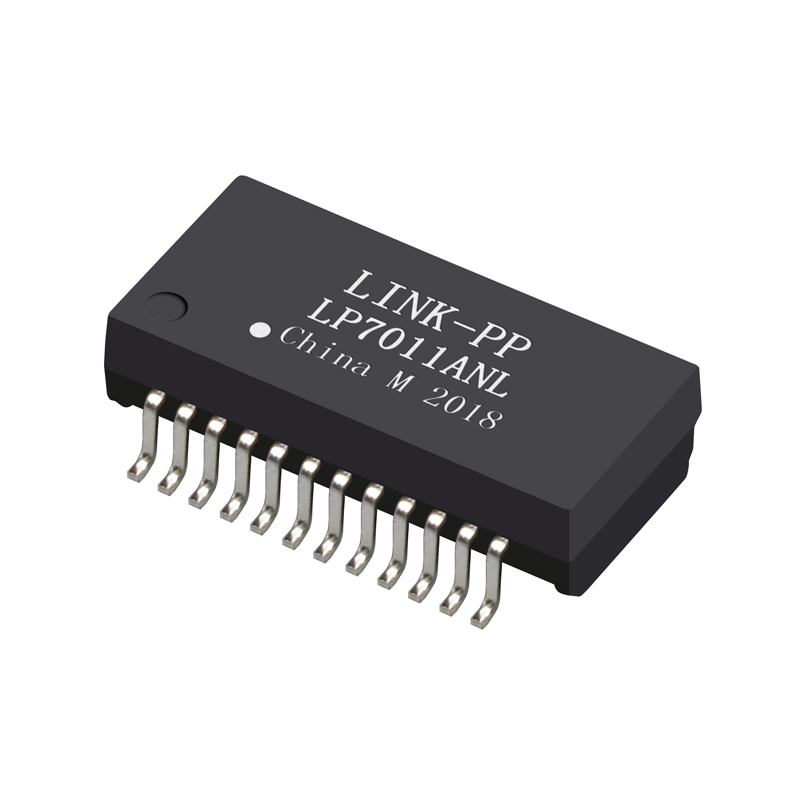

10G Base-T 24 Pin Single Port SMT PoE Lan Magnetic Transformer XF-GH-002

Product Description

Specification

Item	Value
Place of Origin	China
Part Number:	LP7011ANL
Pulse Part Number	XF-GH-002
Transformer Type	Lan Transformer
Application-Lan	Ethernet(PoE)
Number of Ports	Single Port
Speed	10G Base-T
Package	Tape & Reel
Cores per Port	8
PIN number	24
Mounting Type	Surface Mount
Temperature	-40℃ TO +85℃
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C,S

Packing & Delivery

Package Specifications:

✓ N.W/pcs: 0.004kg
✓ Package: Reel
✓ SPQ: 400pcs
✓ Qty/carton: 1600pcs
✓ Carton size: 36*35.5*23cm
✓ G.W/carton: 5.9kg

Manufacturing Facilities

Frequently Asked Questions

What application is this LAN transformer designed for?

This single-port LAN transformer is designed for high-speed Ethernet (PoE) applications, specifically supporting speeds up to 10G Base-T.

What is the operating temperature range of the product?

The operating temperature range is -40℃ to +85℃, making it suitable for standard and industrial-grade environments.

What are the physical specifications and mounting options?

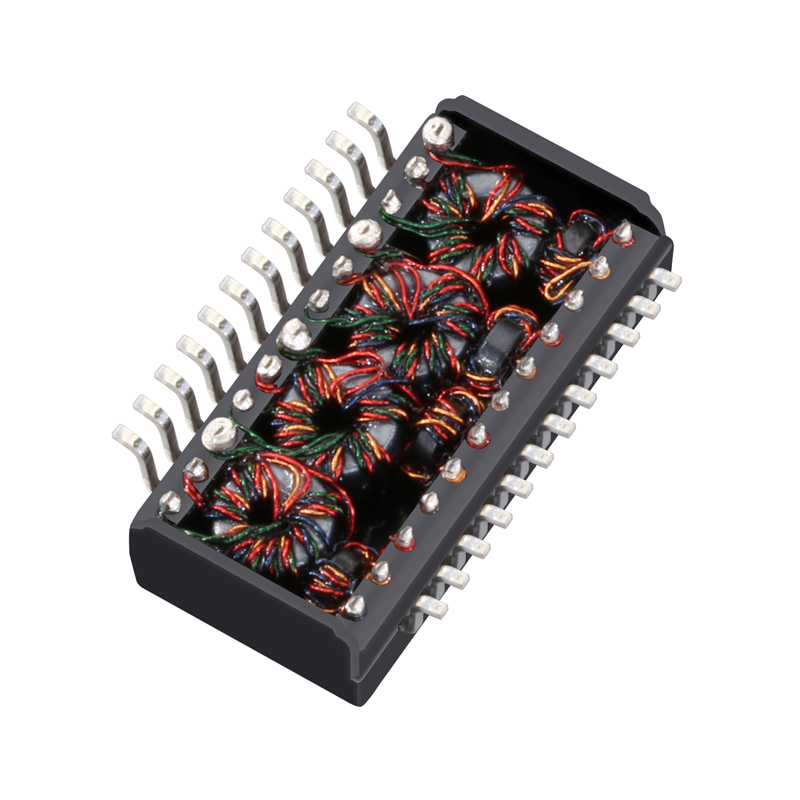

The transformer utilizes a Surface Mount (SMD) mounting type with 24 pins, containing 8 cores per port, and is constructed with a 1CT:1CT turns ratio configuration (RX/TX).

How is this product packaged for shipment?

The products are packaged in Tape & Reel format. They are shipped with a Standard Package Quantity (SPQ) of 400pcs per reel, and 1600pcs per carton.

What are the dimensions and weights of the shipping carton?

Each carton has a size dimension of 36*35.5*23cm. The Net Weight per piece is 0.004kg, and the Gross Weight per shipping carton is approximately 5.9kg.
