Product Description
Specification
| Place of Origin |
China, Guangdong |
| Model Number |

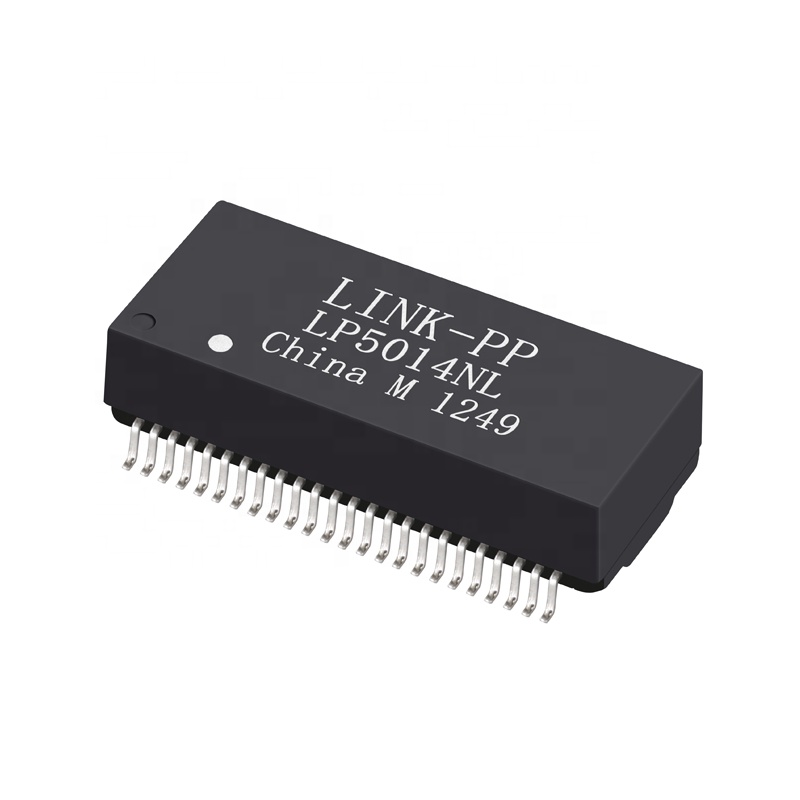

LP5014NL |
| Usage |
Electronic |
| Phase |
Single |
| Coil Structure |
TOROIDAL |
| Coil Number |
AUTOTRANSFORMER |
| Part Number |
S558-5999-Q2-F |
| Part Status |
Active |
| Application-Lan |
Ethernet (Non-PoE) |
| Number of Ports |
Dual Port |
| Speed |
10/100/1000 Base-TX |
| Package |
Tape & Reel |
| Cores per Port |
16 |
| PIN number |
48 PIN |
| Mounting Type |
Surface Mount |
| Temperature |
0°C TO +70°C |
Packing & Delivery
⚖️
N.W/pcs: 0.005kg
📦
Package: Reel
🔢
SPQ: 350pcs
📊
Qty/carton: 1400pcs
📐
Carton size: 37*37*25cm
⚖️
G.W/carton: 7kg
Production Gallery
Frequently Asked Questions
Q1: What is the main application of the LP5014NL transformer?
A: The LP5014NL is designed for dual-port 10/100/1000 Base-TX Ethernet configurations in electronic networking and communication systems that do not require Power over Ethernet (Non-PoE).
Q2: What temperature range is this product rated for?
A: This model supports a standard operating temperature range of 0°C to +70°C, making it suitable for commercial and standard networking environments.
Q3: What is the mounting and packaging style of S558-5999-Q2-F?
A: It features a surface mount (SMD/SMT) design with a 48 PIN layout. It is supplied in Tape & Reel packaging for automated pick-and-place assembly.
Q4: How many cores per port does this module contain?

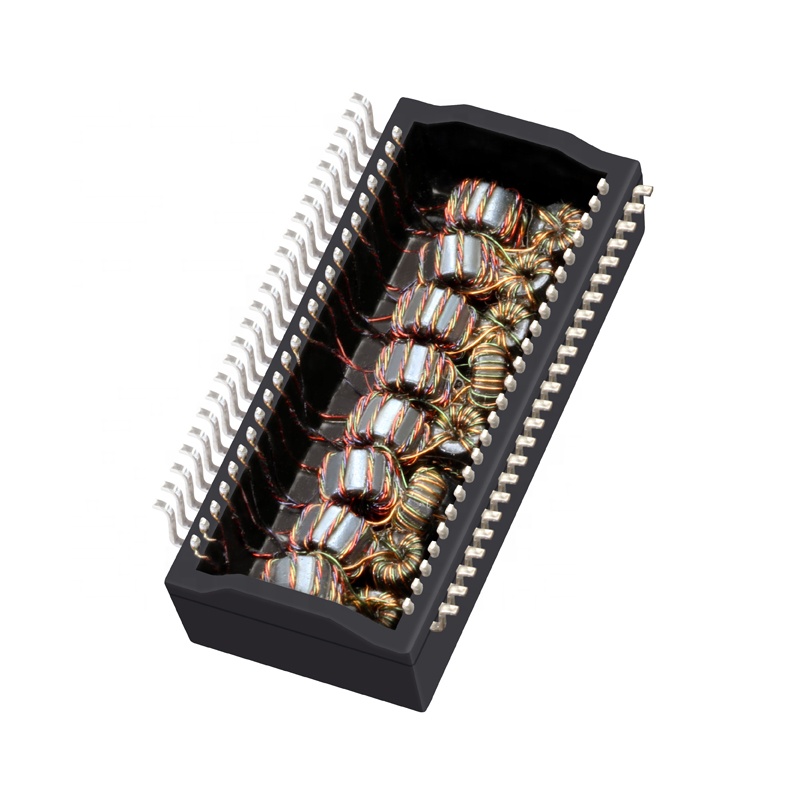

A: This dual-port Ethernet pulse transformer contains 16 cores per port to ensure signal integrity and electrical isolation.
Q5: What are the packaging specifications and carton size?
A: The Standard Package Quantity (SPQ) is 350 pcs per reel. Each carton holds 1400 pcs, with a carton size of 37*37*25cm and a gross weight of approximately 7kg.
Q6: What is the coil structure of this electronic transformer?
A: It has a toroidal coil structure configuration operating as an autotransformer.
