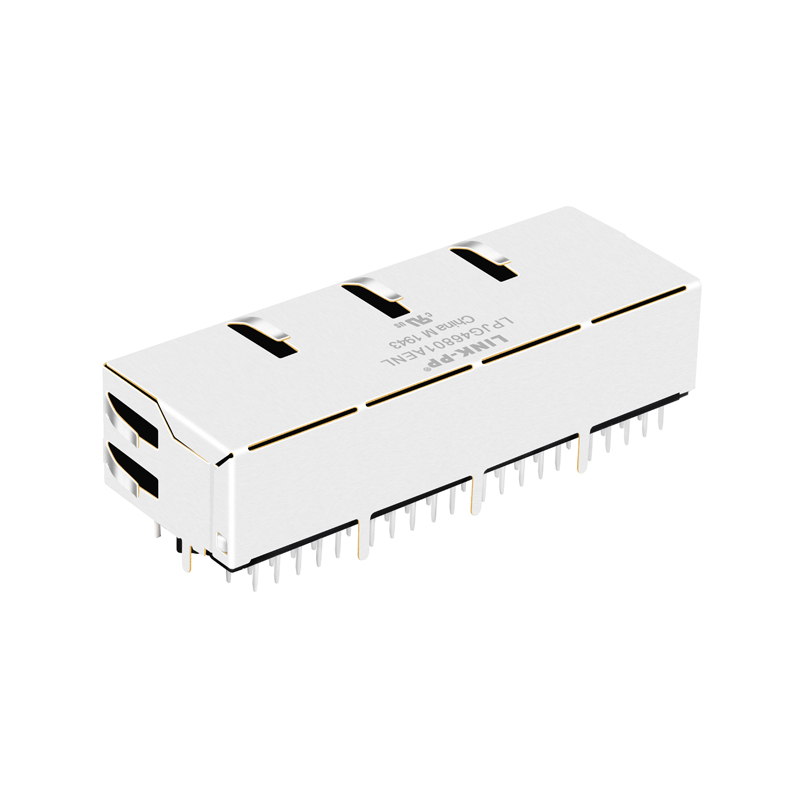

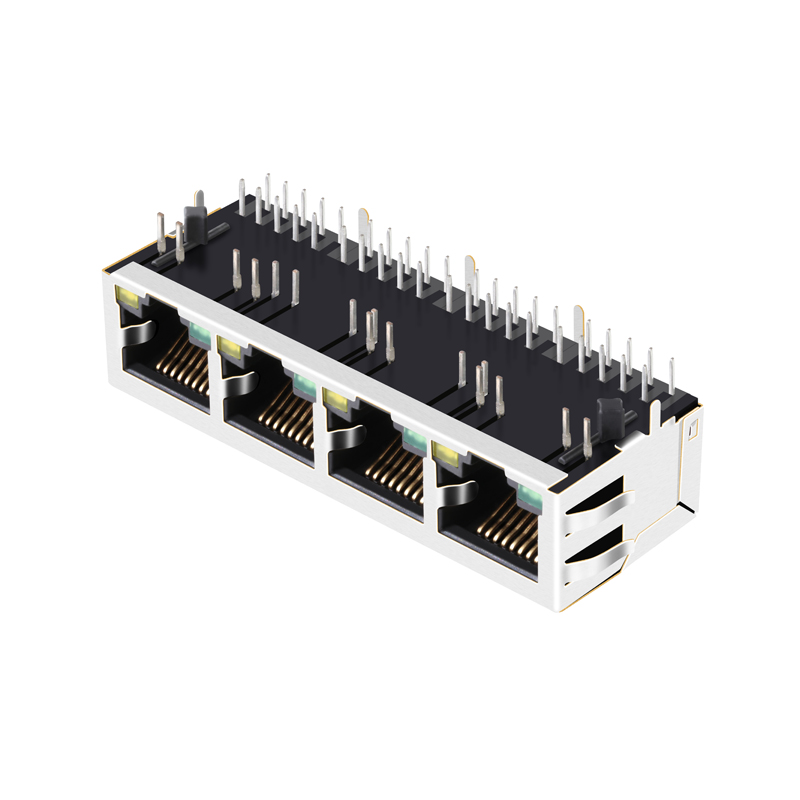

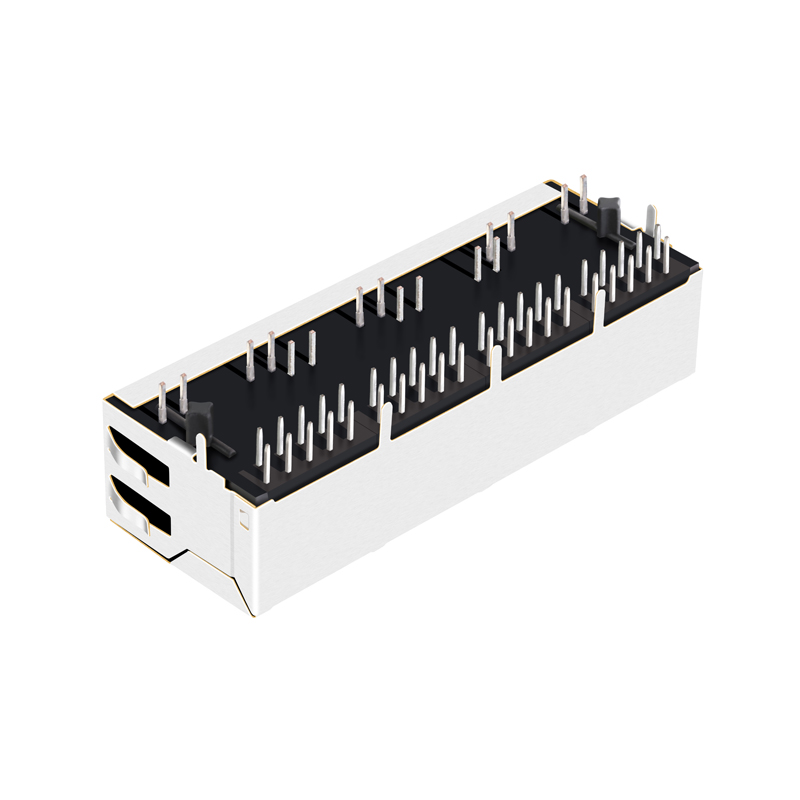

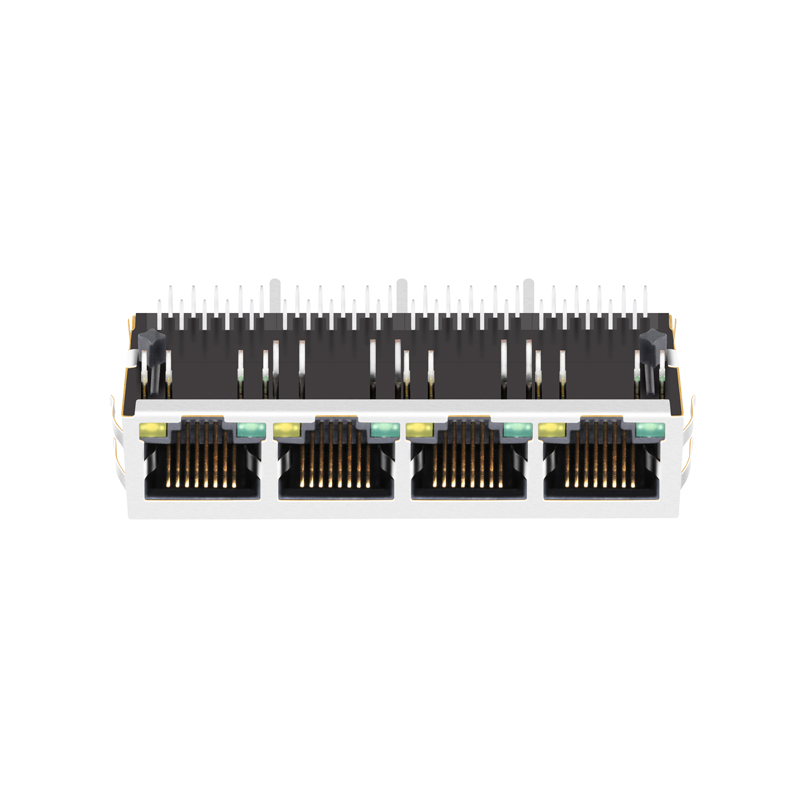

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Product Description

Product Description

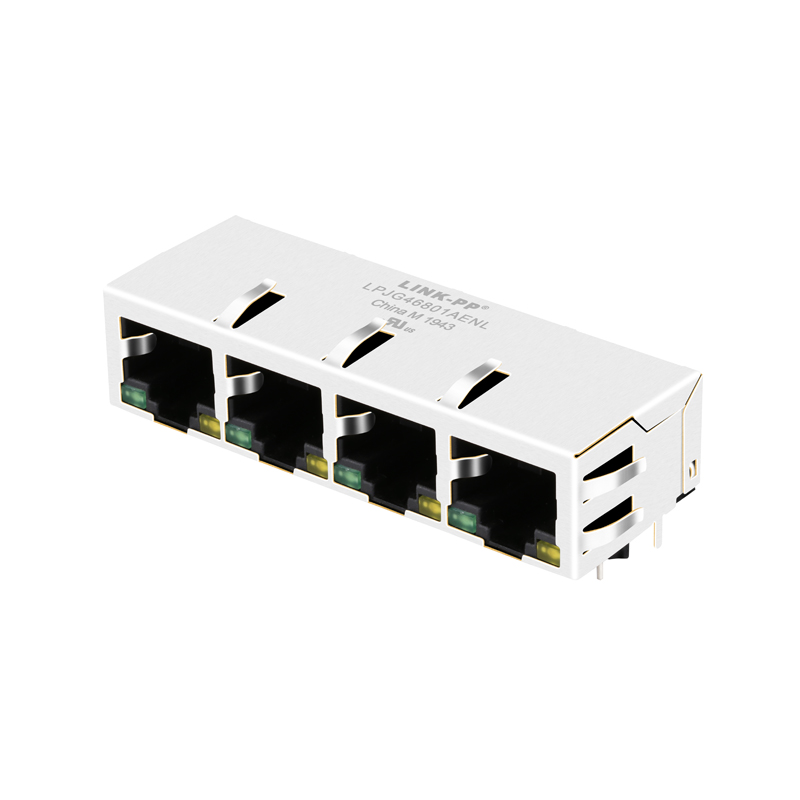

Product Image 1
Product Image 2
Specification
Item Value
Model Number LPJG46801AENL
Part Status Active
Connector Type RJ45
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Green - Yellow
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Number of Ports 1X4 Port
Features Board Guide
Tab Direction Down
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C
Packing & Delivery

The Part Number package: 20 pcs in 1 tray, 20 tray in 1 carton, which is 37*30*30cm, 10KGS (400pcs) of each carton.

Packing Image
Applications & Compatibility
100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
  • Suitable for industrial temperatures from -40 °C up to +85 °C
  • Compatible to Industrial Ethernet systems like EtherCAT or Profinet
  • Compliant with most IC's for Ethernet applications such as Microchip, Broadcom, Marvell
  • Ideal for Hubs, Routers, Switches, IP cameras, and IoT applications
Application Image 1
Application Image 2
Application Image 3
Application Image 4
Application Image 5
Application Image 6
Frequently Asked Questions
?Who are we?
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large dedicated team. With abundant productive capacity, we are able to deliver goods within a short time frame. Moreover, we provide professional complete solutions for magnetic components and strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
?How can we guarantee quality?
We guarantee quality by always providing a pre-production sample before mass production and conducting a final inspection before shipment.
?What can you buy from us?
You can purchase RJ45 Magnetic connectors, LAN transformers, Modular Jacks, and RJ11 Connectors.
?Why should you buy from us instead of other suppliers?
We are a specialized manufacturer of RJ45 connectors and LAN transformers with 19 years of expertise. Our processes are certified by SGS, ISO9001:2008, UL, REACH, and CE. We possess a large-scale staff and a massive weekly productive capacity to ensure fast delivery and reliable supply chains.
?What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
?What are the main application environments for your RJ45 Connectors?
Our connectors are suitable for industrial temperatures ranging from -40 °C up to +85 °C. They are compatible with Industrial Ethernet systems like EtherCAT or Profinet, and fully compliant with most ICs for Ethernet applications including Microchip, Broadcom, and Marvell.
