FiberQ
FiberQ

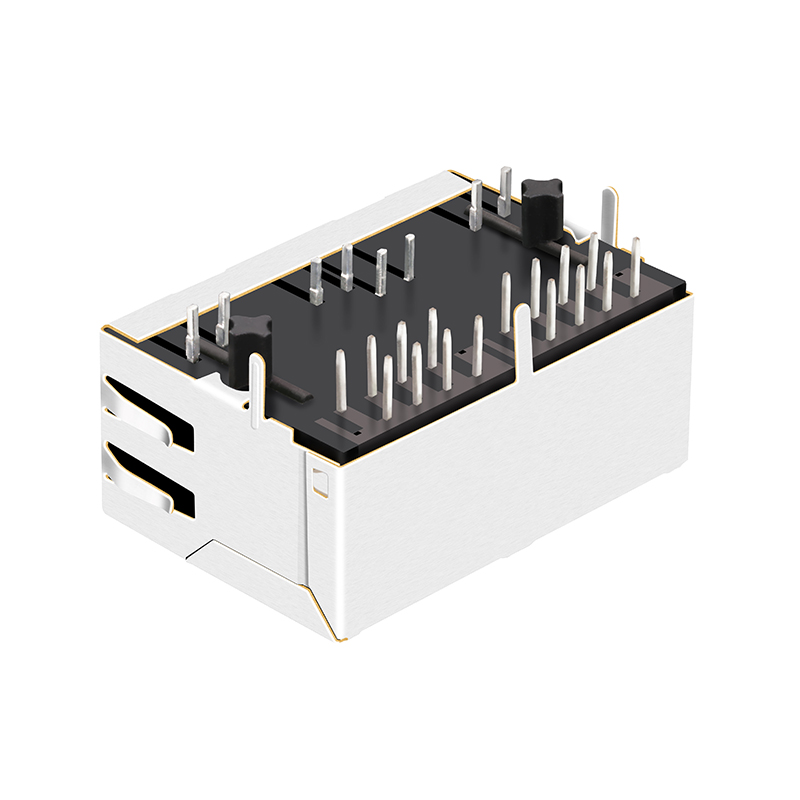

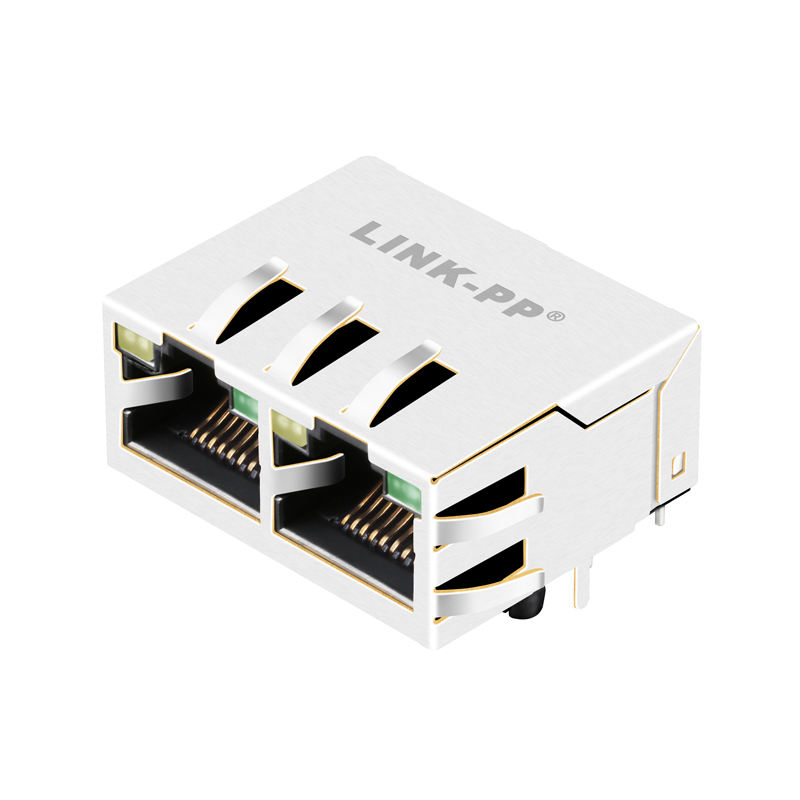

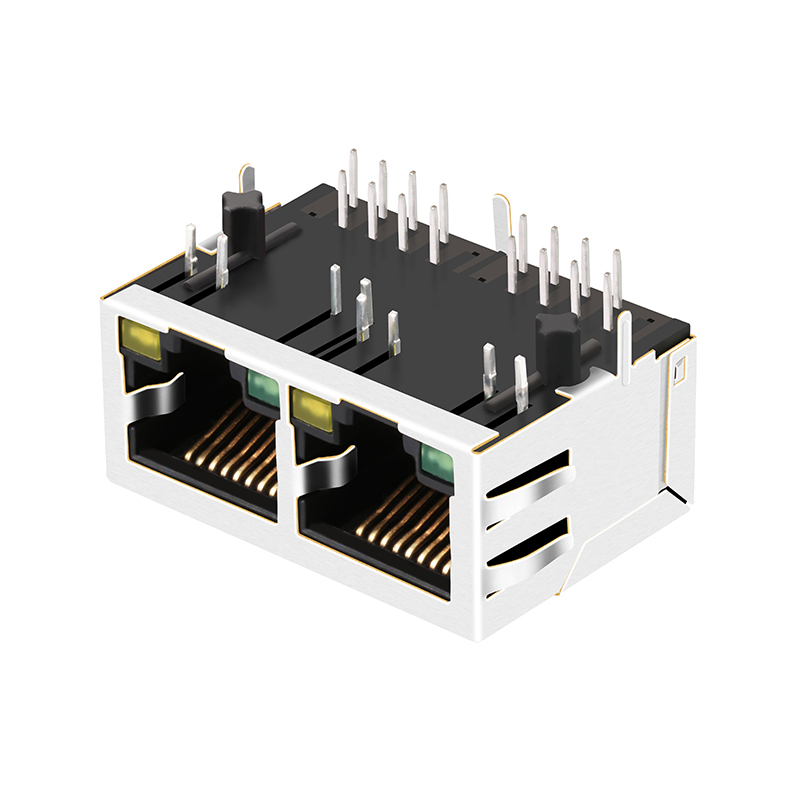

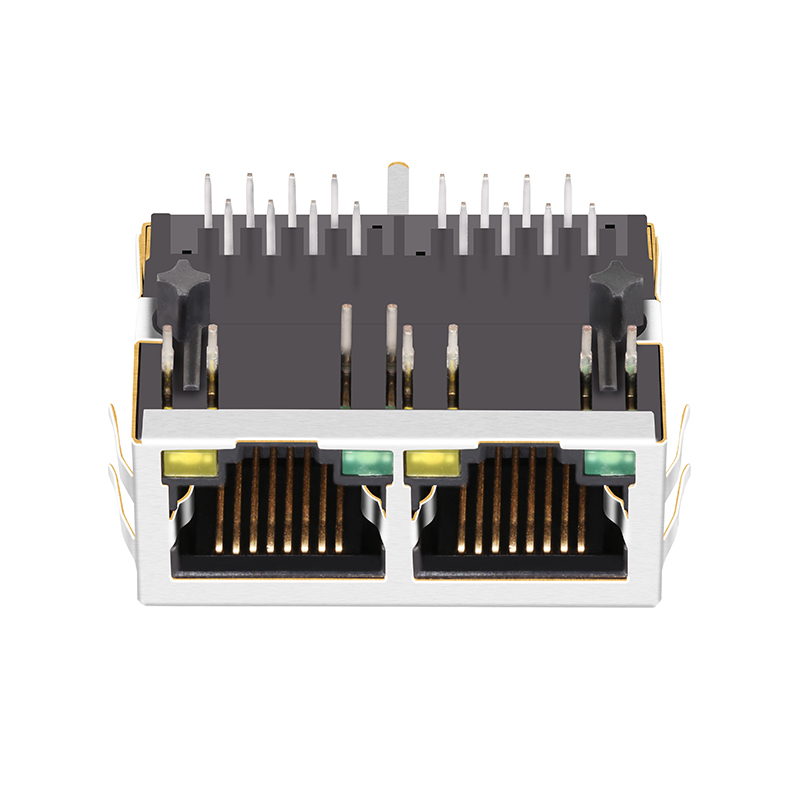

| Item | RJ45 Female Connector |
| Part Number | LPJG25465ADNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x2 Port |
| Speed | 10/100/1000 Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Yellow/Green |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries.
By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer company.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you should cover the shipping costs.
We are ready to ship for stock items, and the lead time is 15-30 days for mass production.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send us an inquiry so we can proceed with a detailed discussion.
With over 19 years of professional production experience, we serve as a trusted supplier and partner for global industry leaders.
