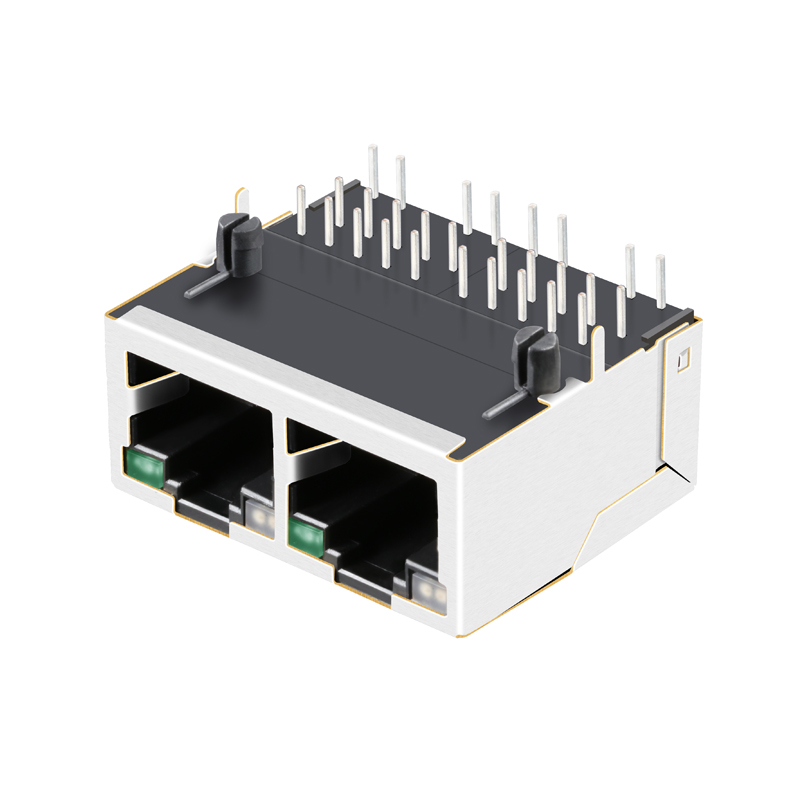

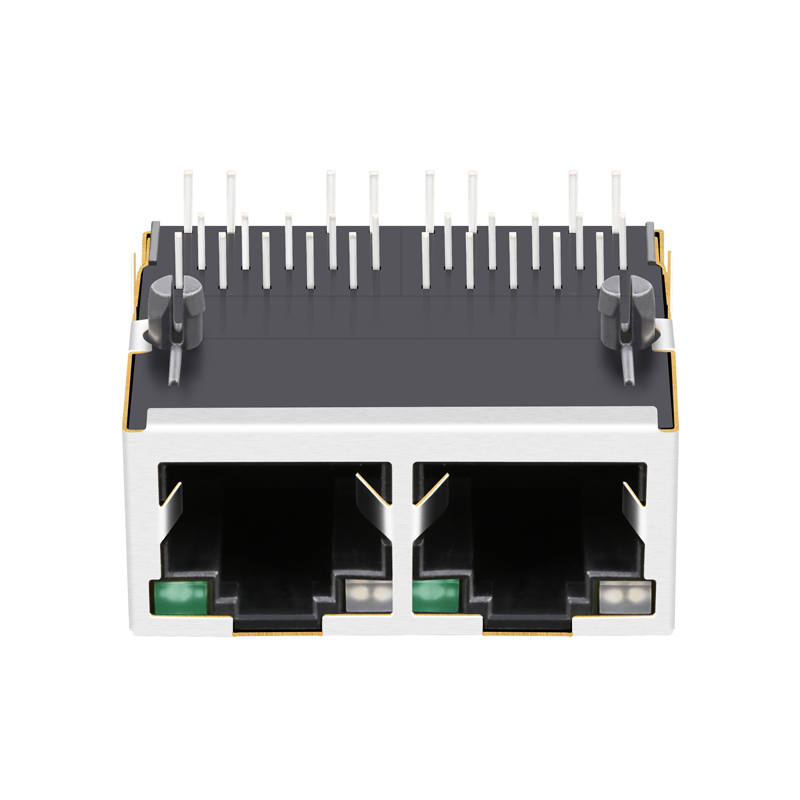

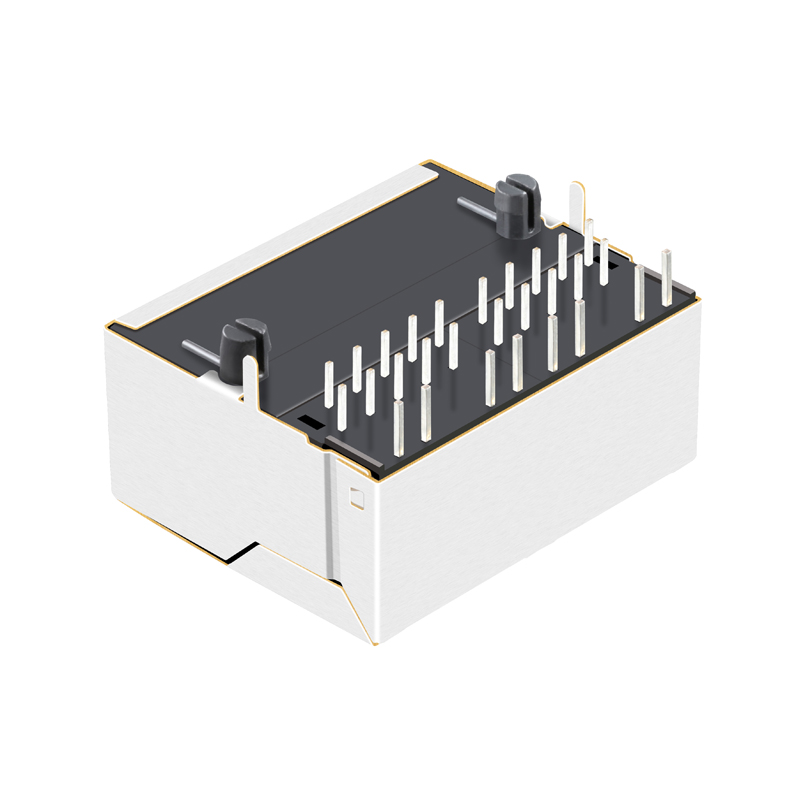

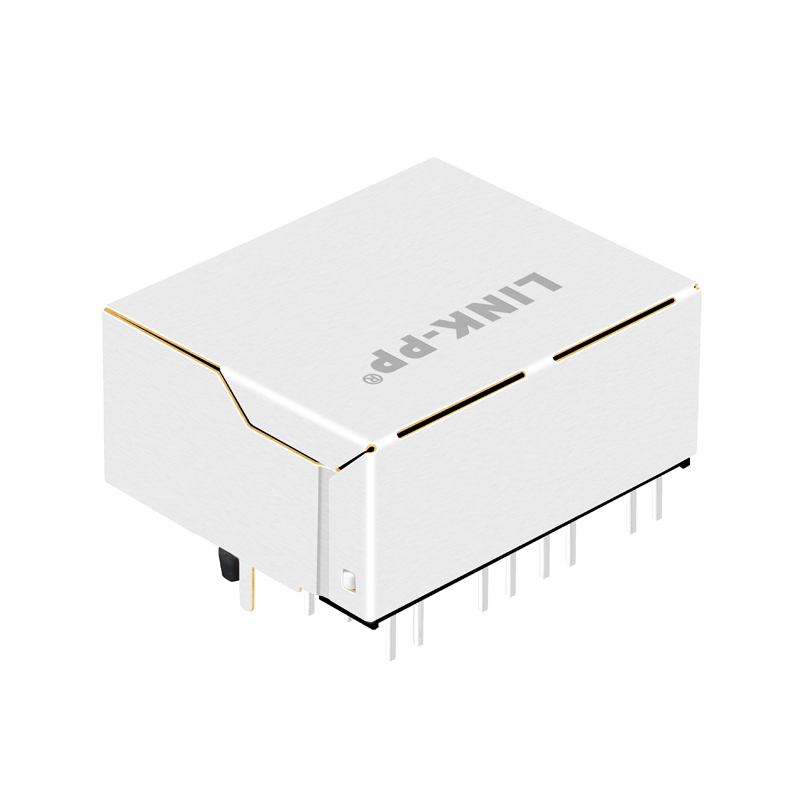

10/100 BASE-T Ethernet Interface RJ45 Female Connector Tab up 1X2 Harmonica Jack 5-6610197-1
| Part Number |
5-6610197-1 |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/YELLOW |
| Latch |
UP |
| Number of Ports |
1X2 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price & Service
- Highly Competitive Industry Pricing
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- Up to 90% Off Shipping Cost by DHL, UPS, FEDEX, or TNT
- Corporate Goal: Highest Level Of Customer Satisfaction
- Continuous Improvements In Quality, Delivery And Service
- Quality Performance Expected From Every Employee
- Standard: Defect-Free Products And Services
Frequently Asked Questions
Q1 What is the transmission speed of this RJ45 connector?
This connector supports 10/100 BASE-T transmission speeds, making it ideal for standard Fast Ethernet applications.
Q2 What is the configuration structure of the 5-6610197-1?
It is a 1X2 multi-port Harmonica Jack configuration (2 ports in a single row) with a Tab-Up latch orientation.
Q3 What colors are the integrated LEDs?
This product features a standard Green/Yellow LED option for network status and diagnostic indicators.
Q4 What range of operating temperatures can this component withstand?
It is qualified for operation in environments ranging from commercial 0 to 70°C up to industrial -40 to 85°C.
Q5 Is this RJ45 connector fully RoHS compliant?
Yes, it is RoHS-5 compliant with a lead-in-solder exemption, adhering to standard eco-friendly production guidelines.
Q6 What material is used for the PCB and what is the mounting style?
The connector uses high-quality FR4 PCB material and is designed for Side Entry, Through-Hole Technology (THT) solder mounting.
