1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR

Product Description

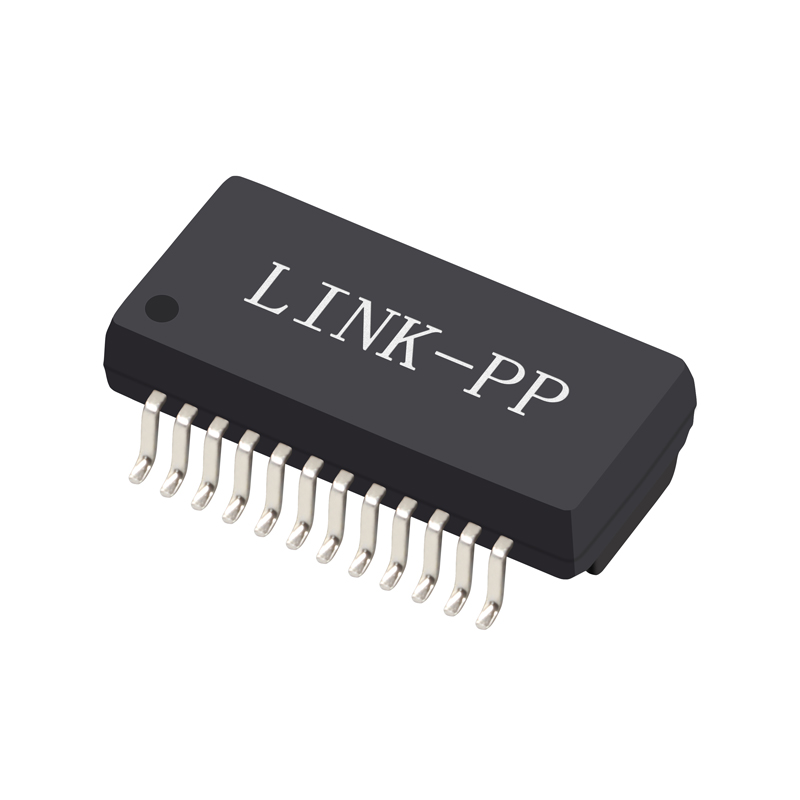

1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR
Ethernet Transformer Module
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24054SXCR / HST-24056SCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Speed 1000 Base-t
Mounting Type SMT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Detail 1
Lan Transformer Detail 2
Lan Transformer Detail 3
Lan Transformer Detail 4
Lan Transformer Detail 5
Product Specification Drawing 1
Product Specification Drawing 2
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2,000 staff at present. With an abundant productive capacity of 3,000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions globally, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers:

ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.

Production Facility 1
Production Facility 2
Testing Equipment 1
Testing Equipment 2
FAQ
Q1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by the customer.
Q3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15-30 days.
Q4. What after-service do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Q5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us with your detailed requirements so we can discuss the customization.
Q6. What is your advantage?
We have 19 years of dedicated production experience and have been a trusted partner for global industry leaders like Intel and Jabil for many years.
