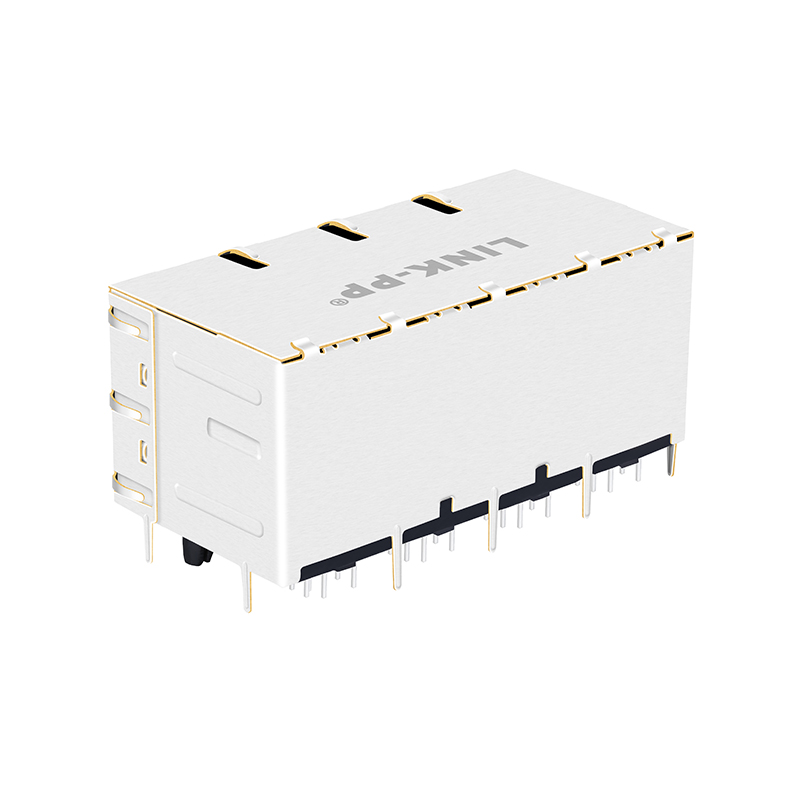

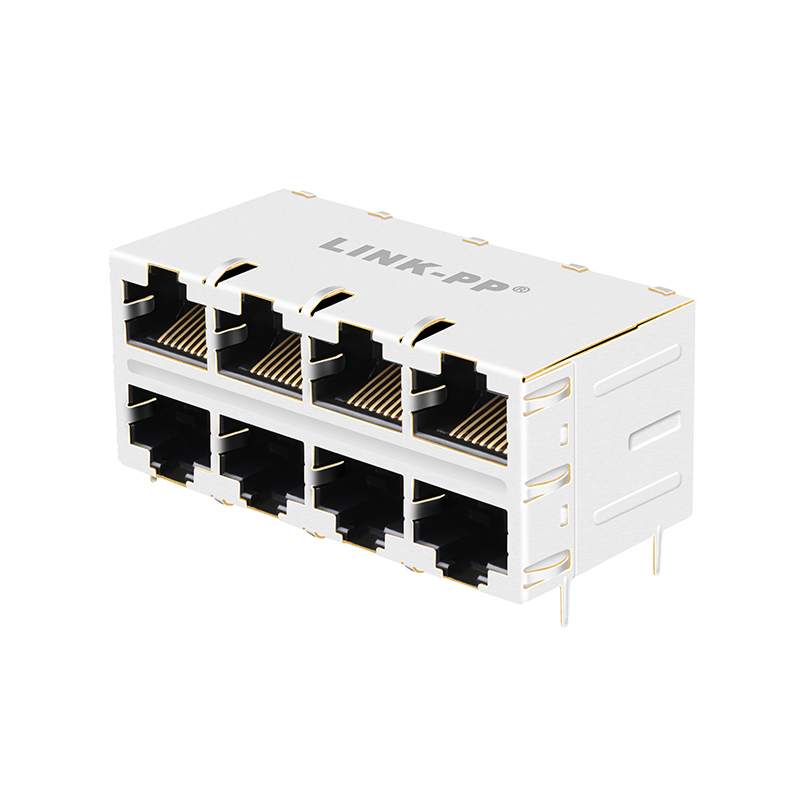

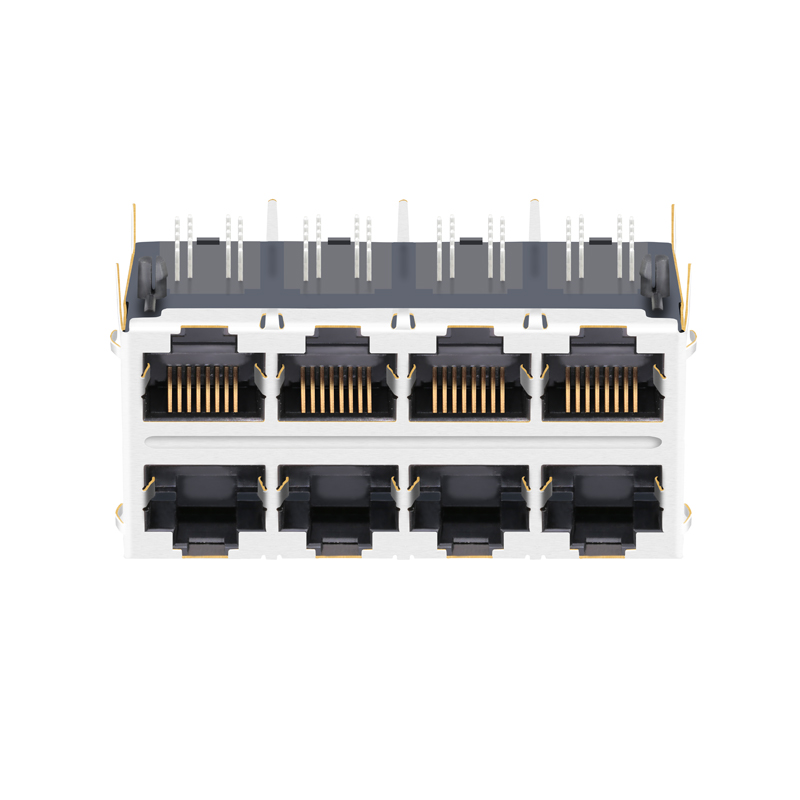

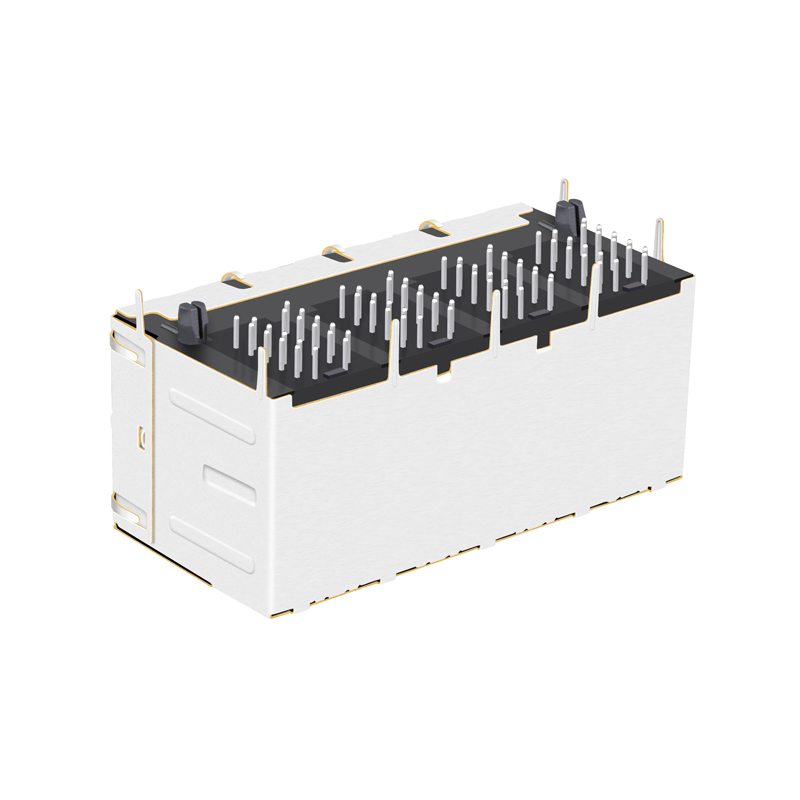

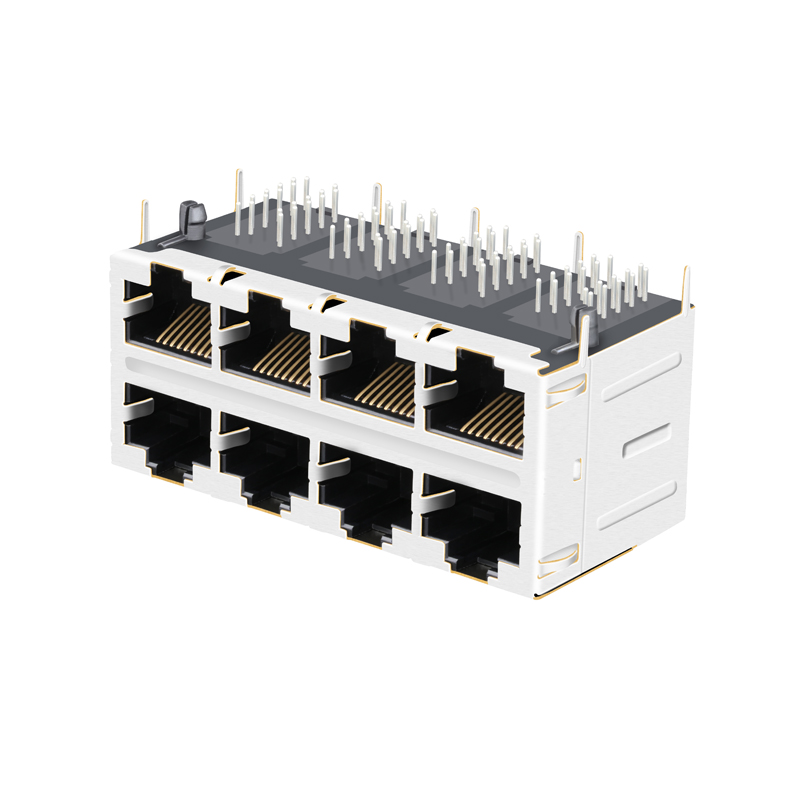

Variety of Colours Ethernet RJ45 Socket Connector HR902410A

Product Gallery

Technical Specifications

Specification Item	Value Details
Model Number	China
Part Status	Active
Connector Type	RJ45
Applications	10/100 Base-T, AutoMDIX
Orientation	90° Angle (Right)
Gender	Female
Pins	8P
Number of Cores	Four Cores
LED Color	Without Leds
Application	PCB
Part Number	HR902410A
Number of Ports	2X4 Port
Termination Style	Through Hole
Shielding	Shielded
Contact Plating	Gold
Housing Material	Thermoplastic

Packing & Delivery

Package Specifications: 12 pcs in 1 tray, 18 trays in 1 carton, which is 37*30*30 cm, 11KGS (216pcs) of each carton.

About Our Capabilities

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem.

Main Product Offerings

10/100/1000M LAN pulse transformer and filter
RJ45 connector with 10/100/1000M magnetic
T1/E1, T3/DS3/E3/STS-1 interface line transformer
ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.

Frequently Asked Questions

What are the primary applications of this RJ45 connector?

This 2X4 Port RJ45 connector is designed for PCB applications, supporting 10/100 Base-T and AutoMDIX. It is widely used in networking devices such as switches, routers, hubs, and PC mainboards.

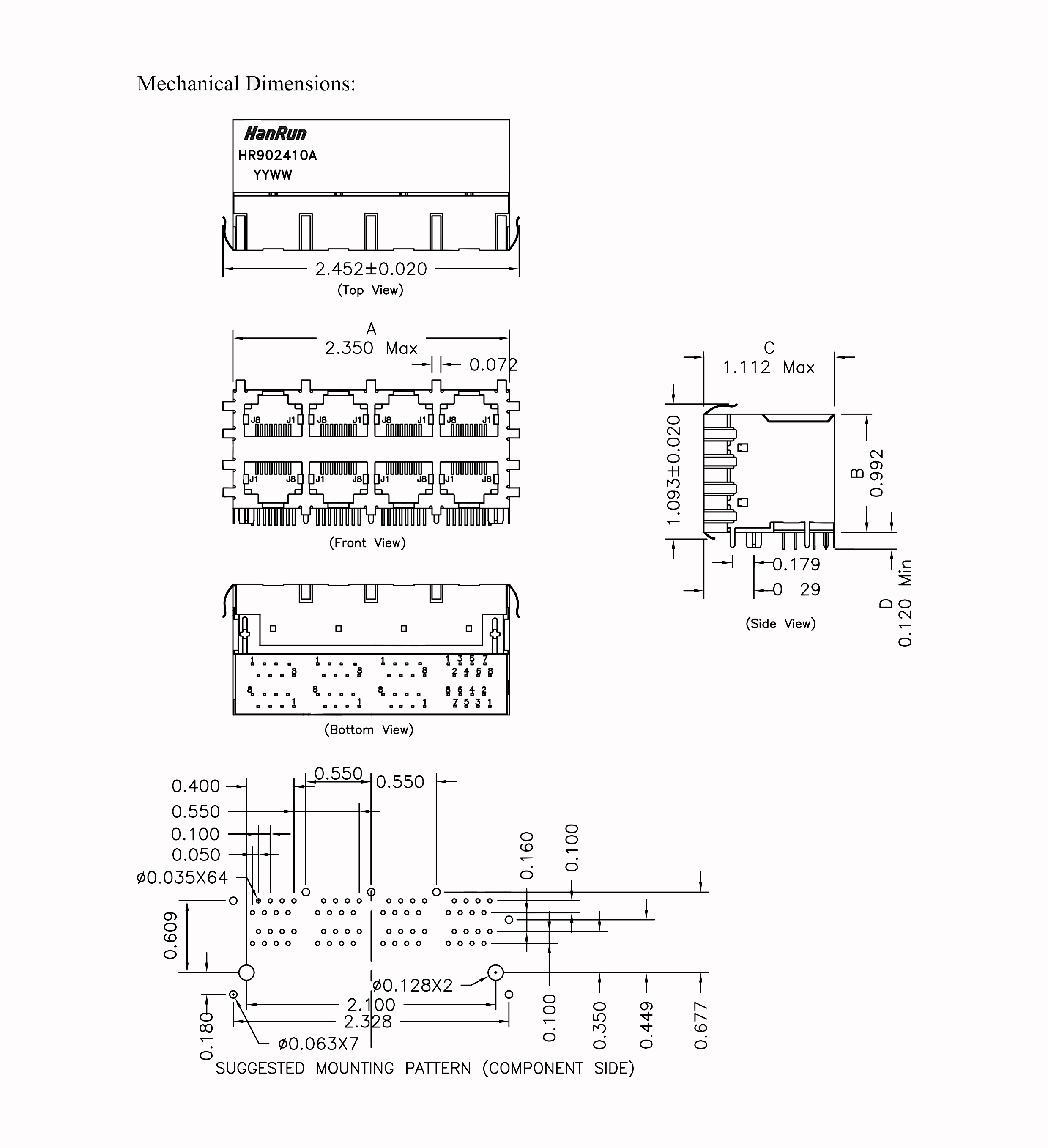

What is the mechanical layout and mounting configuration?

The connector features a 90° angle (right angle) orientation with a female gender design. It uses a through-hole termination style for stable, secure mounting onto PCBs.

Is this RJ45 connector shielded and does it have LEDs?

Yes, it features a shielded design to prevent EMI interference and protect signal integrity. This particular model (Part Number: HR902410A) does not include built-in LED indicators.

What materials are used for construction?

The housing of this RJ45 connector is made from durable thermoplastic, and the contacts feature premium gold plating to ensure optimal conductivity and longevity.

What are the packing details for orders?

Standard packaging consists of 12 pieces in 1 tray, with 18 trays packed into a single carton. The overall carton weight is 11 KGS (containing 216 pieces) with dimensions of 37*30*30 cm.

Are the products certified for international standards?

Yes, our manufacturing facility and components comply with strict quality guidelines, carrying ISO9001:2000, RoHS, REACH, CE, and UL certifications.
