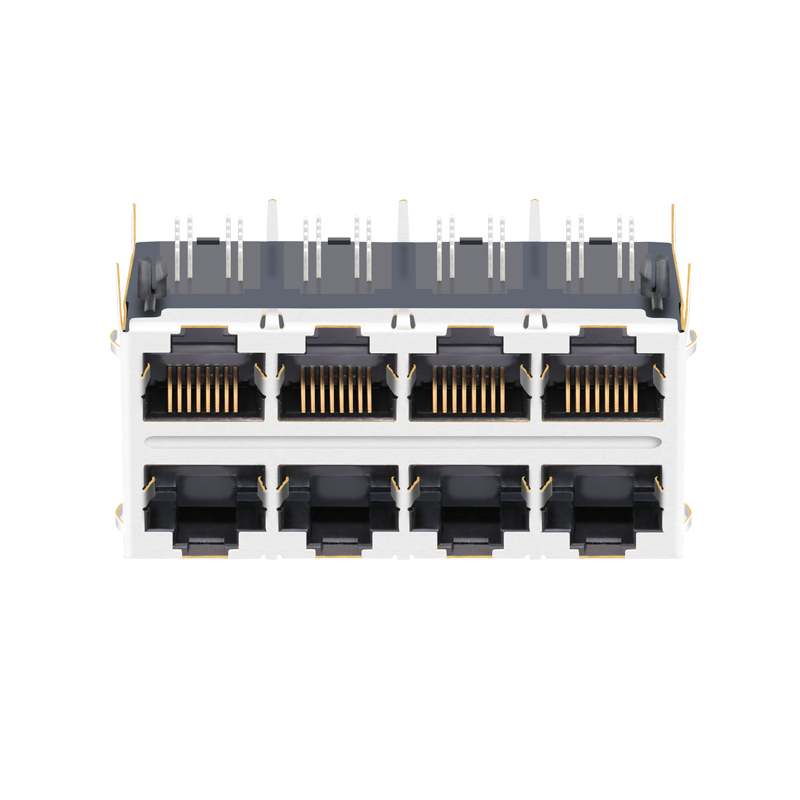

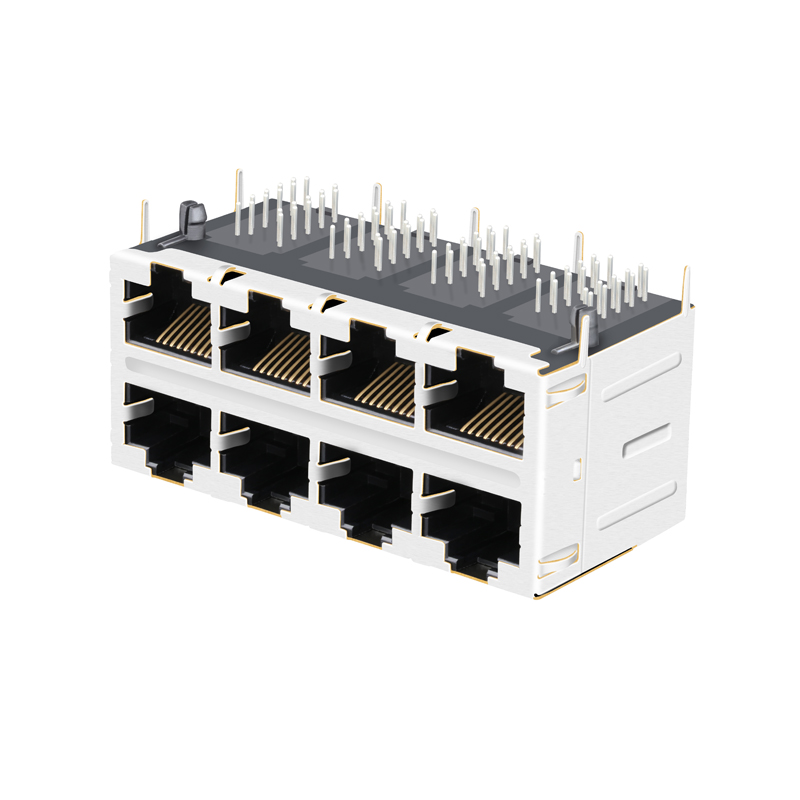

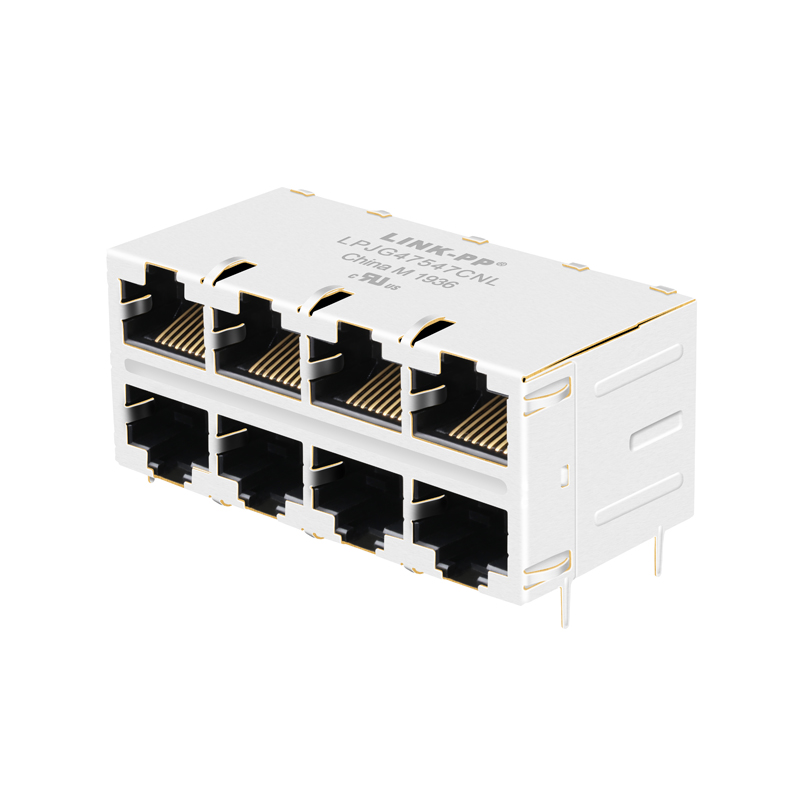

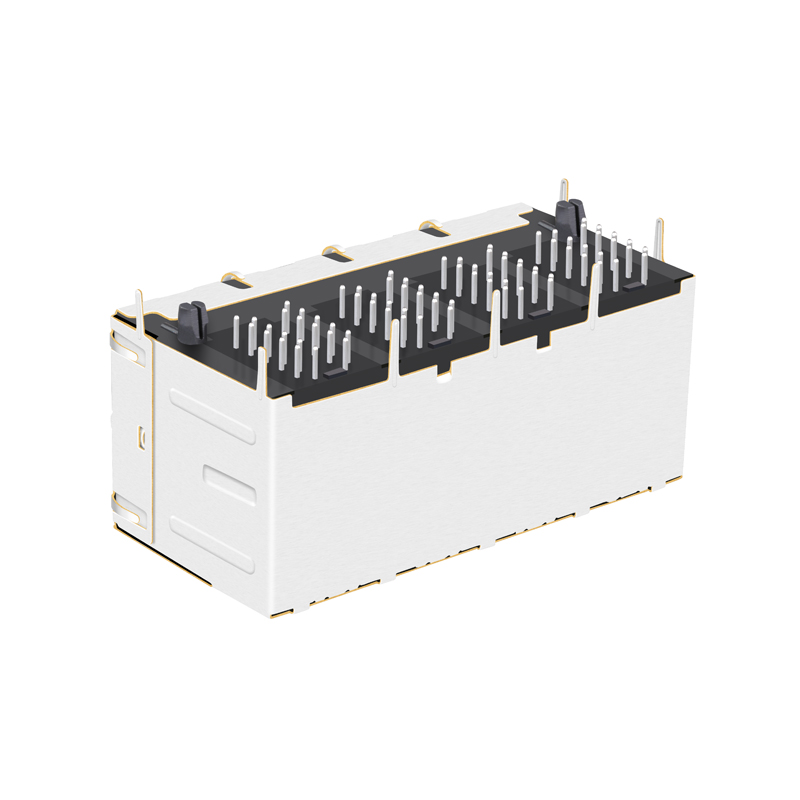

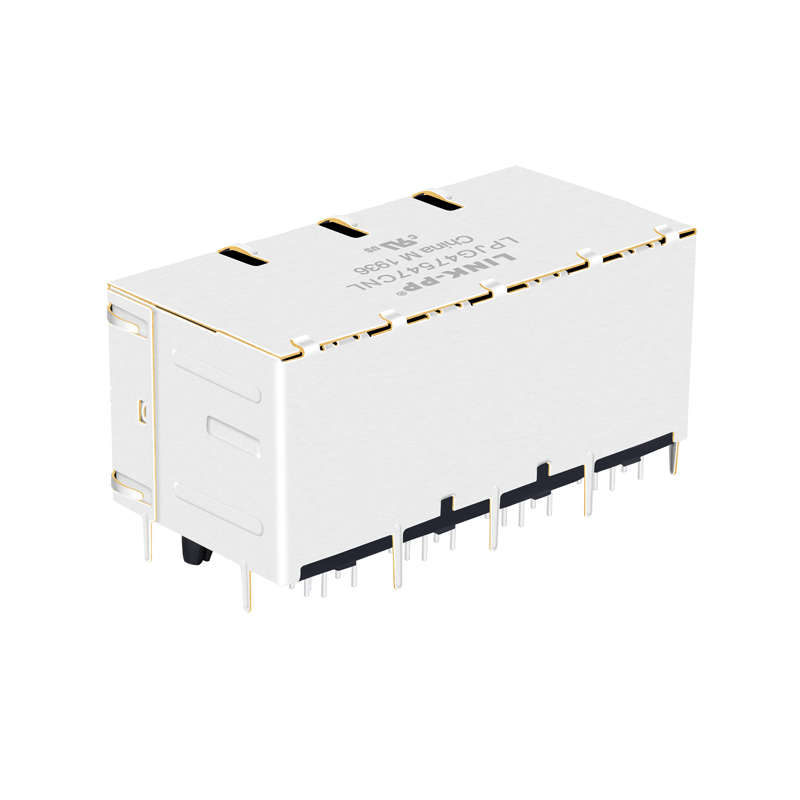

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1

Product Description

10P8C RJ45 Ethernet 2xN RJ 45 Connector, 2 * 4 Port RJ-45 Jack JC0-0131 DA6T00101 DA6T10303 DU1T202A1
RJ45 Connector Category Overview
Products Description
Item RJ45 Female Connector
Part Number LPJG47547CNL
Compatible With JC0-0131 DA6T00101 DA6T10303 DU1T202A1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 2x4 Port
Speed 1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
RJ45 Dimensional Drawing RJ45 Connector Options
Mechanical Parameters Electrical Specifications
Materials and Construction Soldering Recommendations
Packaging Standard Quality Standard Verification
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Workshop Testing Equipment Warehouse and Logistics
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM orders?
Yes, please send your inquiries to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we have been a partner with global leading companies for many years.
