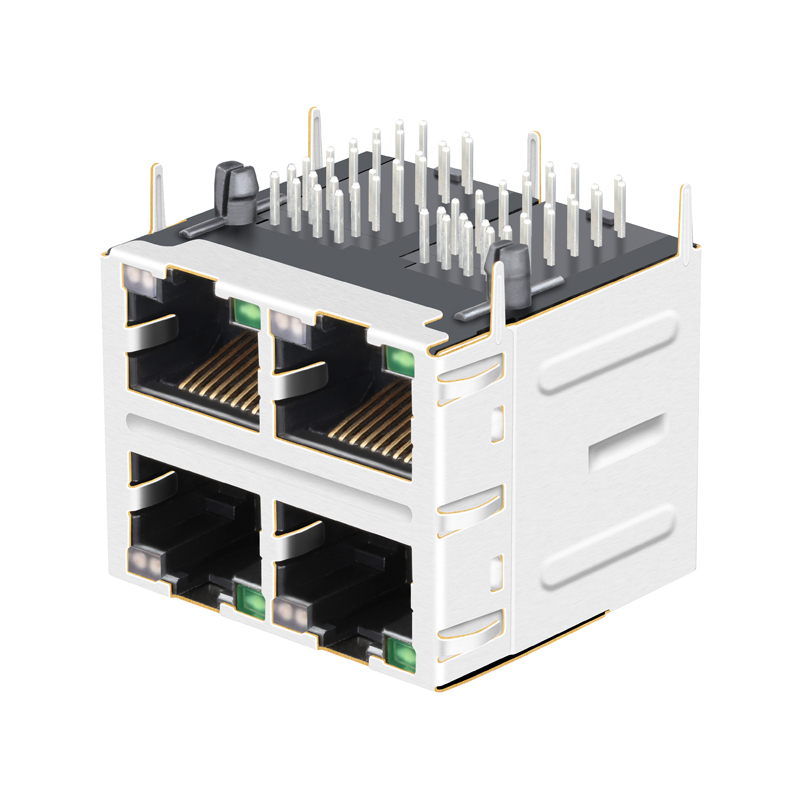

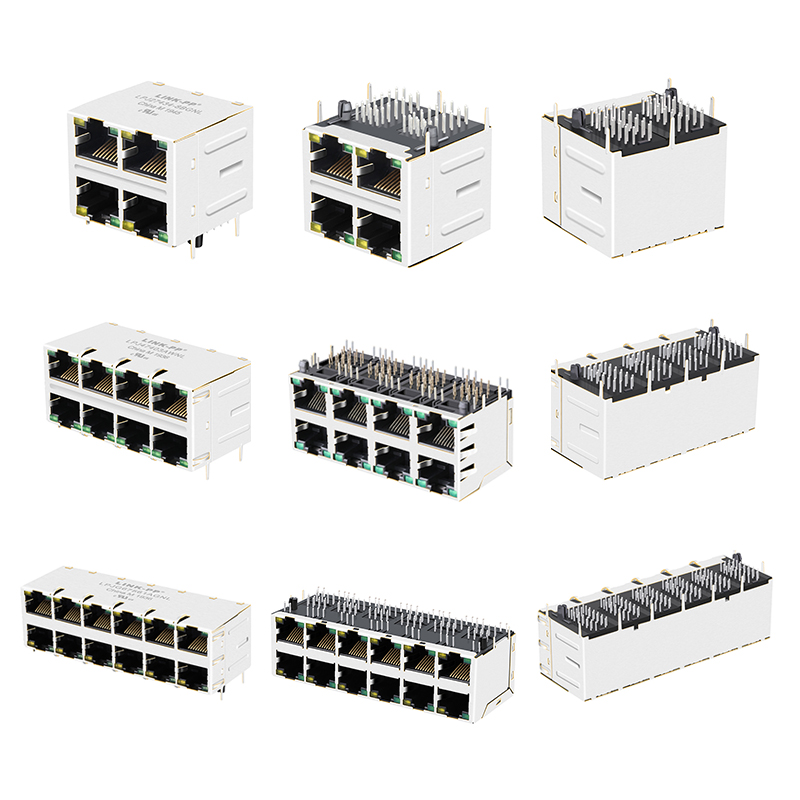

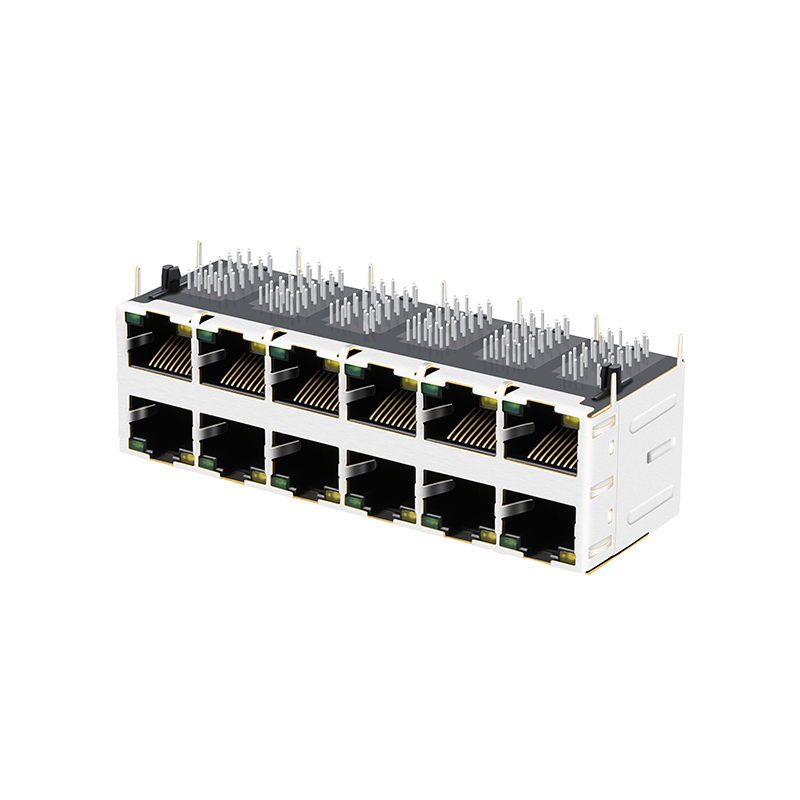

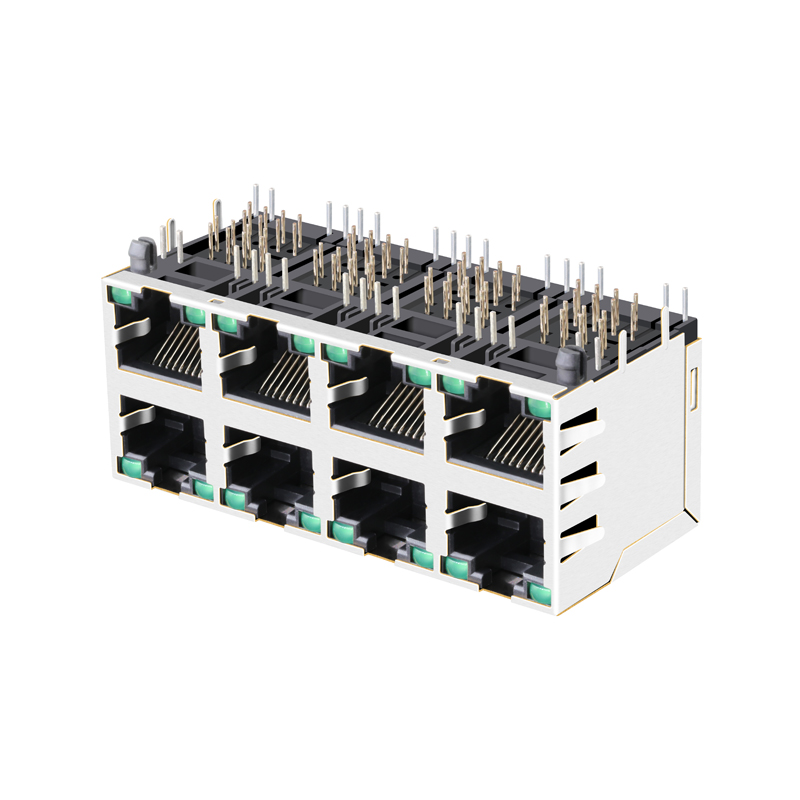

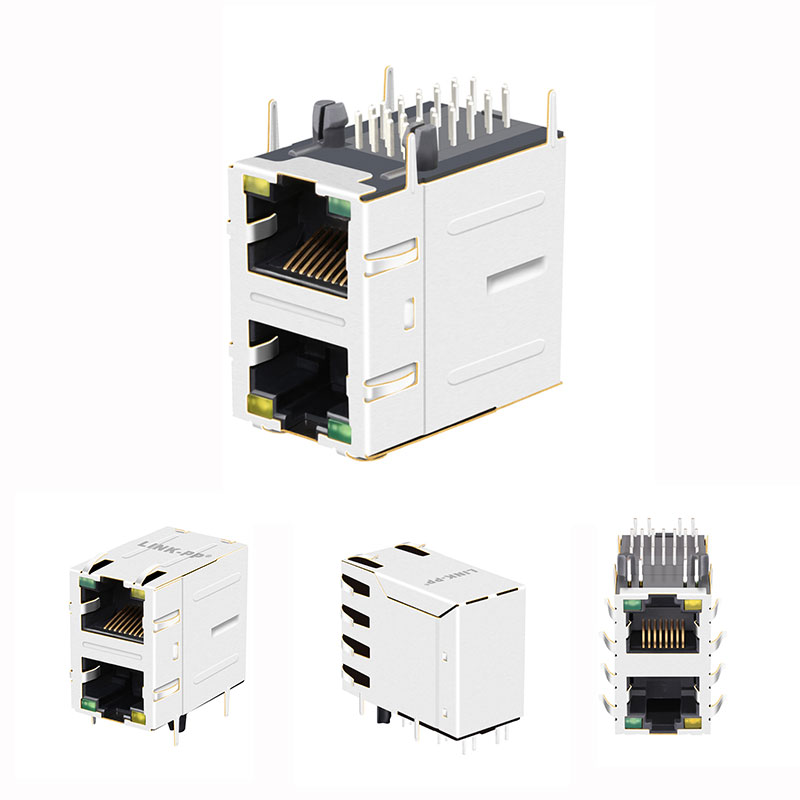

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
1 / 5
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack
2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

2x1 2x2 2x4 2x6 2x8 Port 100/1000/2.5G/5G/10G Base-T Cat5 Cat5e Cat6 Cat6a PCB Stacked Integrated Connector RJ45 Magnetic Jack

Send Inquiry

Product Description

Product Description

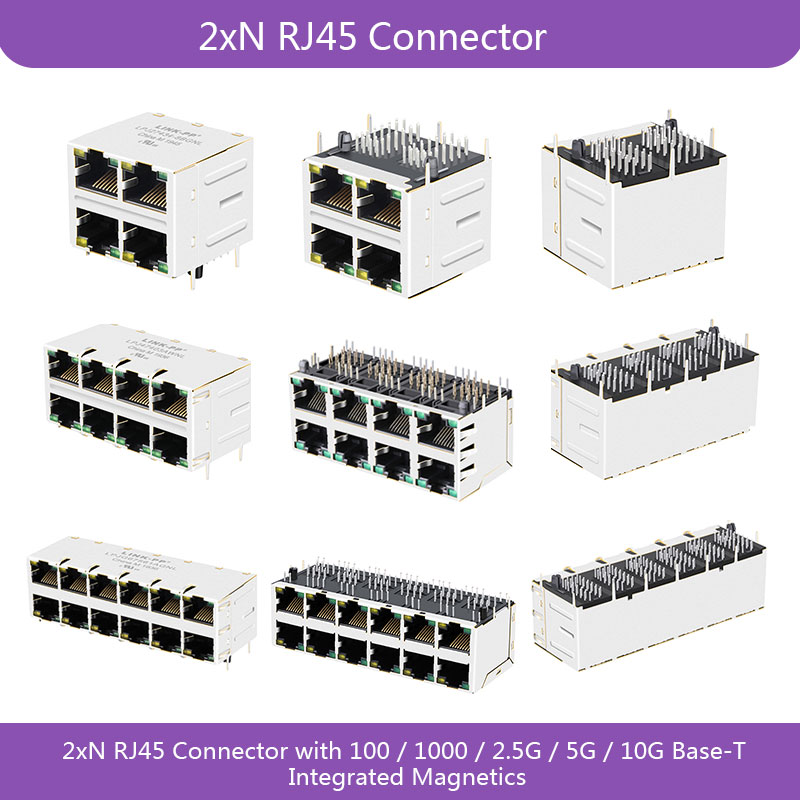

RJ45 Connector with integrated transformer
Characteristics
  • RJ45 Connector with integrated transformer / common mode choke
  • Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
  • Available in SMT, THT and THT with USB
  • Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
  • HPLE products: Improved Common Mode Rejection due to additional NiZn cores
Specification
Item Value
Model NumberRJ45 Filtered Connectors
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of Ports2x1 2x2 2x4 2x6 2x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C / -40°C ~ +85°C
Packing & Delivery
  • Package Type: Tray
  • Carton Size: 32 * 30 * 31 cm
  • Gross Weight: 8.5 kg / carton
  • Quantity: 1200 pcs / carton
  • Standard Packing Quantity (SPQ): 50 pcs
  • Net Weight: 0.007 kg / pcs
Packaging Details
Production Showcase
Production Facility Showcase 1
Production Facility Showcase 2
Production Facility Showcase 3
Production Facility Showcase 4
Production Facility Showcase 5
Production Facility Showcase 6
Production Facility Showcase 7
FAQ
1. What is our background and market footprint?
We are a professional manufacturer established in 2012, serving global regions including North America, South America, Southeast Asia, Eastern Europe, Africa, Oceania, and Western Europe, supported by a strong team of over 1000 professionals.
2. How do we guarantee the quality of our products?
We maintain strict quality control by ensuring a pre-production sample is approved before commencing mass production, followed by a thorough final inspection prior to shipment.
3. What product categories can you purchase from us?
We specialize in high-quality RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.
4. What advantages make us a preferred supplier?
With nearly two decades of specialization in RJ45 connectors and LAN transformers, we are certified under SGS, ISO9001:2008, UL, REACH, and CE. Supported by a robust workforce and massive weekly production capacity, we meet strict volume and quality demands for global brands.
5. What delivery and payment terms do we support?
We accept standard delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, and Express Delivery. Supported payment currencies include USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, and CHF via T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
