China Manufactures 2x1 Port Shielded RJ45 Modular Jack

2x1 Port Shielded RJ45 Modular Jack Header Banner

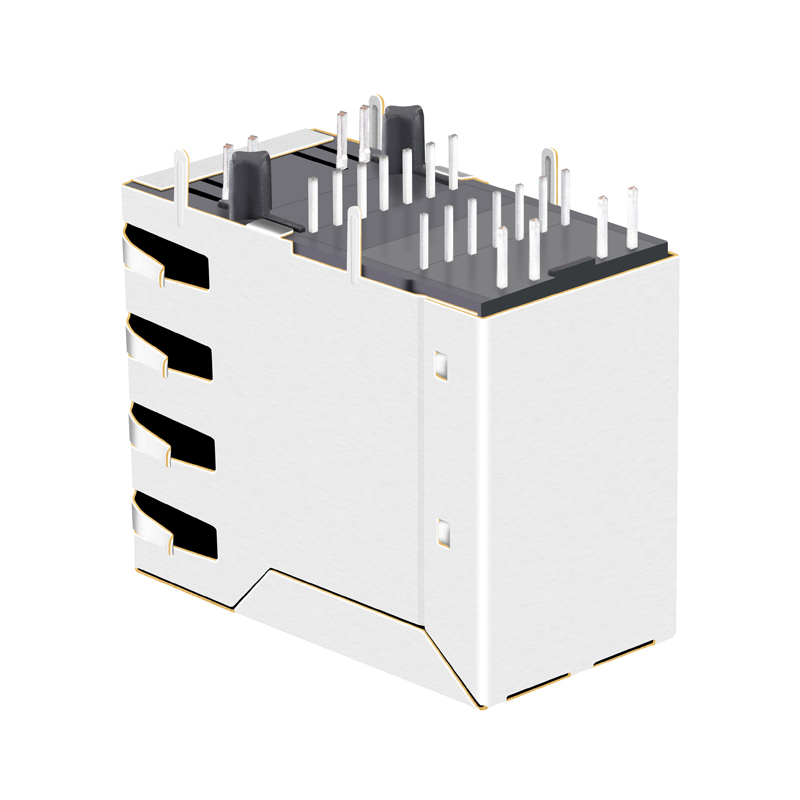

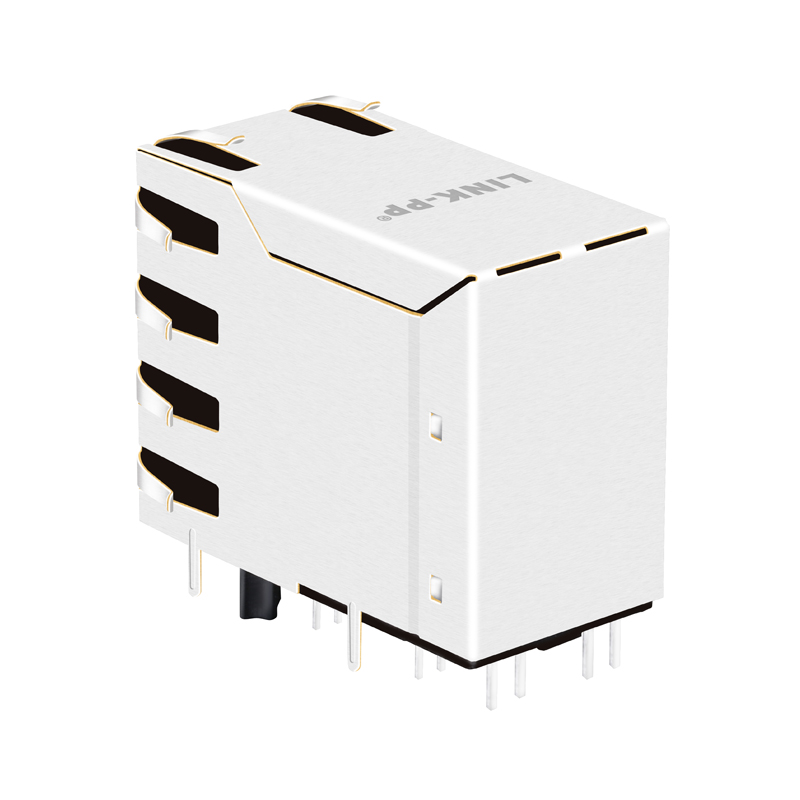

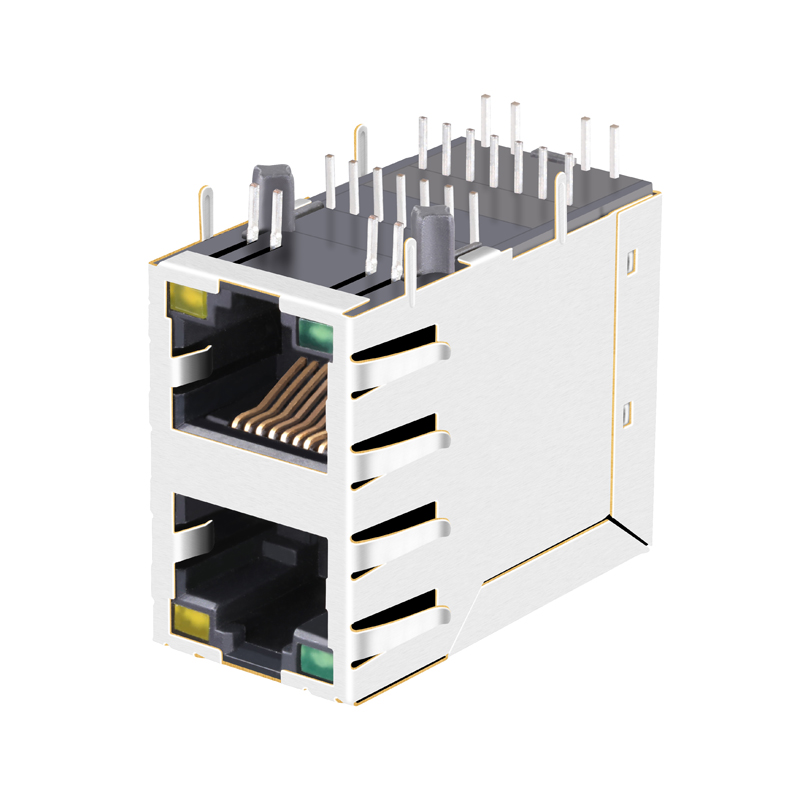

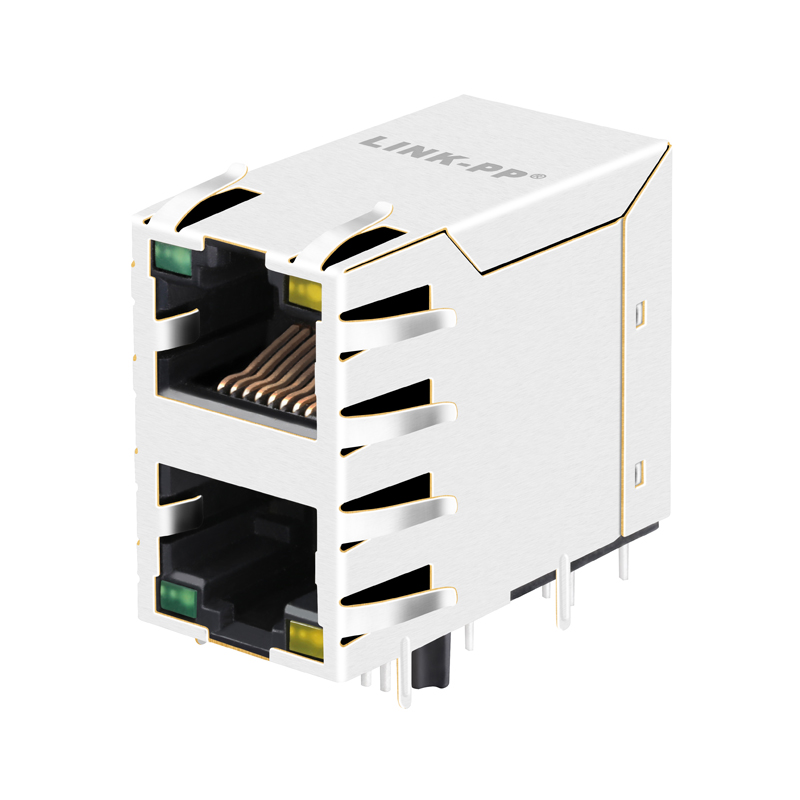

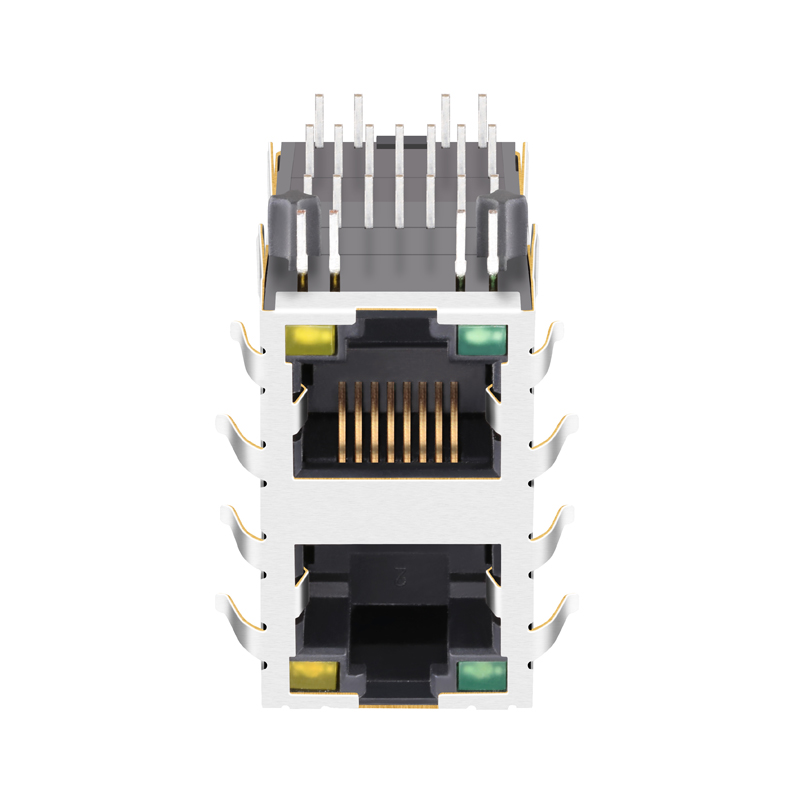

2x1 Port Shielded RJ45 Modular Jack Isometric View

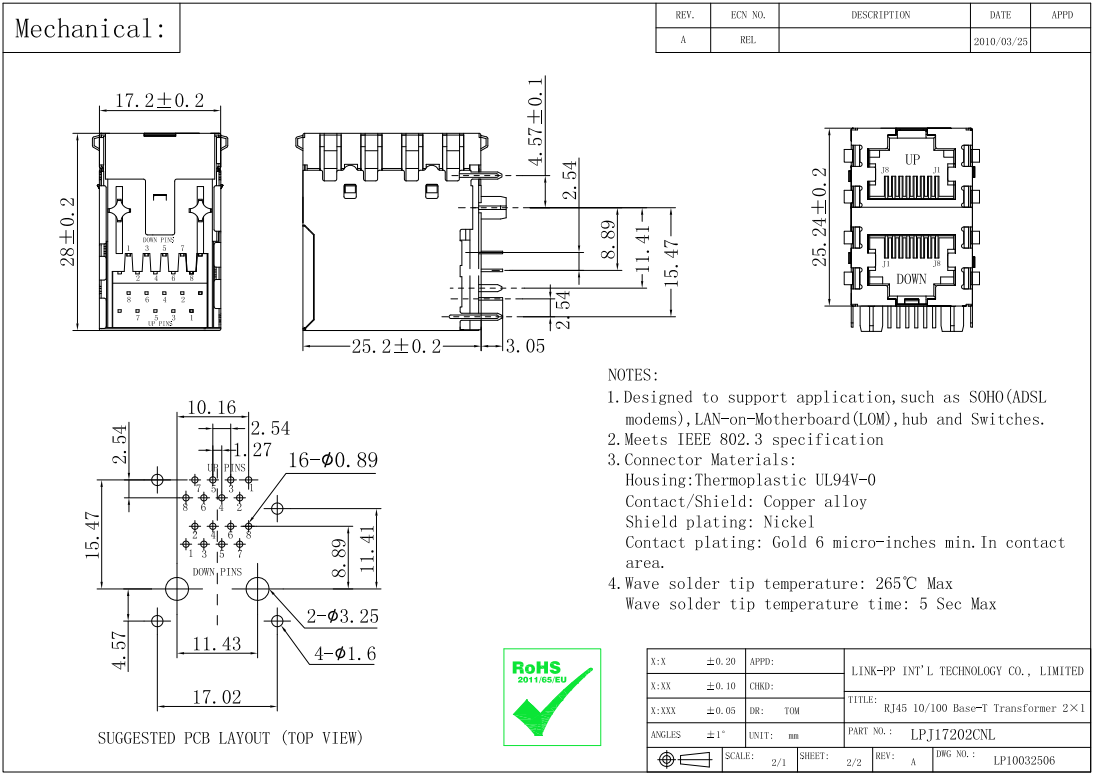

2x1 Port Shielded RJ45 Modular Jack Mechanical Dimension Drawing

2x1 Port RJ45 Connector 10/100 Base-T Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Part Number	LPJ17202CNL
Cross Reference Part Number	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET (Non-PoE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX	T, C
Configuration TX	T, C
Contact Mating Area Plating	GOLD 6u" / 15u" / 30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	Without
Latch	TAB DOWN / UP
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES - RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T
Temperature	-40 TO 85 ℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

World’s Leading Supplier Of Integrated RJ45 Connectors And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008 Registered
UL Certification Standards
REACH Cetitifaction Compliant
RoHS Compliance Certification
Active Environmental Protection Policy

100% Guaranteed Quality

Manufactured Under Exceptionally Strict Controls
100% Rigorously Tested (Not Just Batch Tested)
Long-term OEM Partnership for 9 Years
Successful Deployment for Top Tier Enterprises
Comprehensive Quality Guarantee: 6 Years

Competitive Price & Service

Highly Competitive Pricing Compared to Alternatives
Rapid Delivery Time: 2-3 Weeks After Final Orders
Free Product Samples Available on Request
Custom Design Integration for Unique Customer Requirements
Up to 90% Off Standard Shipping Costs Via DHL, UPS, FEDEX, or TNT

Corporate Quality Policy

Achieve the Highest Level of Customer Satisfaction
Continuous Improvements in Quality, Delivery, and Service
Quality Performance Standard Maintained by Every Employee
Strict Standard of Delivering Defect-Free Products

Technical Diagrams & Dimensions

2x1 Port RJ45 Modular Jack Layout Drawing

Comprehensive Technical Spec Sheet Drawing

✔ Preferred Supplier for major reference boards, including standard BeagleBone boards.

✔ Integrated RJ45 connector components are verified and present on high-performance development architectures.

Frequently Asked Questions

1. What is the speed capability of this Shielded RJ45 Modular Jack?

This modular jack supports Ethernet transmission speeds of 10/100 Base-T, making it ideal for standard local area network (LAN) implementations.

2. Does this RJ45 connector include integrated magnetics?

Yes, the connector features integrated magnetics (10/100 Base-T) which help filter noise, prevent electromagnetic interference (EMI), and ensure consistent signal integrity.

3. What is the operating temperature range for this connector?

This RJ45 modular jack has an industrial-grade operating temperature range of -40°C to +85°C, ensuring reliable performance in harsh environmental conditions.

4. Is the product compliant with international environmental directives?

Yes, it is fully RoHS compliant (RoHS-5 with lead in solder exemption) and conforms to environmental policies like REACH.

5. What are the plating and layout options for this RJ45 model?

The connector has gold plating on the contact mating area (available in 6u", 15u", or 30u" configurations), features a Side Entry PCB mounting angle, and uses THT (Through-Hole Technology) solder pins.

6. Does this product feature LED indicators?

No, this specific model (Part Number LPJ17202CNL) is designed without integrated LED indicators and does not include diodes.
