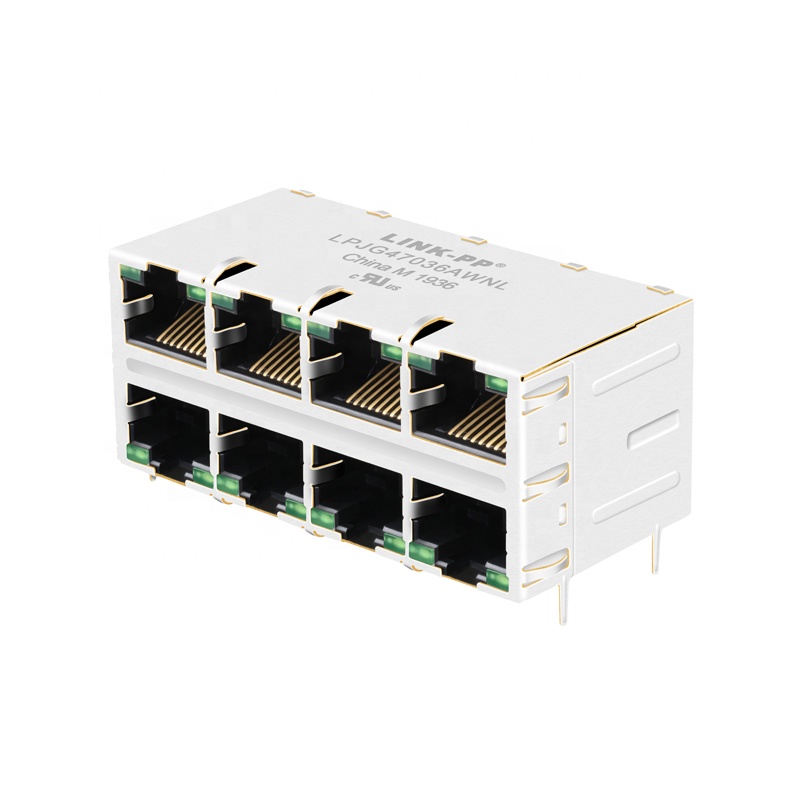

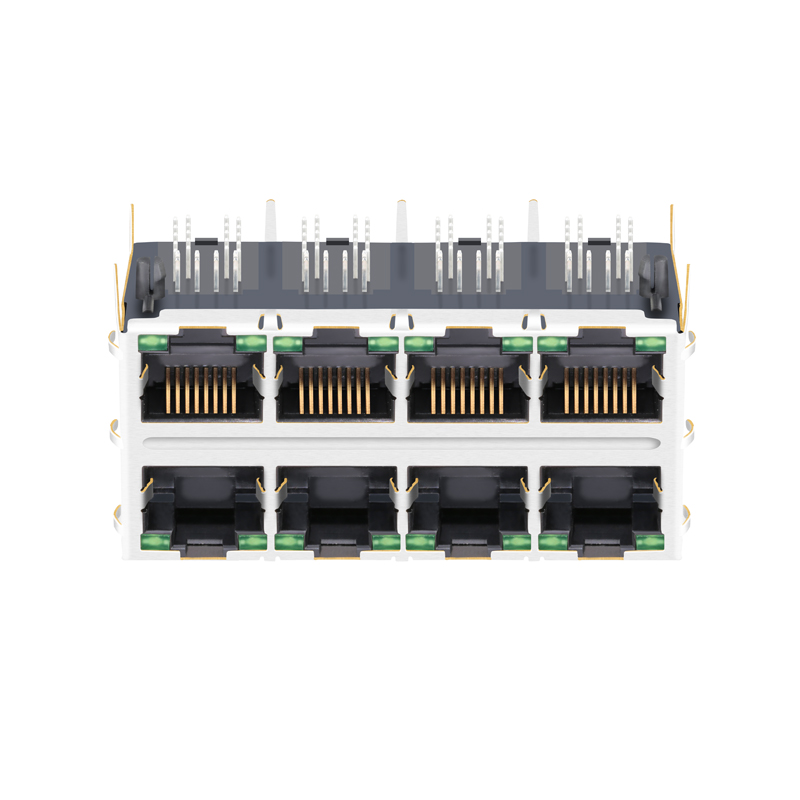

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

1 / 5

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector

Send Inquiry

Product Description

Product Specifications

Part Number	LPJG47036AWNL
Application-LAN	ETHERNET(POE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"/50u"
Cores Per Port	8
Diodes	NO DIODES
LED Option	GREEN/GREEN
Latch	UP/DOWN
Number of Ports	2X4
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Shielding	Shielded
Speed	2.5G BASE-T
Temperature	-20~+70℃
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Partner Of TE (Tyco) For 9 Years
Successful Customers Include: Texas Instruments, Samsung, Cisco, Siemens, and Intel…
Preferred Supplier of Leading Global Enterprises
Quality Guarantee: 6 Years

Competitive Price And Service

More Competitive Price Than Pulse, Tyco, Halo, Wurth, And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL, UPS, FEDEX, Or TNT

Frequently Asked Questions (FAQ)

What is the data speed support for this 2x4 Port RJ45 connector?

This RJ45 female connector is designed for high-performance networking, supporting 2.5G Base-T speeds over Cat5e cabling structures.

Does this female connector support Power over Ethernet (PoE)?

Yes, the connector is specifically engineered for PoE (Power over Ethernet) applications, allowing both power and high-speed data transmission over a single connector interface.

What is the operating temperature range for this RJ45 jack?

The connector is built for stable industrial performance with a standard operating temperature range from -20°C up to +70°C.

What shielding features does the connector offer?

It comes fully shielded with EMI tabs to provide excellent protection against electromagnetic interference and ensure optimal signal integrity.

What plating options are available for the contact mating area?

We offer multiple gold plating options to meet different application requirements, including 6u", 15u", 30u", and 50u".

Is the product compliant with environmental and safety standards?

Yes, the connector features RoHS-5 compliance (with lead in solder exemption) and is manufactured under strict quality guidelines aligning with ISO 9001 and UL standards.
