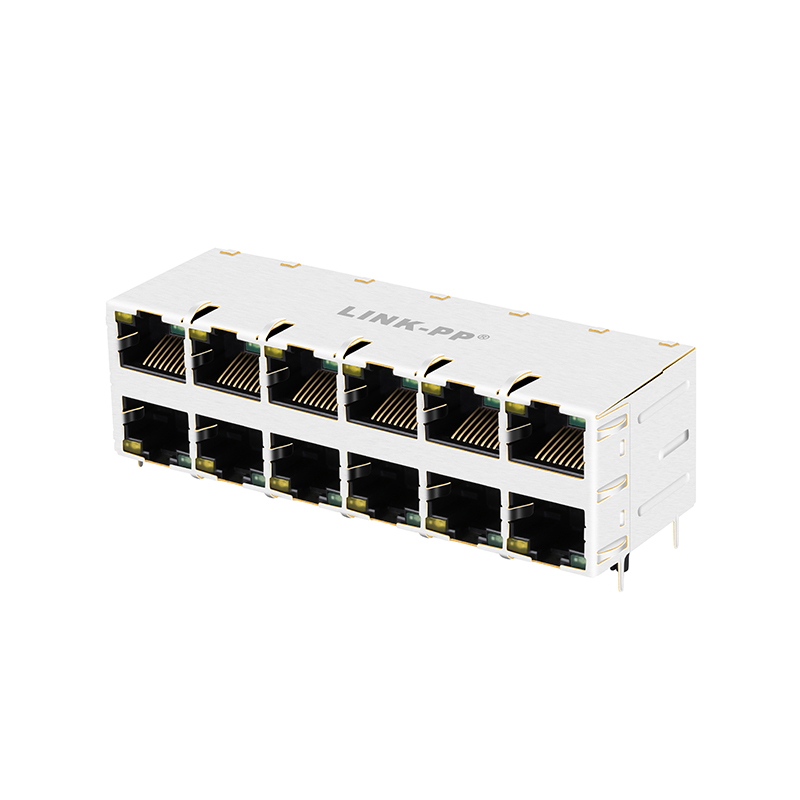

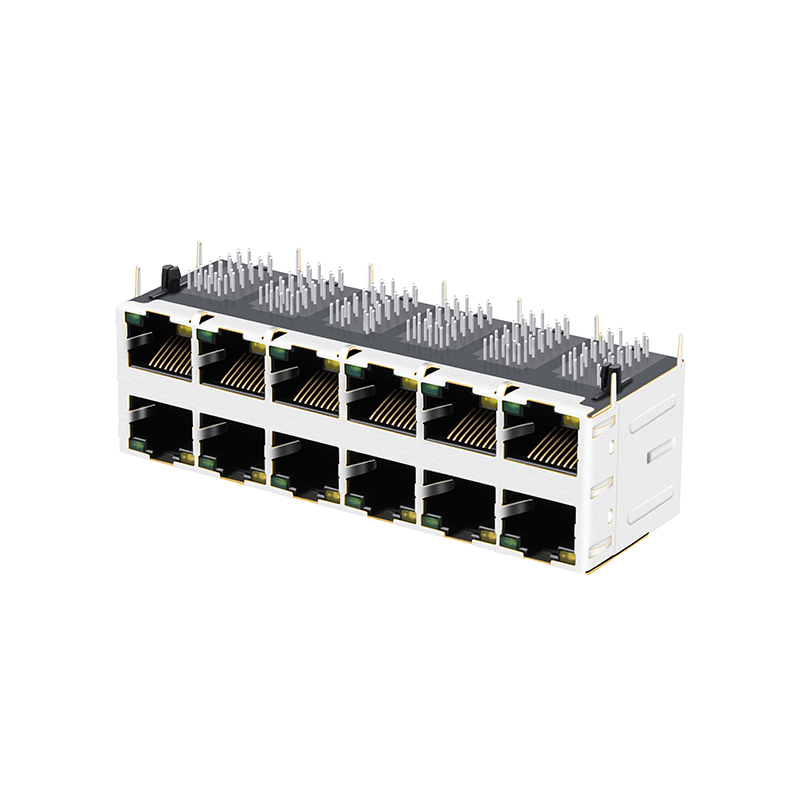

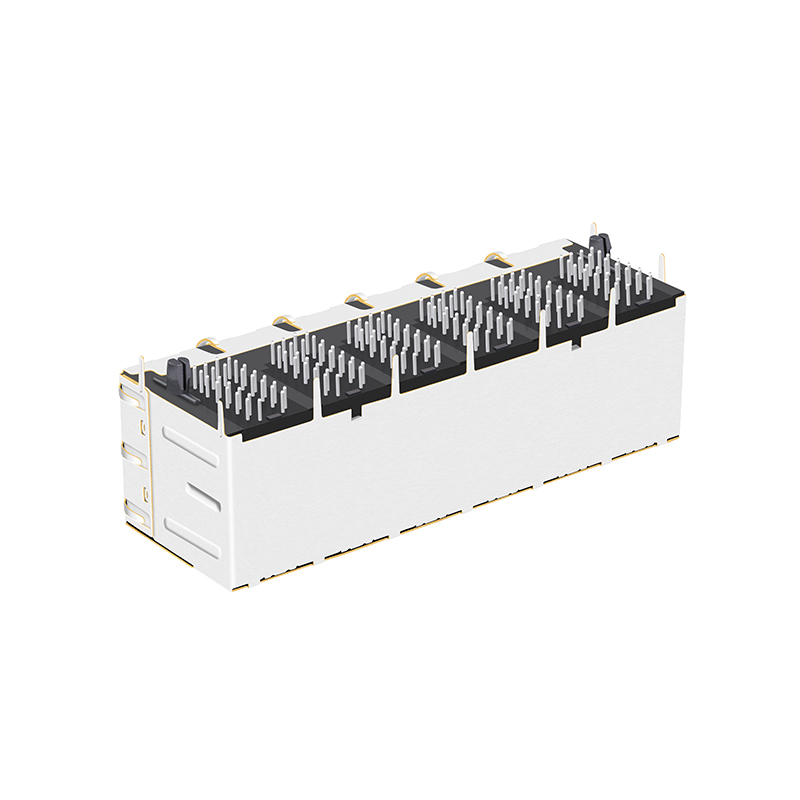

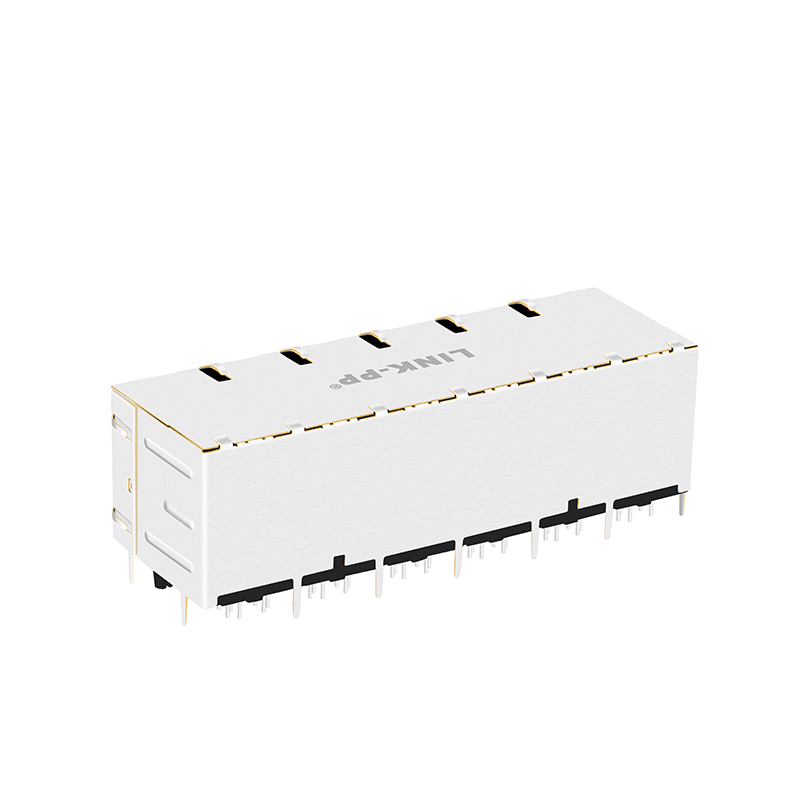

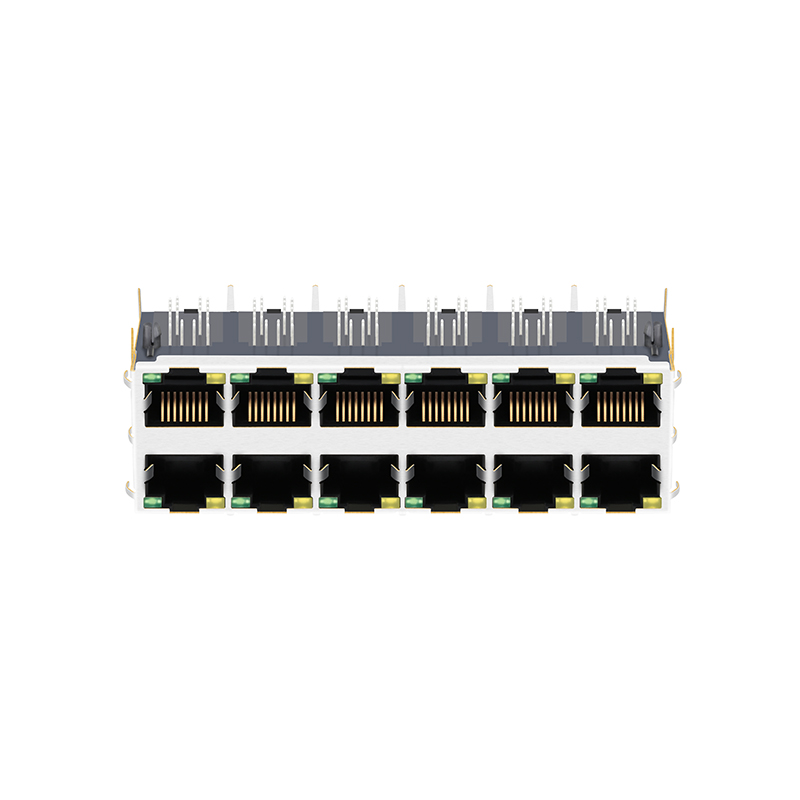

10/100/1000 Base-T RJ45 Stacked Jack 2x6 port RJ45 Jack RJGE-12M6170DJP
| Part Number |
RJGE-12M6170DJP |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
WITH/WITHOUT LEDS |
| Latch |
UP/DOWN |
| Number of Ports |
2X6 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
10/100/1000/10G BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
