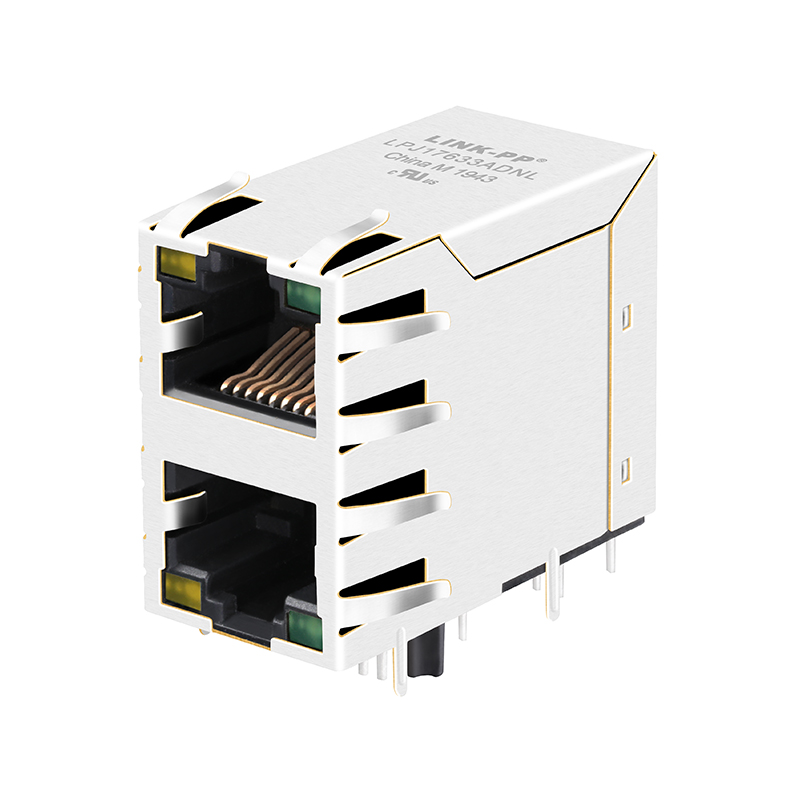

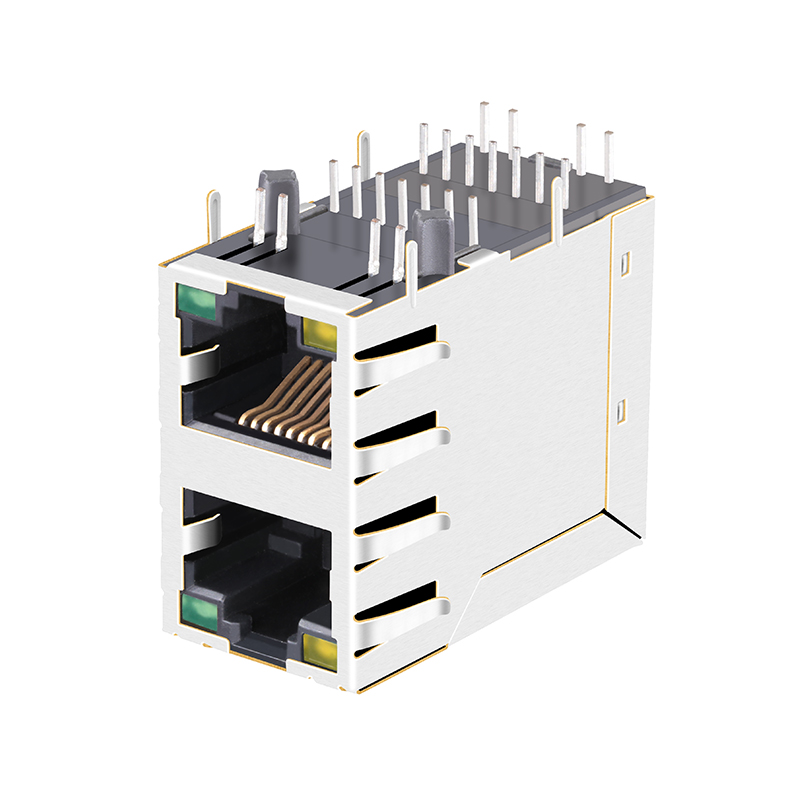

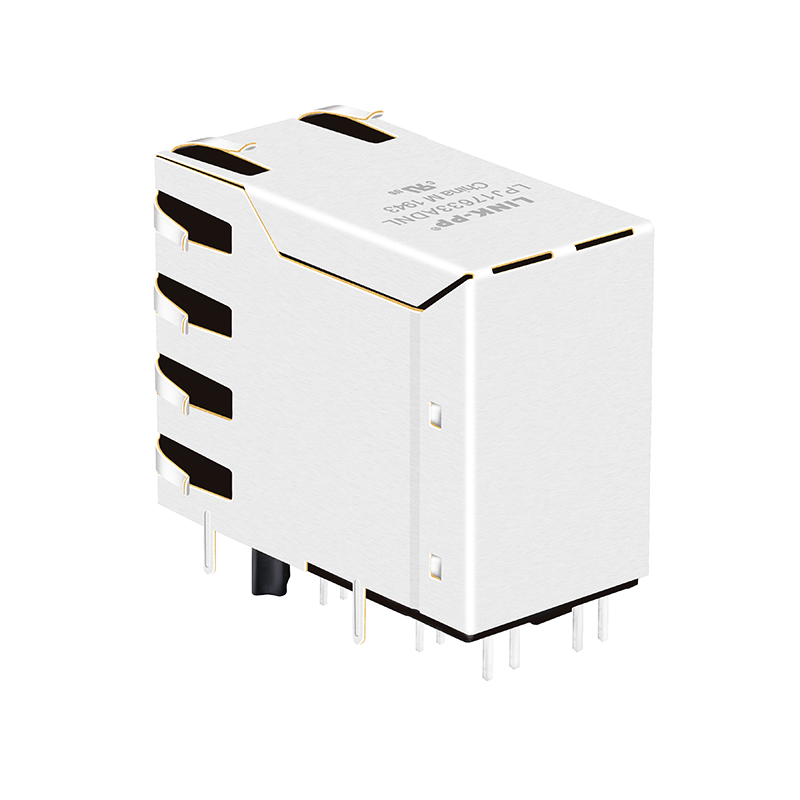

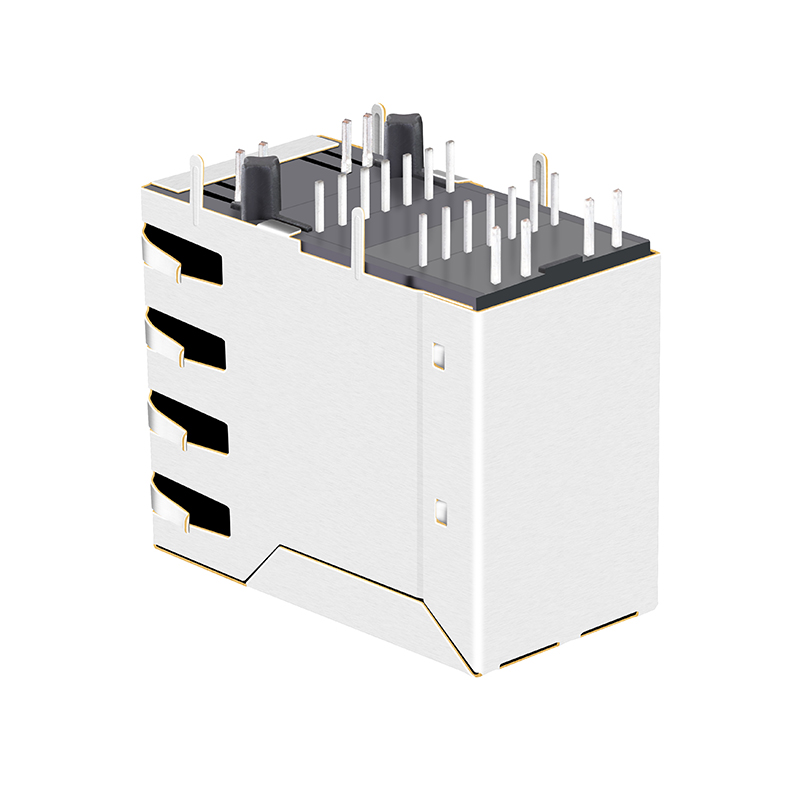

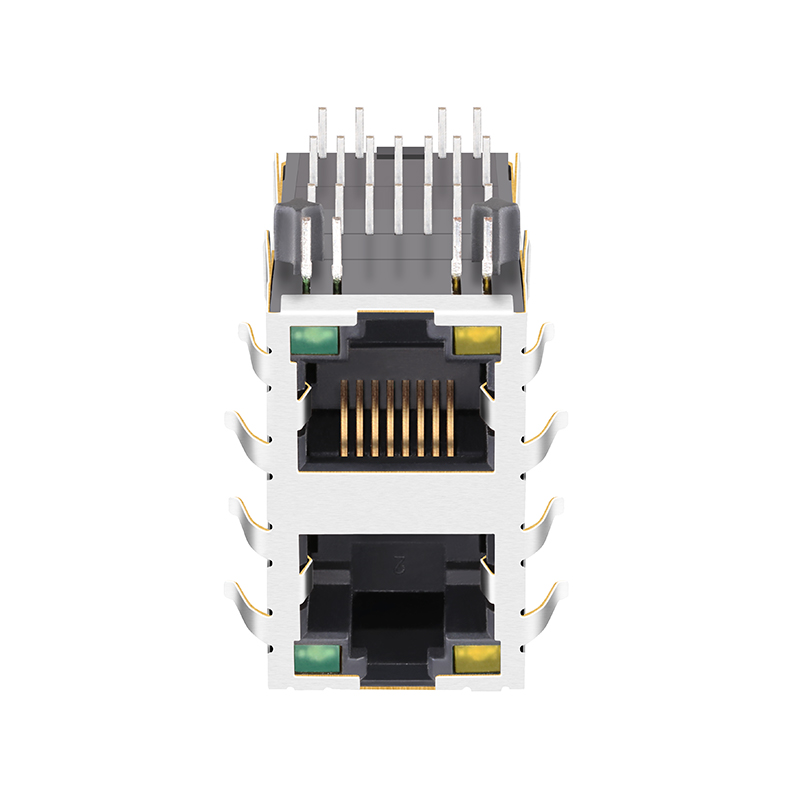

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
| Part Number |
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN |
ETHERNET(NON PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
Yellow/Green LEDS |
| Latch |
UP/Down |
| Number of Ports |
2x1 Port |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T Magnetics |
| Temperature |
-40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Corporate Policy
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- The Company Standard Is Defect-Free Products And Services
0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
Frequently Asked Questions (FAQ)
What are the main applications for the 0845-2D1T-H5 RJ45 modular jack?
This connector is specifically designed for 10/100 Base-T Ethernet applications (non-PoE), providing stable and reliable network interfaces for various networking devices.
Does the RM3-ZZ-0020 support AutoMDIX functionality?
Yes, it features AutoMDIX configuration along with a built-in BST circuit to ensure seamless cable crossover detection and optimal signal transmission.
What is the operating temperature range for these RJ45 connectors?
These modular jacks support wide temperature ranges, operating reliably between -40°C to 85°C or standard 0°C to 70°C depending on the specific model requirements.
Are there integrated LEDs available on these ports?
Yes, they come with integrated Yellow and Green LED options to provide clear visual link status and network activity indications.
What mounting and latch configurations do they use?
They feature a side entry (right angle) PCB mount design with THT solder pin types, a T-post retaining mechanism, and standard Up/Down latch configurations.
Is the 0845-2D1T-S4 connector RoHS compliant?
Yes, it is RoHS compliant (RoHS-5 status with lead in solder exemption), aligning with international environmental and safety standards.
