FiberQ
FiberQ

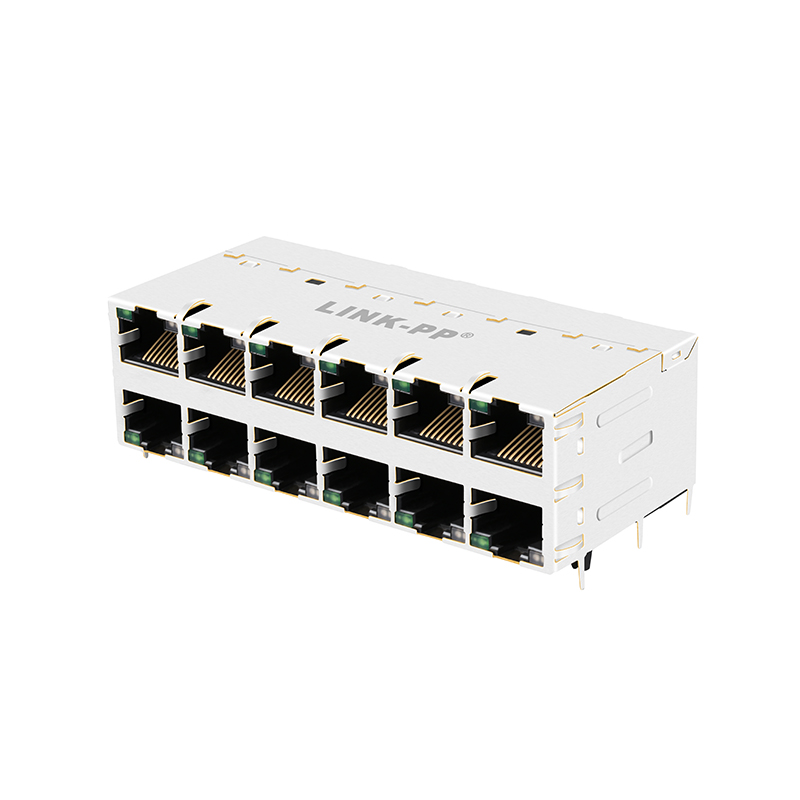

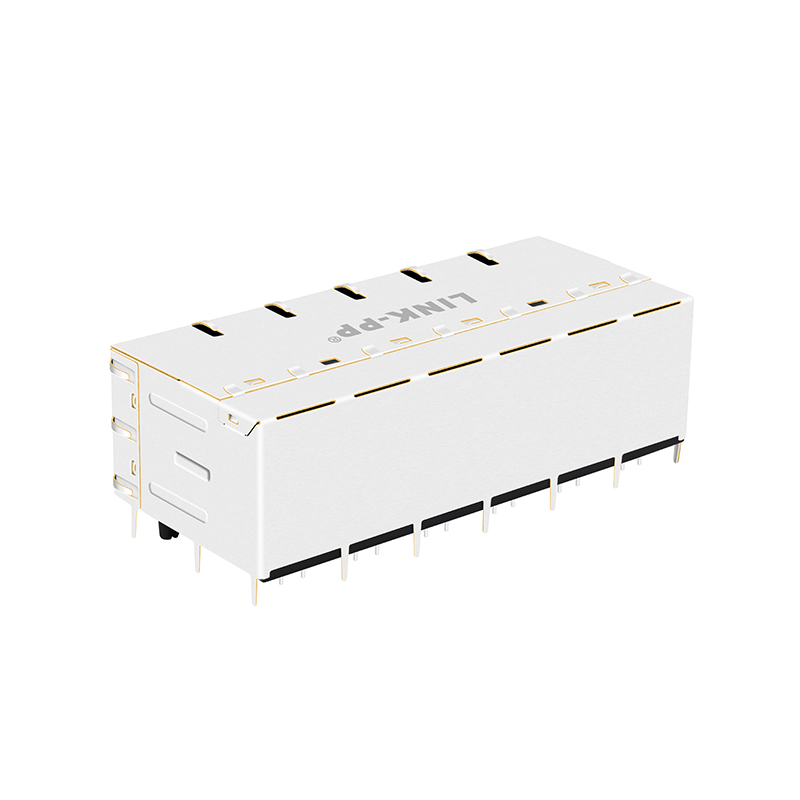

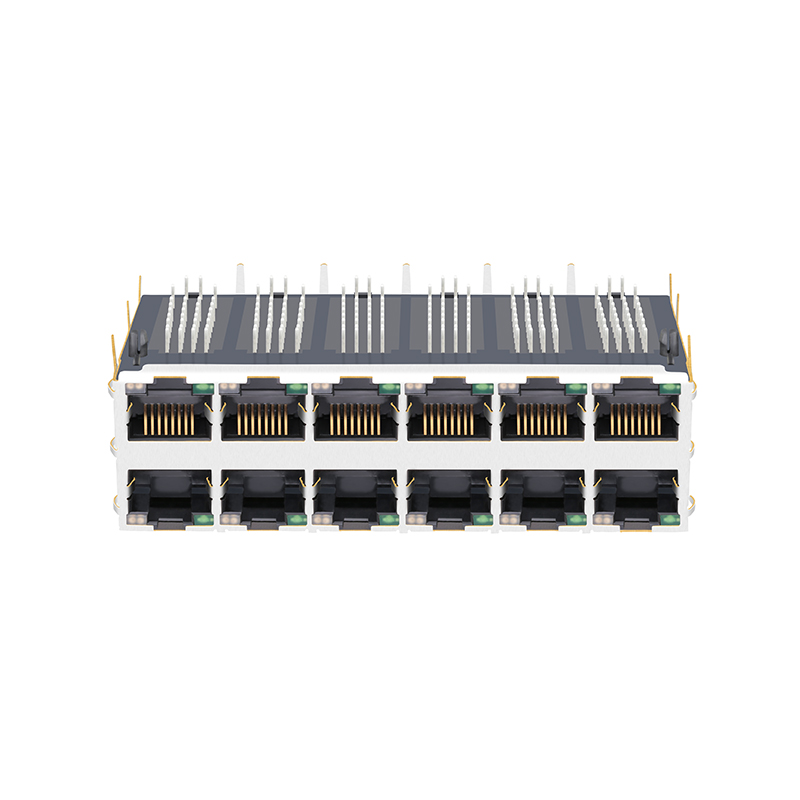

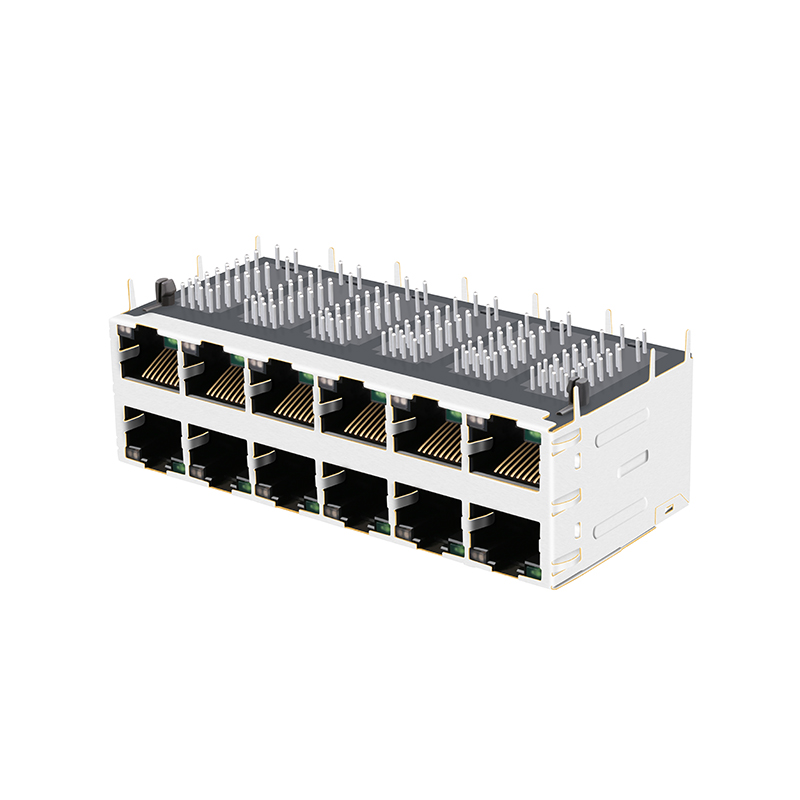

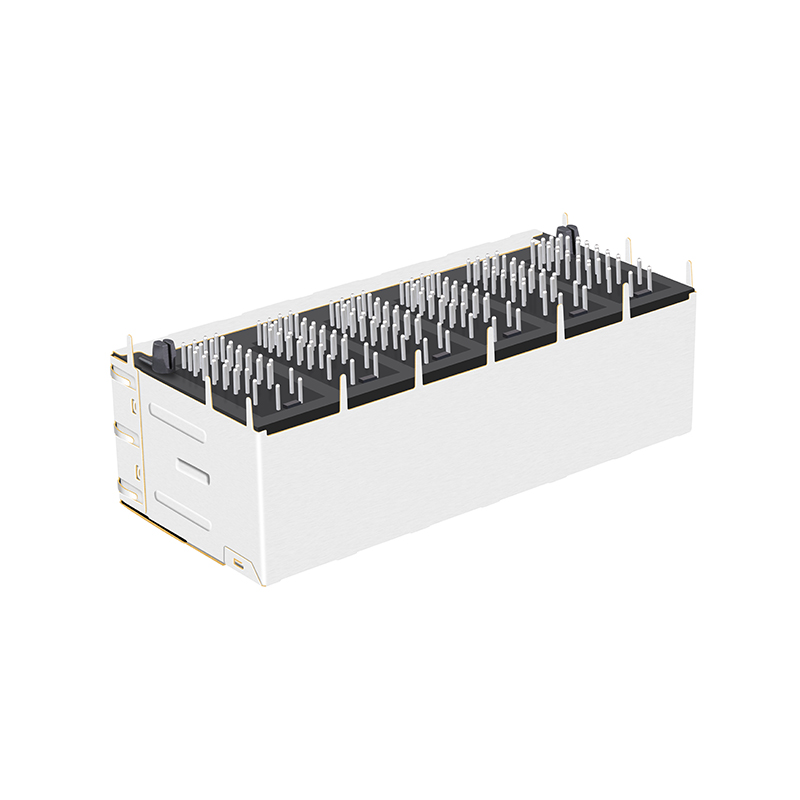

| Item | RJ45 Female Connector |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x6 Port |
| Speed | 10/100 Base-T |
| Latch | Up/Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, though the shipping fee should be covered on your end.
Items in stock are ready to ship immediately, while mass production typically takes 15-30 days.
We provide a one-year warranty period and offer online technical support 24 hours a day.
Yes, please send your inquiries to us so we can proceed with a detailed discussion regarding custom specifications.
We have 19 years of dedicated manufacturing experience, utilizing standard management systems alongside advanced automatic production machinery.
