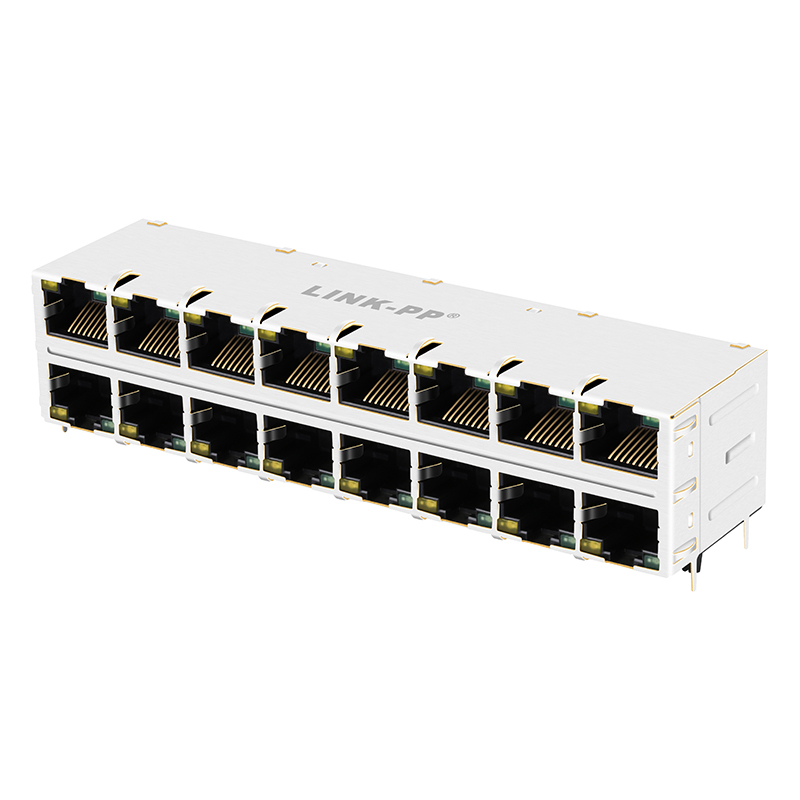

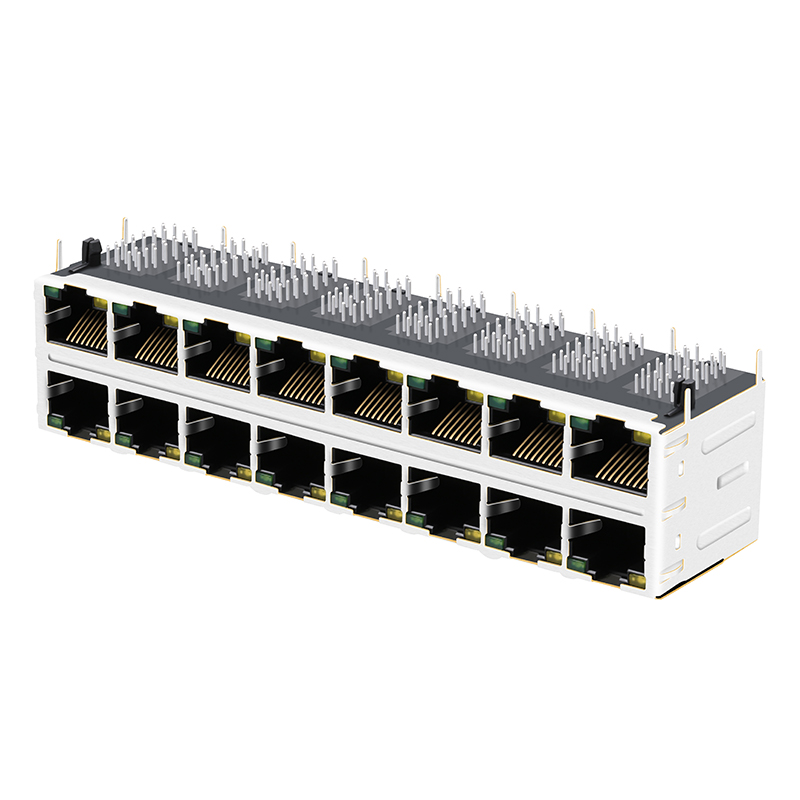

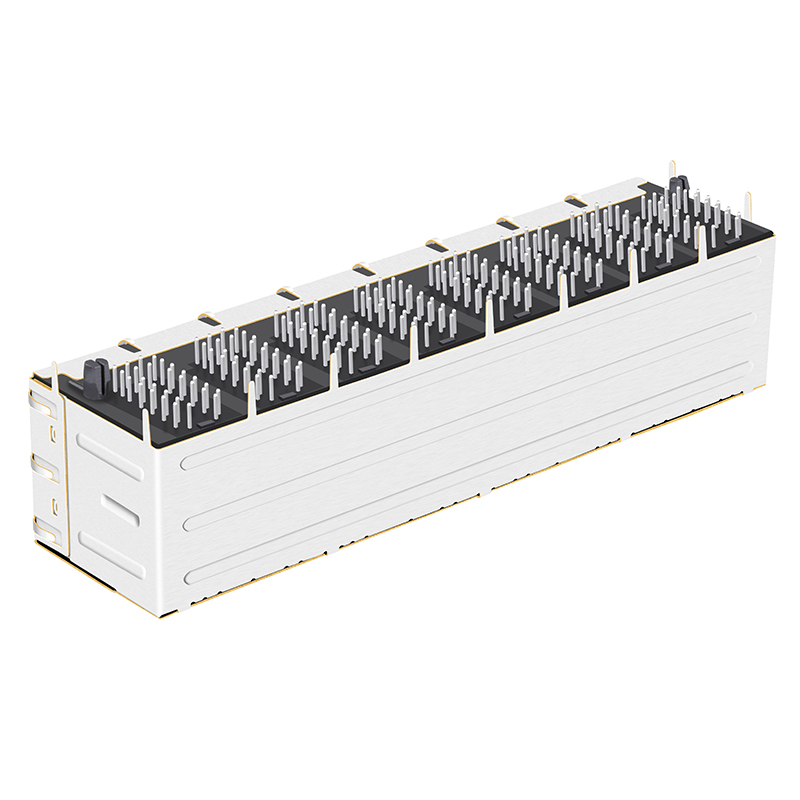

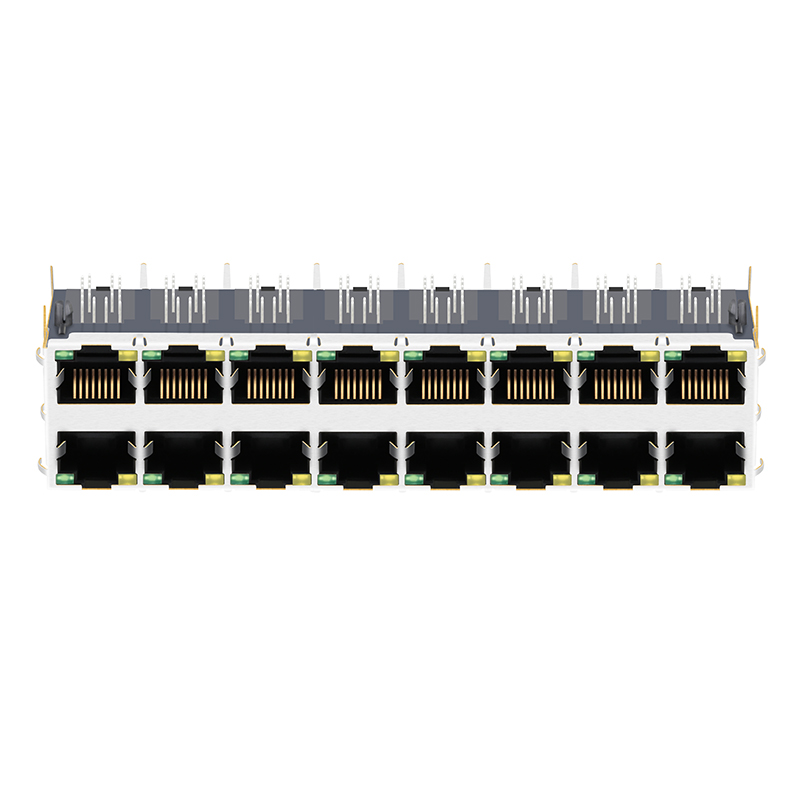

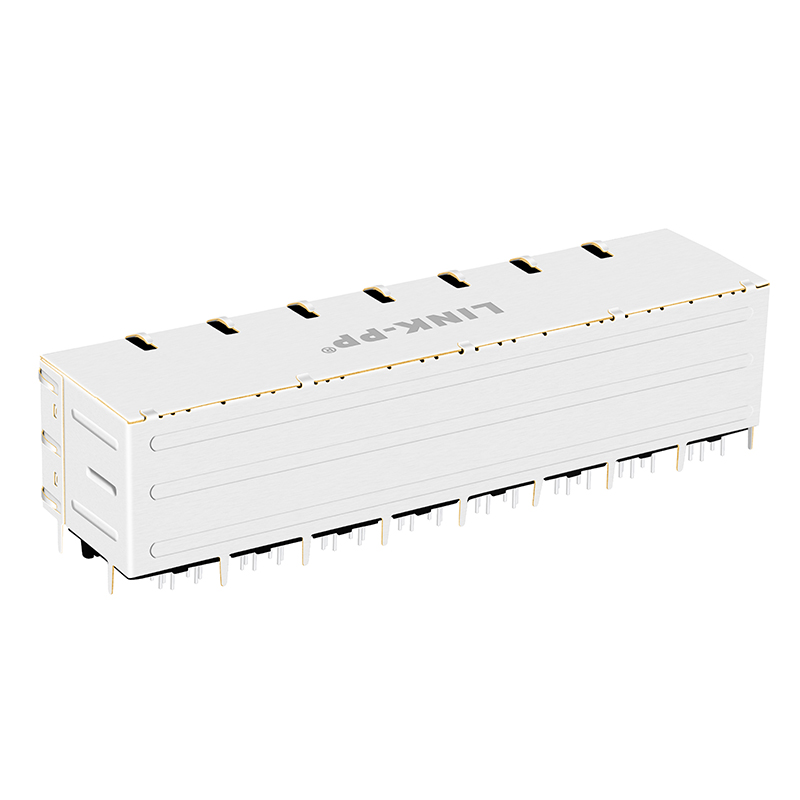

Multiple Port RJ45 Modular Jacks 0854-2X8R-GK-F
⚙️ Products Description
| Item |
RJ45 Female Connector |
| Compatible With |
0854-2X8R-GK-F |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
2x8 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down/Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without/With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
✨ Product Category Details Showcase ✨
🏢 Company Profile
Established in 1997, is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
❓ FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be paid by the customer.
What is your delivery time?
Items that are currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so that we can have a detailed discussion.
What is your advantage?
We bring 19 years of professional production experience and have partnered with top-tier global enterprise groups for many years.
