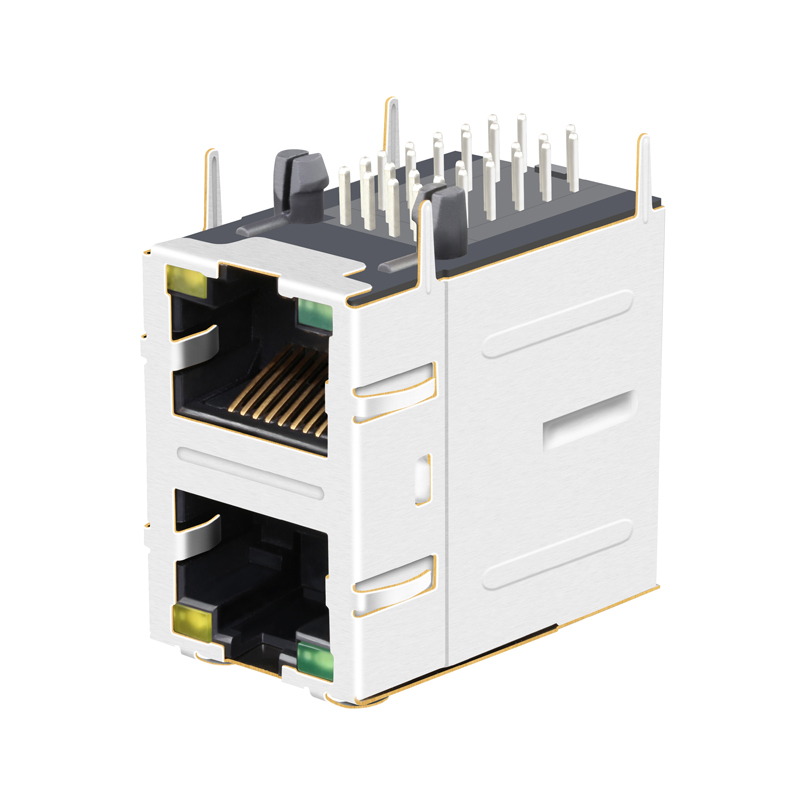

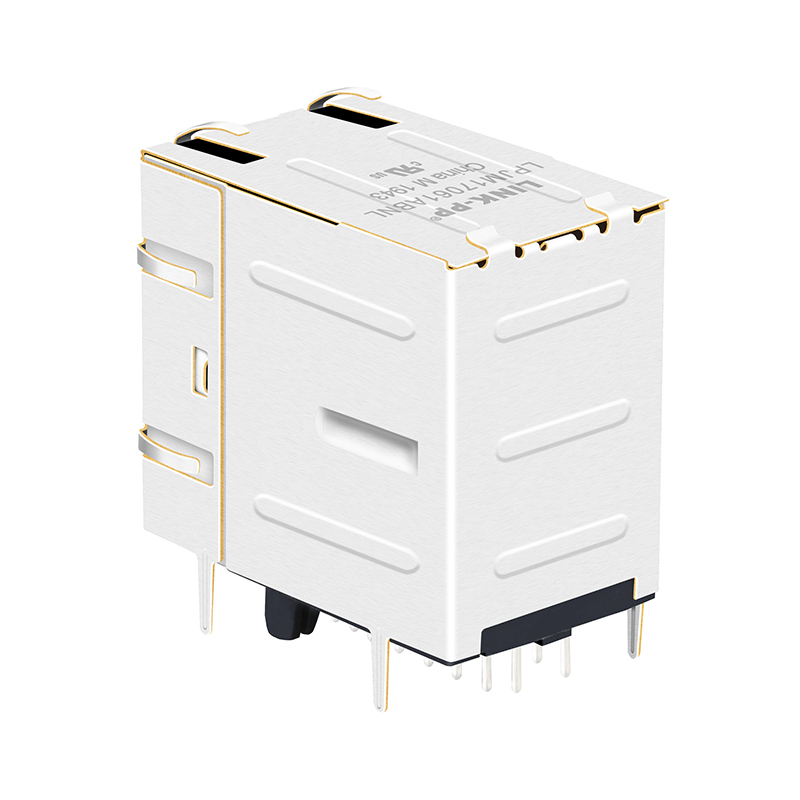

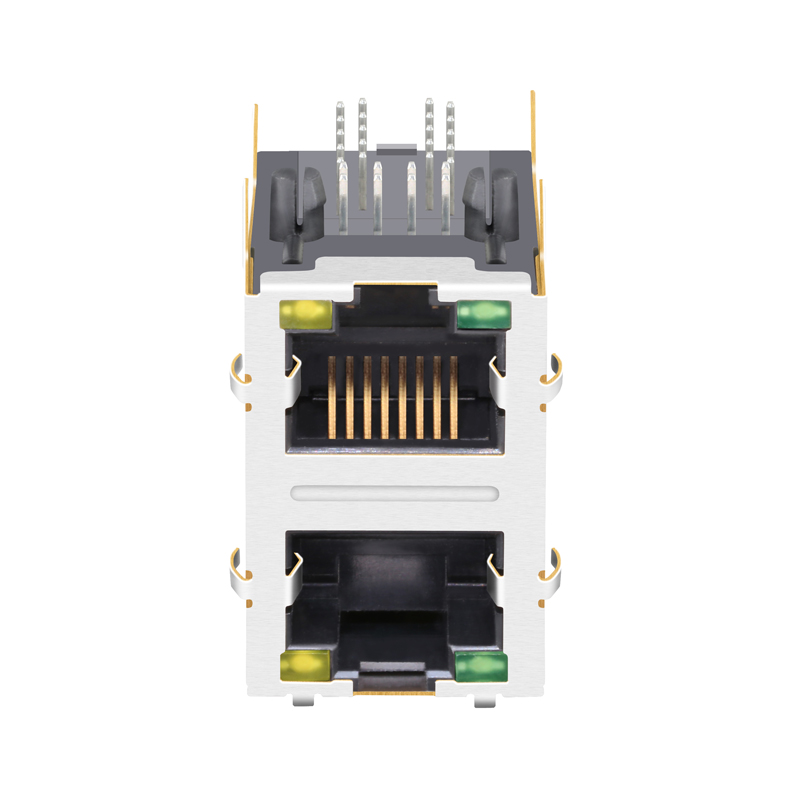

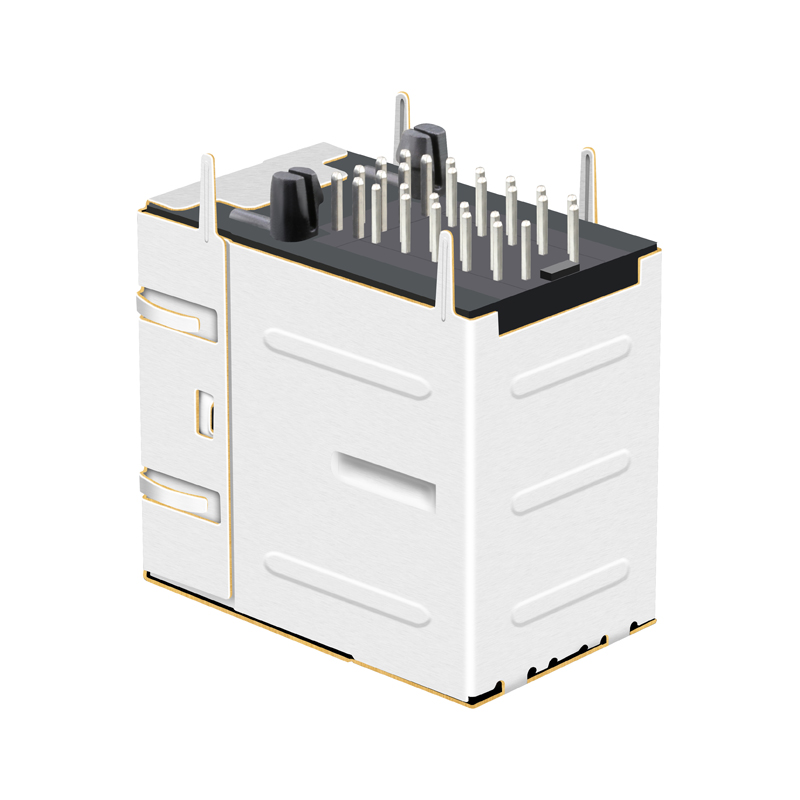

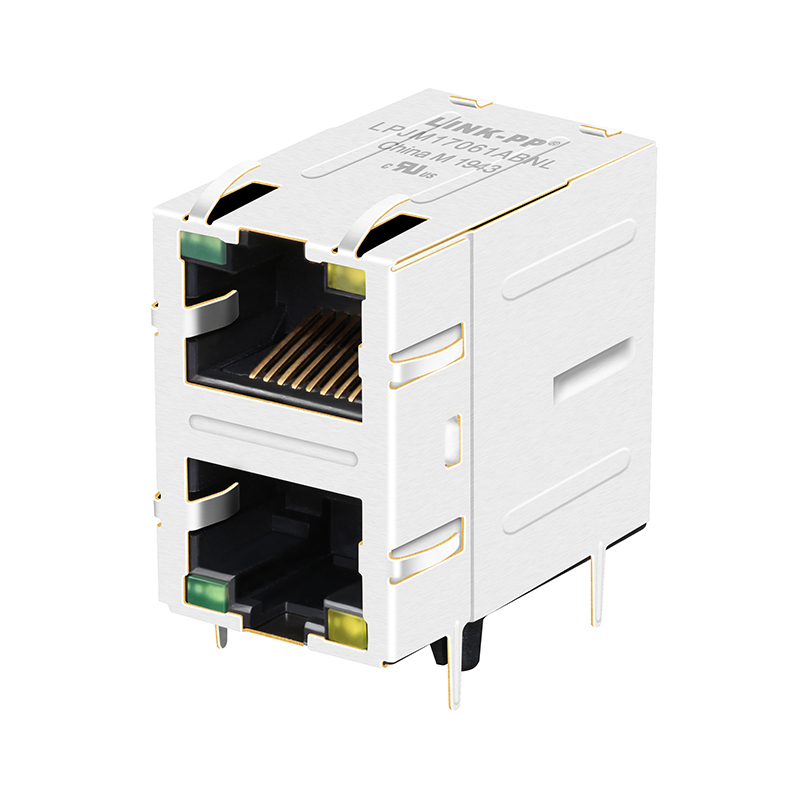

2x1 Port Magnetic RJ-45 Sockets Ethernet 2.5G Female RJ45 Jack Connector With Led Lights
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJM17061ABNL |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
10p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
2x1 Port |
| Speed |
2.5G Base-T |
| Latch |
Down |
| Cores per Port |
8 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
With |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
👇 See Below Products To Get More 👇
Product Specifications & Visuals
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
3. What is your delivery time?
Products in stock are ready to ship immediately, and it takes 15-30 days for mass production orders.
4. What after-service can you offer?
We provide a one-year guarantee period along with technical support online 24 hours.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your requirements.
6. What is your advantage?
We possess over 19 years of production experience and have been a trusted partner for Intel and Jabil for many years.
