| Part Number | RJ45 connector |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 8 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS |
| Latch | Up/Down |
| Number of Ports | 2x8 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Shield, EMI Finger |
| Speed | 10/100/1000 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

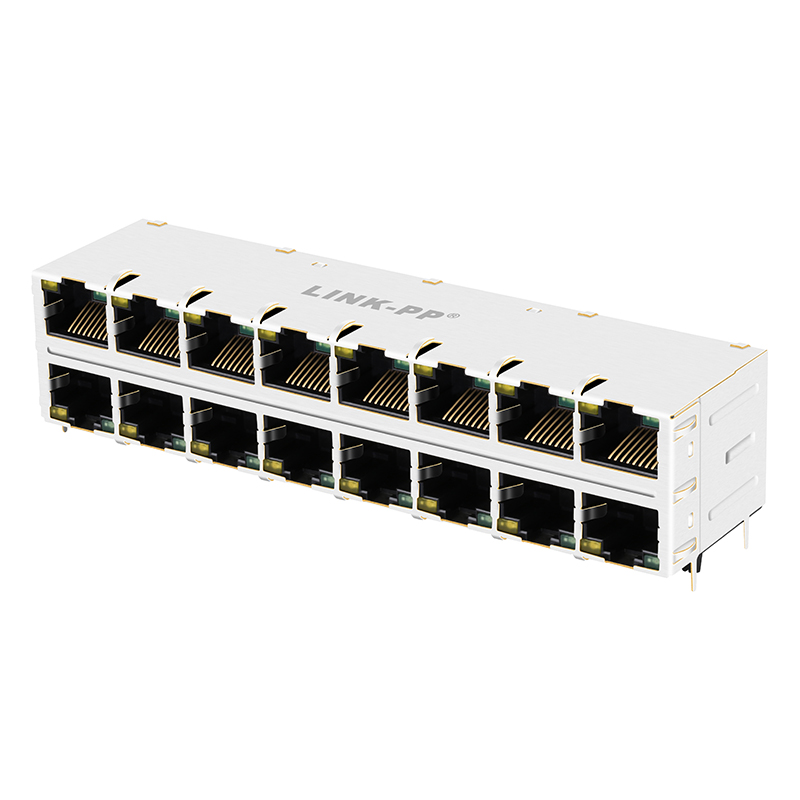

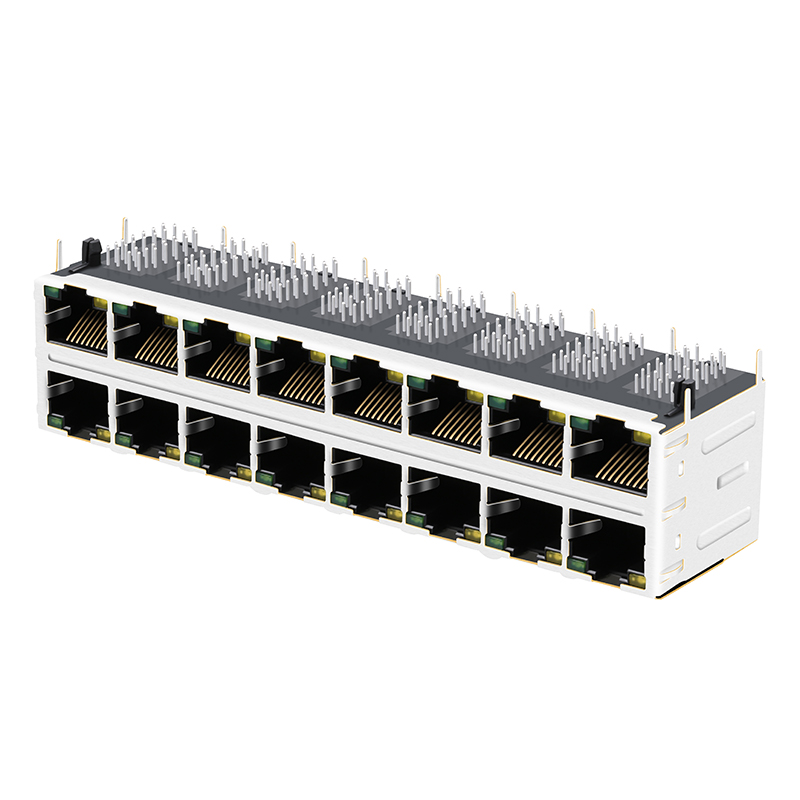

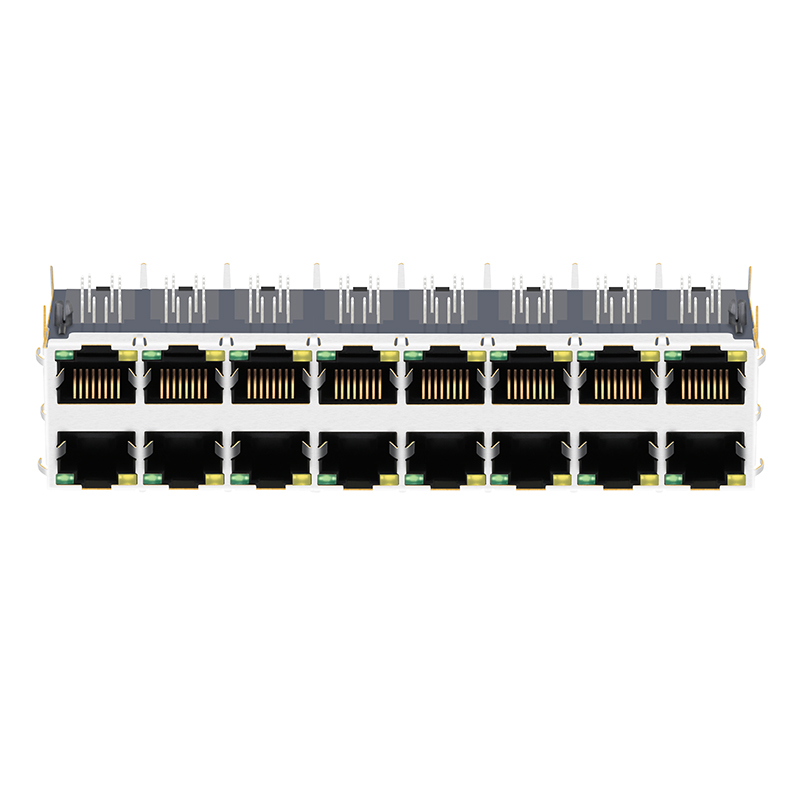

A1: This shielded 16-port RJ45 connector is designed for standard Ethernet applications (Non-PoE) including network hubs, switches, routers, and high-density LAN equipment supporting 10/100/1000 Base-T speeds.
A2: No, this specific RJ45 jack configuration is designed for standard Ethernet networks and does not support PoE capabilities (Non-PoE).
A3: The connector is rated to operate reliably within a wide temperature range of -40°C to 85°C, making it suitable for both commercial and harsh industrial environments.

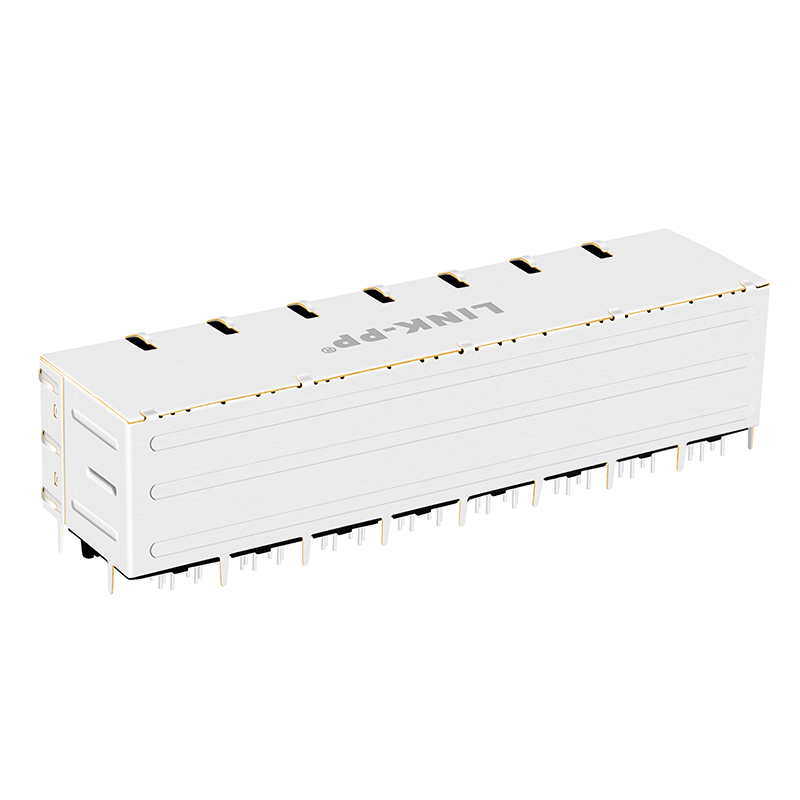

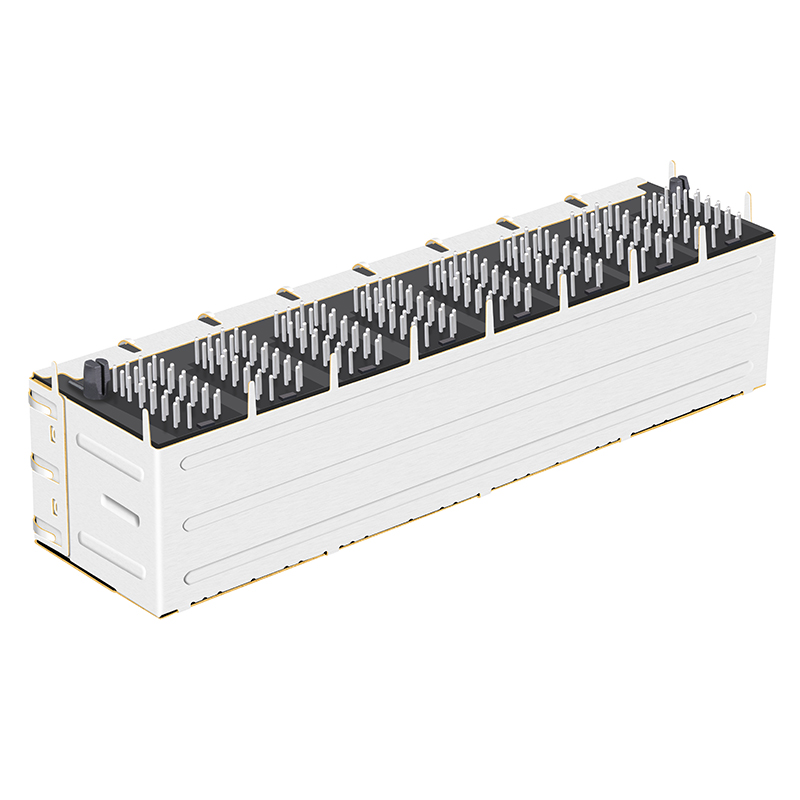

A4: It comes equipped with a comprehensive metal shield and EMI tabs (EMI fingers) to minimize electromagnetic interference and ensure stable signal transmission.
A5: Our production processes comply with rigorous global standards, holding ISO 9001:2008, UL certification, Reach certification, and RoHS compliance.
A6: Yes, we provide new designs based on custom requirements, including contact mating area plating options ranging from gold 6u", 15u", to 30u".
