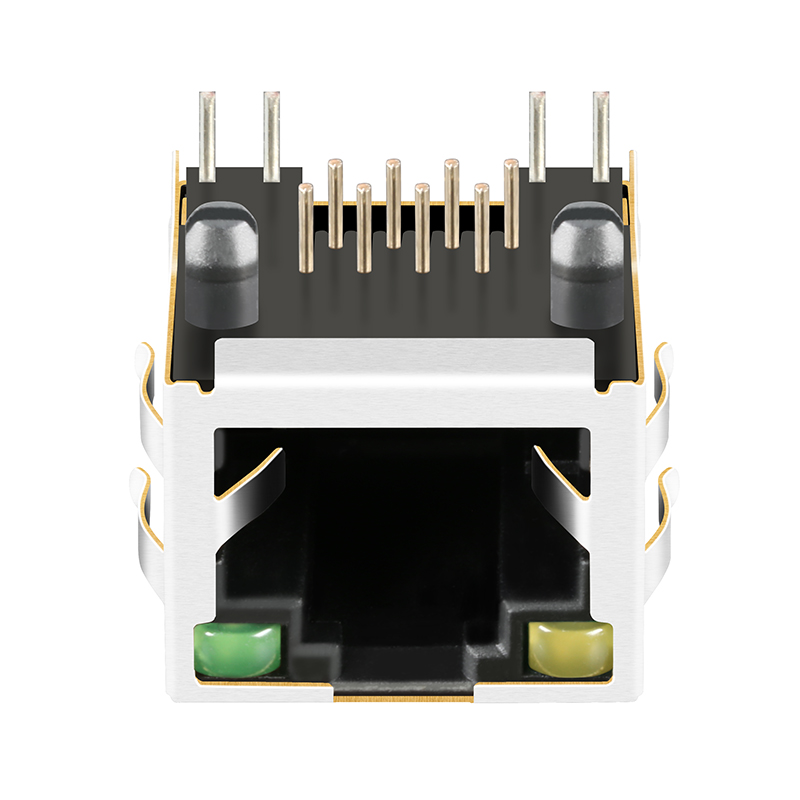

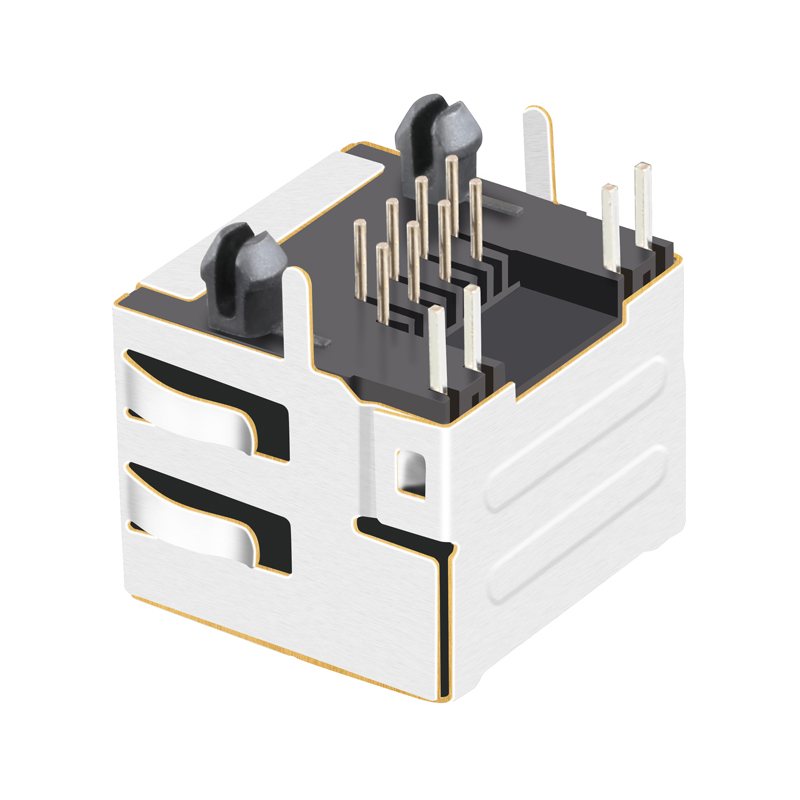

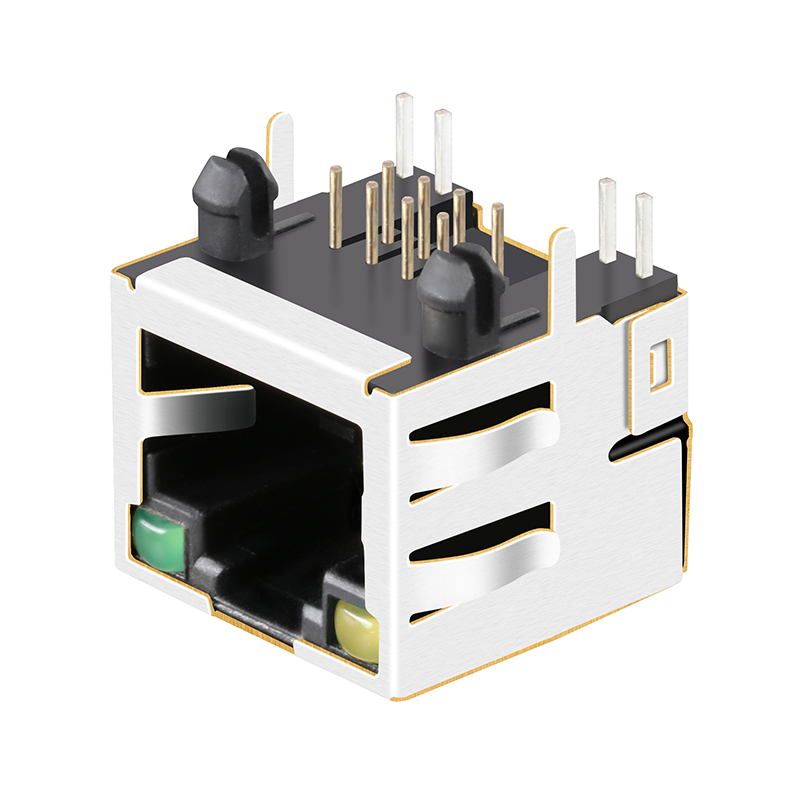

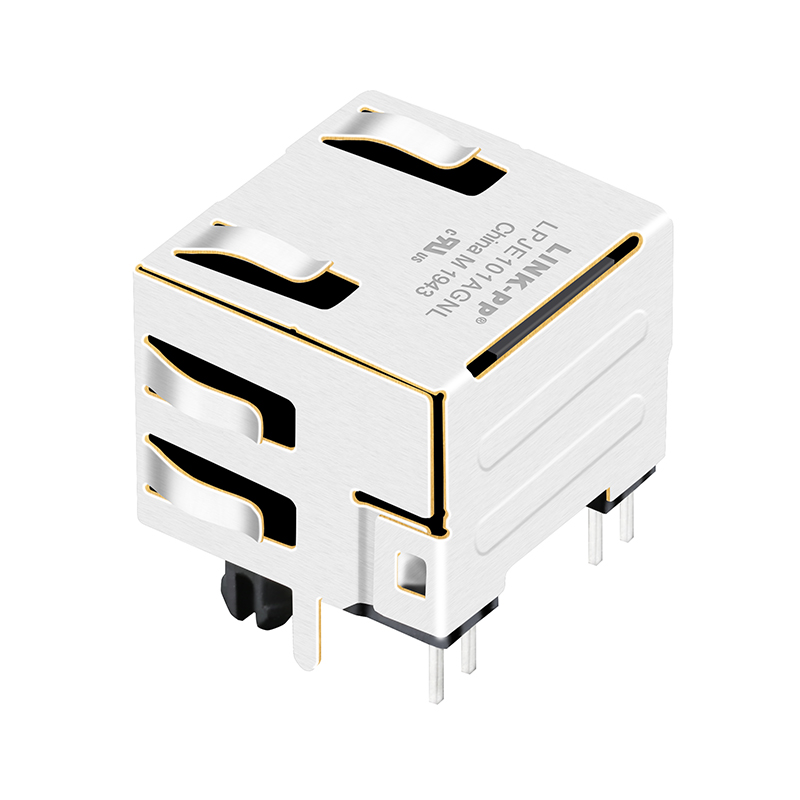

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
1 / 5
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector
2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

Product Description

Product Description

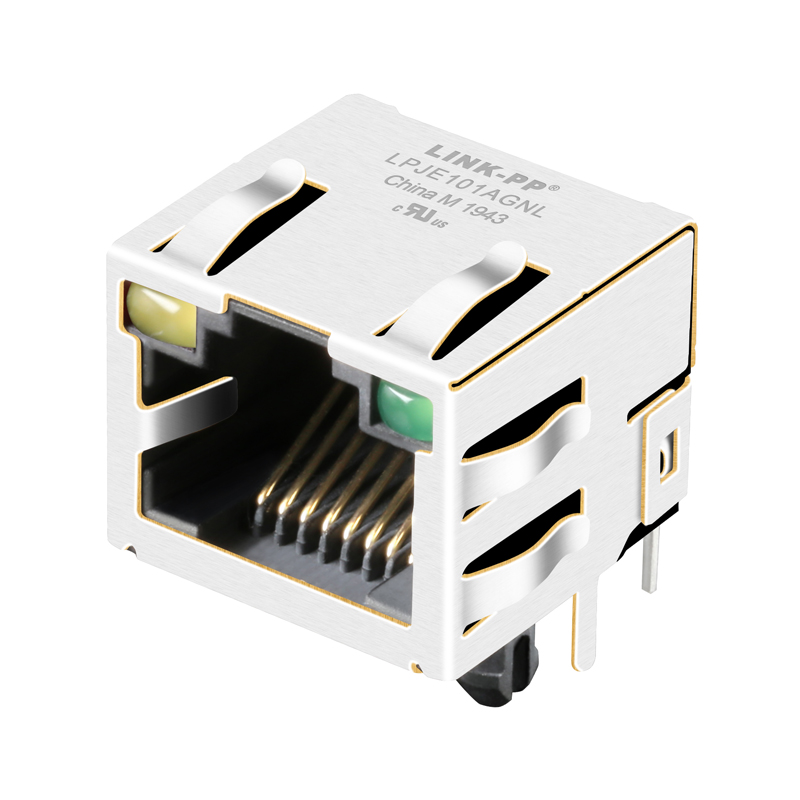

Product Image 1
Product Image 2
Specification
Item Value
Model Number LPJE101AGNL
Part Status Active
Connector Type RJ45
Applications-Lan -
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack -
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton

Packing Image
Production Facilities
Factory Image 1
Factory Image 2
Factory Image 3
Factory Image 4
Factory Image 5
Factory Image 6
Factory Image 7
Characteristics
Characteristics Diagram
RJ45 Connector with integrated transformer / common mode choke
Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
Available in SMT, THT and THT with USB
Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt
HPLE products: Improved Common Mode Rejection due to additional NiZn cores
FAQ
1. How is product quality guaranteed?
We guarantee quality by always providing a pre-production sample before mass production and performing a final inspection before shipment.
2. What products are available to purchase?
You can purchase RJ45 Magnetic, LAN transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
3. Why should you choose these products over other suppliers?
Our manufacturing processes are backed by 19 years of specialization in RJ45 connectors and LAN transformers, with certifications including SGS, ISO9001:2008, UL, REACH, and CE.
4. What delivery terms are accepted?
Accepted Delivery Terms include FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, and DES.
5. What payment methods and currencies are supported?
Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF.
Accepted Payment Types: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, and Escrow.
6. What communication languages are supported?
Spoken and supported languages include English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, and Italian.
