LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

Product Description

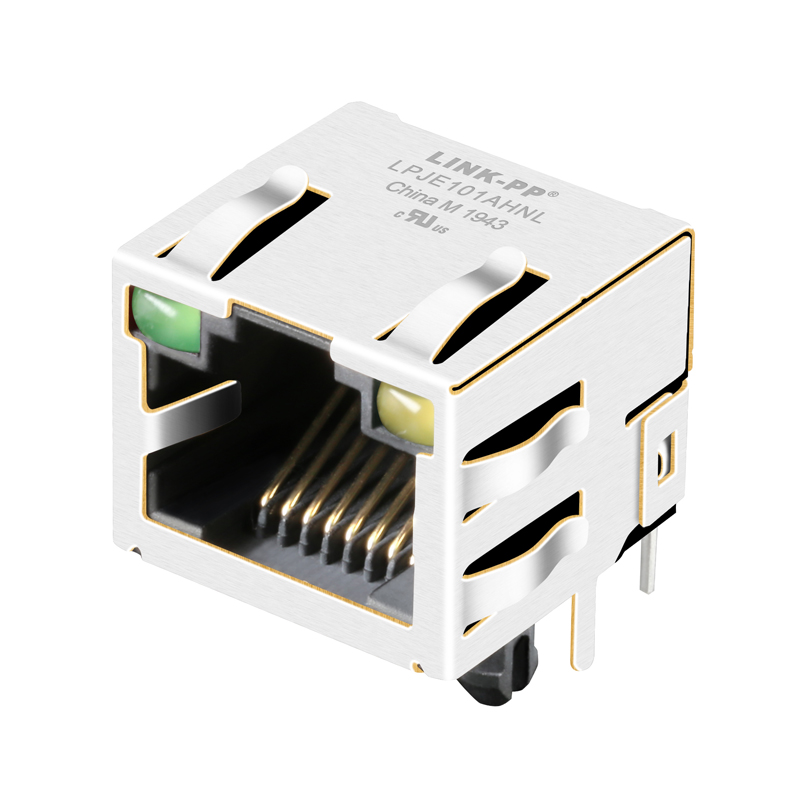

Product Image 1

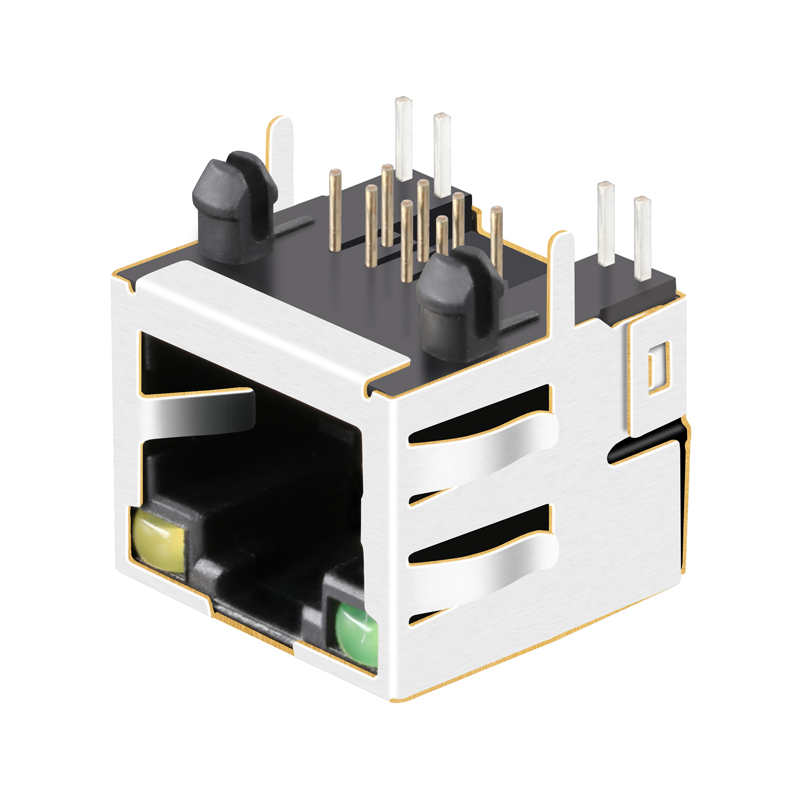

Product Image 2

Specification

Item Value
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C

Packing & Delivery

Packaging Specifications
Package Type Tray
Carton Size 54.5 * 28.5 * 27 cm
Gross Weight 13.1 kg / carton
Quantity 3000 pcs / carton
SPQ 100 pcs
Net Weight 0.004 kg / pcs
Packaging Detail

Company Profile

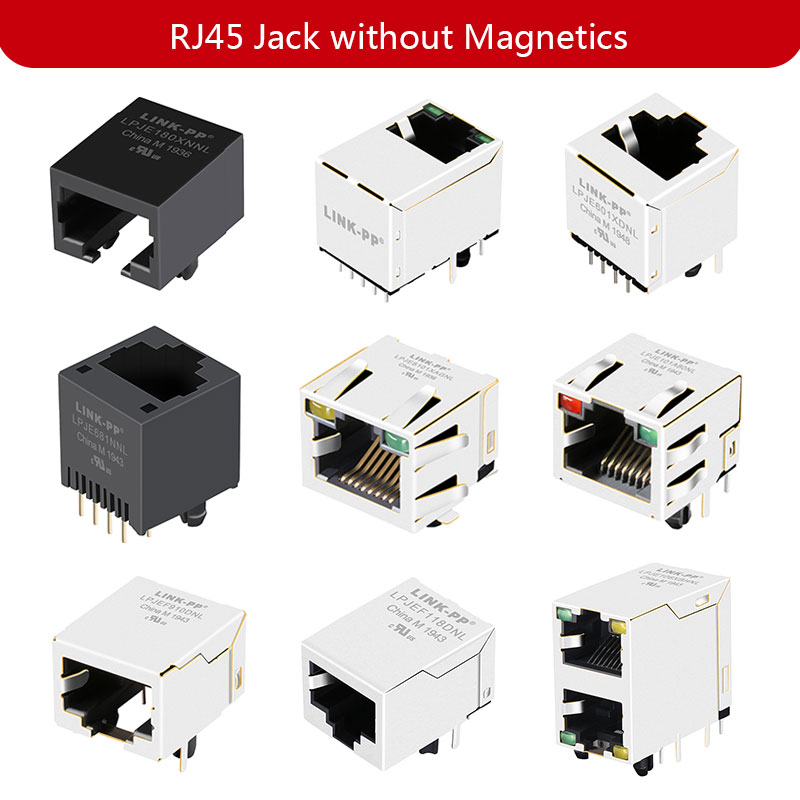

Company Image 1
Company Image 2
Company Image 3
Company Image 4
Company Image 5
Company Image 6

Frequently Asked Questions

1. What is the application type for the LPJE101AHNL connector?
The LPJE101AHNL is an RJ45 connector designed for configurations without integrated magnetics.
2. Does this RJ45 connector support status LEDs?
Yes, it features a Yellow/Green LED configuration to indicate network status and connection activity.
3. What is the operating temperature range for LPJE101AHNL?
The connector is designed to function reliably in a wide operating temperature range from -40°C up to 85°C.
4. What are the packaging and order details?
The standard package quantity (SPQ) is 100 pieces per tray, with a total of 3000 pieces per shipping carton. The carton size is 54.5*28.5*27cm.
5. What is the mounting orientation and termination style?
It features a 90° angle (Right) orientation, through-hole mounting type, solder termination, and a board guide for secure mechanical alignment.
