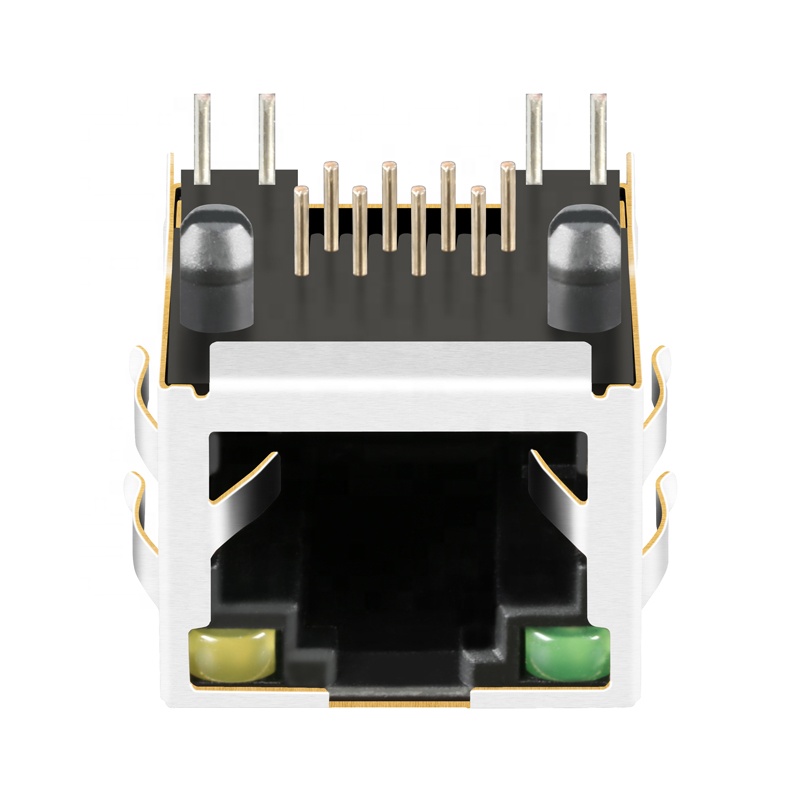

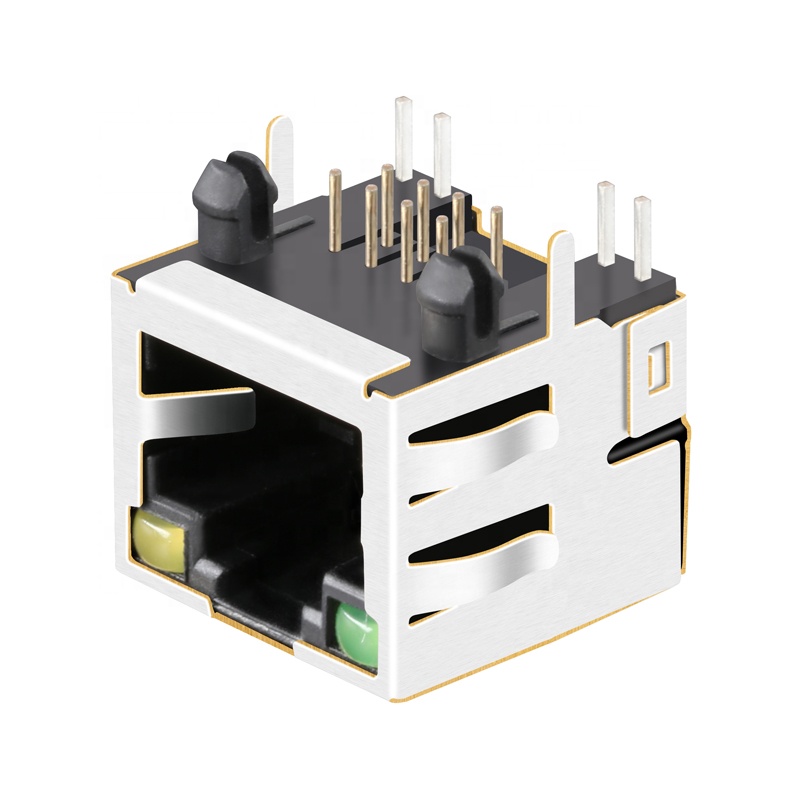

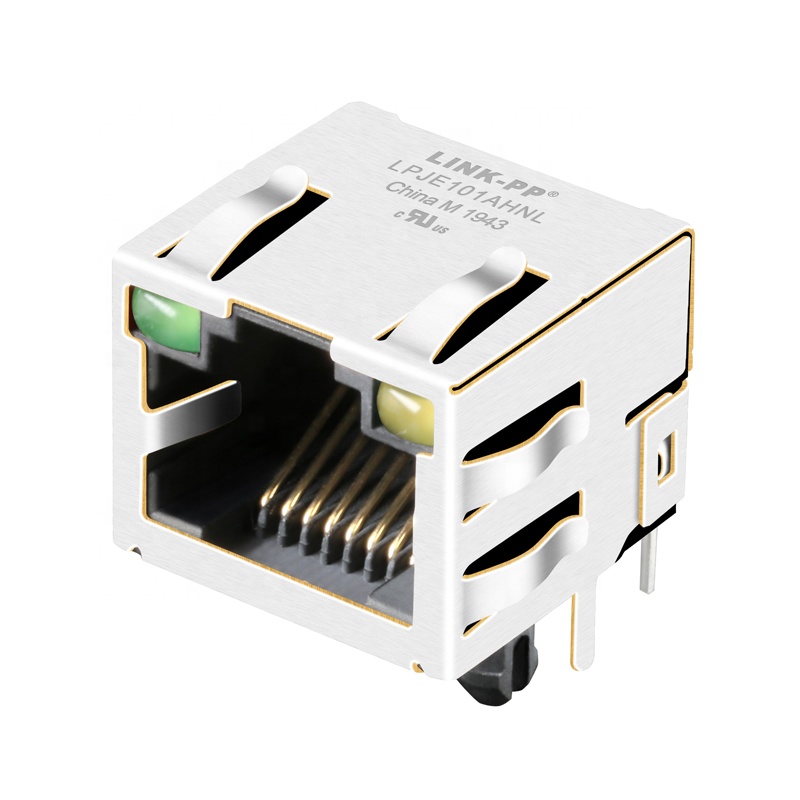

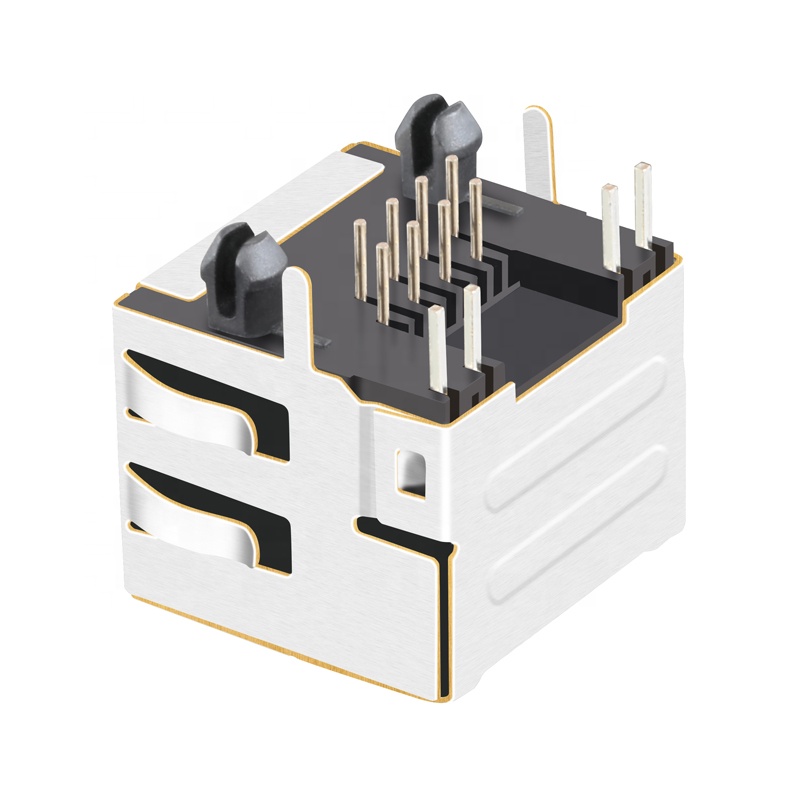

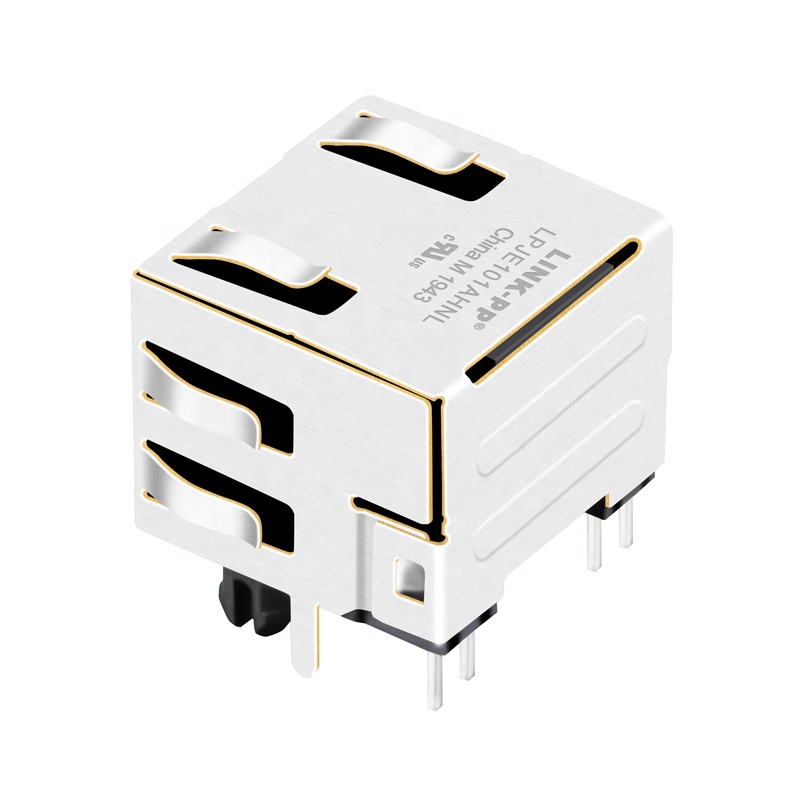

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
| Tyco Part Number |
1116173-4 |
| Cross Part Number |
LPJE101AHNL |
| Application-LAN |
ETHERNET(NON POE) |
| AutomDX |
YES |
| Package Height (Inches/mm) |
0.516/13.10 |
| Package Length (Inches/mm) |
0.620/15.75 |
| Package Width (Inches/mm) |
0.640/16.26 |
| Configuration TX/RX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
- |
| Diodes |
No |
| Latch |
Up |
| LED Option |
Green/Yellow LEDS |
| Number of Ports |
1X1 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Speed |
- |
| Temperature |
-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- 9 Years of OEM Manufacturing Experience
- Trusted by global leaders: Texas Instruments, Samsung, Cisco, Siemens, Intel, and more.
- Preferred Supplier status for key industry partners
- Quality Guarantee: 6 Years
- More Competitive Pricing than major global brands
- Fast Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- New Custom Design Service based on specific requirements
- Highly Discounted Shipping Rates via DHL, UPS, FedEx, or TNT
- Aiming for the highest level of customer satisfaction through continuous improvements
- Quality performance is prioritized and expected from every single employee
- Strict company standards demanding defect-free products and services
• Preferred Supplier for major international electronics manufacturers.
• OEM-level component matching and high-performance design specifications.
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Frequently Asked Questions (FAQ)
What are the primary applications of this RJ45 Modular Jack?
This connector is specifically designed for side-entry Through Hole (THT Solder) networking applications running on standard non-PoE Ethernet protocols.
What colors are the integrated LEDs in this modular jack?
It features integrated Green and Yellow LEDs (W/Y LED) to provide quick visual indicators of system and connection status.
What is the operating temperature range for this component?
The modular jack is rated for stable operations in temperatures ranging from -40°C to 85°C, making it highly reliable under diverse ambient conditions.
Is this product RoHS compliant?
Yes, this component is RoHS compliant (specifically YES-RoHS-5 with lead in solder exemption) to satisfy global environmental standards.
What are the physical dimensions of the package?
The dimensions are: Height of 0.516 inches (13.10 mm), Length of 0.620 inches (15.75 mm), and Width of 0.640 inches (16.26 mm).
What kind of EMI shielding does it offer?
The modular jack comes built with EMI shielding tabs to prevent electromagnetic interference and ensure clean signal transmission.
