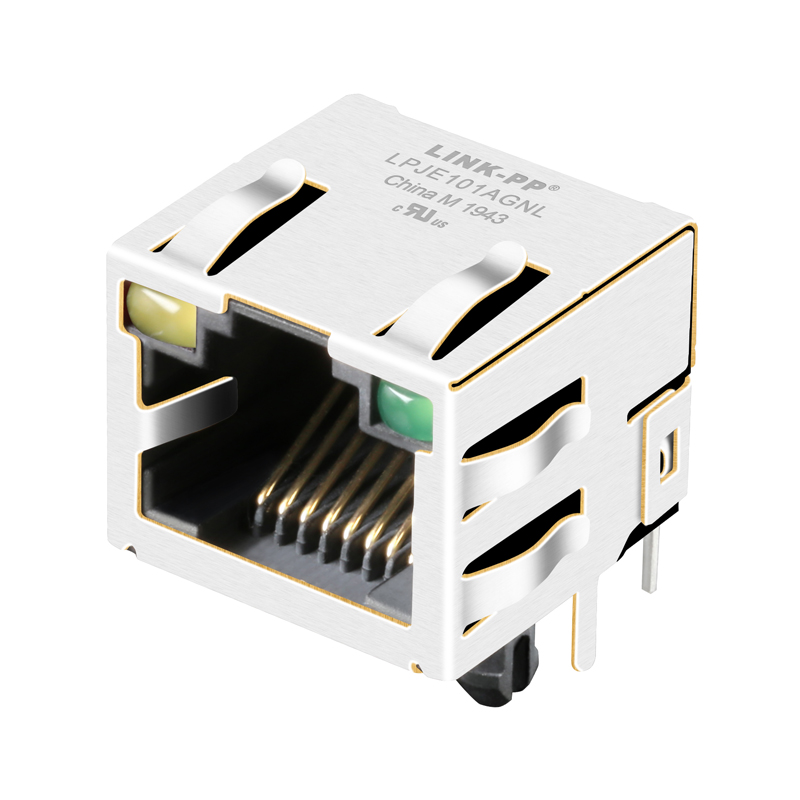

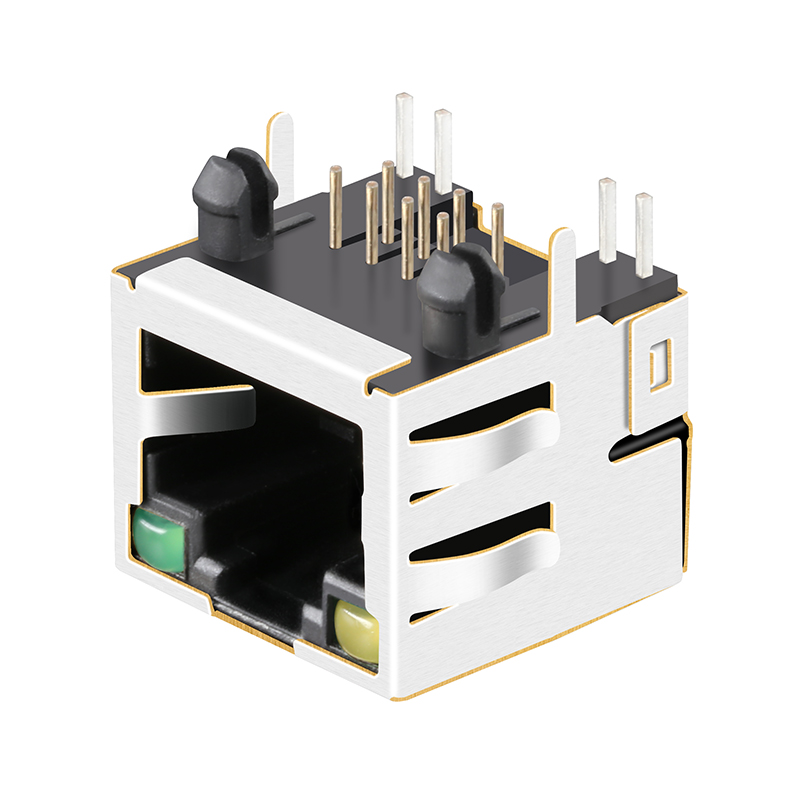

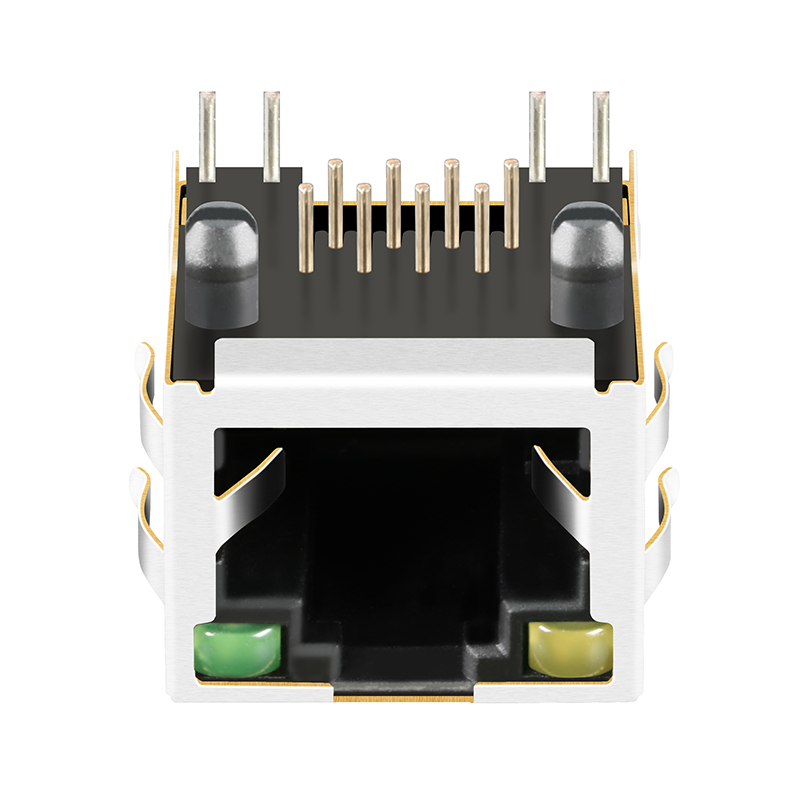

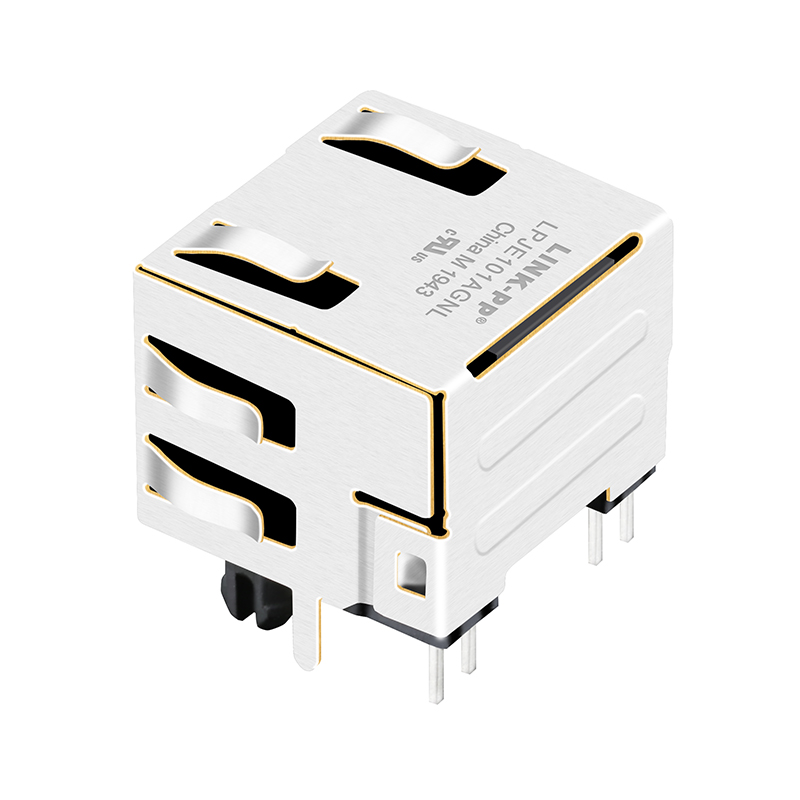

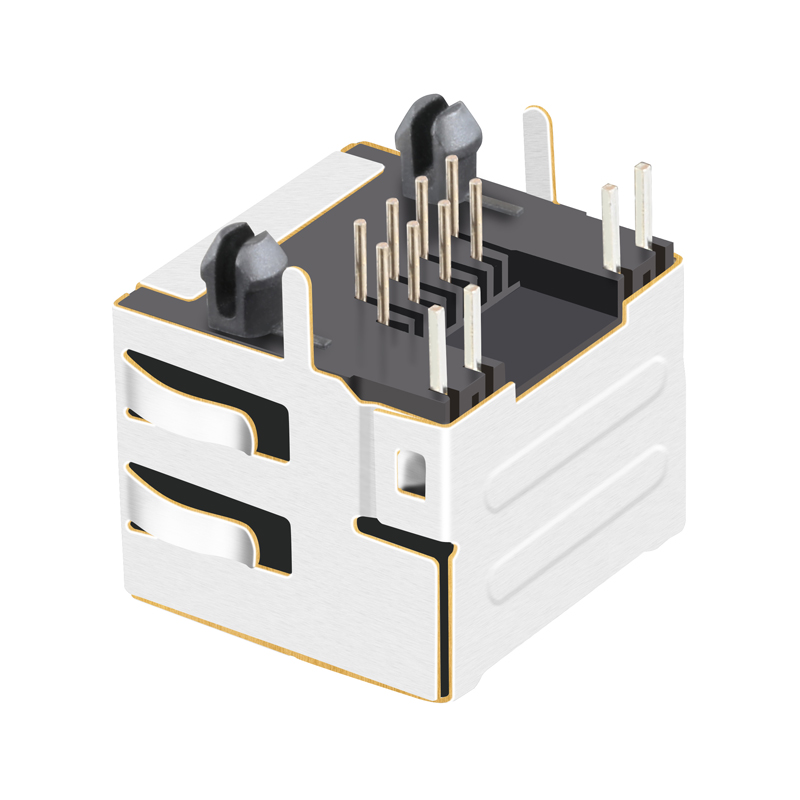

| Item | RJ45 Female Connector |
| Part Number | LPJE101AGNL |
| Compatible With | RJHSE-5381 RJHSE538X RJHSE5481 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port |
| Speed | Without Magnetics |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C / -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but the shipping fee should be covered by the customer.
Products in stock are ready to ship immediately, while mass production items typically take 15-30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send an inquiry to us so that we can proceed with a detailed discussion regarding your custom needs.
We have over 19 years of production experience and have been a trusted partner for global industry leaders for many years.
