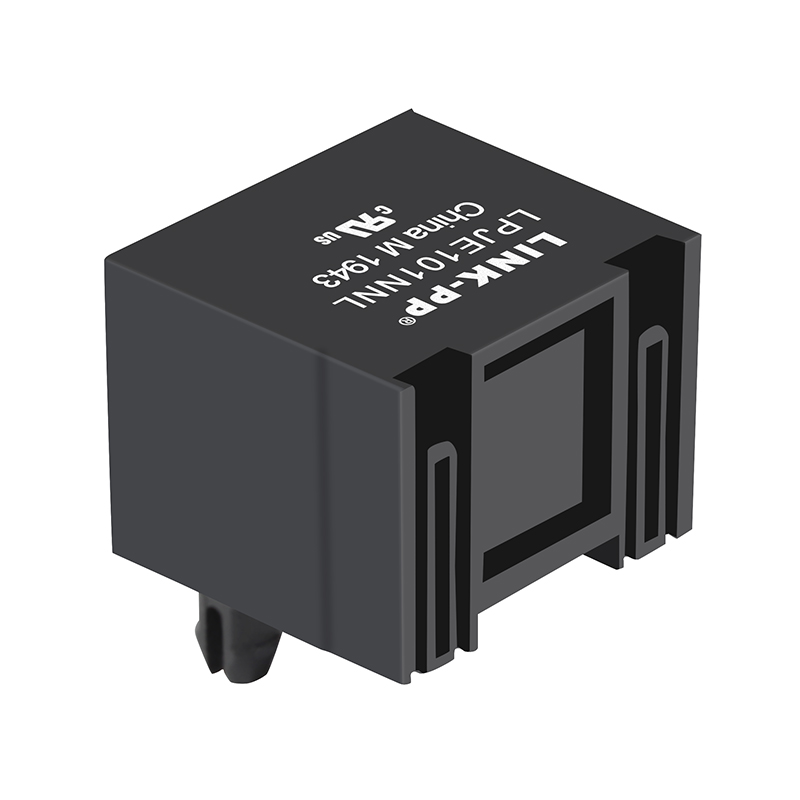

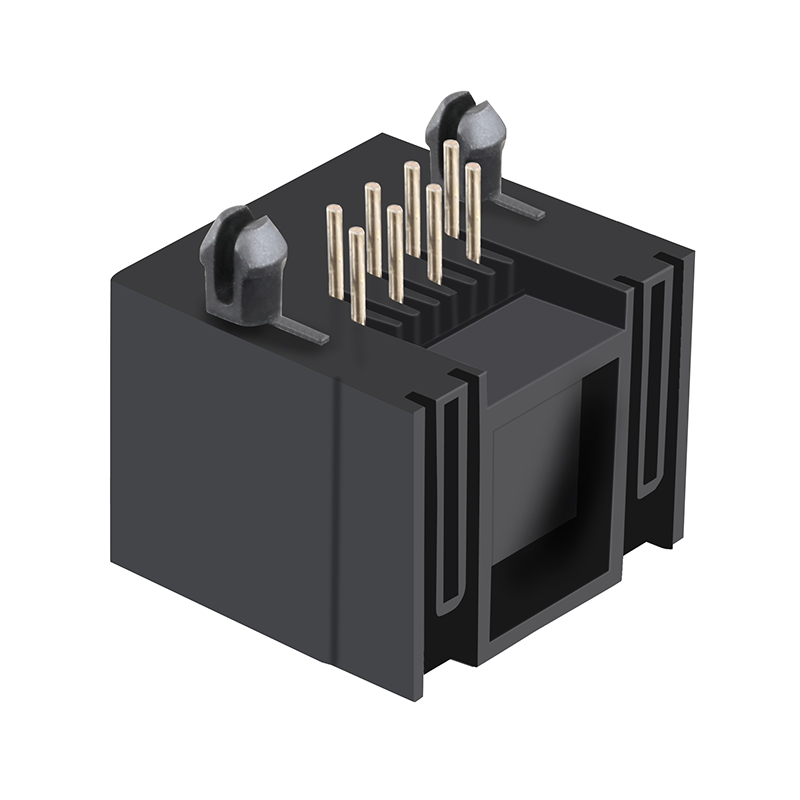

RJHSE-5085 without Transformer Jack RJ45 Female Connector

Product Description

RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJ45 Female Connector
Product Description
Item RJ45 Modular Jack
Part Number LPJE101NNL
Alternative Part Number RJHSE-5085
Part Status Active
Connector Type Jack
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs Without
LED Option Without
PCB Material FR4
PCB Retaining Post T Post
Temperature Range 0°C to 70°C
Bst Circuit Yes
Auto-MDIX Yes
Contact Mating Area Plating Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Views

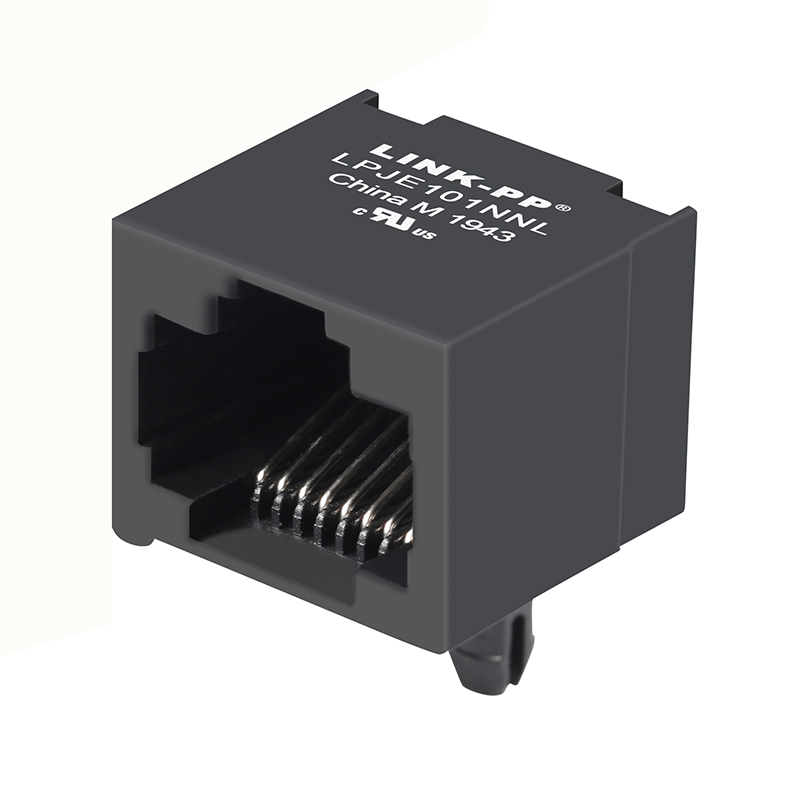

RJ45 Connector View 1

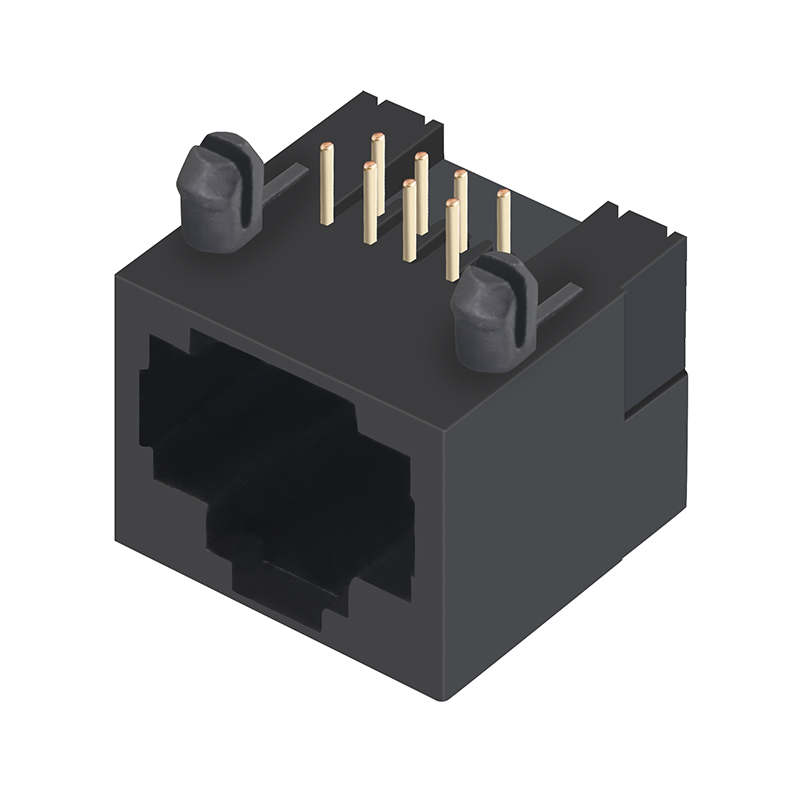

RJ45 Connector View 2

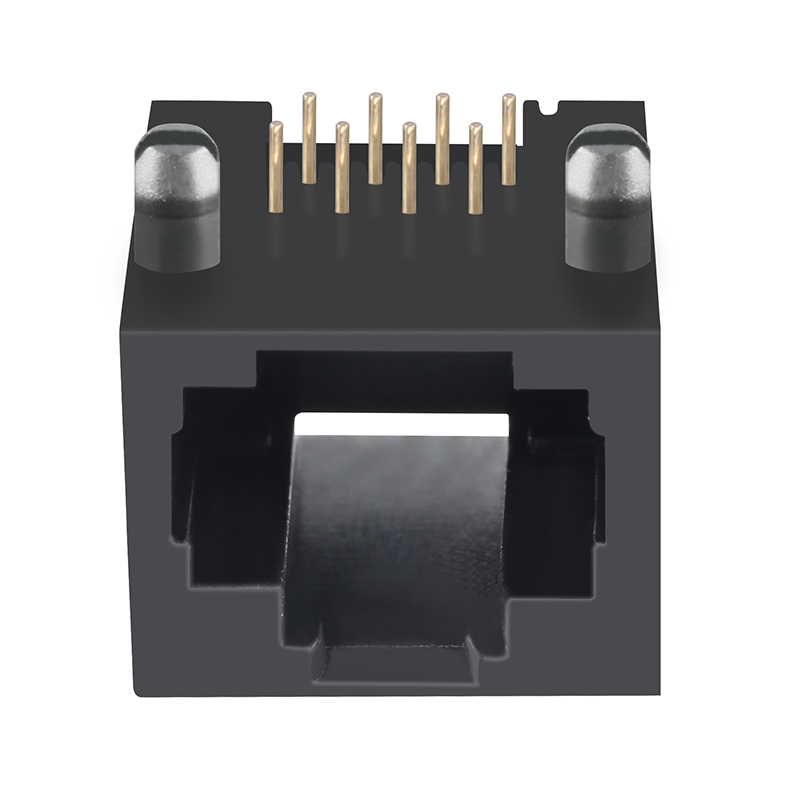

RJ45 Connector View 3
Detailed Specifications
Detailed Dimension 1
Detailed Dimension 2
Detailed Dimension 3
Detailed Dimension 4
Product Range Overview
Product Categories Grid
Technical Standards & Documentation
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Technical Drawing 4
Technical Drawing 5
Technical Drawing 6
Manufacturing Capability
Established in 1997, our facility is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to maintaining our position as a leading Ethernet RJ45 connector and LAN transformer supplier.
Manufacturing Warehouse
Production Workshop
Frequently Asked Questions
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are to be covered by the customer.
Q What is your delivery time?
Products currently in stock are ready to ship immediately. For mass production items, the standard lead time is 15-30 days.
Q What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please send us your specific technical requirements so we can proceed with a detailed discussion.
Q What is your advantage?
We have over 19 years of dedicated production experience in the networking components industry and serve as a reliable long-term partner for global industry leaders.
