Cat5 Cat5e 8 Pin Led Connector RJ45 Magjack Network Connector Female PCB Connector RJ45 Modular Jack

Product Description

Network Connector Feature Image
Specification
Item Value
Model Number Network connector
Part Status Active
Connector Type RJ45
Applications-Lan Ethernet(PoE/Non_PoE)
Speed 10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack 4/6/8/12
Shielding Shielded, Emi Finger

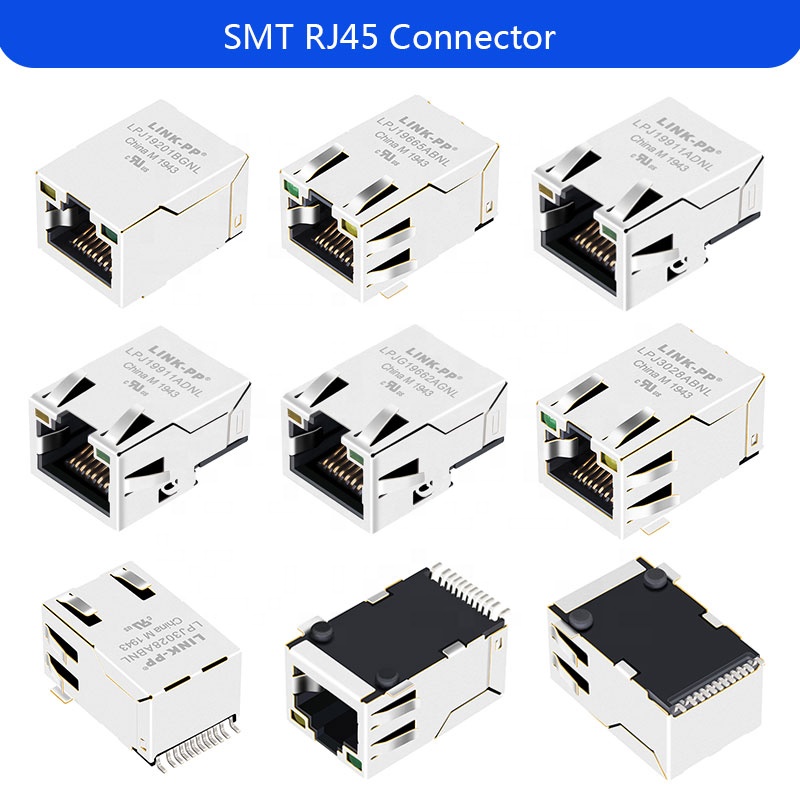

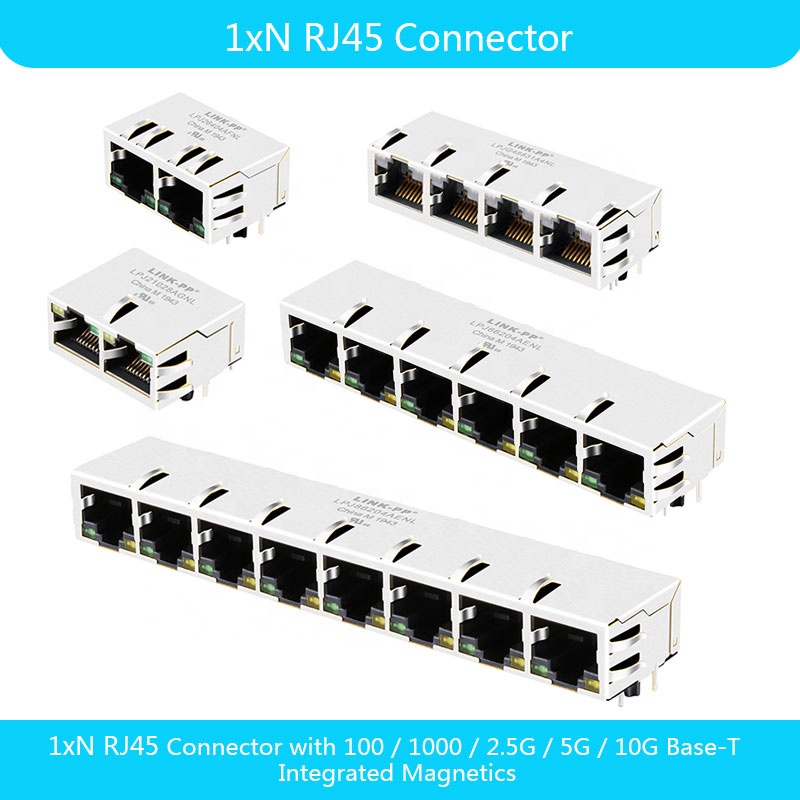

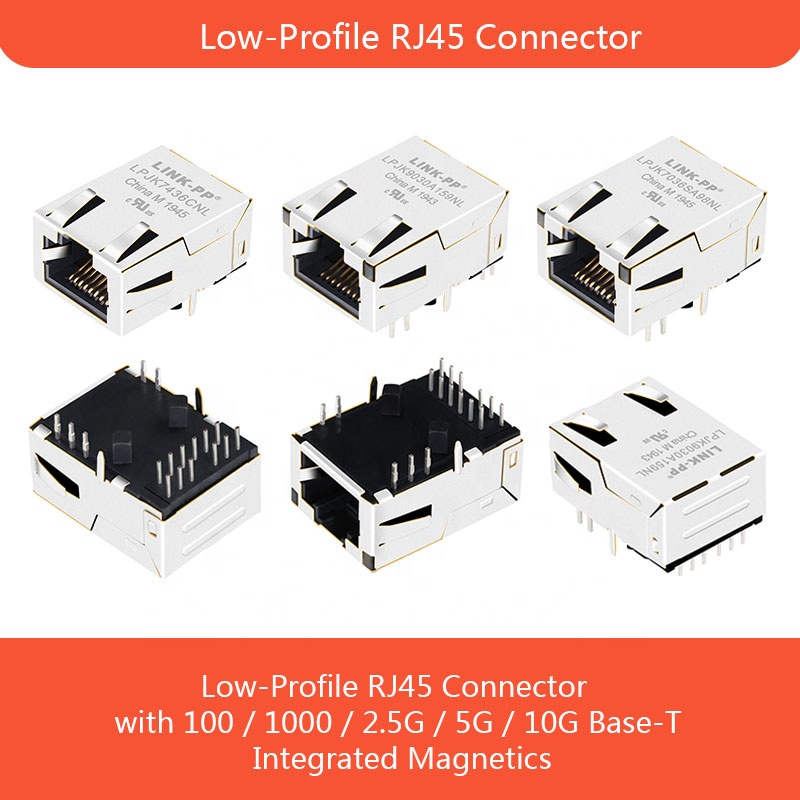

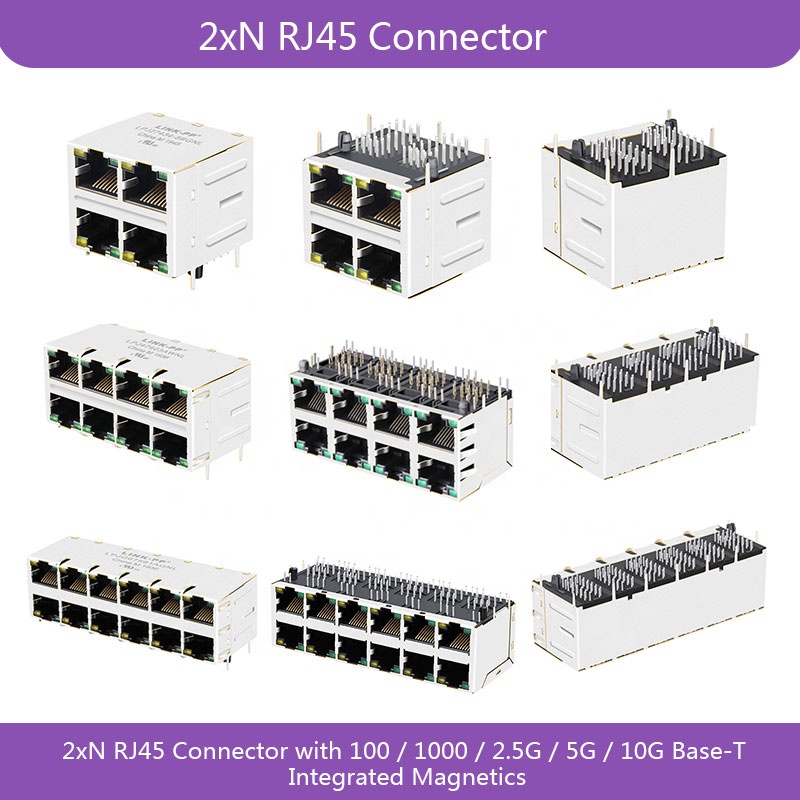

Number of Ports Multi-port rj45, stacked rj45, low profile rj45 , vertical rj45 , smt rj45
Features Board Guide
Tab Direction Down/Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C/-40°C ~ +85°C

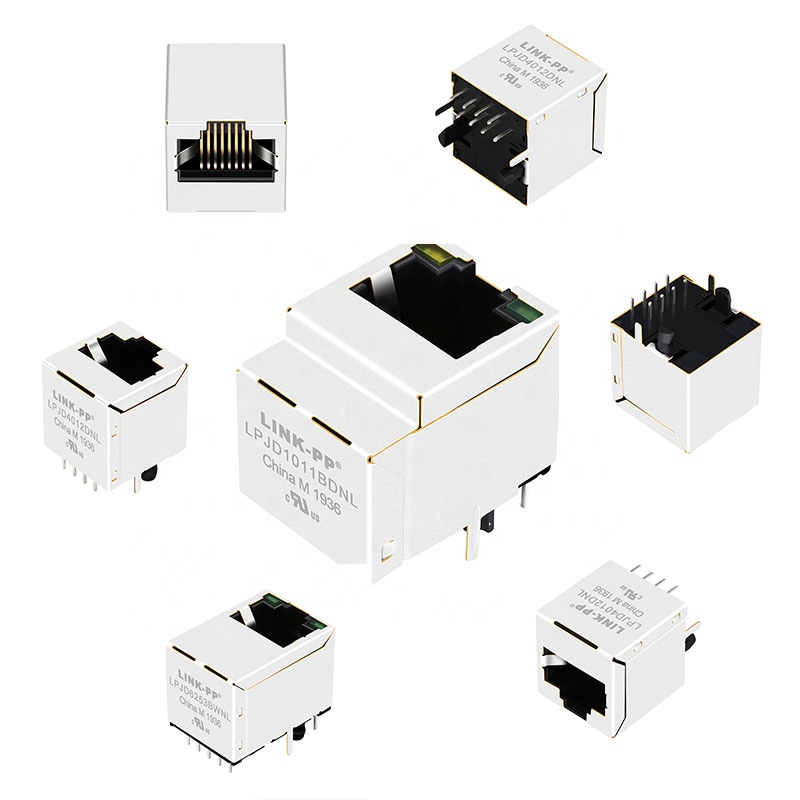

Product Image View 1
Product Image View 2
Product Technical Diagram 1
Product Technical Diagram 2
Product Application Showcase
About Our Capabilities
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL. Our factory owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2000 staff. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short timeframe. Moreover, we provide professional complete solutions for magnetic components as well as strong technical support. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
Main Products
  • 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Product Feature Display 1
Product Feature Display 2
Product Feature Display 3
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a manufacturer that has specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Can I get some samples?
Yes, 3-5 pcs of free samples are available for your testing. Small batches and trial orders are also acceptable.
Is OEM service available?
Yes. We have rich experience and strong capability to put your designs and ideas into real products. We can also laser print your brand on the products.
How about the lead time?
We have a highly professional production team. Usually, we can ship orders within 30 days. Please reach out to our team members for specific arrangement details.
What quality certifications do you have?
Our operations and components are certified by international standards, including ISO9001:2000, RoHS, REACH, CE, and UL.
What are the main applications for your products?
Our products are widely integrated into networking and communication equipment such as HUBs, PC cards, Switches, Routers, Mainboards, SDH, PDH, IP Phones, and xDSL modems.
