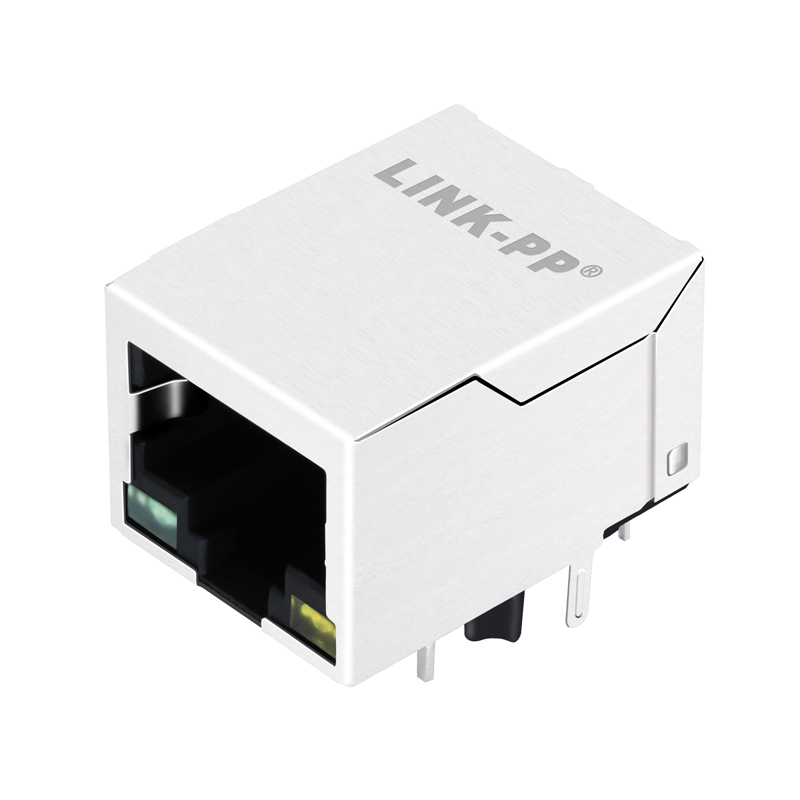

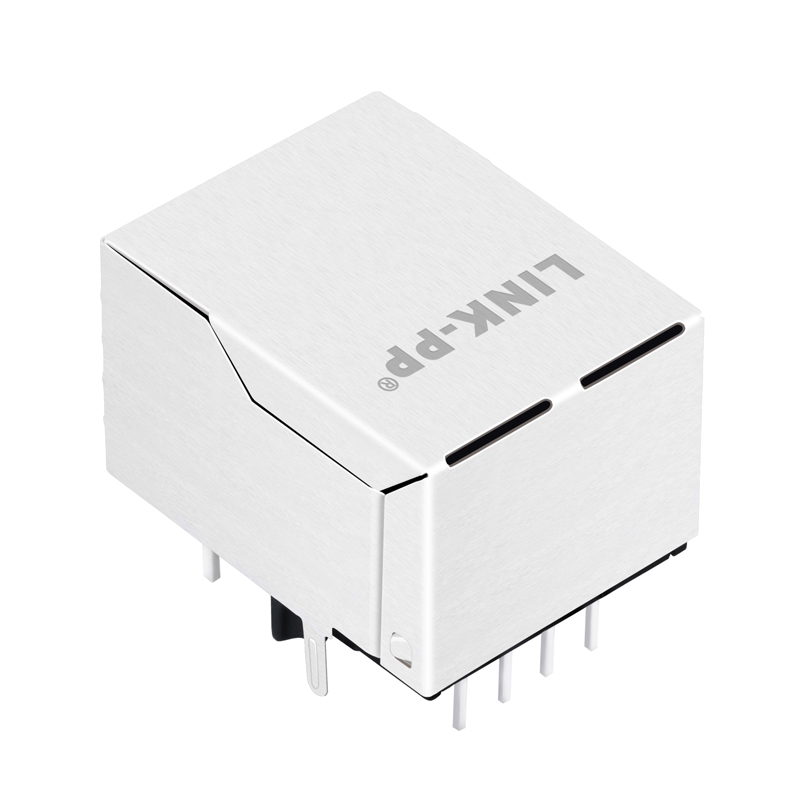

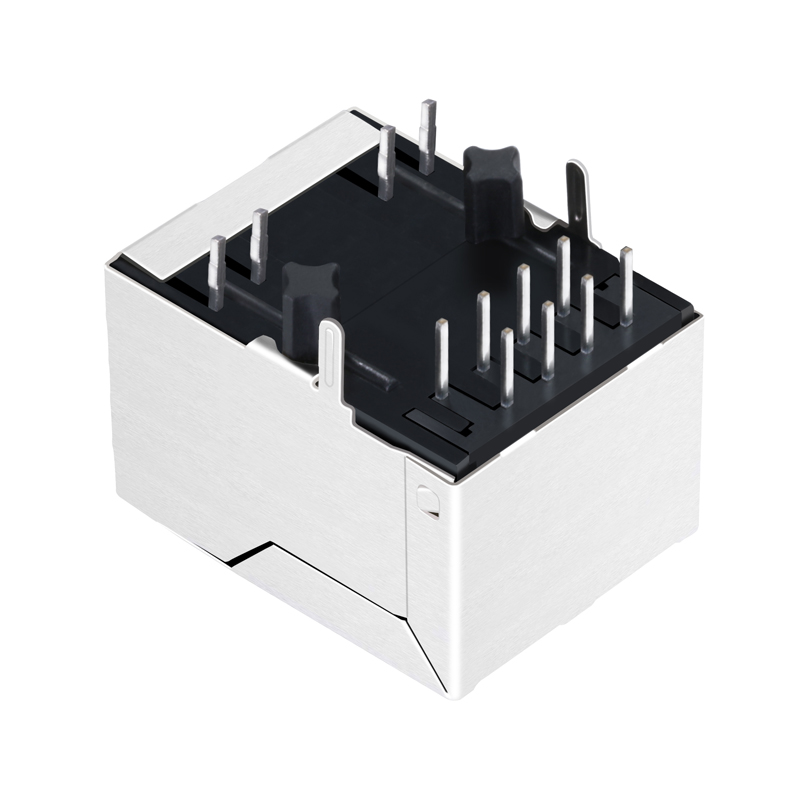

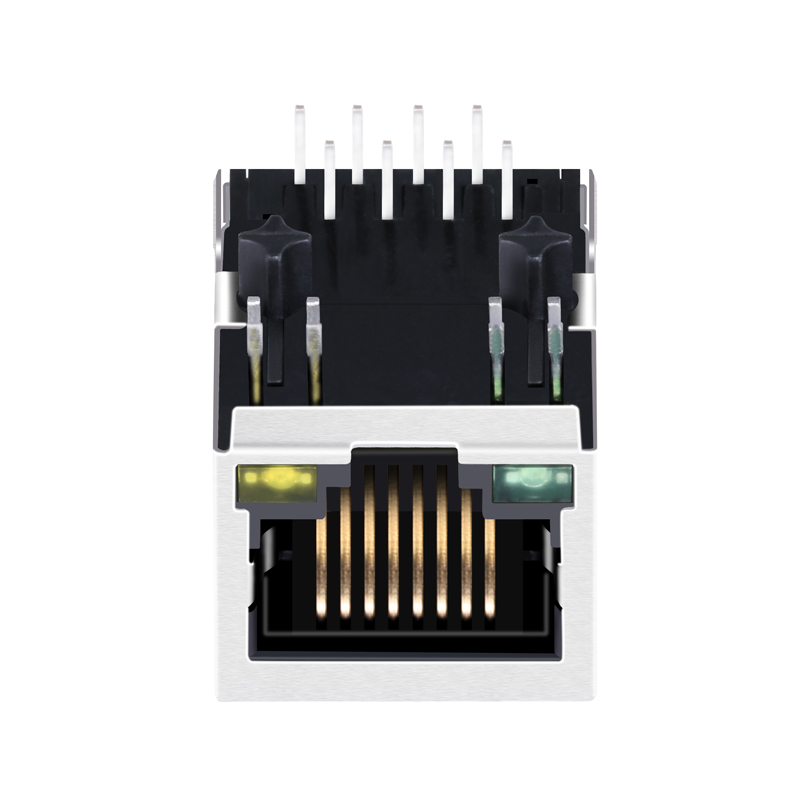

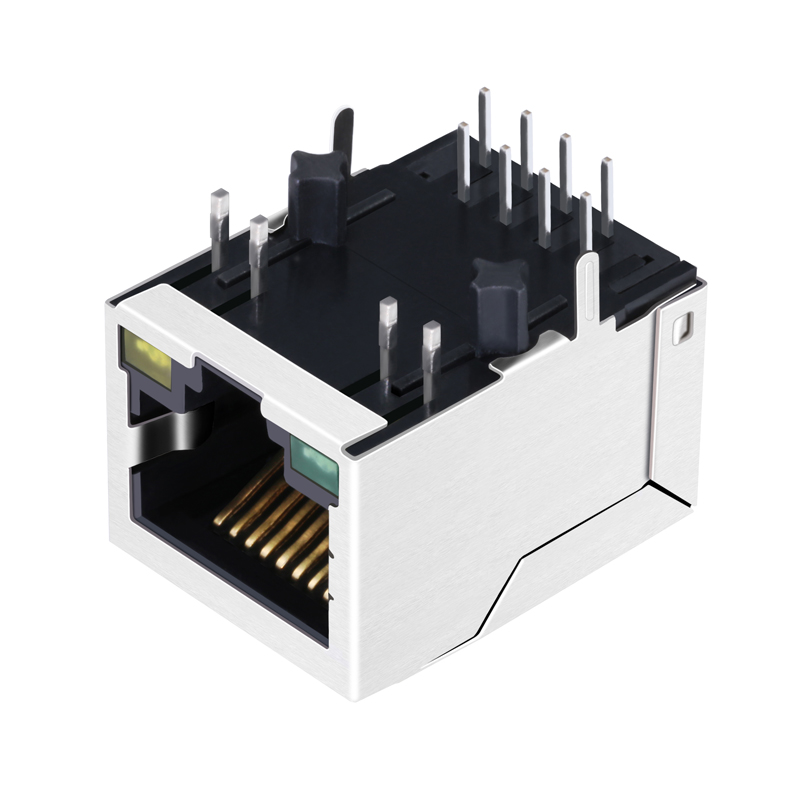

High Speed RJ45 Magnetic Connectors HY911205C With/Without PoE
| Item |
RJ45 Female Connector |
| Bothhand Part Number |
HY911205C |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Latch |
Up |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Green/Yellow |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0℃ TO 70℃ |
| Bst Circuit |
Yes |
| AutomDX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Q1:
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2:
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid on your end.
Q3:
What is your delivery time?
Items in stock are ready to ship immediately, and mass production orders typically take 15-30 days.
Q4:
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5:
Can you accept OEM/ODM orders?
Yes, please send your requirements to us so that we can have a detailed discussion.
Q6:
What is your advantage?
We have 19 years of professional production experience and have been a trusted partner of Intel and Jabil for many years.
