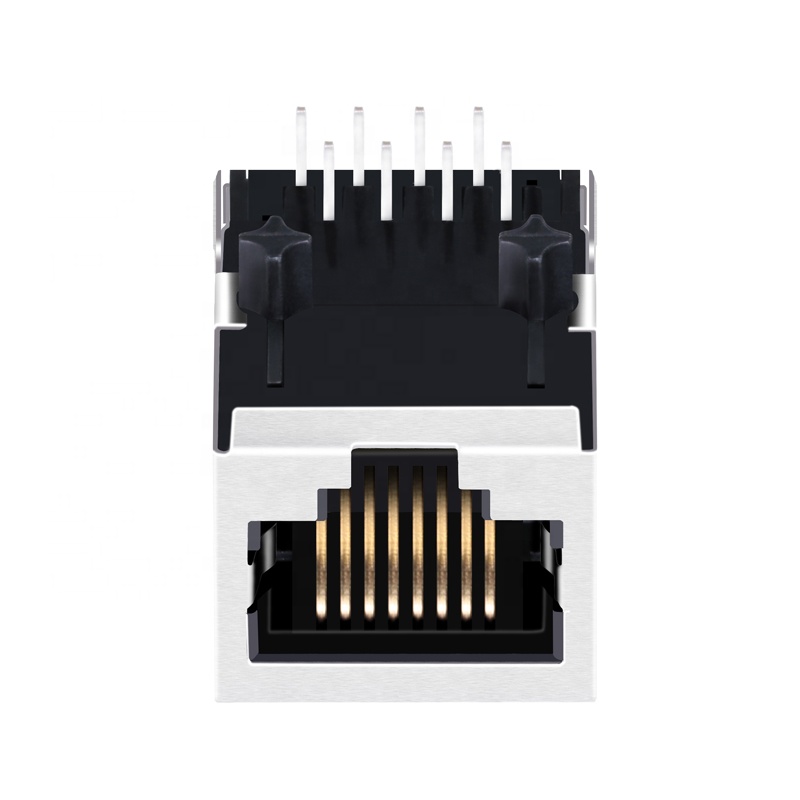

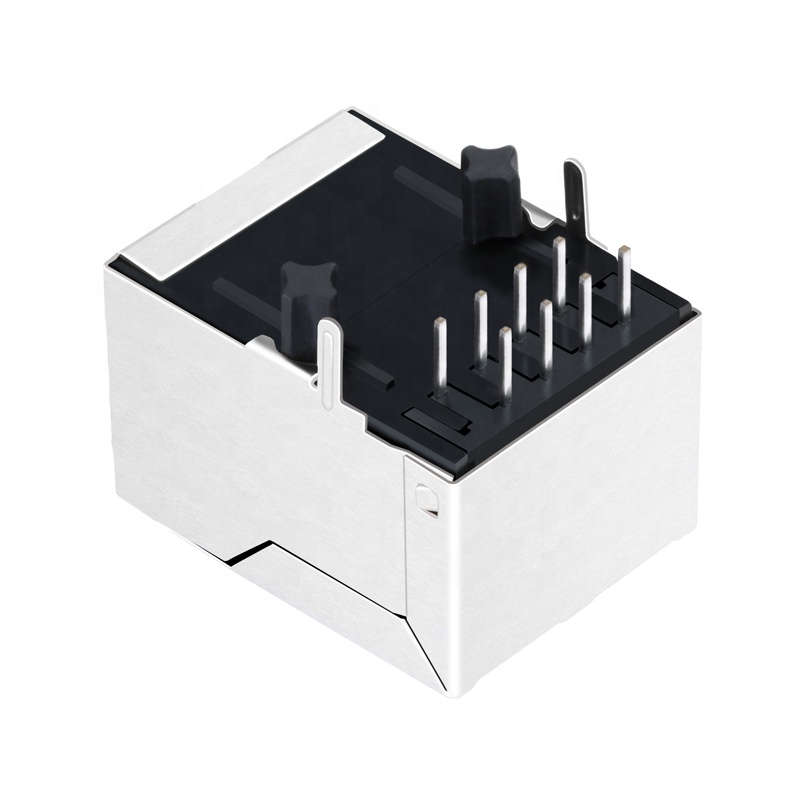

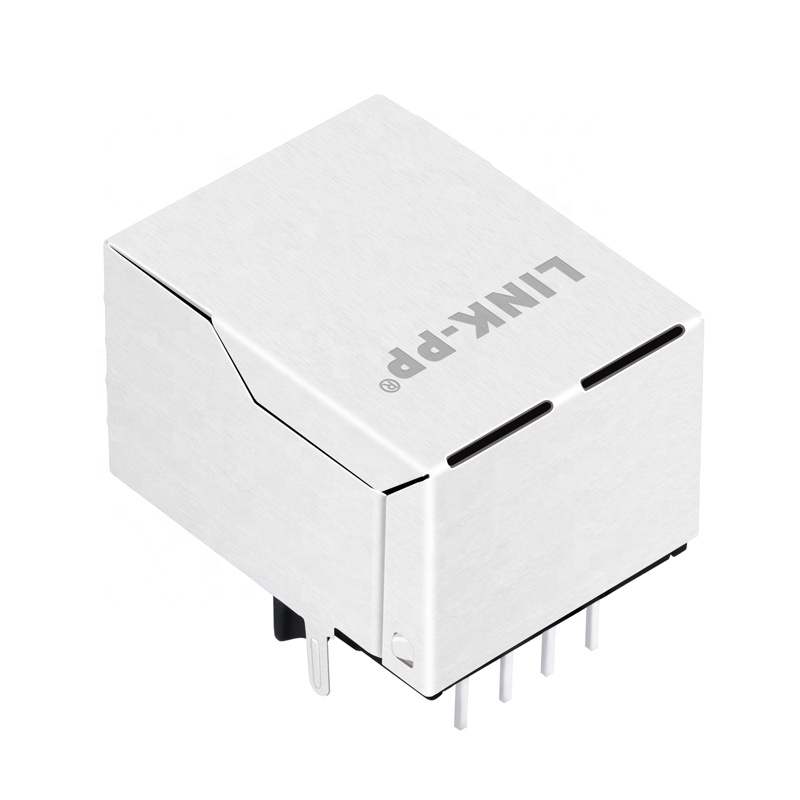

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1 / 5
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector

Send Inquiry

Product Description

RJ45 Connectors Overview
1470648-1 1 Port RJ-45 Magjack Ethernet Magnetics RJ45 Connector
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1470648-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

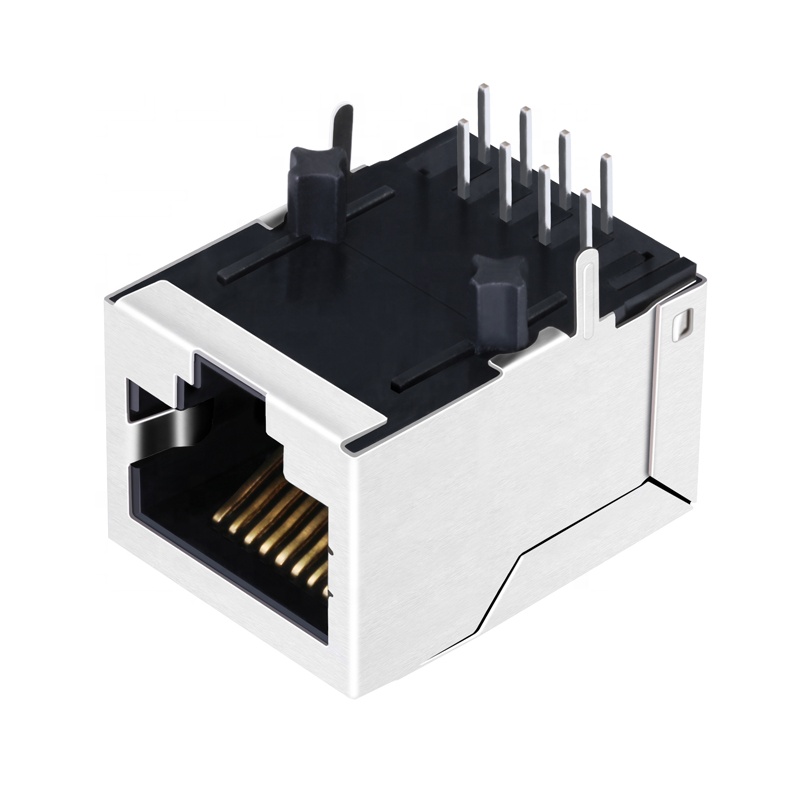

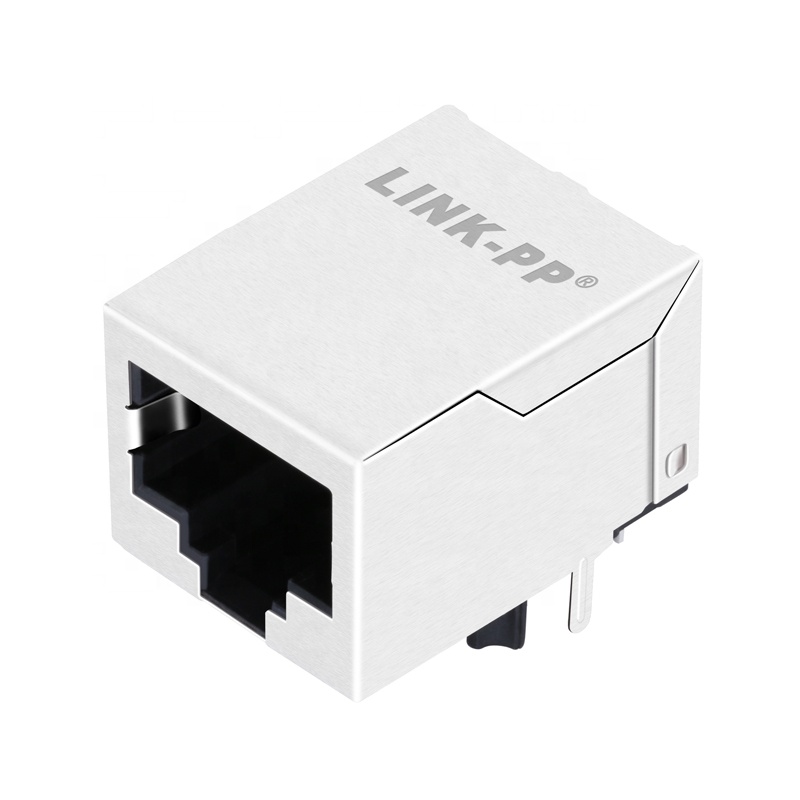

Connector Side View Connector Bottom View
Production Detail 1 Production Detail 2 Production Detail 3 Production Detail 4
Product Category Details and Specifications
Product Options Matrix
Product Dimension Blueprint Product Engineering Drawing
Schematic Diagram 1 Schematic Diagram 2
PCB Layout Suggestion Packaging Standard Details
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Facility Quality Inspection Center
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, with shipping fees covered by the buyer.
3. What is the delivery time?
Items in stock are ready to ship, and mass production typically takes 15-30 days.
4. What after-sales service do you offer?
We provide a one-year warranty and offer 24-hour online technical support.
5. Do you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss the details.
6. What are your key advantages?
With over 19 years of professional manufacturing experience, we have established long-term partnerships with leading global technology and hardware developers.
