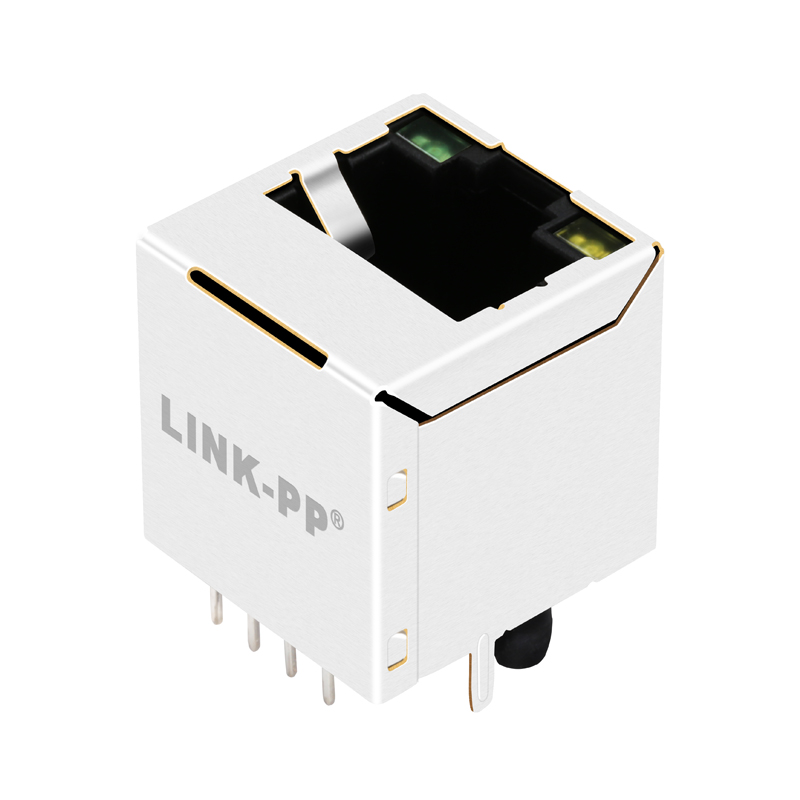

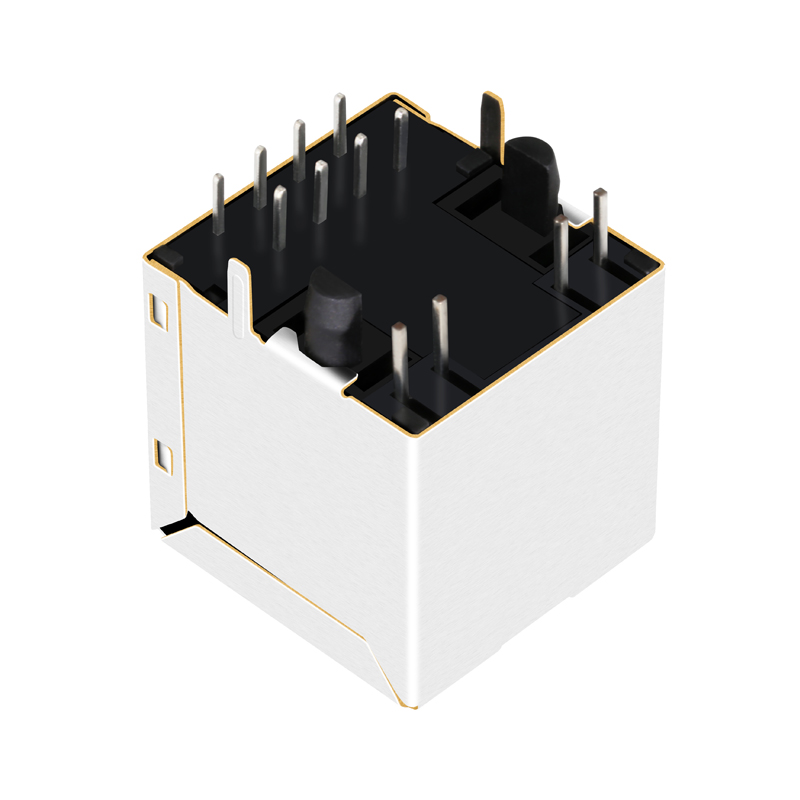

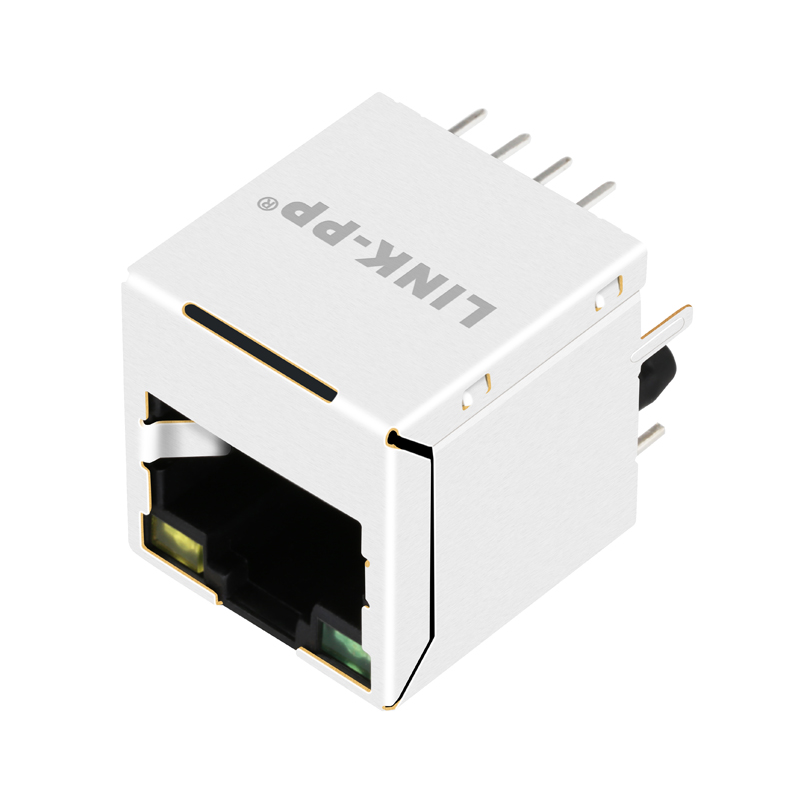

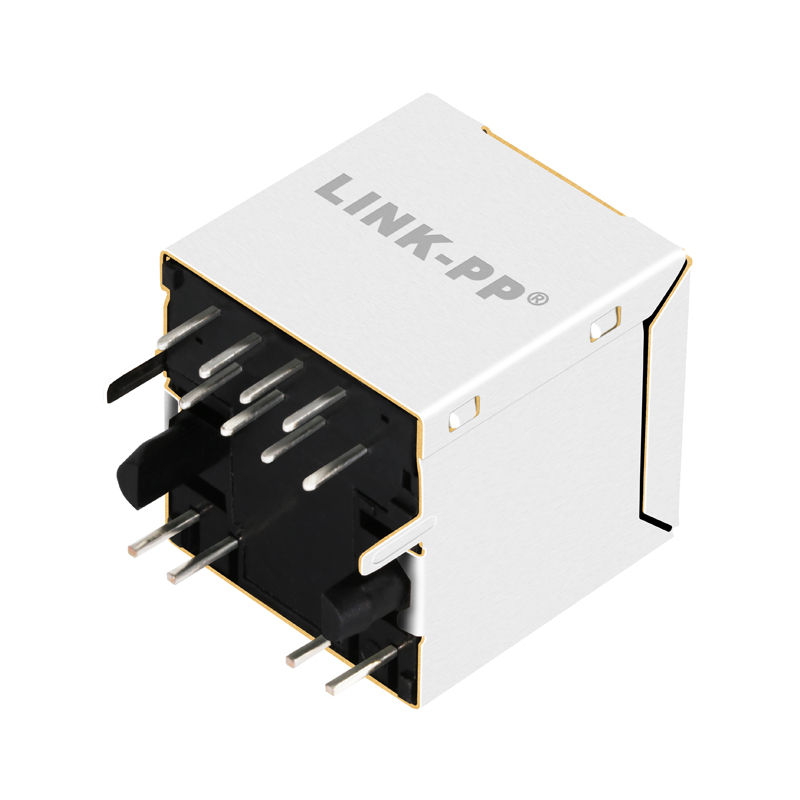

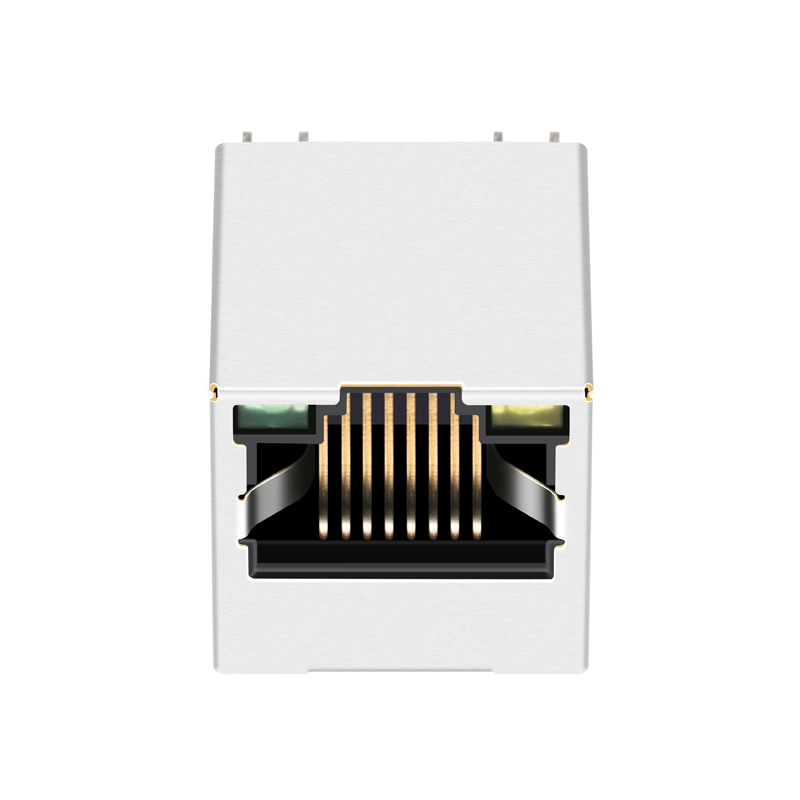

V891-1XX1-R1 RJ45 Connector MagJack 10/100 Base-T PoE 1X1 Vertical RJ45 Connectors
Products Description
Item RJ45 Female Connector
Part Number V891-1XX1-R1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Detail View 1 RJ45 Connector Detail View 2
RJ45 Diagram Technical Draw 1 RJ45 Diagram Technical Draw 2 RJ45 Diagram Technical Draw 3 RJ45 Diagram Technical Draw 4
Explore our comprehensive product categories detailed below.
Product Categorization Mapping
Customer Support and Design Service Quality Standard Assurance
Automated Manufacturing Process Precision Injection Molding Area Quality Control Inspection Room
High-Speed Signal Testing Facility Raw Material Storage Warehouse Finished Goods Logistics Center
Company Profile
Established in 1997, our facility is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Corporate Certifications Overview Global Supply Chain Network
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I obtain a sample prior to initiating mass production?
Yes, we can provide you with free samples to test quality, but the shipping fee is covered by the customer.
3. What is your estimated delivery time?
Stock items are ready to ship immediately, while custom mass production typically takes between 15 to 30 days.
4. What kind of after-sales service do you provide?
We offer a one-year warranty period along with 24-hour online technical support to assist you with any questions.
5. Do you accept OEM/ODM orders?
Yes, we warmly welcome OEM and ODM requirements. Please send us your specifications to start a detailed technical discussion.
6. What are your key advantages?
We bring 19 years of dedicated production experience and have established long-term partnerships with leading global technology and electronics companies.
