Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1

Product Description

RJ45 Connector Overview

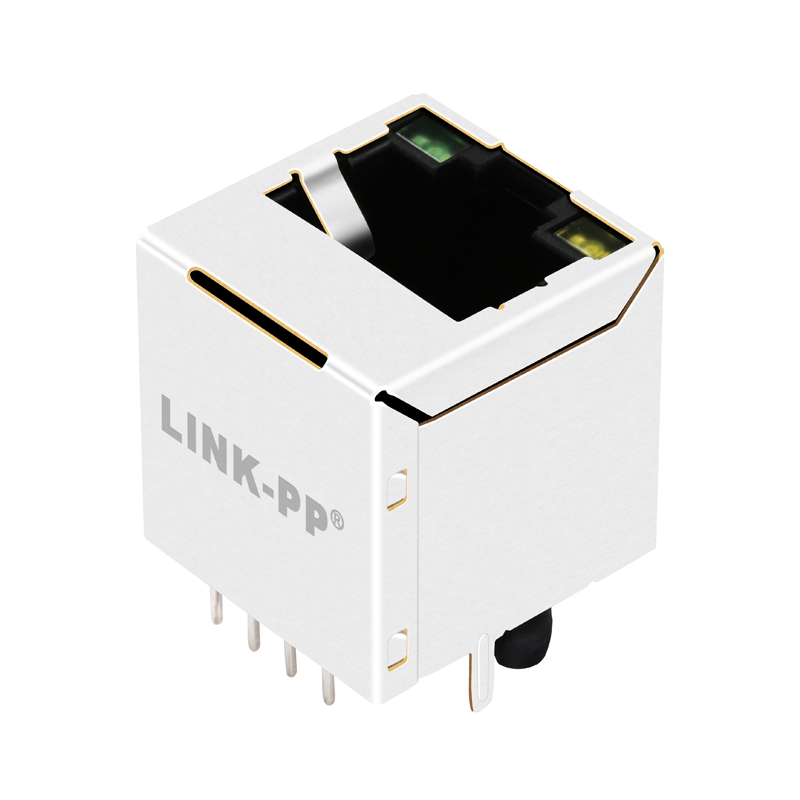

Right Angle Low Profile RJ45 Inverted Modular Jack 1840453-1
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840453-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

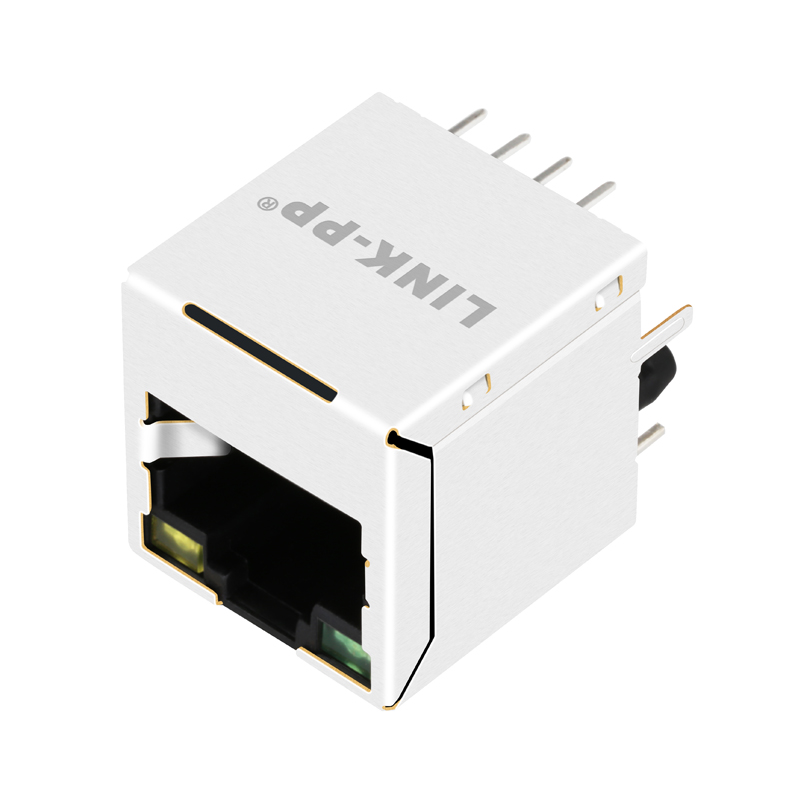

RJ45 Connector Side View RJ45 Connector Bottom View

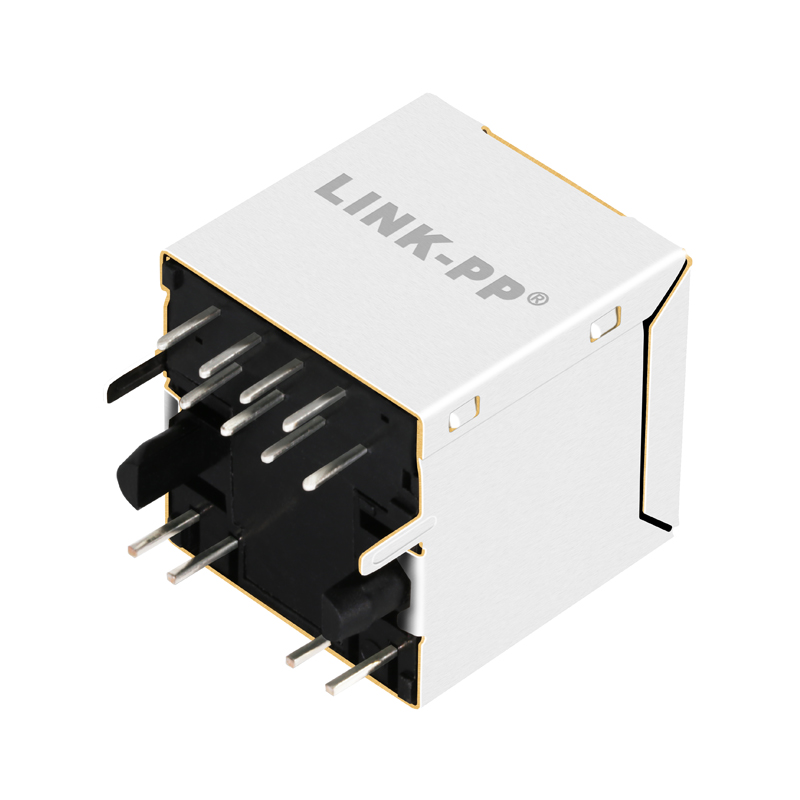

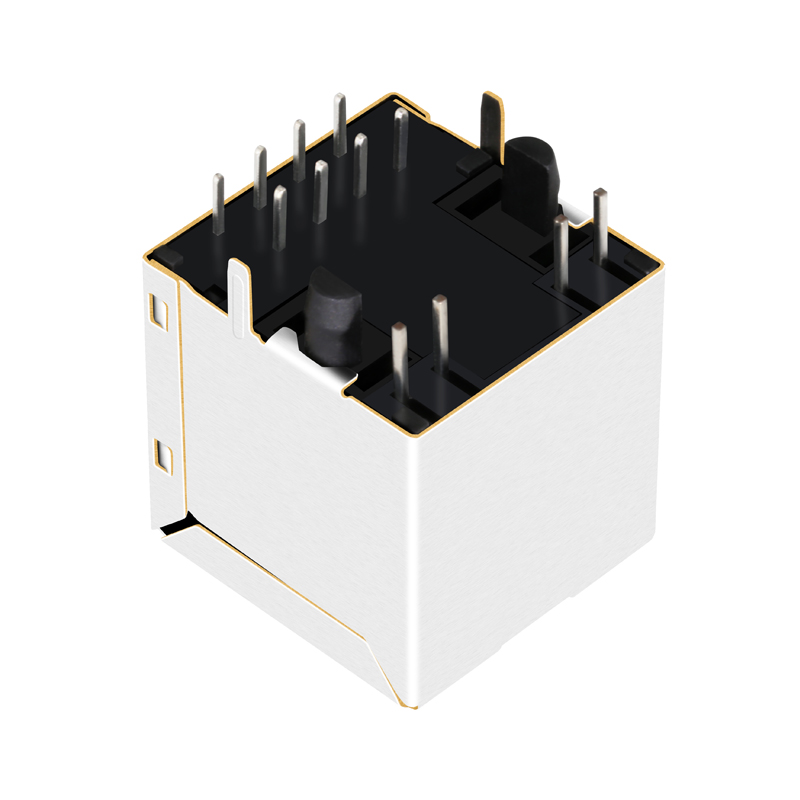

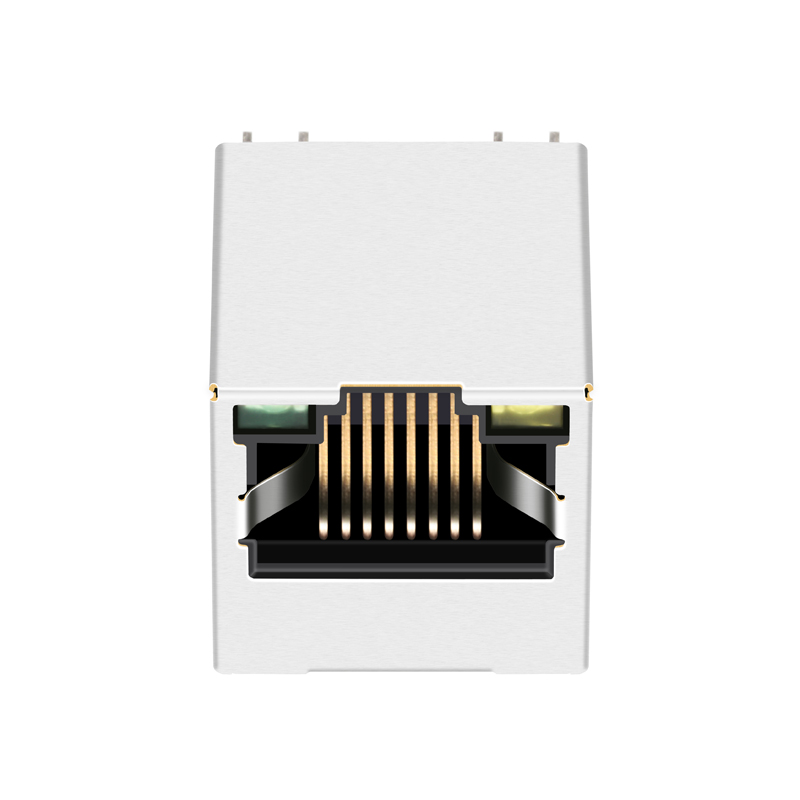

RJ45 Detail 1 RJ45 Detail 2 RJ45 Detail 3 RJ45 Detail 4
Product Categories Reference
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
