Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1

Product Description

RJ45 Connector Options
Lan Transformer Options
Send Inquiry To Get Latest Price List

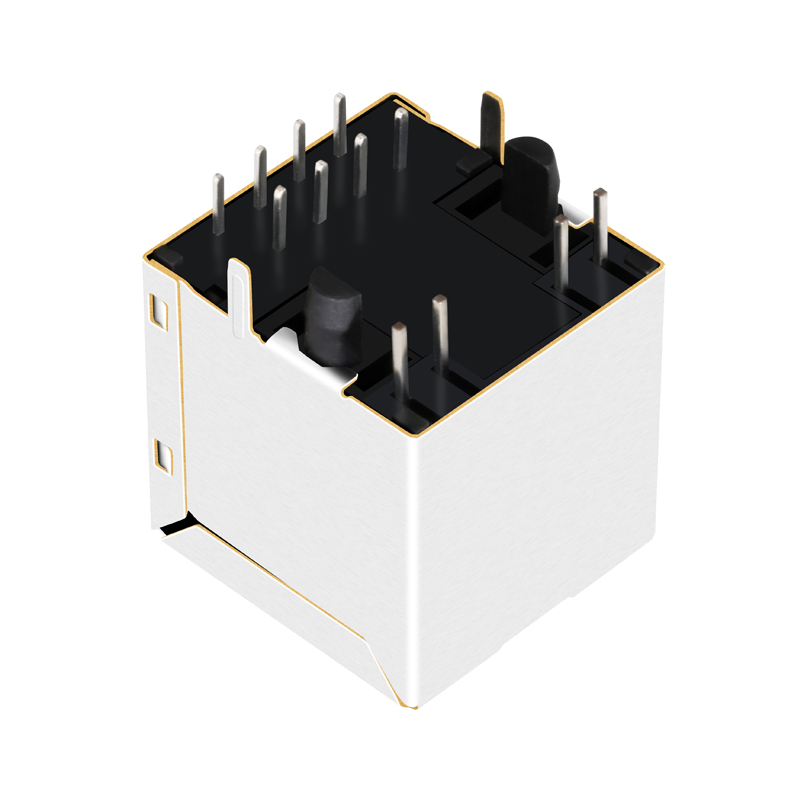

Ethernet Jack Side View

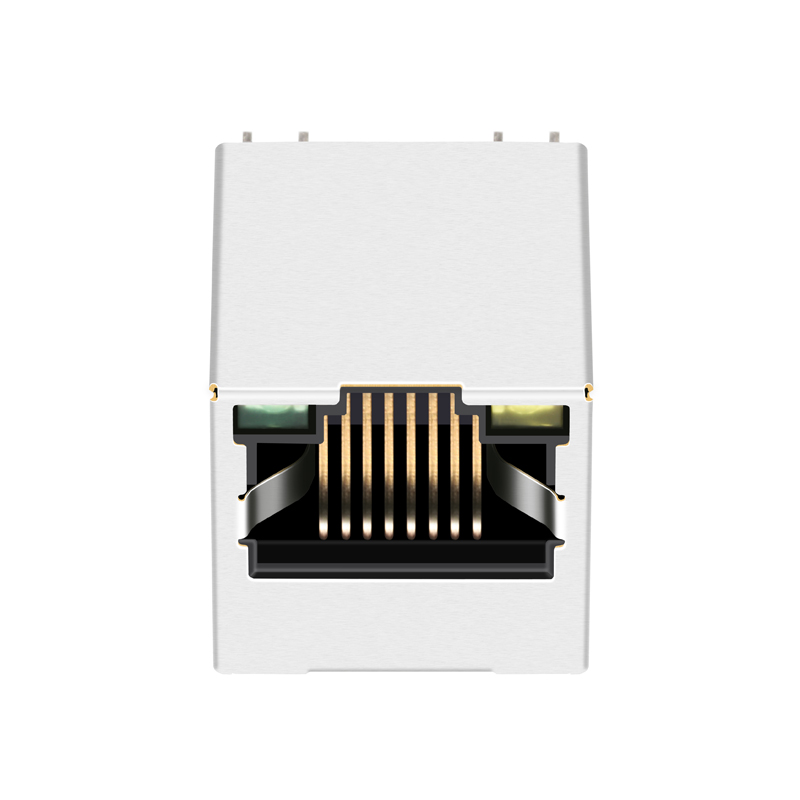

Ethernet Jack Front View
Ethernet Vertical Jack RJ45 Female Socket HFJV1-1G46RL HFJV1-2450-L55RL 1840459-1 1840453-1
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840453-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up And Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

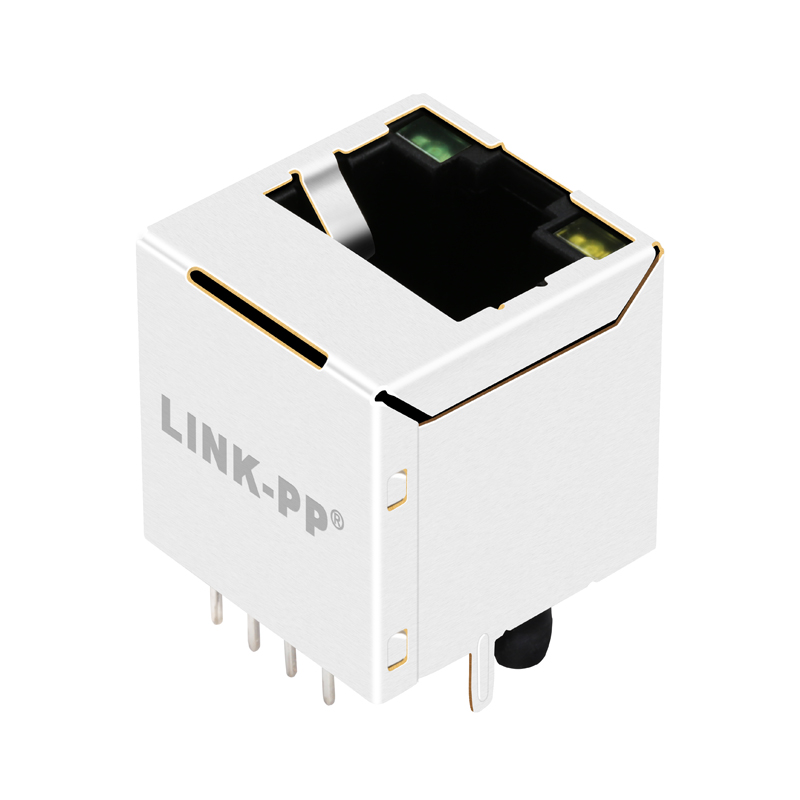

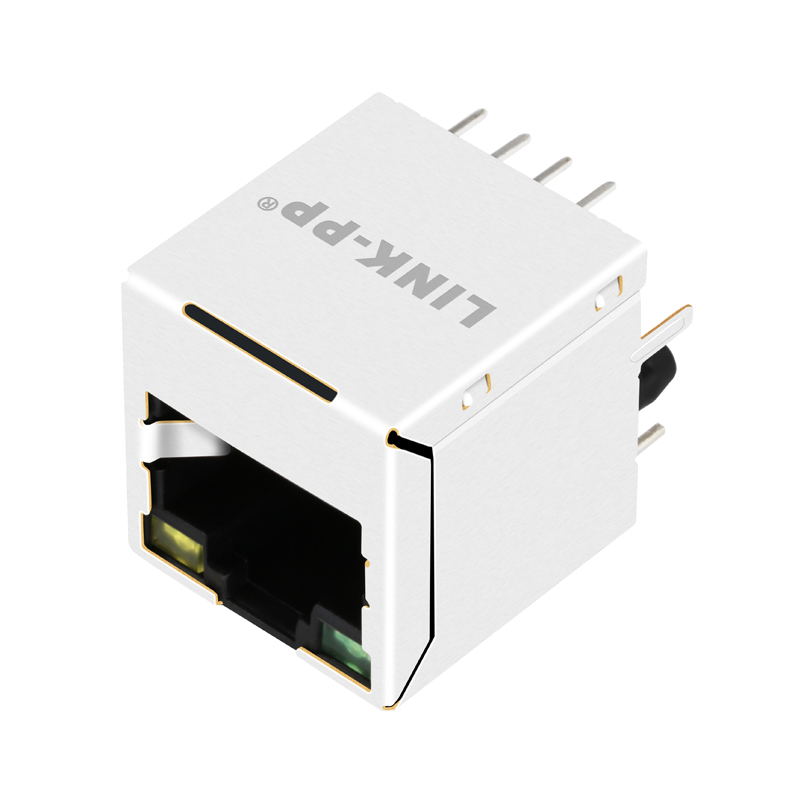

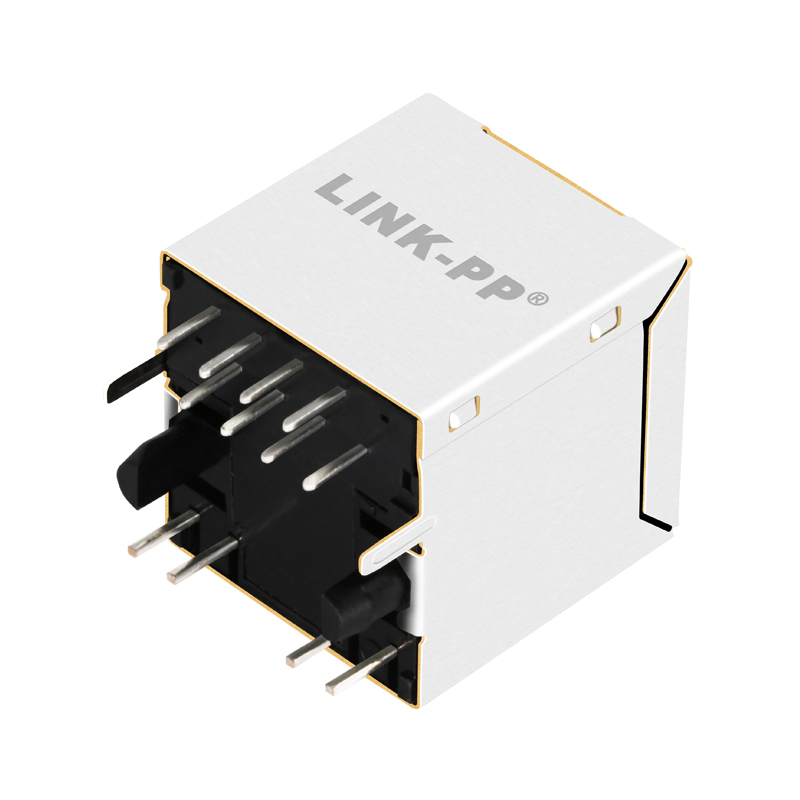

Product Angle 1 Product Angle 2 Product Angle 3 Product Angle 4 Product Angle 5 Product Angle 6 Product Angle 7
Product Measurement Specifications
Why Choose Us
Strength 1 Strength 2 Strength 3 Strength 4
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products:

  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher standards will convince you to be our long-term partner.

Factory Office Production Workshop Testing Equipment Product Quality Inspection
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you would need to cover the shipping cost.
What is your delivery time?
Items in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM/ODM requests. Please send us your specifications so we can discuss the details.
What is your advantage?
We have 19 years of professional manufacturing experience and have been a trusted partner for leading global technology and electronics corporations for many years.
