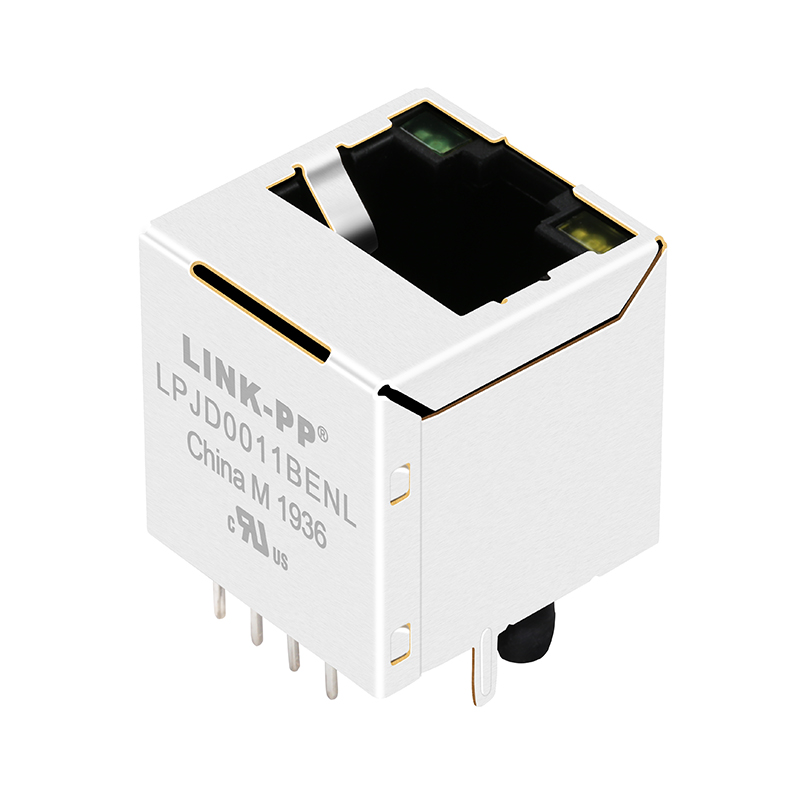

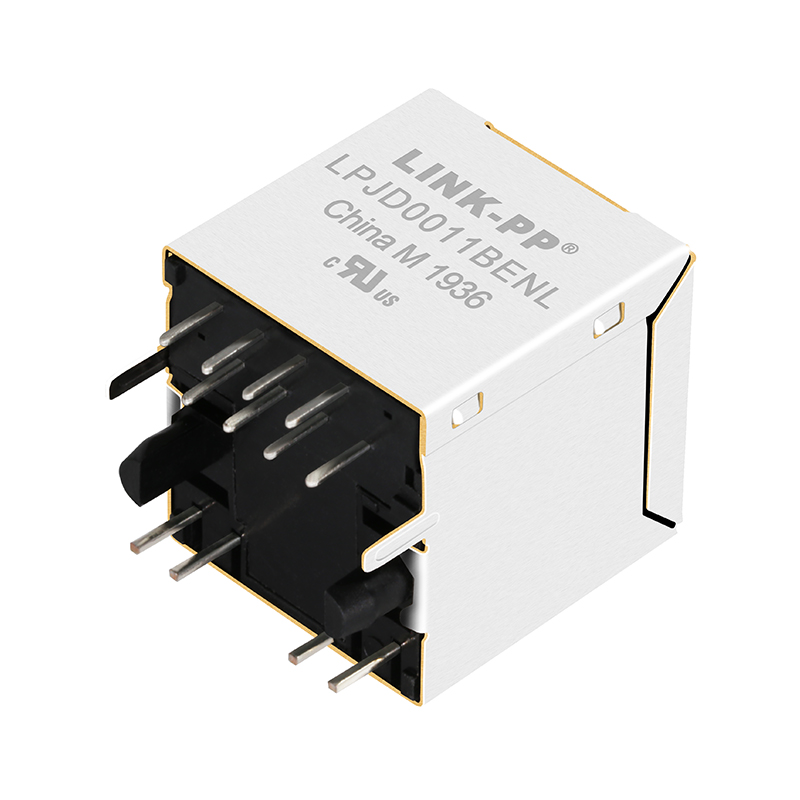

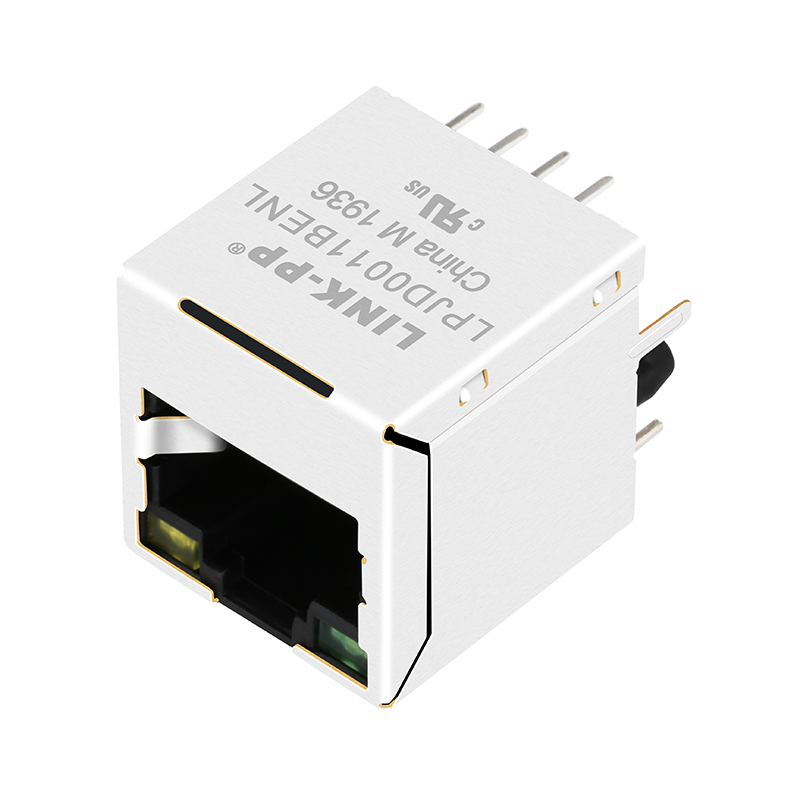

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
1 / 5
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet Connectors Introduction
RV1-12108K1A 10/100 Base-t Vertical Top Entry Ethernet Magnetic RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD0011BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Performance Showcase Available Product Variations Grid
Technical Dimensional Drawing

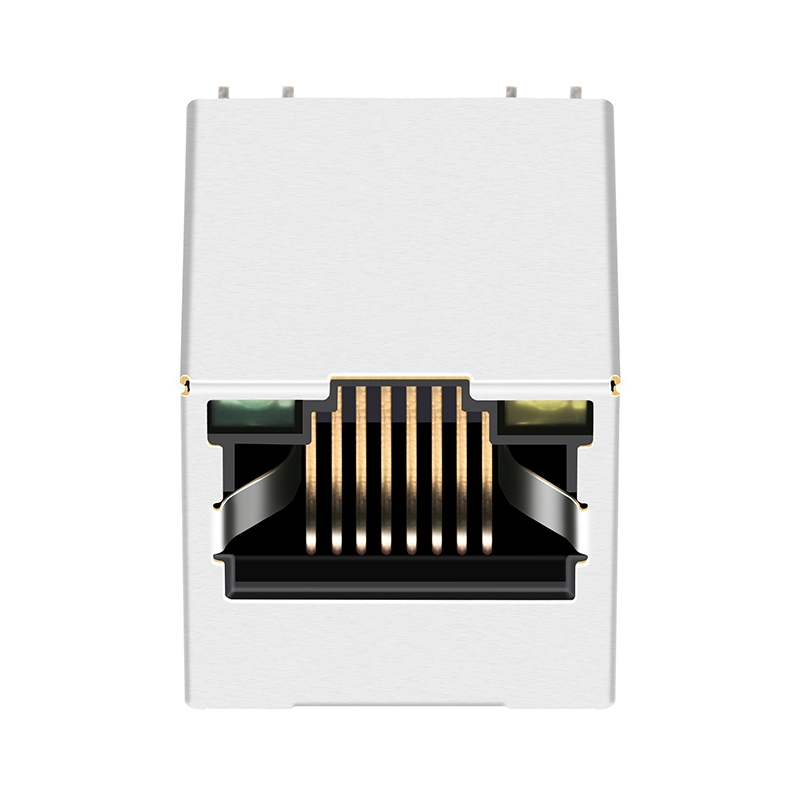

RJ45 Front View Detail
RJ45 Side Angle Details

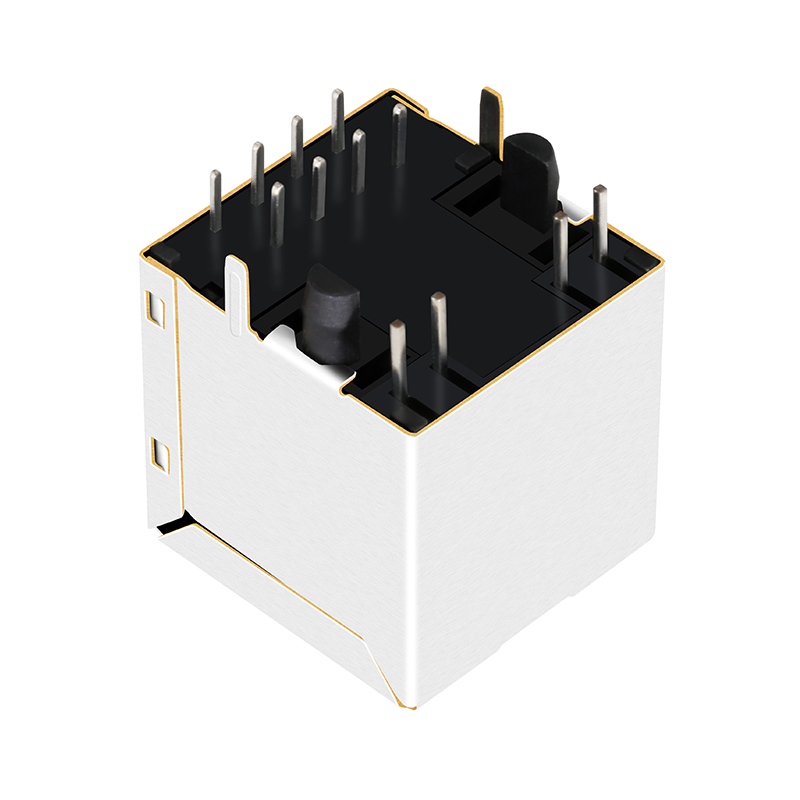

RJ45 Bottom Pin Detail
Quality Compliance Certificate
Packaging Standard Details
Shipping and Logistics Information
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Automated Manufacturing Workshop
Product Quality Inspection Laboratory
Warehouse Storage Facility
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.
What is your delivery time?
Ready-to-ship stock items are dispatched quickly, while standard mass production orders take approximately 15 to 30 days.
What after-service support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we accept both OEM and ODM requirements. Please send us your specifications for detailed project discussions.
What is your main manufacturing advantage?
We possess over 19 years of dedicated production experience and have been a trusted partner to global technology industry leaders for many years.
