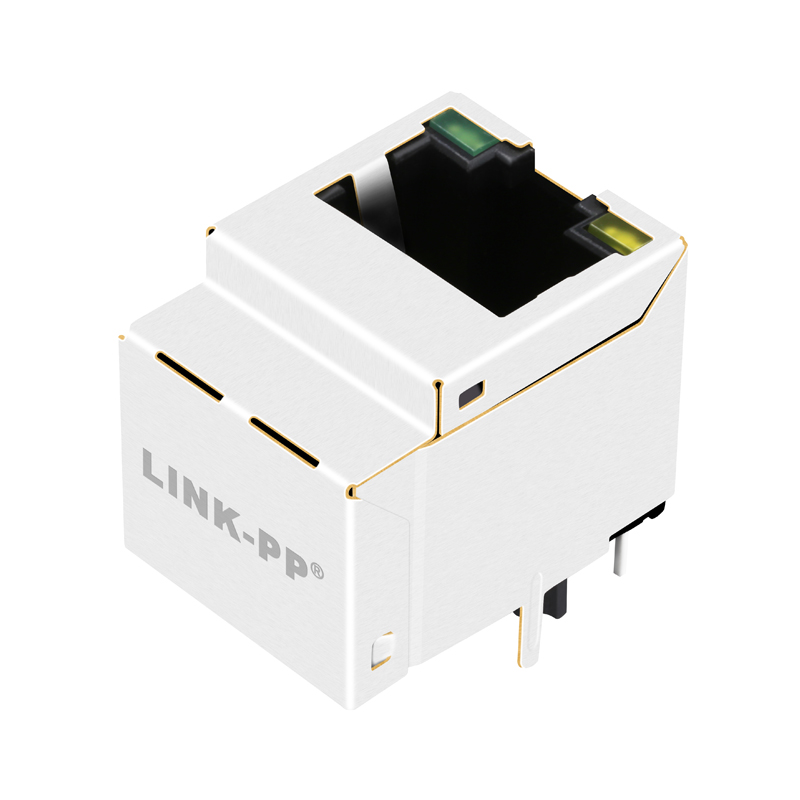

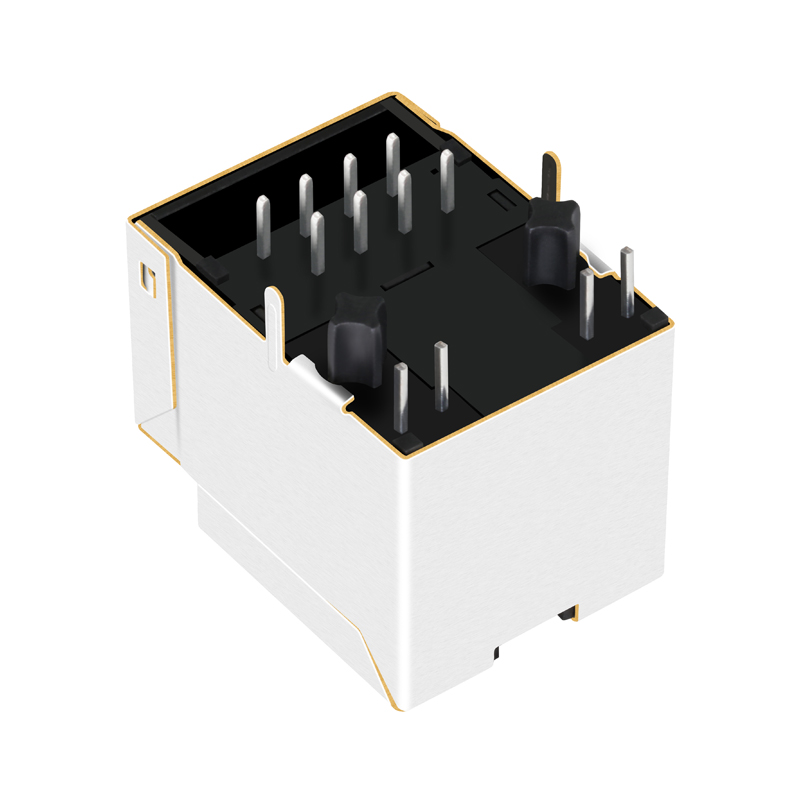

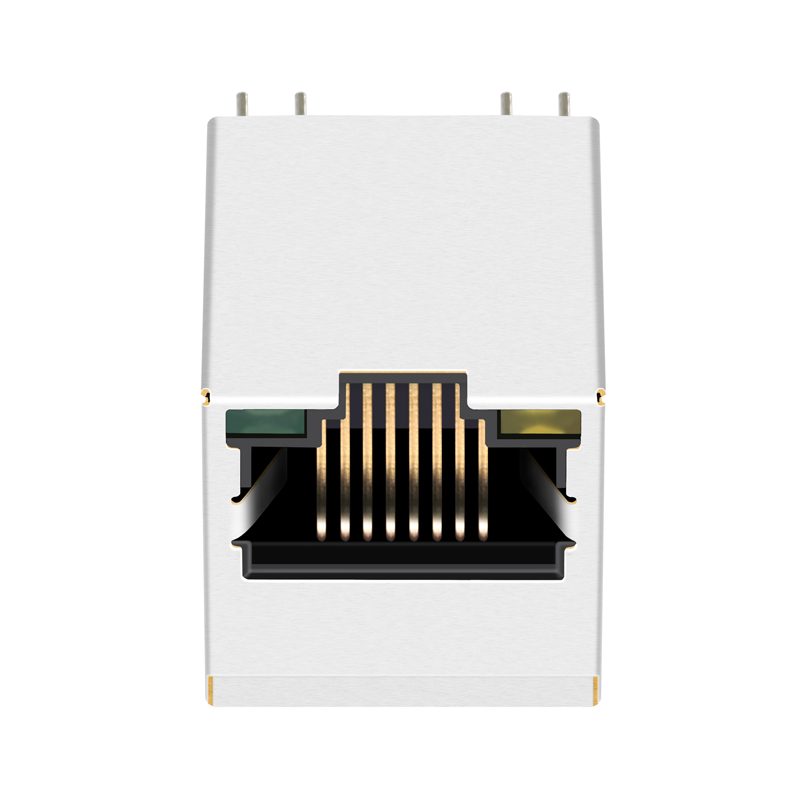

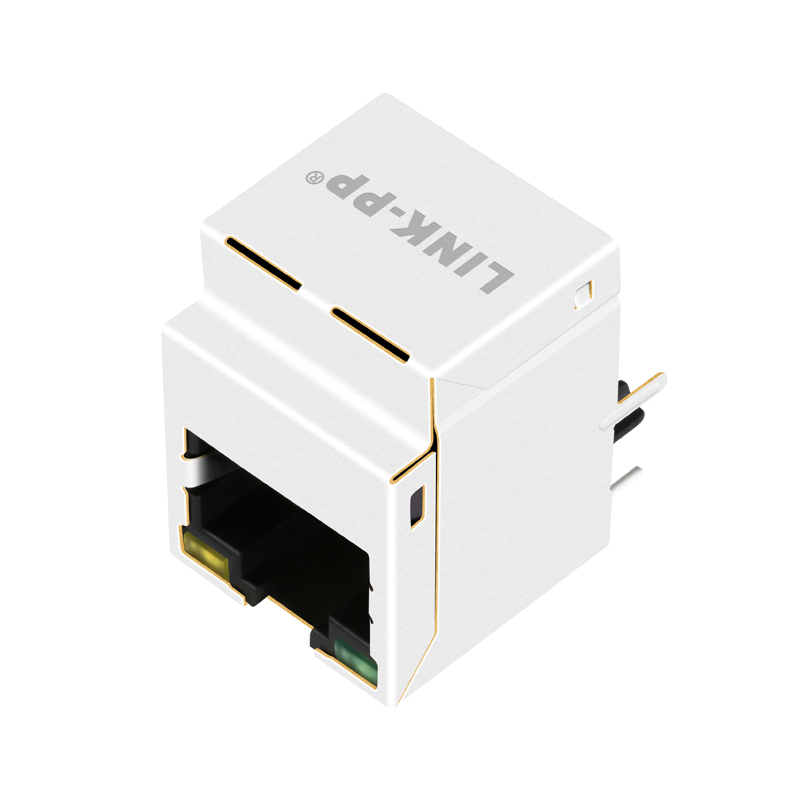

HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
1 / 5
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector

HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector

Send Inquiry

Product Description

Featured Product
HR951180AE LMJ2138814S0L1T1C SI-46020-F 100 Base-T with LEDs Magnetic RJ45 Connector
Magnetic RJ45 Connector Product Showcase
Products Description
ItemRJ45 Female Connector
Bothhand Part NumberHR951180AE LMJ2138814S0L1T1C SI-46020-F
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non-PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
LatchUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0°C TO 70°C
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
Technical Drawings & Dimensions
Dimensions Spec Diagram 1

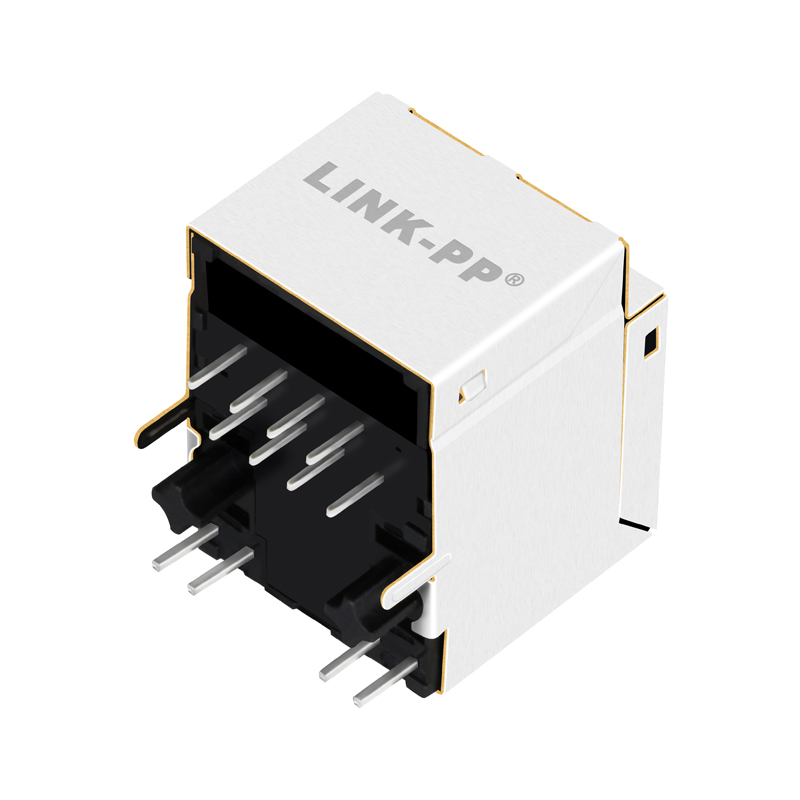

Dimensions Spec Diagram 2
Wiring Schematic 1
Wiring Schematic 2
Wiring Schematic 3
Wiring Schematic 4
Explore Related Products
Product Categorization Chart
Contact Inquiry Button
Quality & Manufacturing Standards
Testing Certification 1
Testing Certification 2
Testing Certification 3
Quality Standard Certificate
ISO Certification Detail 1
ISO Certification Detail 2
Production Infrastructure
Production Facility Area
Quality Control Testing Center
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer free samples to test quality, but you are responsible for the shipping fees.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production orders.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your specific inquiries to us so we can proceed with a detailed discussion.
6. What is your advantage?
We have 19 years of professional production experience and have partnered with global industry leaders for many years.
