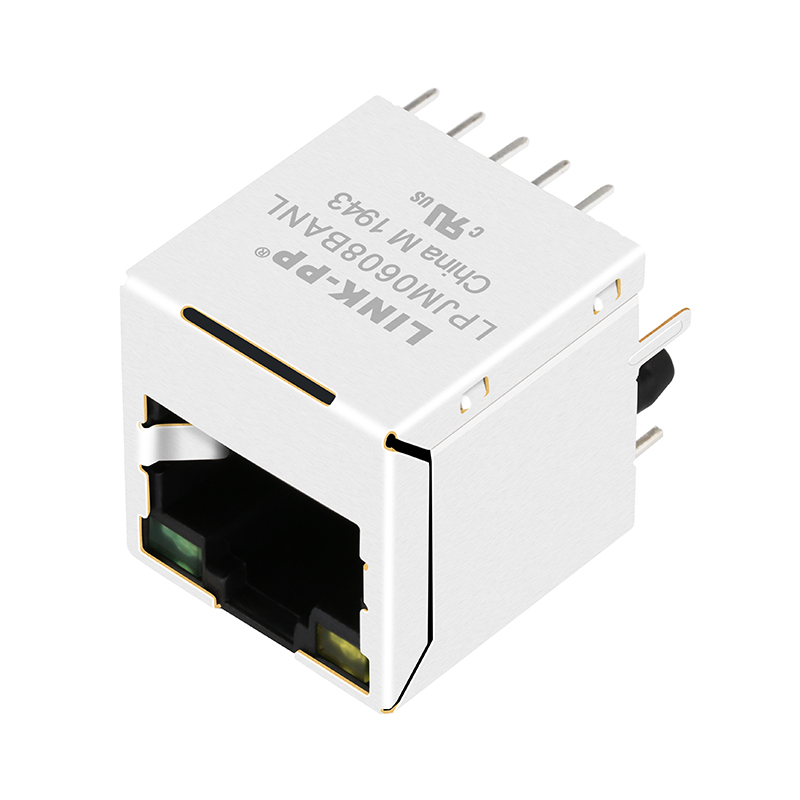

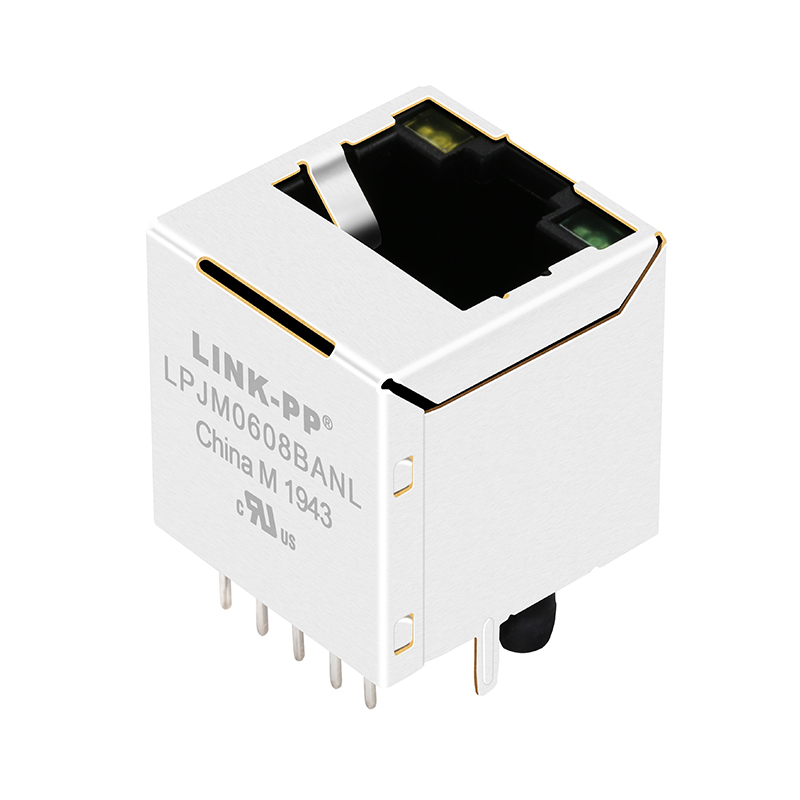

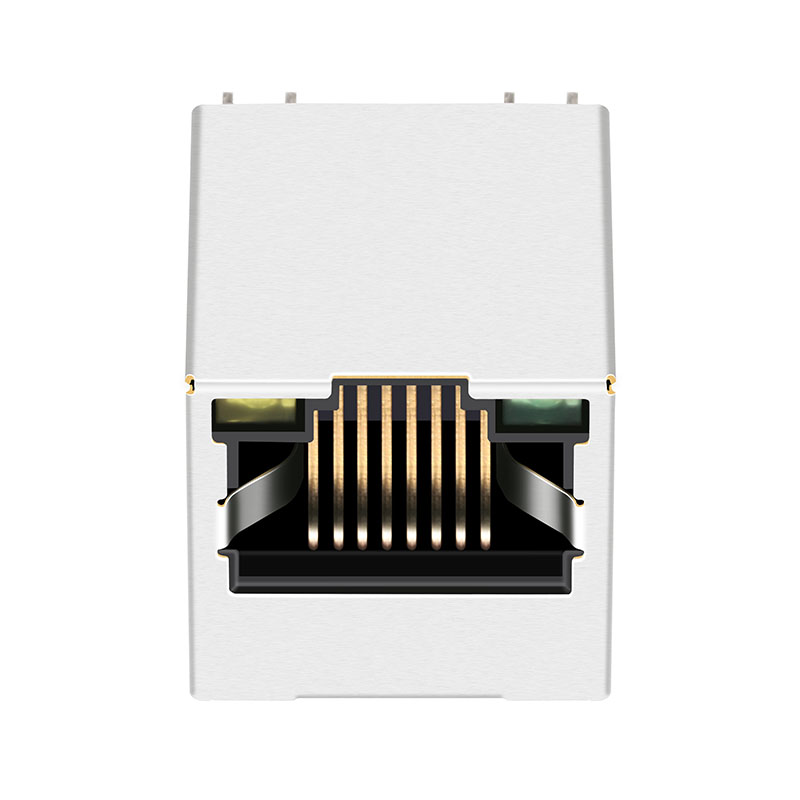

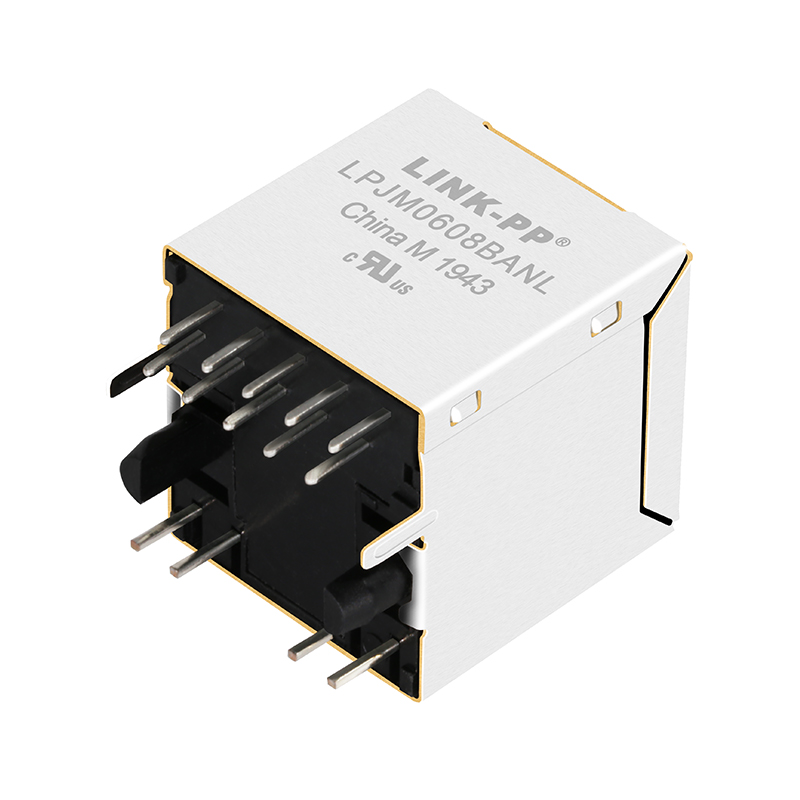

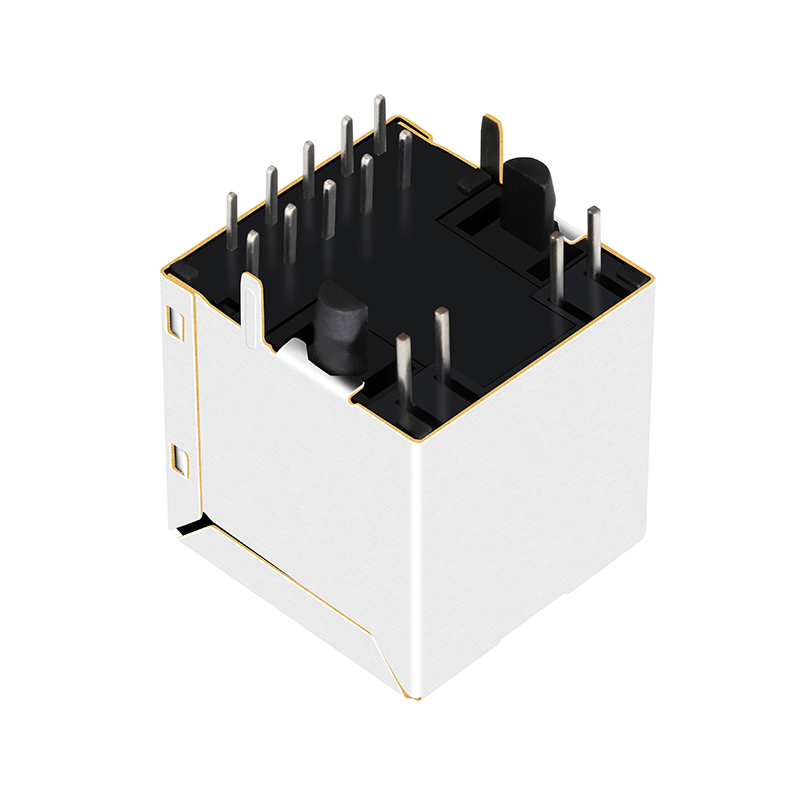

| Item | RJ45 Female Connector |
| Bothhand Part Number | LPJM0608BANL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(Non PoE) |
| Number of Ports | 1x1 Port |
| Speed | 2.5g Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test the quality, but shipping fees must be covered.
Stock items are ready to ship immediately, while mass production typically takes 15-30 days.
We provide a one-year warranty period and 24-hour online technical support.
Yes, please send us your requirements so that we can proceed with a detailed discussion.
We bring over 19 years of dedicated production experience and maintain long-term partnerships with leading global technology corporations.
