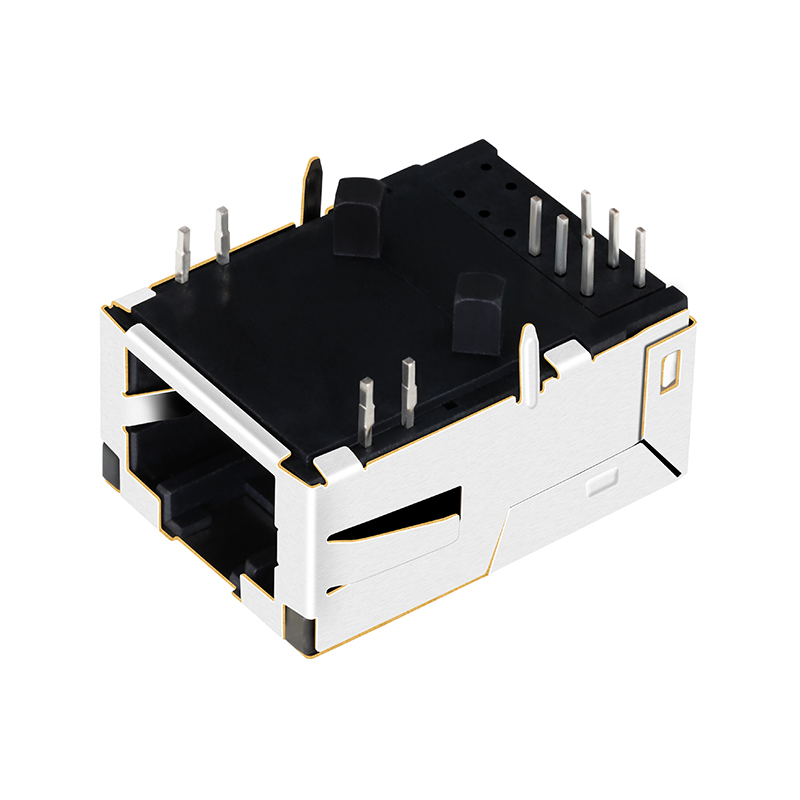

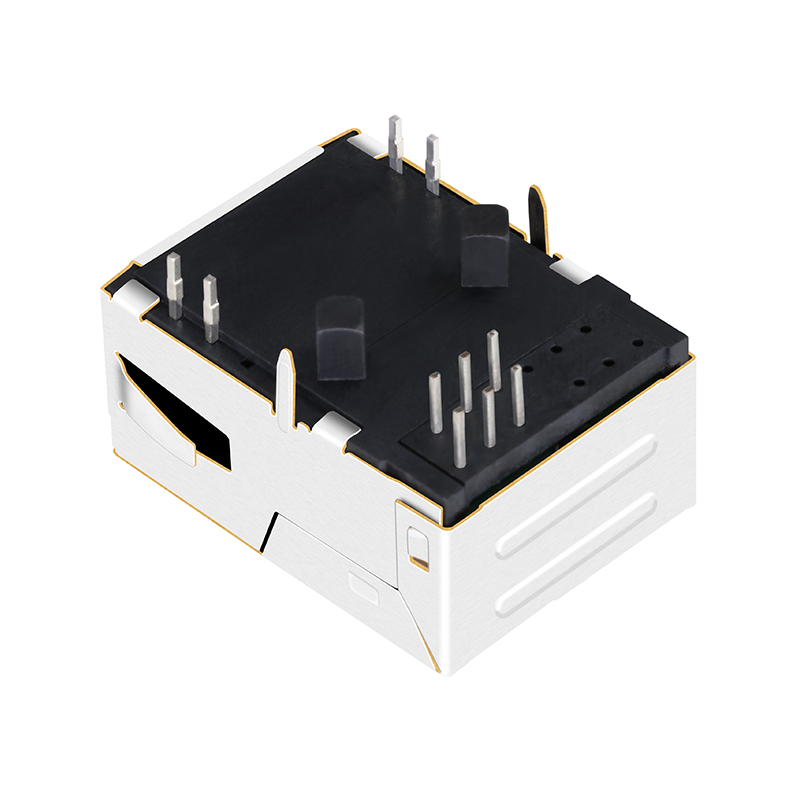

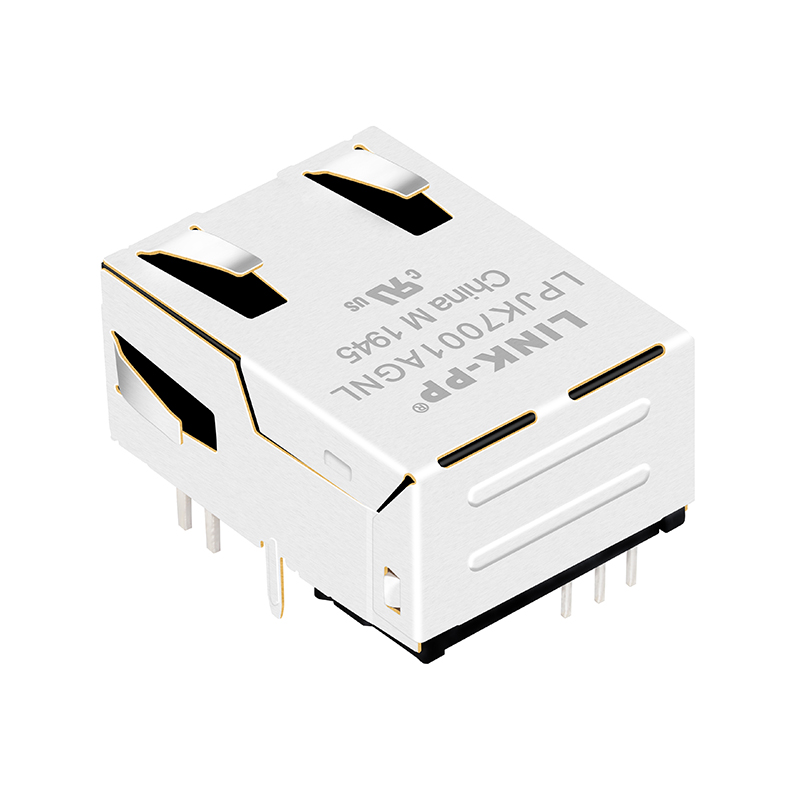

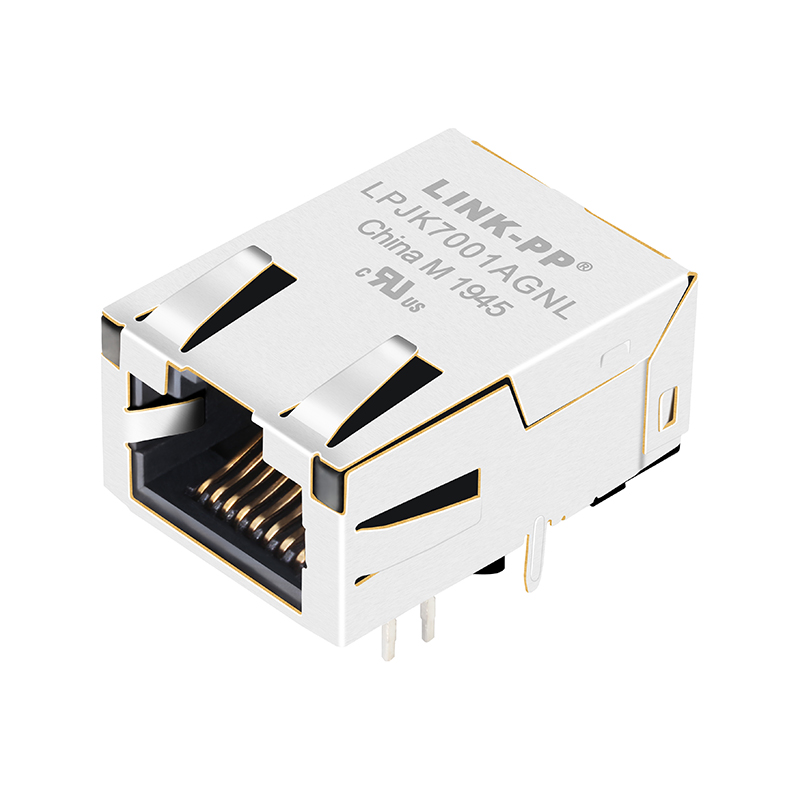

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector

Product Description

LPJK7001AGNL 100 Base-T Magnetics Modules Low Profile RJ45 Ethernet Connector
LPJK7001AGNL RJ45 Connector Overview
Specification
item RJ45 Connector
Model Number LPJK7001AGNL
Part Status Active
Connector Type Low Profile RJ45
Applications 10/100 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Number of Cores per Jack 4
Shielding Shielded
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature 0°C ~ 70°C

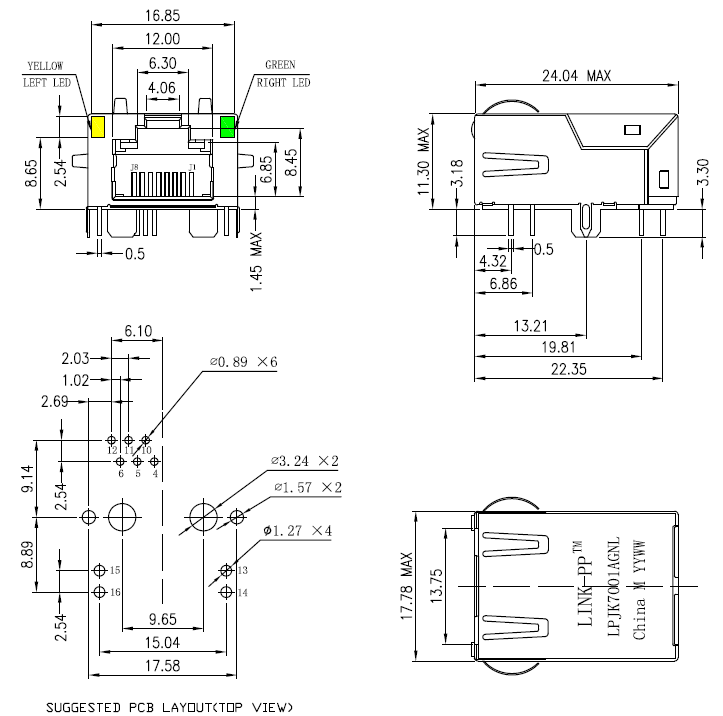

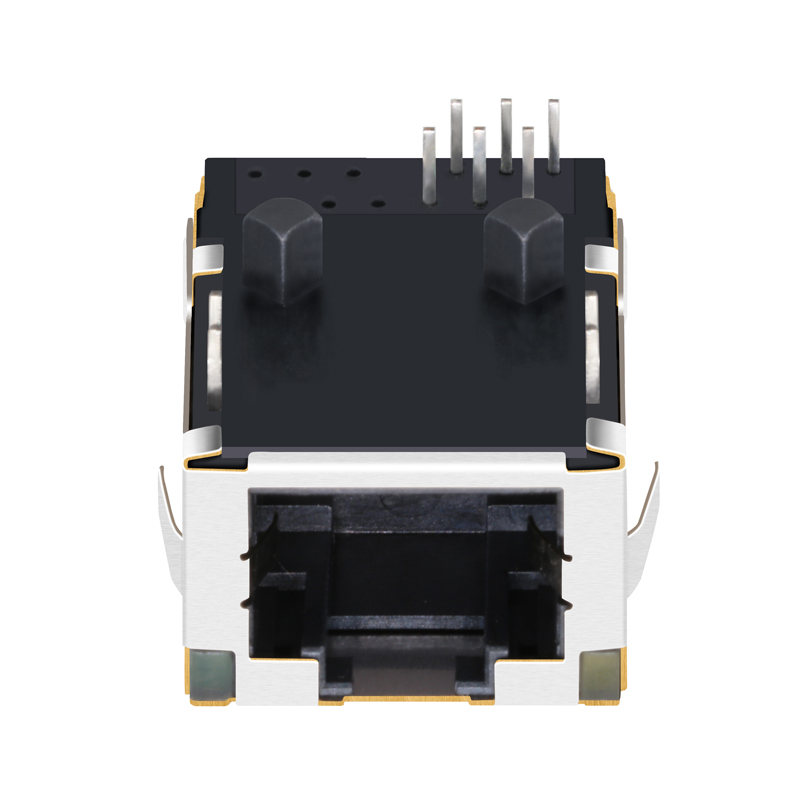

RJ45 Connector Side View RJ45 Connector Bottom View RJ45 Connector Dimensions
LPJK7001AGNL Structural Layout
Product Categories Overview
Ethernet Connectors Product Matrix
Production QC Testing Manufacturing Standards Quality Compliance Certificate
Production Workflow Testing Parameters Safety Certifications
Material Compliance
