Home > Low Profile RJ45 Connector > Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

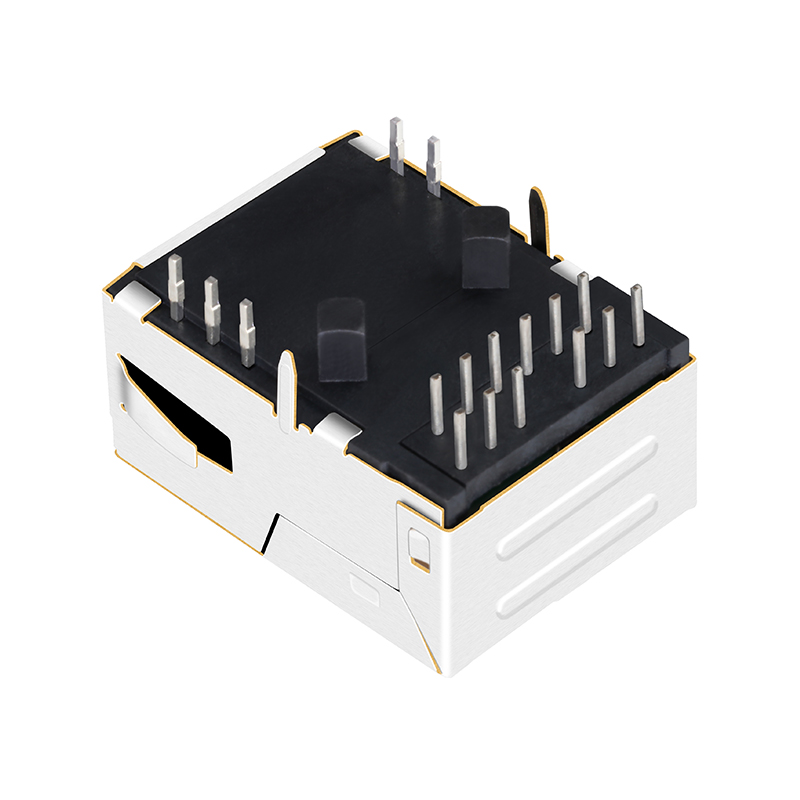

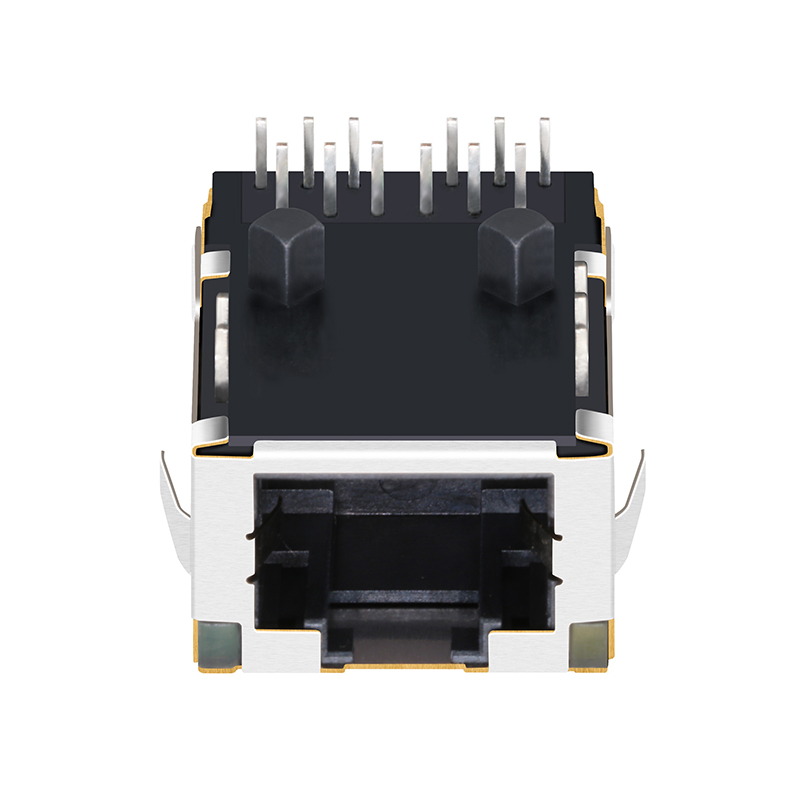

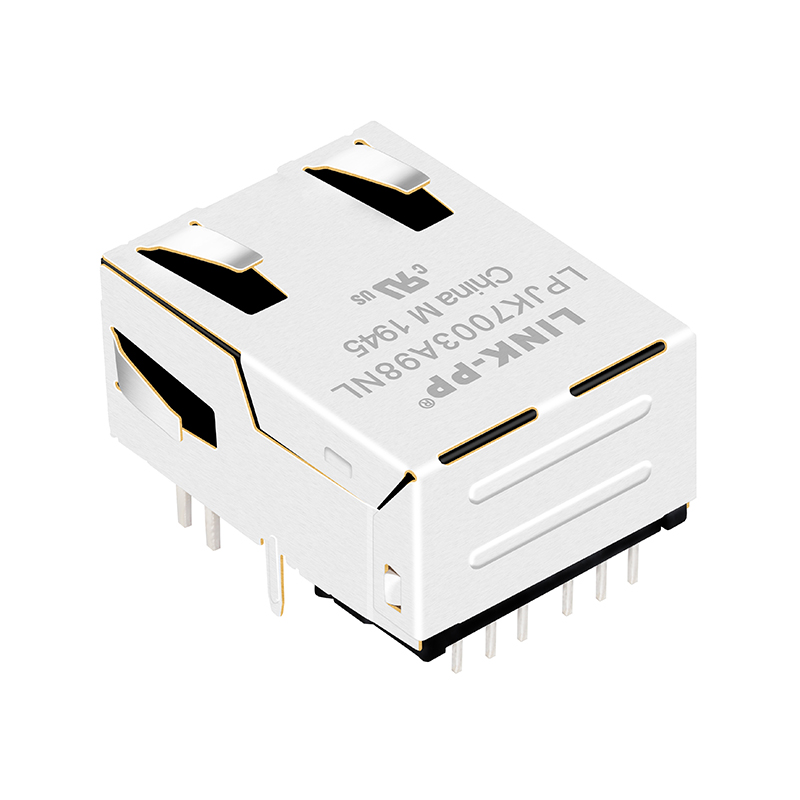

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
1 / 5
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL

Send Inquiry

Product Description

Ethernet Connector Overview
Low Profile RJ45 Jack 1000 Base-T Integrated Ethernet Connector LPJK7003A98NL
Products Description
Item RJ45 Female Connector
Link-PP Part Number LPJK7003A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port, Low Profile
Speed 10/100/1000 Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

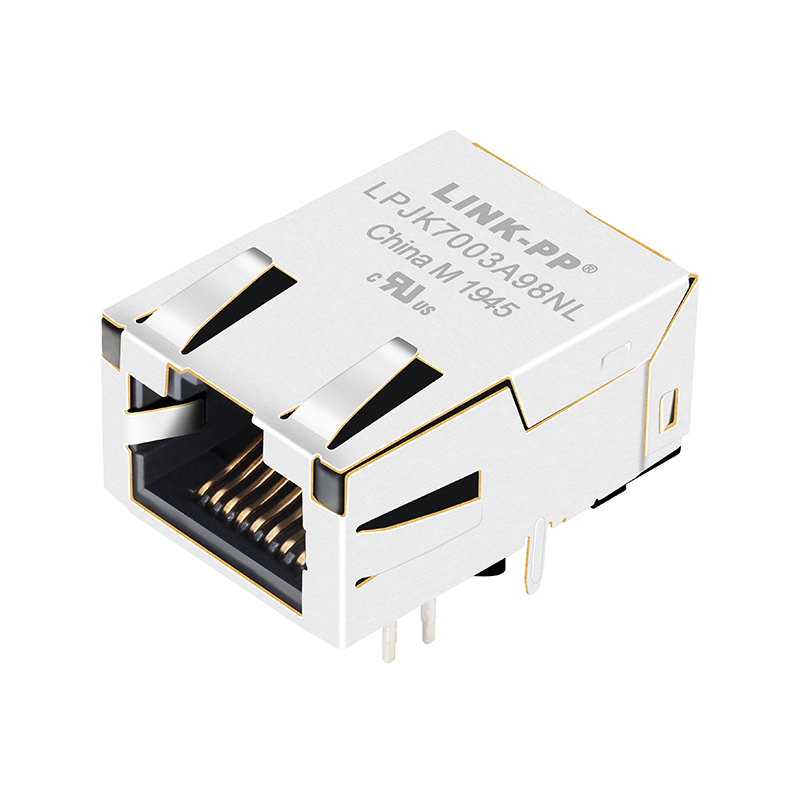

Product View 1

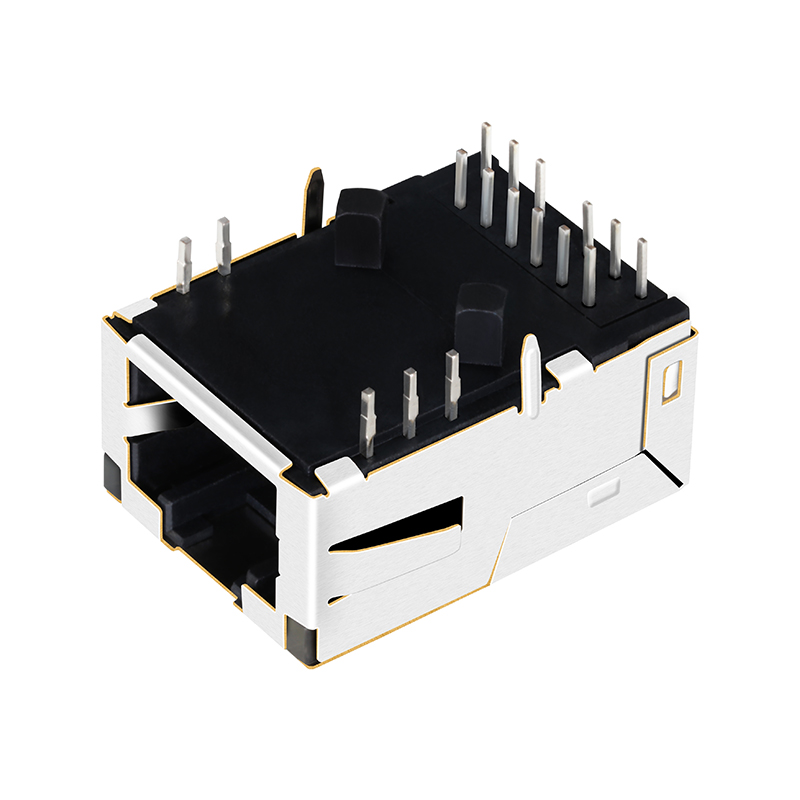

Product View 2
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Explore Our Comprehensive Product Range Below
Product Range Categories
Technical Layout 1
Technical Layout 2
Technical Layout 3
Technical Layout 4
Technical Layout 5
Technical Layout 6
Manufacturing Facility 1
Manufacturing Facility 2
FAQ
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
4. What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the details of your specific requirements.
6. What is your competitive advantage?
We boast 19 years of dedicated production experience and have been a trusted partner to major global industry leaders for many years.
