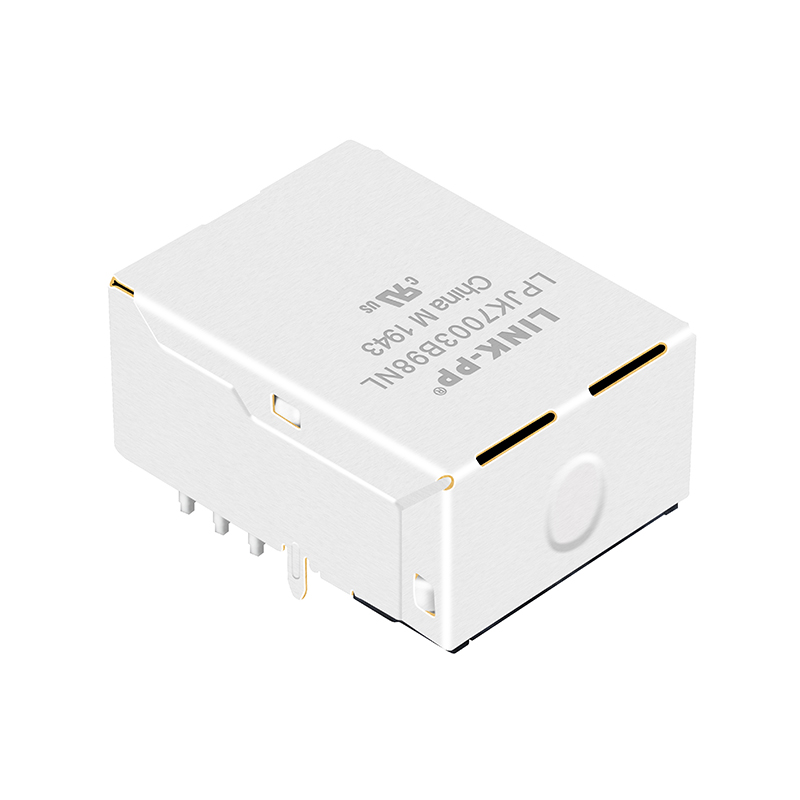

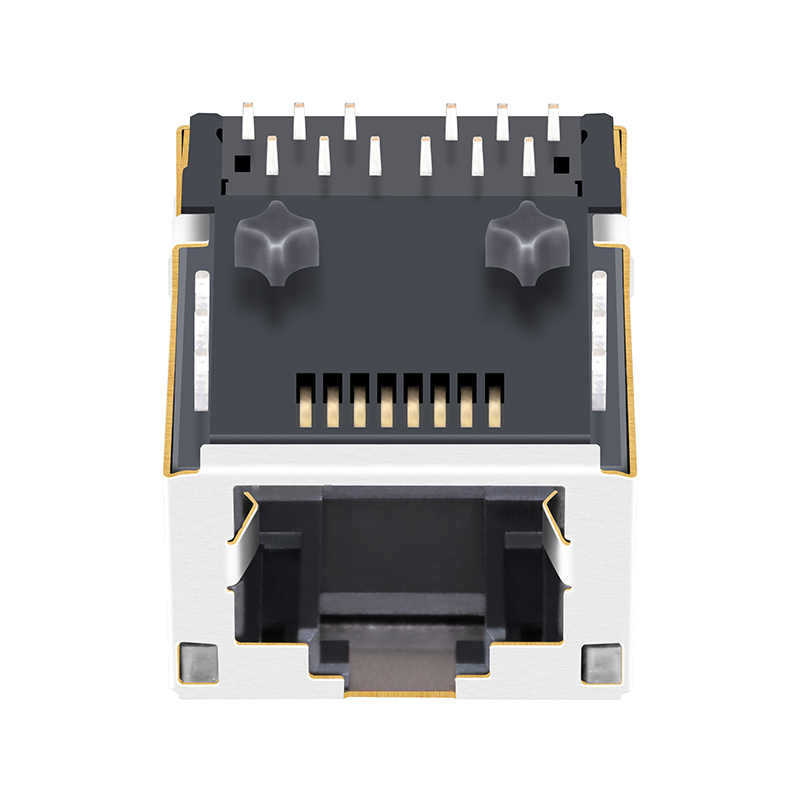

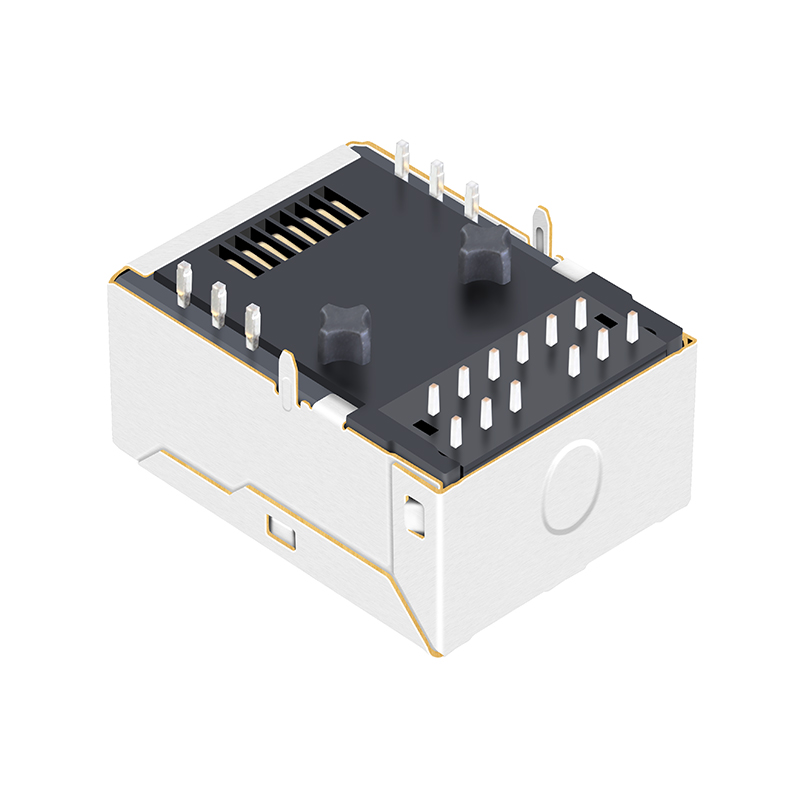

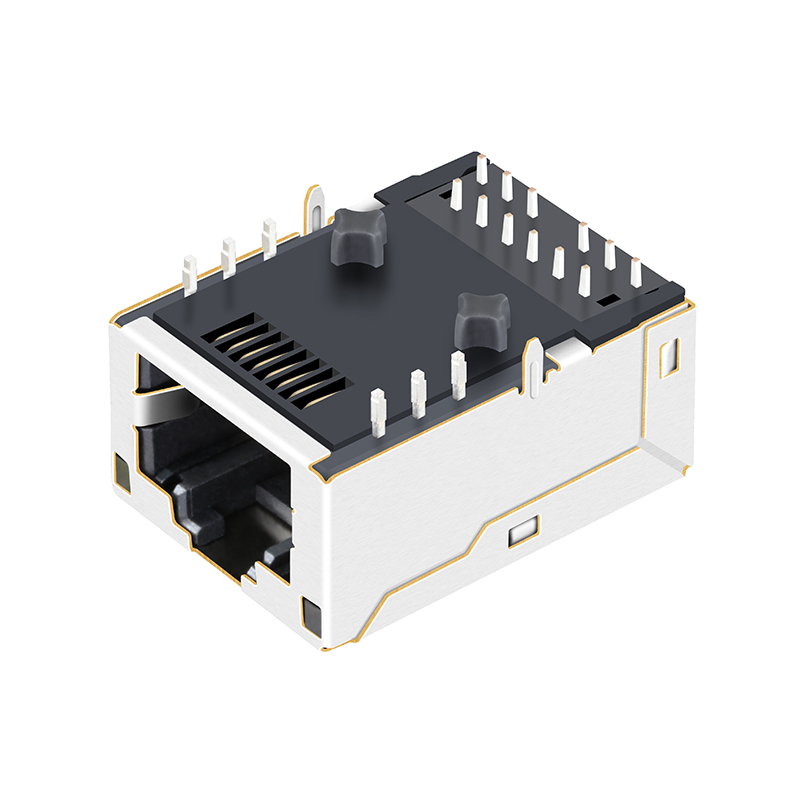

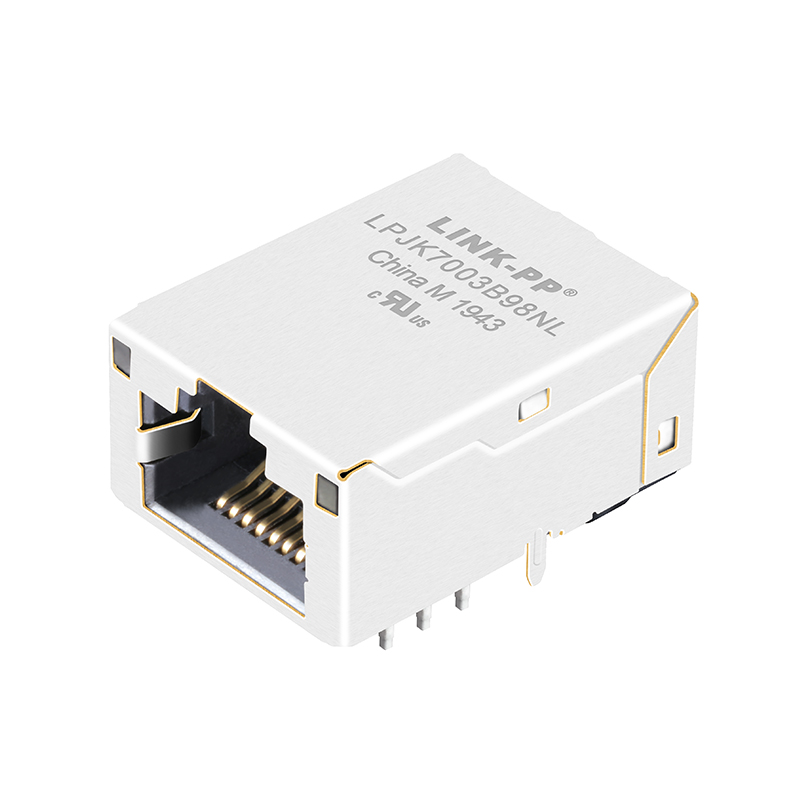

1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1 / 5
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds

1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds

Send Inquiry

Product Description

Ethernet Connector Overview
1840718-6 Low Profile RJ45 Jack Ethernet Magnetic 1000 Base-t Female RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840718-6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Connector Angle View Connector Side View
Product Feature 1 Product Feature 2 Product Feature 3 Product Feature 4
Product Options Mapping
Dimensional Specifications
Schematic Diagram
PCB Layout Recommendations
Connector Dimensions Detail
Internal Circuit Schematic
Packaging Details
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we are intel's and Jabil's partner for many years.
Quality Standards and Certification
