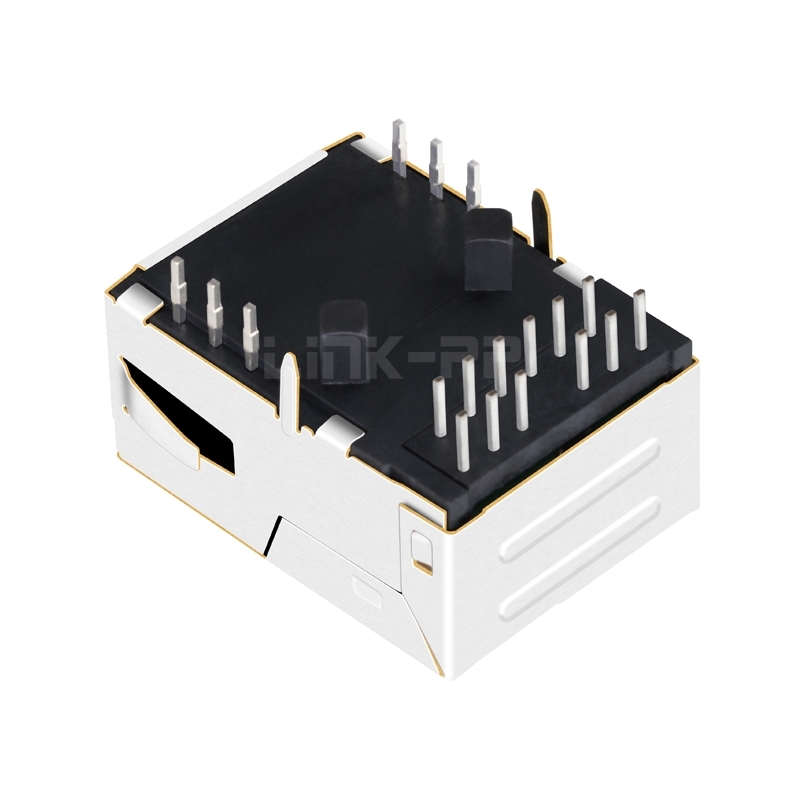

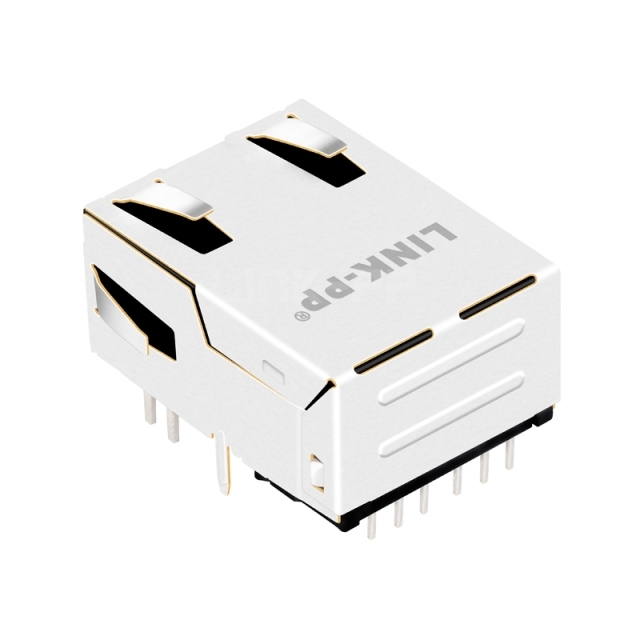

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

Product Description

Magnetic Jack Female RJ45 Connector

JT4-1108HL Tab Down Low Profile 1 Port Magnetic Jack 10G Base-t Female RJ45 Connector

Products Description
Item RJ45 Female Connector
Part Number LPJK9002A83NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10G Base-T
Latch Down
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Connector Overview

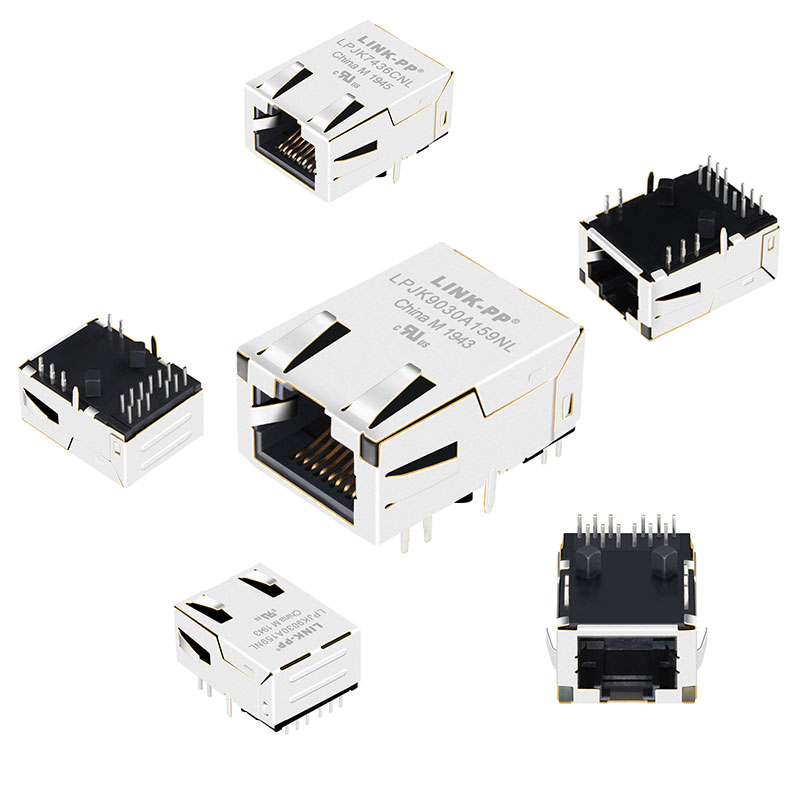

Featured Products & Solutions

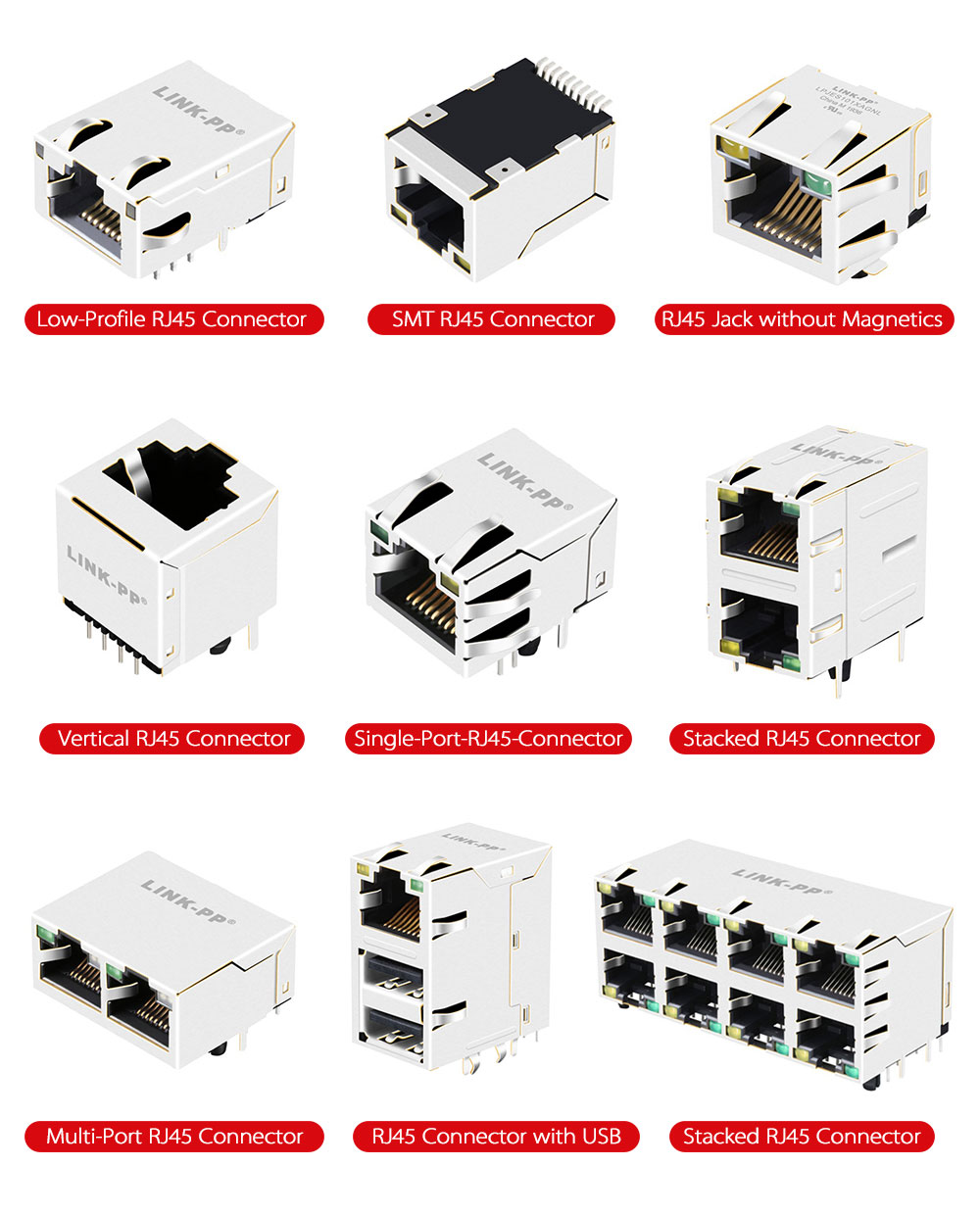

Product Categories Overview
Connector Dimensions Diagram
PCB Layout Design
Schematic Diagram
Material Specification
Package Details
Testing and Verification
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we operate as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
Production Workshop
Quality Inspection
Warehouse and Shipping
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are to be covered by the customer.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please send an inquiry to us so we can discuss the details.
What is your key advantage?
We bring over 19 years of dedicated production experience and operate as a trusted partner to major global technology corporations.
