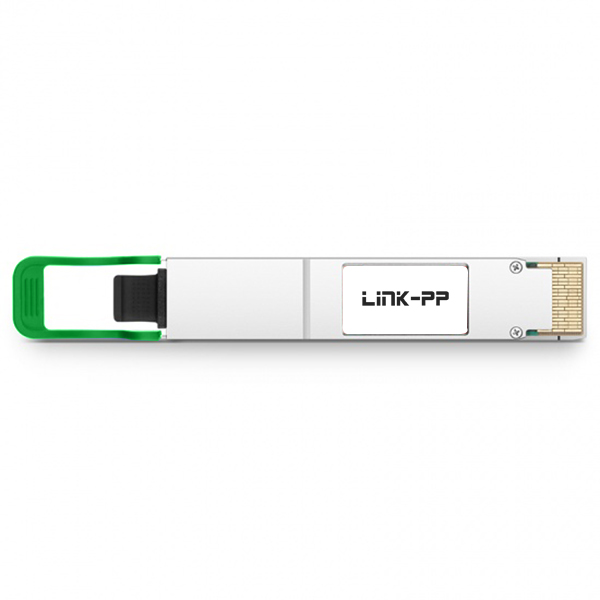

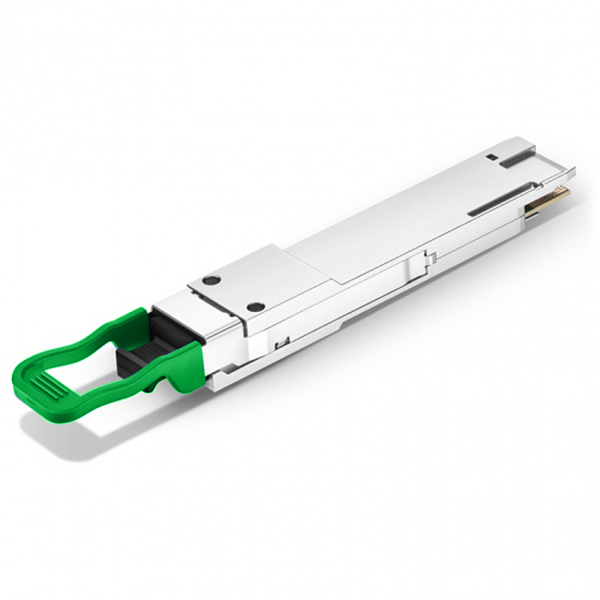

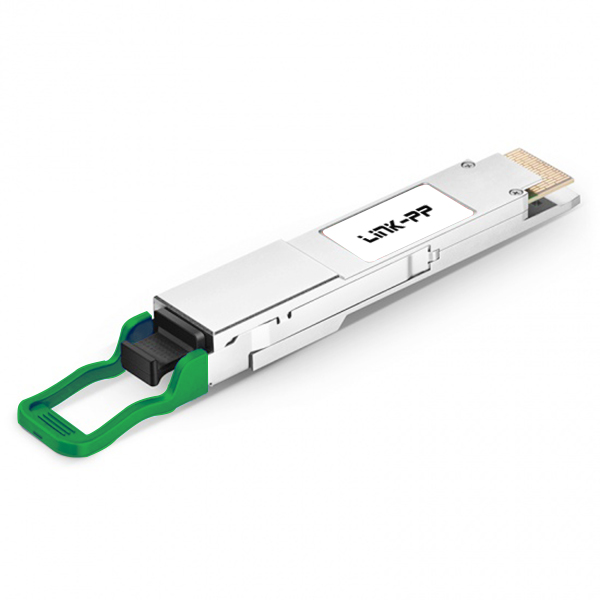

400GBASE-FR4 Duplex LC Optical Module 400G CWDM QSFP-DD PAM4 2km DDM SMF Optical Transceiver
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
400Gbps |
| Max Cable Distance |
2km |
| Wavelength |
1271nm, 1291nm, 1311nm, 1331nm |
| Connector |
Duplex LC |
| Media |
SMF |
| Optical Component |
CWDM EML/PIN |
| TX Power |
-3.3~3.5dBm |
| RX Power |
-7.3~3.5dBm |
| Modulation |
8x 50G PAM4 |
| Powerbudget |
4dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we have around 2000 staff at present. With an abundant monthly production capacity of 3000K, we are able to deliver products within a short time frame.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs apply.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production takes 15-30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your requirements.
What is your advantage?
We have 19 years of production experience and have partnered with major industry leaders for many years.
