FiberQ
FiberQ

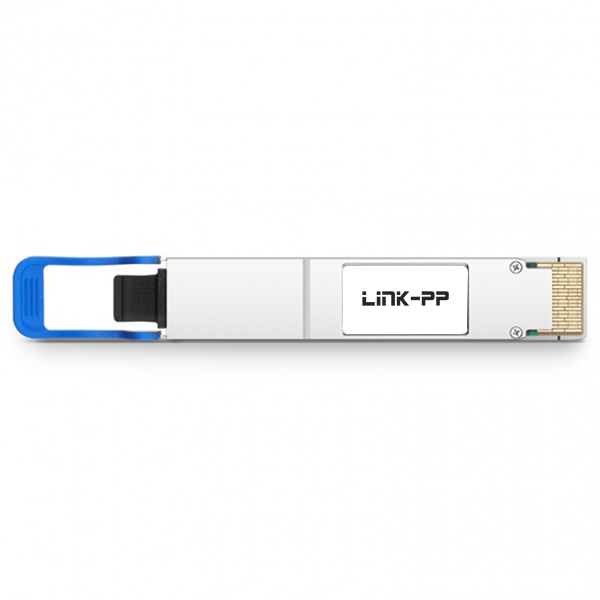

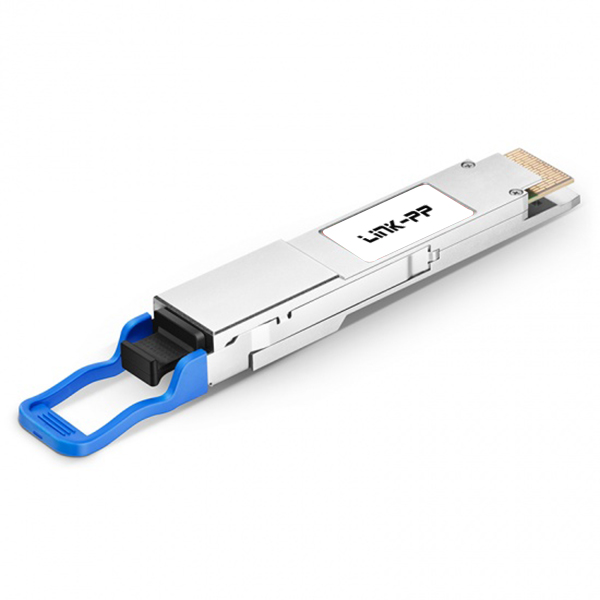

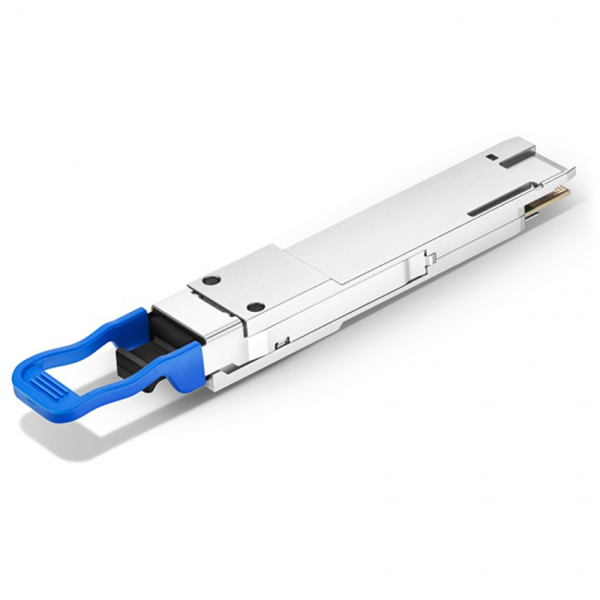

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 400Gbps |
| Max Cable Distance | 10km |
| Wavelength | 1271nm, 1291nm, 1311nm, 1331nm |
| Connector | Duplex LC |
| Media | SMF |
| Optical Component | CWDM EML/PIN |
| TX Power | -2.8~4.0dBm |
| RX Power | -9.1~4.0dBm |
| Modulation | 8x 50G PAM4 |
| Powerbudget | 6.3dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
Experience We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
Application A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and testing equipment imported from abroad.
Established in 1997, our current workforce size and abundant productive capacity of 3000K per month enable us to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
