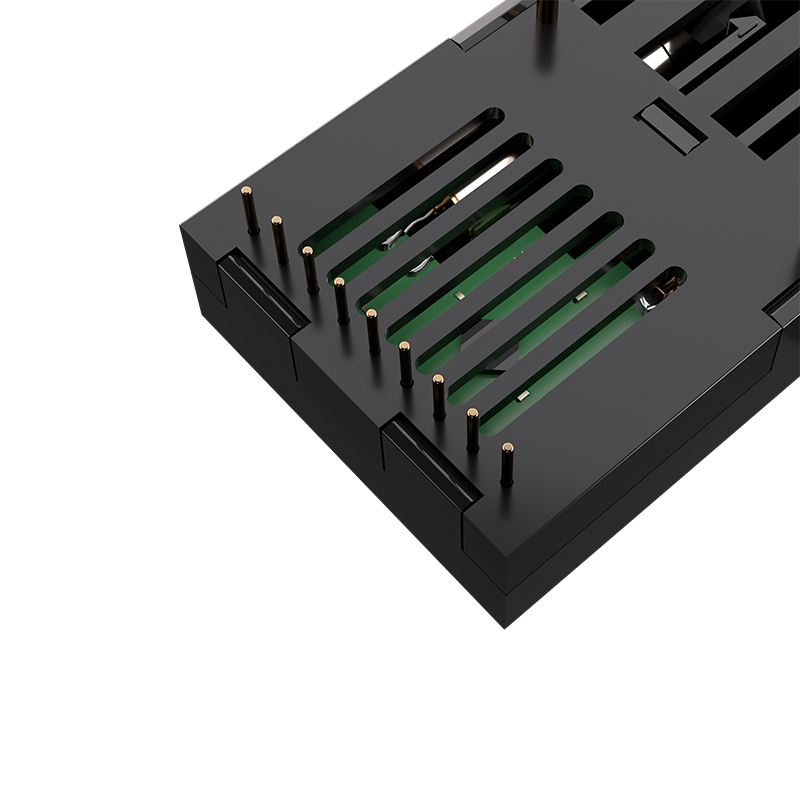

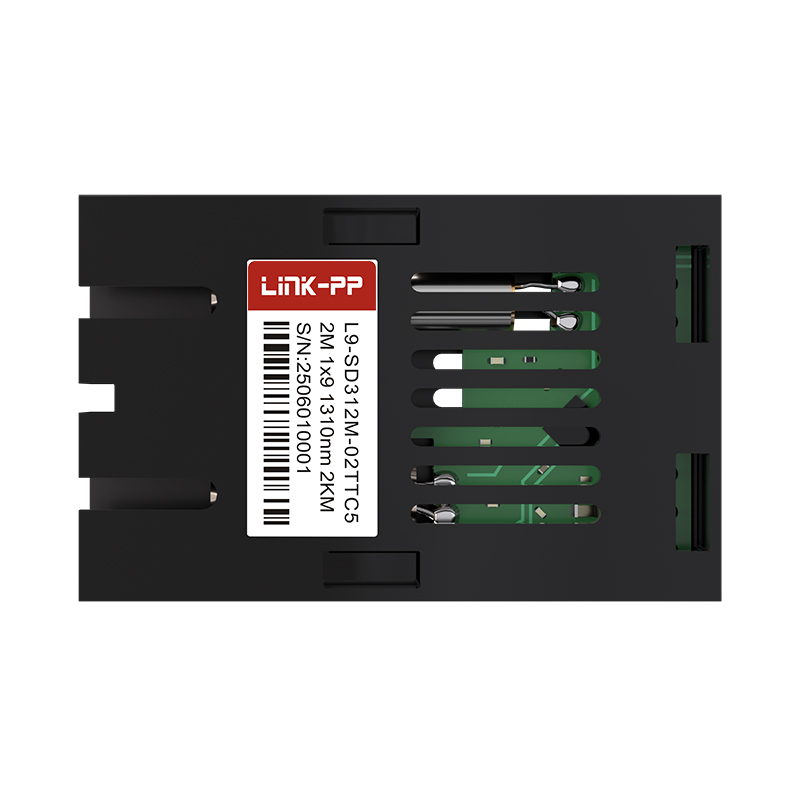

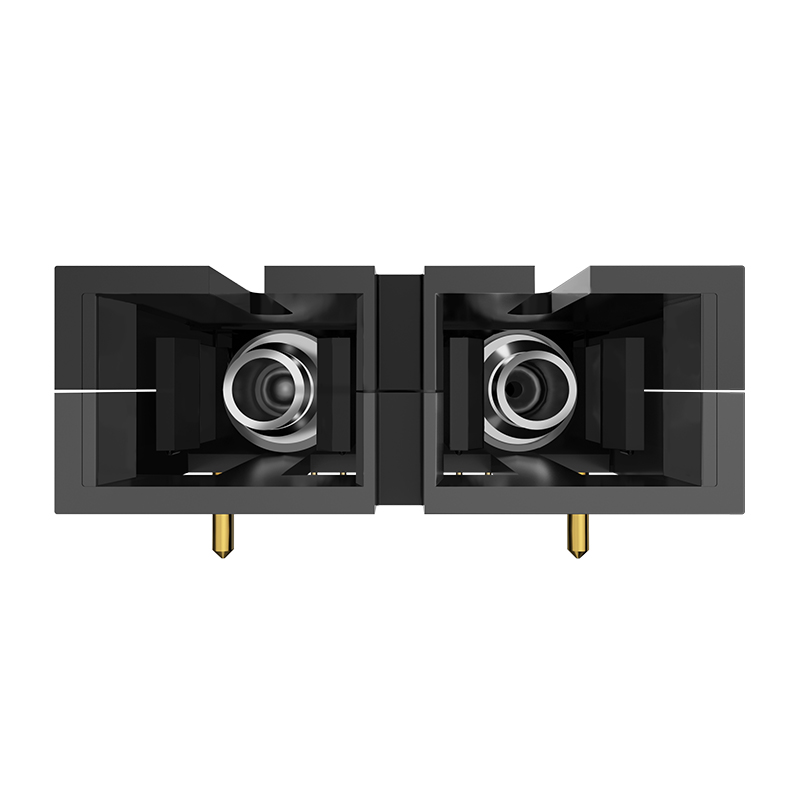

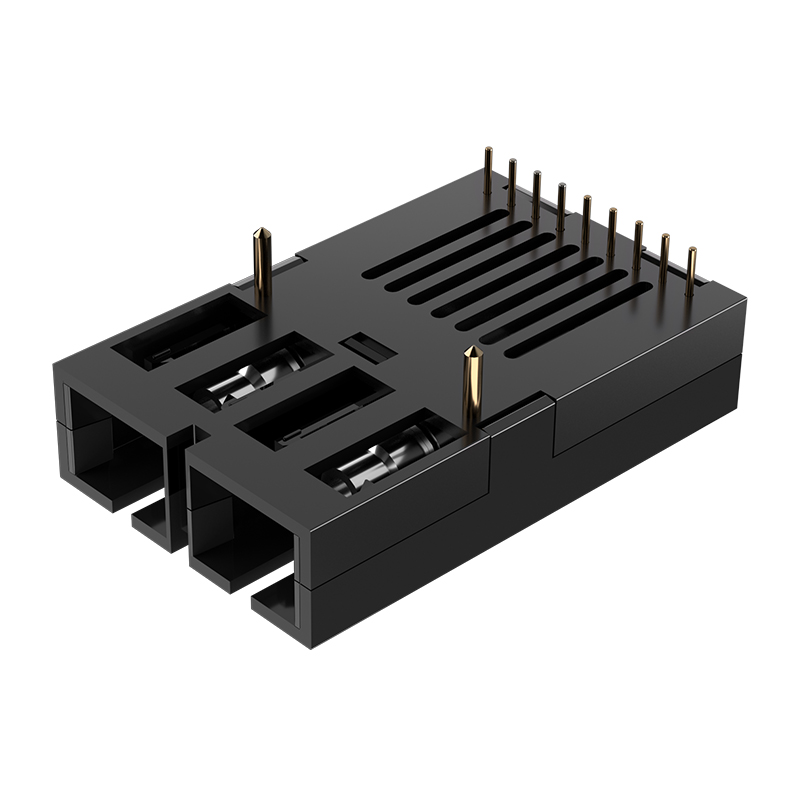

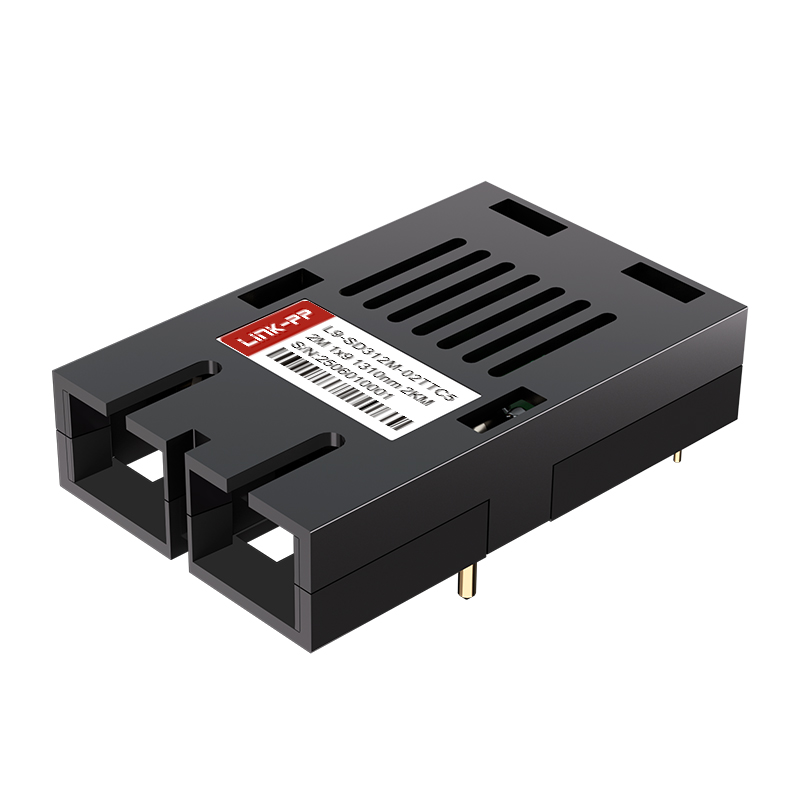

Multimode 1.25G 1310nm Duplex SC 2km MMF 1x9 Optical Transceiver Module

1 / 5

Multimode 1.25G 1310nm Duplex SC 2km MMF 1x9 Optical Transceiver Module

Send Inquiry

Product Description

💡 VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

Provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Multimode 1.25G 1310nm Duplex SC 2km MMF 1x9 Optical Transceiver Module

Part No.	L9-SD311G-20PTC
Form Factor	1x9
Max Data Rate	1.25Gbps
Wavelength	1310nm
Max Cable Distance	2km
Connector	Duplex SC
Media	MMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-10 ~ -3dBm
Receiver Sensitivity	< -23dBm
Protocols	Multi-sourced 1×9 protocol.
Temperature Range	0 to 70°C
Warranty	5 Years
Sample	Available

1x9 Transceiver Ordering Information

Model	Description
L9-SD312M-02TTC5	1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, 0°C-70°C
L9-SD312M-02TTI5	1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, -40°C-85°C
L9-SD312M-20TTC5	1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD312M-20TTI5	1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, -40°C-85°C
L9-SD312M-40TTC5	1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD312M-40TTI5	1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, -40°C-85°C
L9-SD851G-S5CTC	1x9 1.25Gbps, 850nm(Vcsel), 500m, MMF, Duplex SC, 0°C-70°C
L9-SD311G-S5CTC	1x9 1.25Gbps, 1310nm(FP), 550m, MMF, Duplex SC, 0°C-70°C
L9-SD311G-10CTC	1x9 1.25Gbps, 1310nm(FP), 10km, SMF, Duplex SC, 0°C-70°C
L9-SD311G-20CTC	1x9 1.25Gbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD311G-40CTC	1x9 1.25Gbps, 1310nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-20CTC	1x9 1.25Gbps, 1550nm(DFB), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-40CTC	1x9 1.25Gbps, 1550nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-80CTC	1x9 1.25Gbps, 1550nm(DFB), 80km, SMF, Duplex SC, 0°C-70°C

Support full range of optical transceiver solutions
