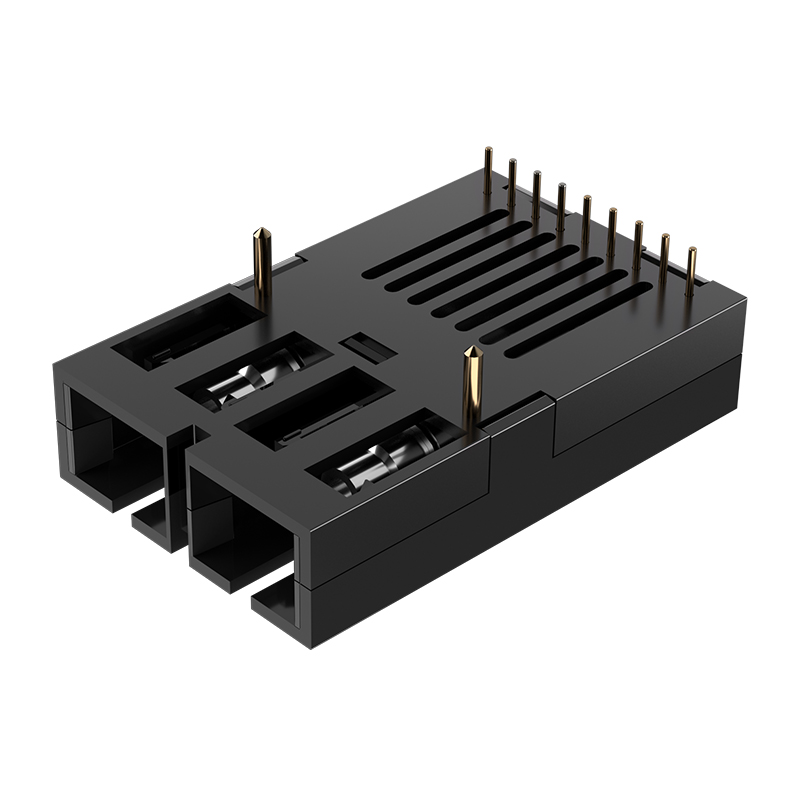

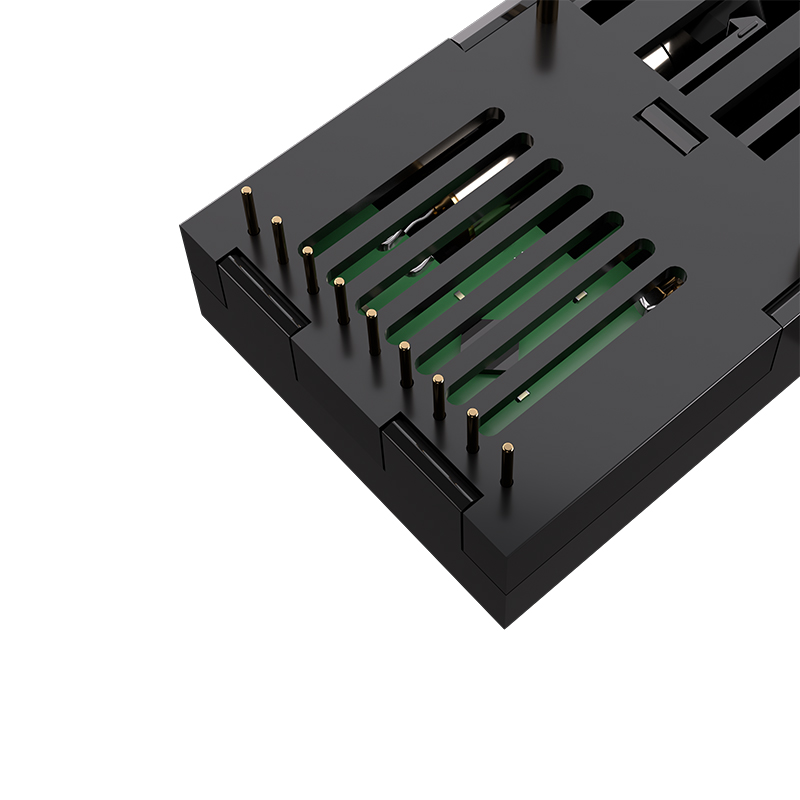

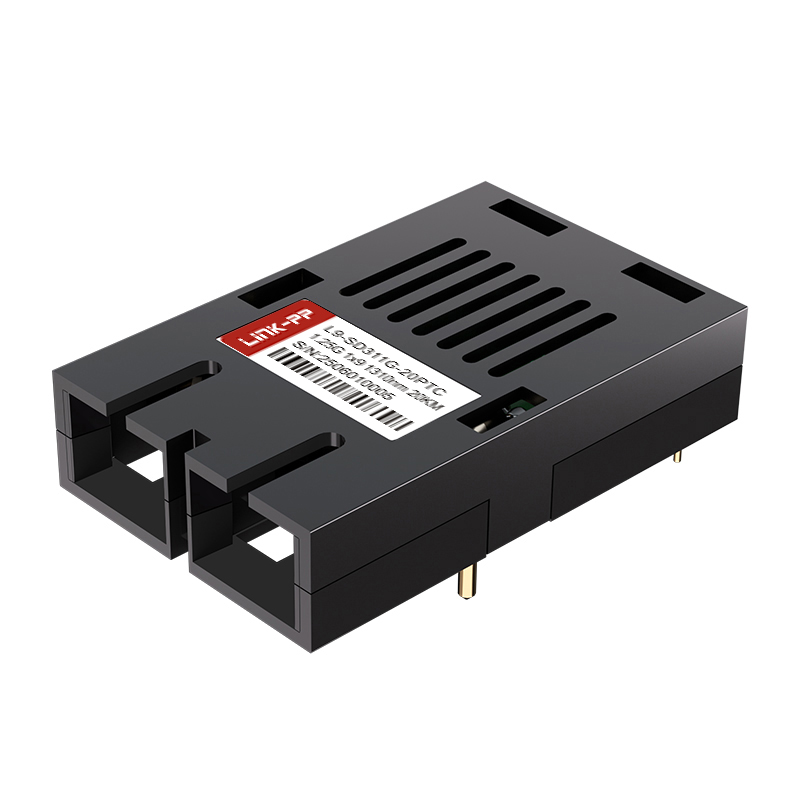

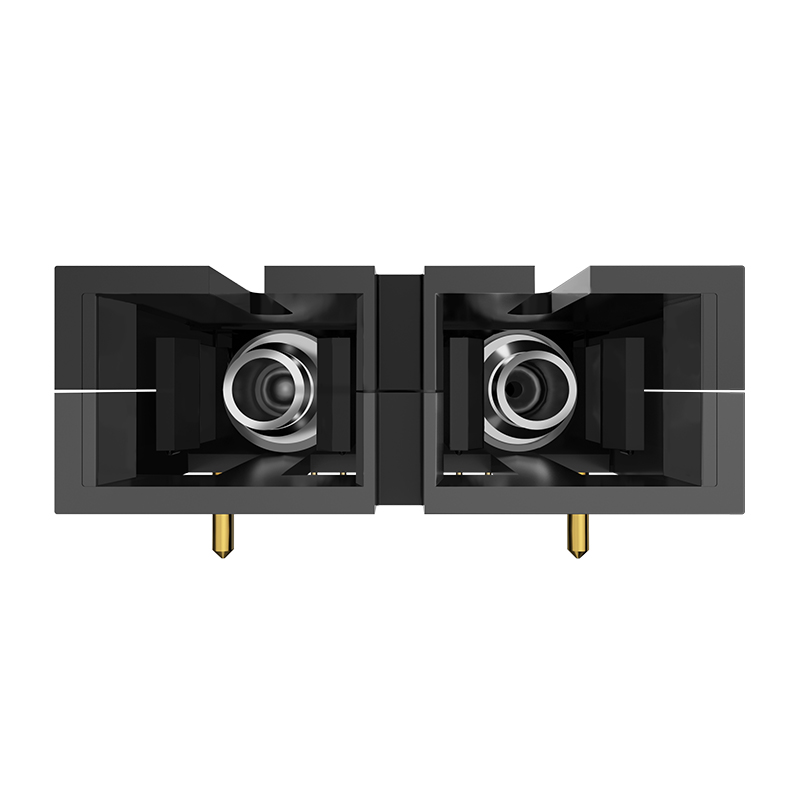

Single Mode 1.25G 1310nm Duplex SC 20km SMF 1x9 Optical Module

1 / 5

Single Mode 1.25G 1310nm Duplex SC 20km SMF 1x9 Optical Module

Send Inquiry

Product Description

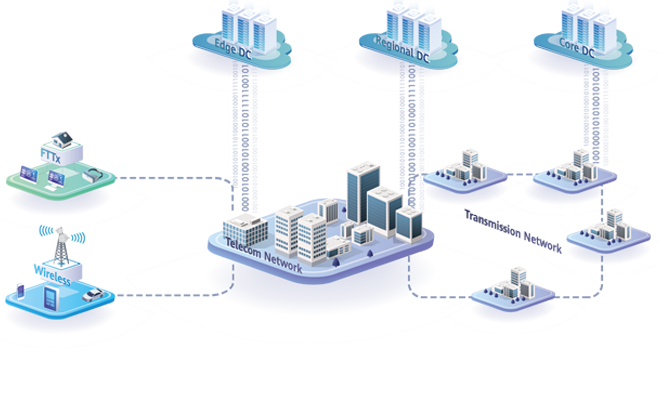

View Our Solutions

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Single Mode 1.25G 1310nm Duplex SC 20km SMF 1x9 Optical Module Specifications

Parameter	Specification Details

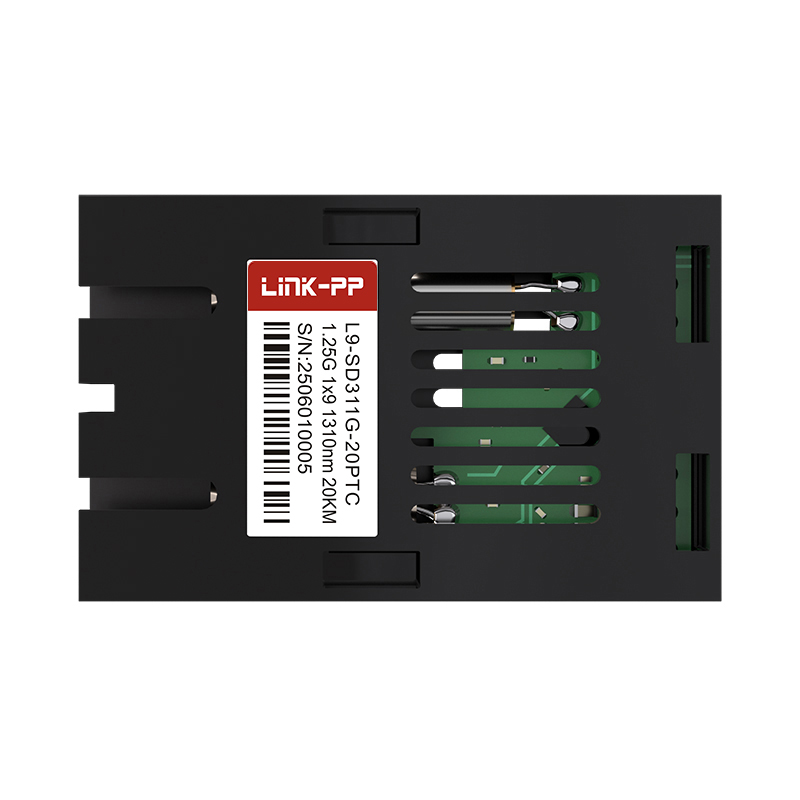

Part No.	L9-SD311G-20PTC
Form Factor	1x9
Max Data Rate	1.25Gbps
Wavelength	1310nm
Max Cable Distance	20km
Connector	Duplex SC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-10 ~ -3dBm
Receiver Sensitivity	< -23dBm
Protocols	Multi-sourced 1x9 protocol.
Temperature Range	0 to 70°C
Warranty	5 Years
Sample	Available

1x9 Transceiver Ordering Information

Model	Description
L9-SD312M-02TTC5	1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, 0°C-70°C
L9-SD312M-02TTI5	1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, -40°C-85°C
L9-SD312M-20TTC5	1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD312M-20TTI5	1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, -40°C-85°C
L9-SD312M-40TTC5	1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD312M-40TTI5	1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, -40°C-85°C
L9-SD851G-S5CTC	1x9 1.25Gbps, 850nm(Vcsel), 500m, MMF, Duplex SC, 0°C-70°C
L9-SD311G-S5CTC	1x9 1.25Gbps, 1310nm(FP), 550m, MMF, Duplex SC, 0°C-70°C
L9-SD311G-10CTC	1x9 1.25Gbps, 1310nm(FP), 10km, SMF, Duplex SC, 0°C-70°C
L9-SD311G-20CTC	1x9 1.25Gbps, 1310nm(FP), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD311G-40CTC	1x9 1.25Gbps, 1310nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-20CTC	1x9 1.25Gbps, 1550nm(DFB), 20km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-40CTC	1x9 1.25Gbps, 1550nm(DFB), 40km, SMF, Duplex SC, 0°C-70°C
L9-SD551G-80CTC	1x9 1.25Gbps, 1550nm(DFB), 80km, SMF, Duplex SC, 0°C-70°C

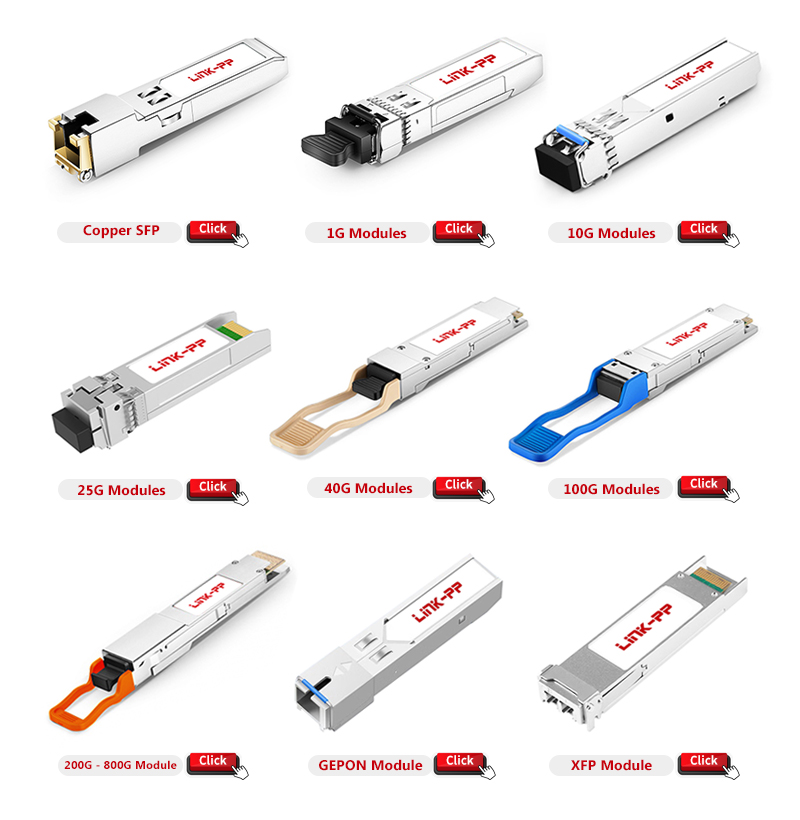

Support Full Range of Optical Transceiver Solutions

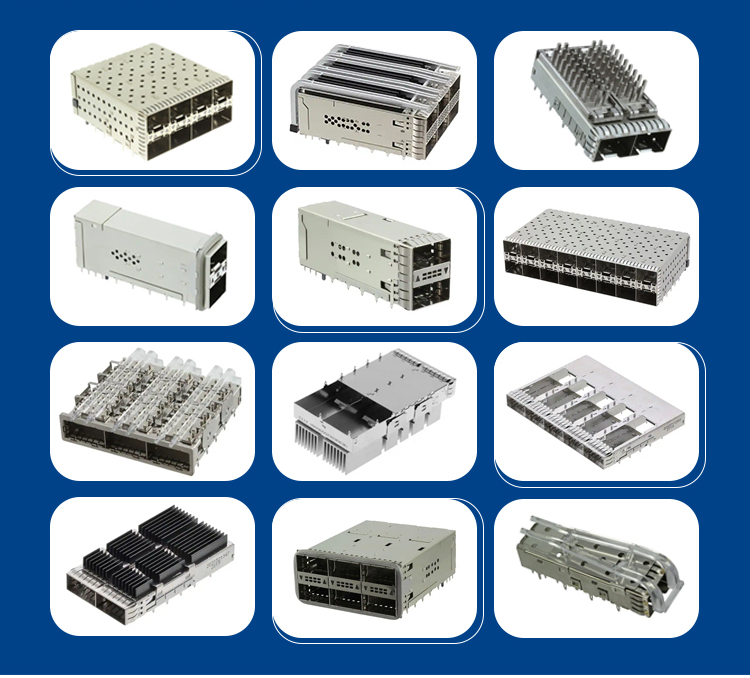

Related Products SFP Cage

Why Choose Us

Company Profile

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our production facility was established in 1997, and we currently have about 2000 employees. With the abundant production capacity of 3000K per month, we are able to deliver products within a short lead time.

In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.

Frequently Asked Questions

1. Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and related components.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test the quality, although the shipping fee needs to be covered by the customer.

3. What is your delivery lead time?

We have products ready to ship for stock orders, and the standard turnaround time for mass production is typically 15 to 30 days.

4. What after-sales service support do you offer?

We offer a comprehensive one-year guarantee period along with 24-hour online professional technical support to solve any deployment issues.

5. Do you accept customized OEM/ODM orders?

Yes, we support OEM/ODM designs. Please send us your specifications and technical inquiry so that we can proceed with a detailed project review.

6. What are your main manufacturing advantages?

We have over 19 years of dedicated manufacturing experience, high volume capacity, strict QC systems, and long-standing partnerships with global technology leaders.
