Home > 100G/200G/400G Module > 100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

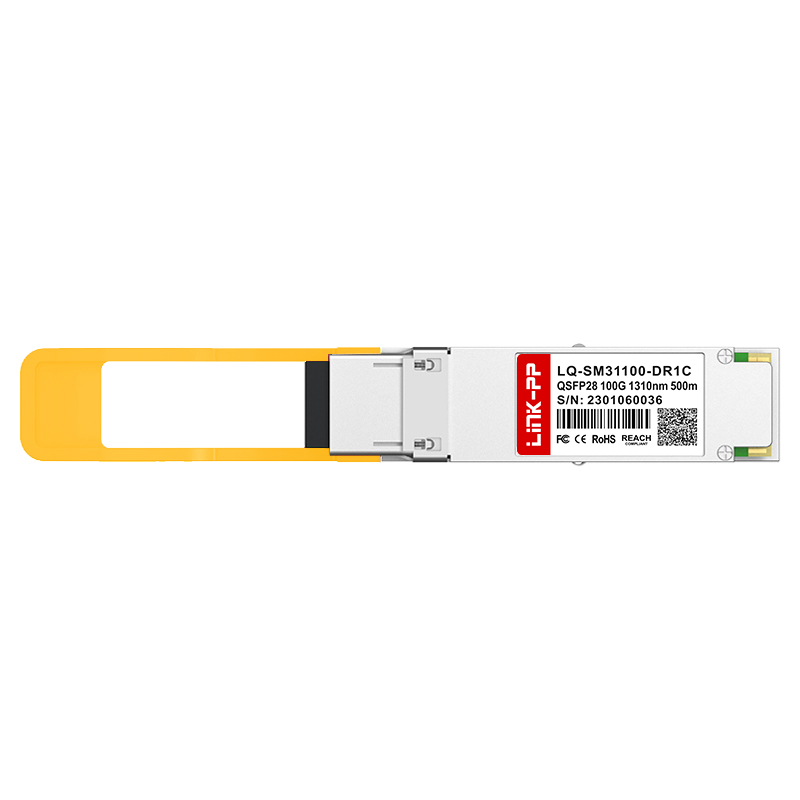

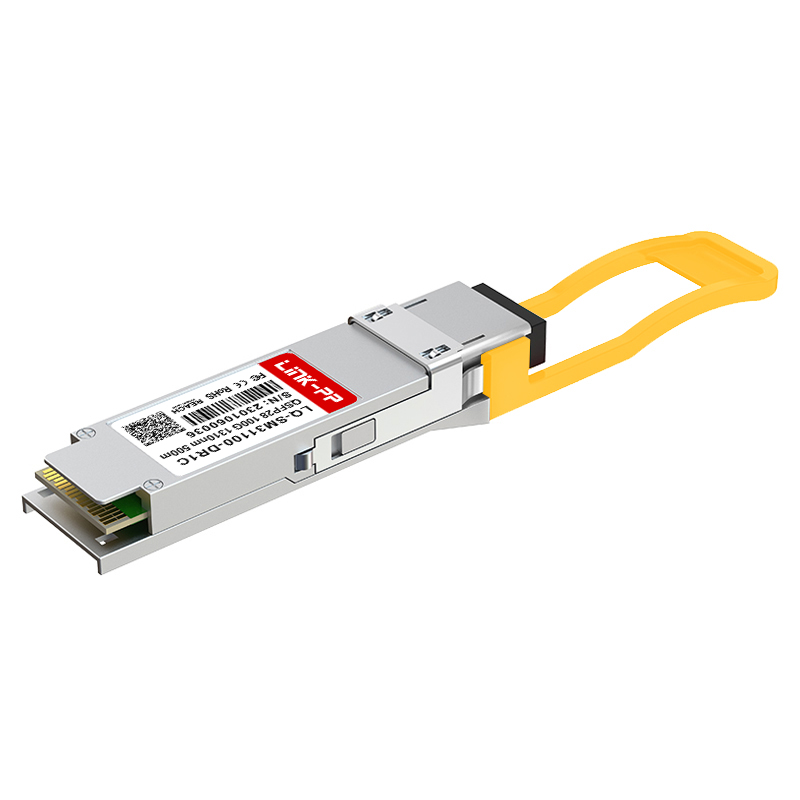

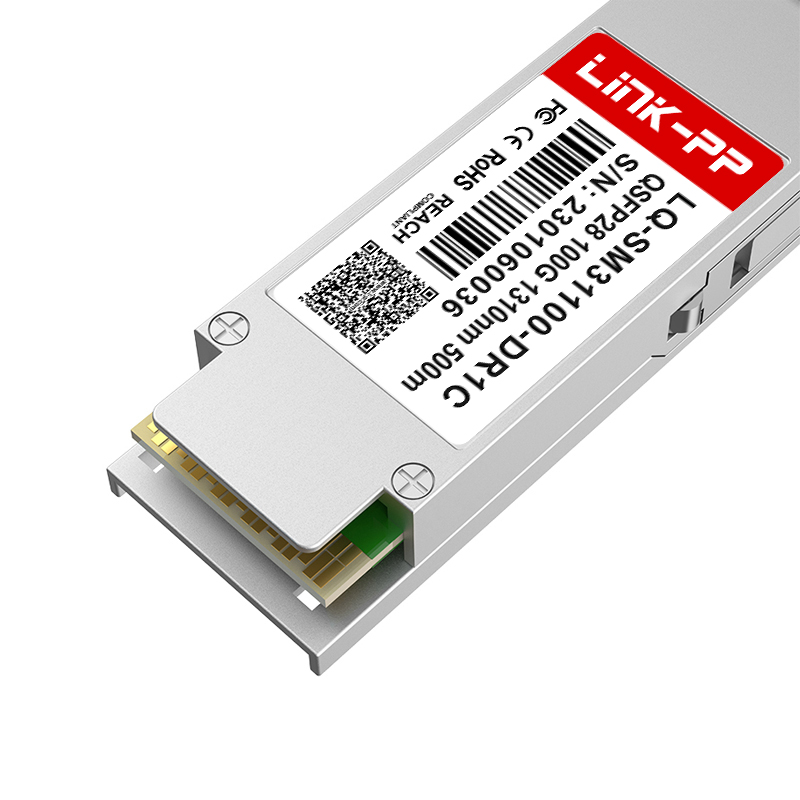

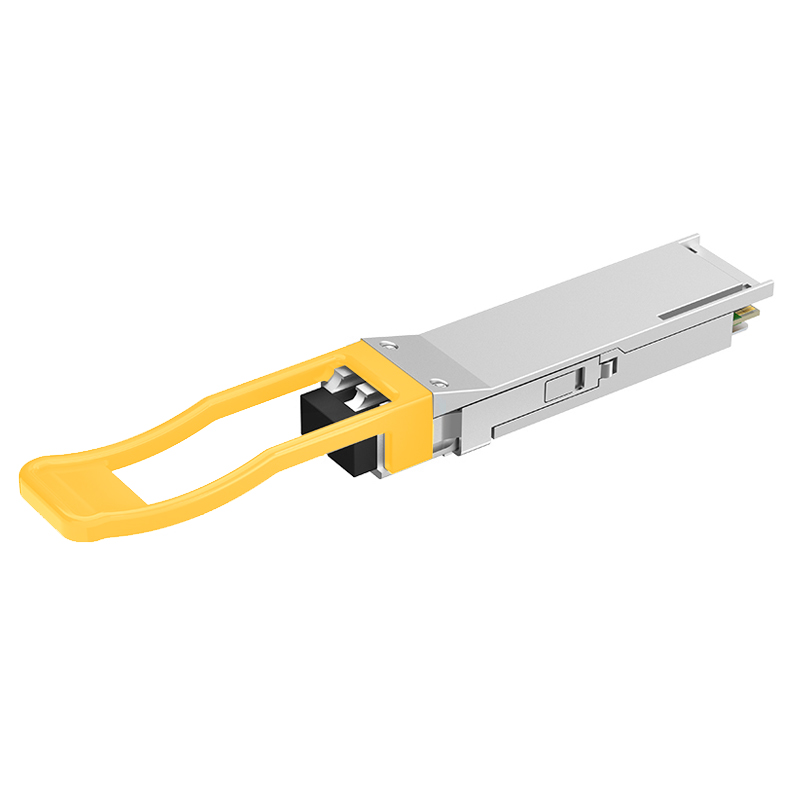

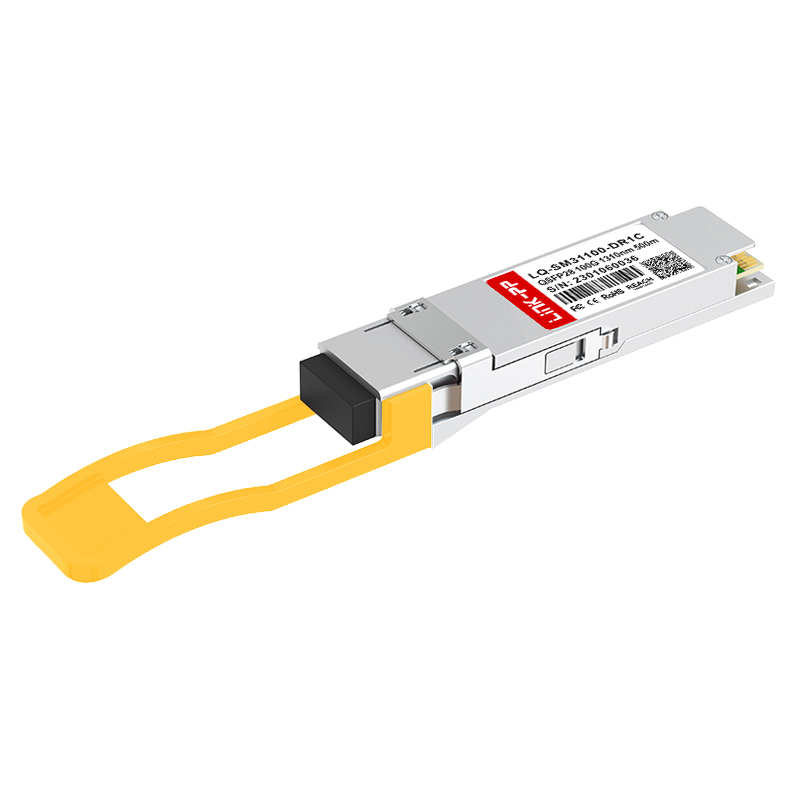

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
1 / 5
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module

Send Inquiry

Product Description

100GBASE-DR Single Lambda QSFP28 100G 1310nm 500m Duplex LC SMF Optical Transceiver Module
Part No. LQ-SM31100-DR1C
Form Factor QSFP28
Max Data Rate 100Gbps
Wavelength 1310nm
Max Cable Distance 500m
Connector Duplex LC
Media SMF
Transmitter Type EML
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols IEEE 802.3cd 100GBASE-DR Specification compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
