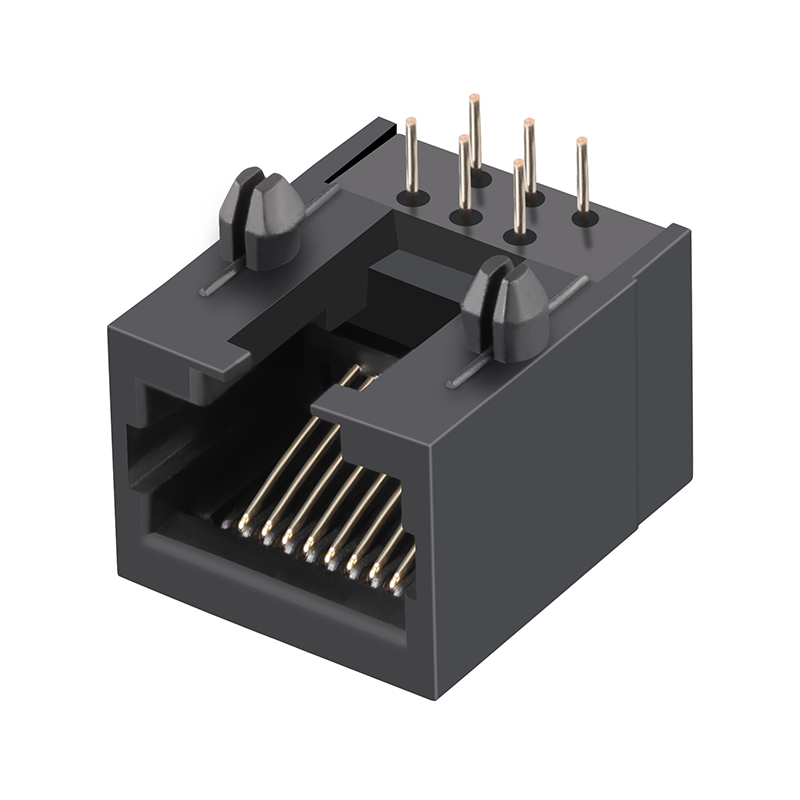

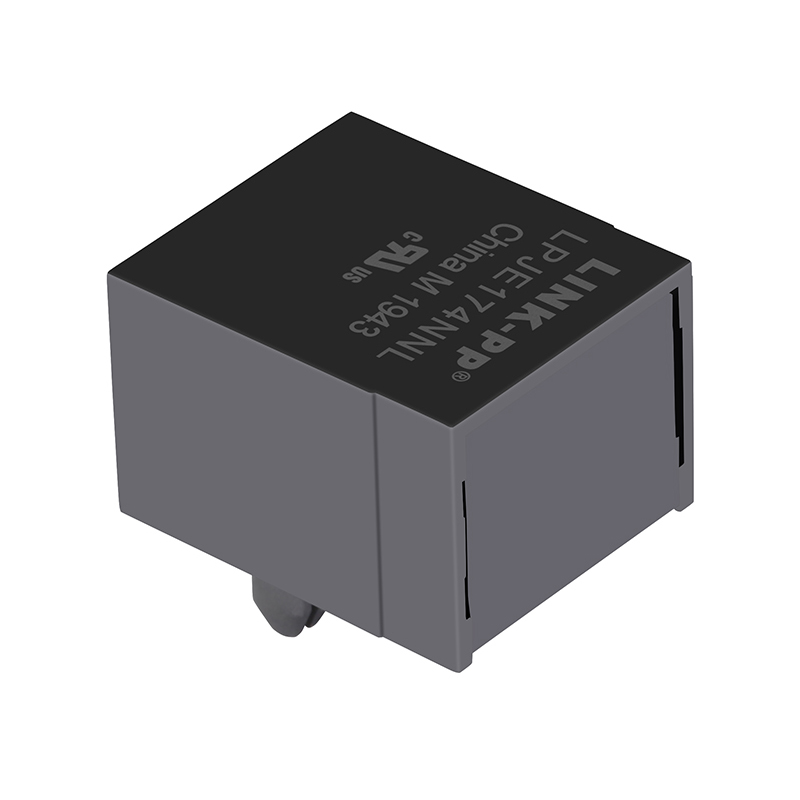

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack

1 / 5

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJE174NNL
Compatible With	S11-ZZ-0159
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	6p6c (RJ45, Ethernet)
Application-Lan	Ethernet (Non PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Down
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Without
PCB	FR4
PCB Retaining Post	T POST
Temperature	-40°C TO 85°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Products Options Overview

Company Profile

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities.

As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to providing top-tier Ethernet RJ45 connectors and LAN transformers worldwide.

FAQ

Q Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q Can I get a sample before mass production?

Yes, we can offer free samples for quality evaluation purposes, with shipping costs covered by the buyer.

Q What is the delivery lead time?

In-stock items are ready to ship immediately, while standard mass production orders typically require 15 to 30 days.

Q What after-service support do you offer?

We provide a comprehensive one-year warranty period along with dedicated 24-hour online technical support.

Q Do you accept OEM or ODM orders?

Yes, custom OEM and ODM orders are welcome. Please contact our team to discuss your specific requirements.

Q What are your main manufacturing advantages?

We offer over 19 years of dedicated production expertise and have established stable partnerships with multiple global industry leaders.
