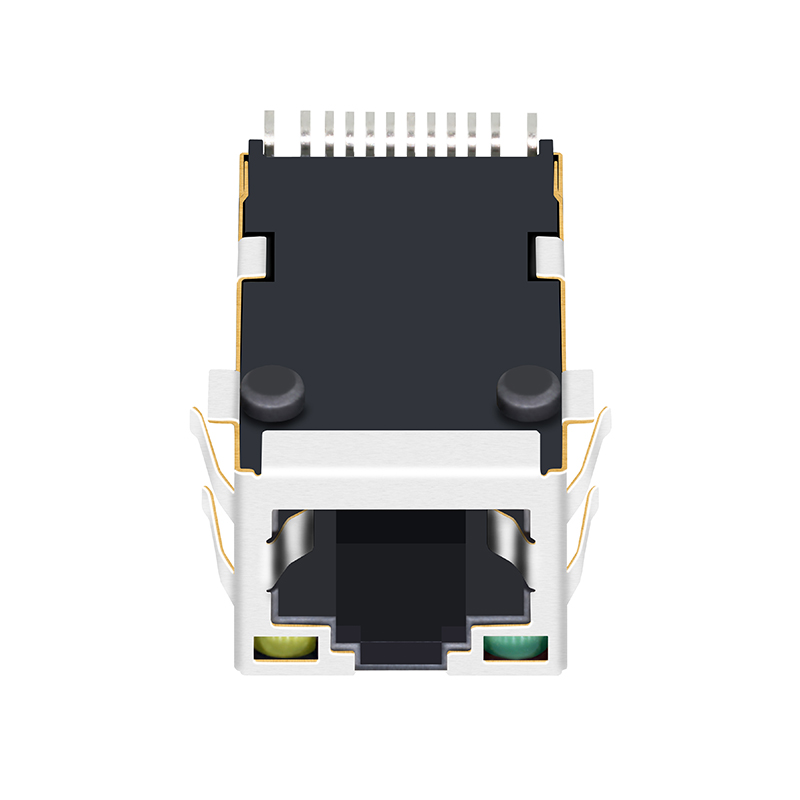

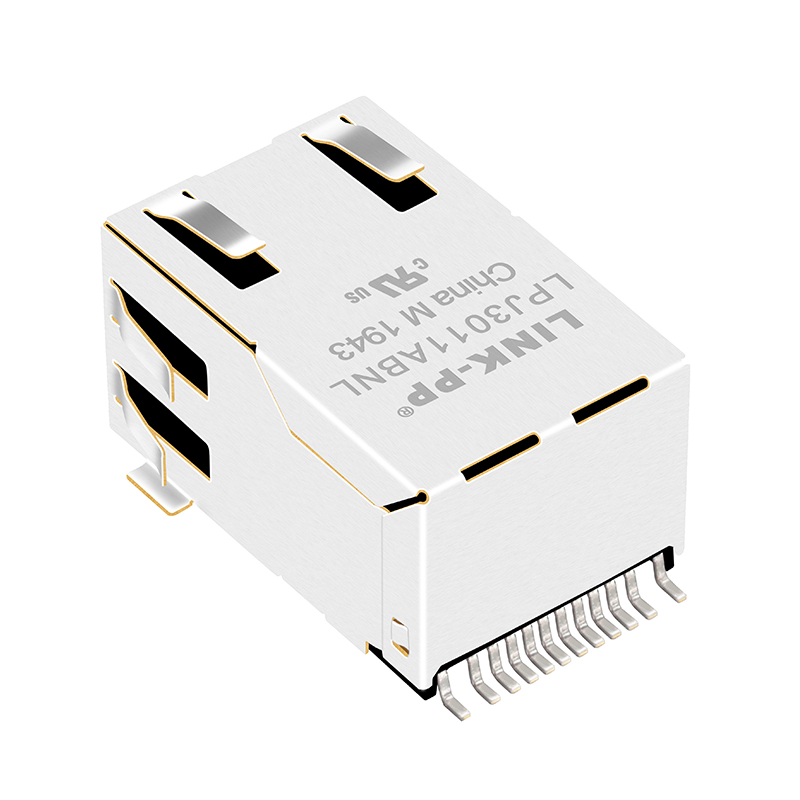

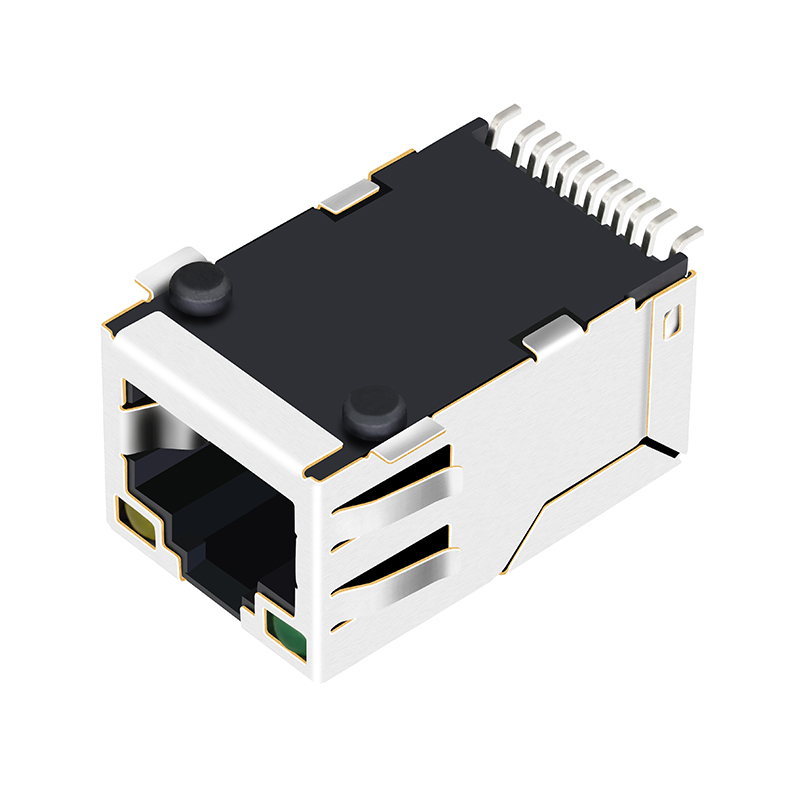

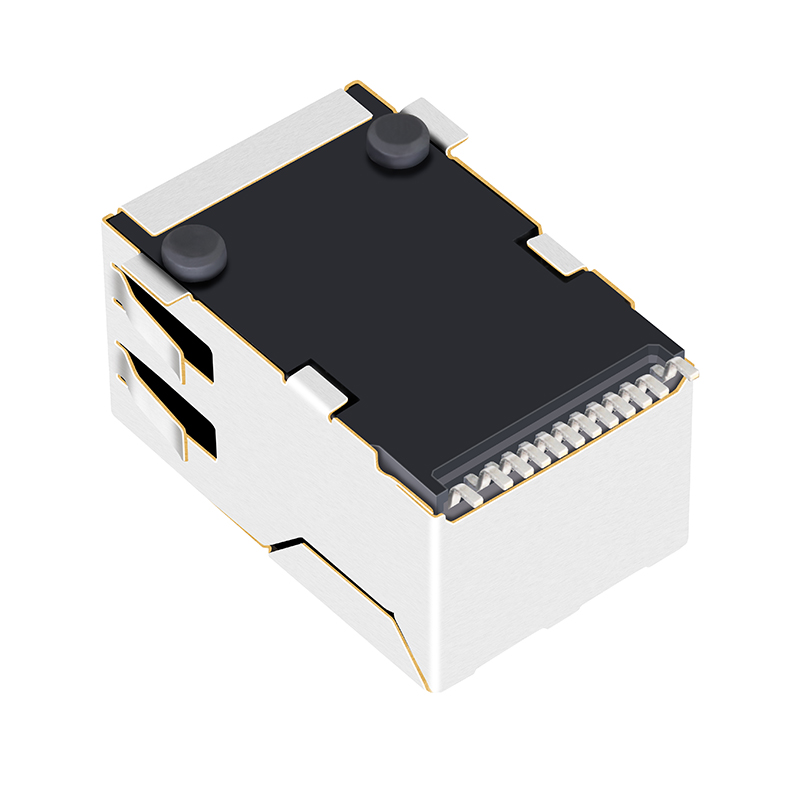

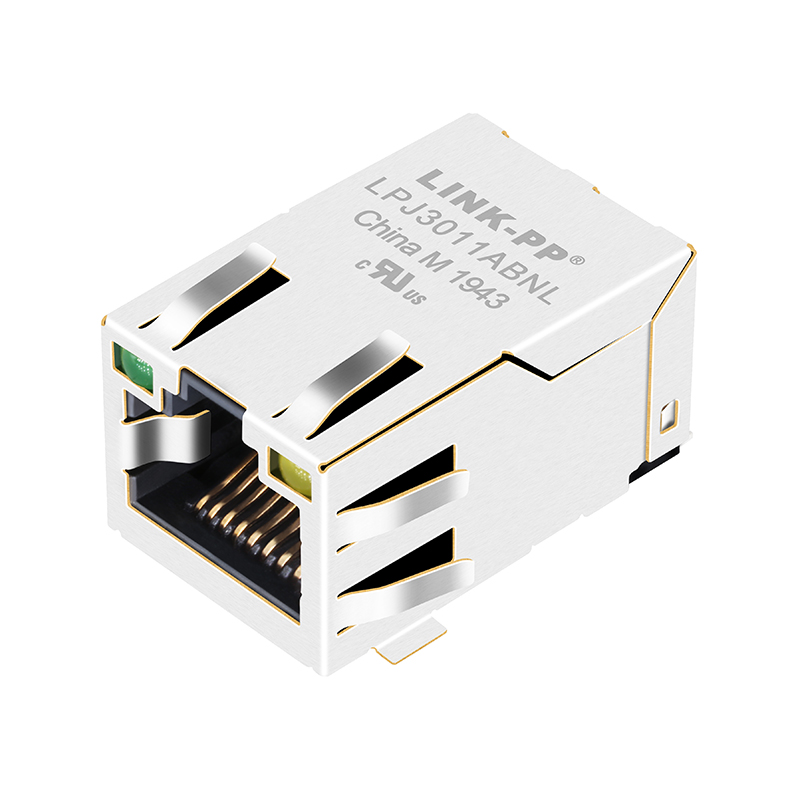

SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
1 / 5
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL

SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL

Send Inquiry

Product Description

SMT RJ45 10/100 Base-T Tap Up With Leds RJ-45 Female Connector LPJ3011ABNL
SMT RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Front View
RJ45 Side View
Connector Drawing 1
Connector Drawing 2
Connector Drawing 3
Connector Drawing 4
RJ45 Product Categories
Product Feature 1
Product Feature 2
Product Feature 3
Product Feature 4
Product Feature 5
Product Feature 6
Factory Overview 1
Factory Overview 2
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should cover the shipping fee.
What is your delivery time?
Items that are in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion about your specific requirements.
What is your advantage?
We have 19 years of professional production experience and work closely with leading global electronic partners.
